uPVC Door Handle Spring Cassette CAM Replacement
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~42 g
- Print time
- ~2.3 h
- Express shipping
- $20
More information

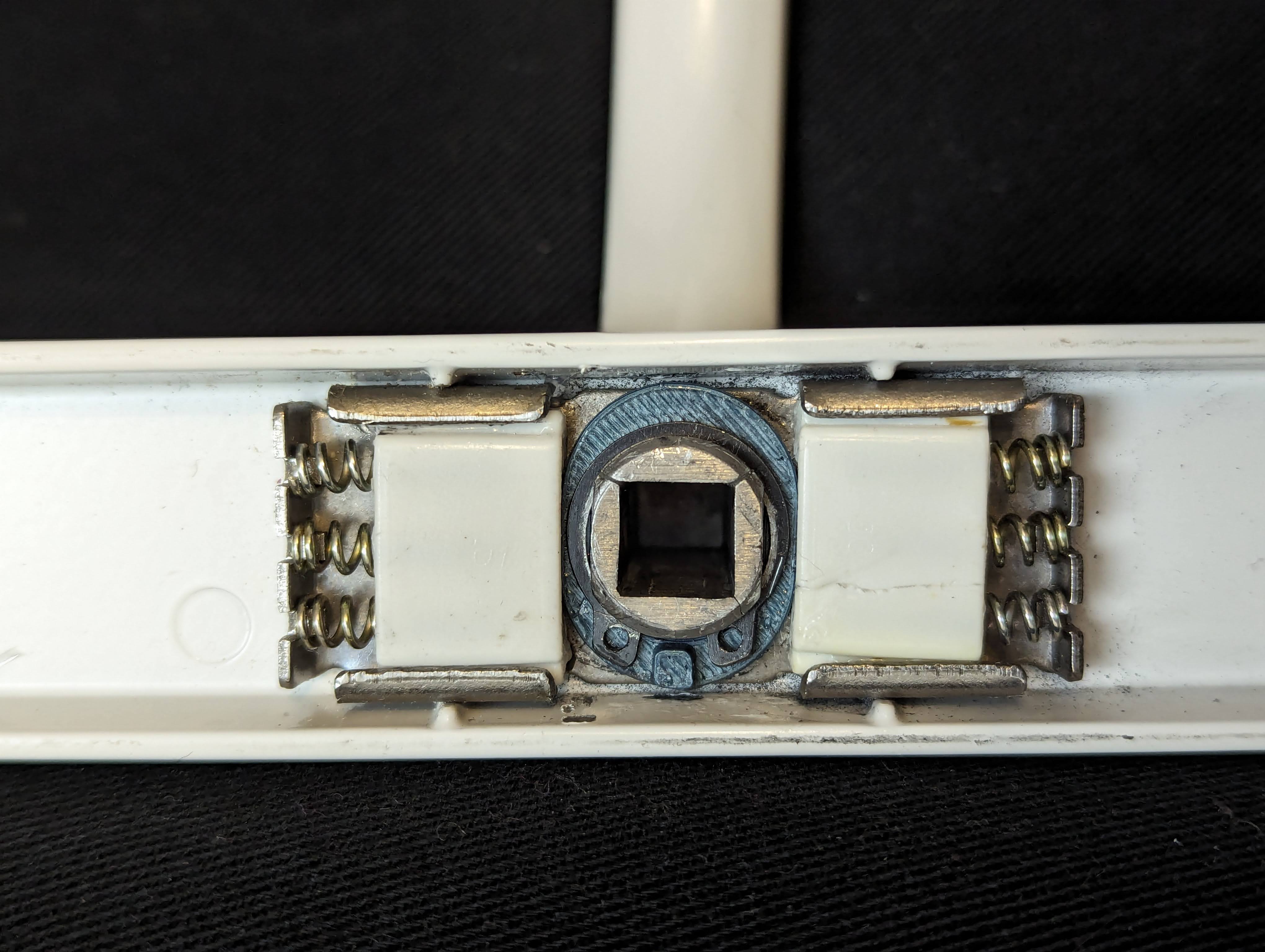

A simple replacement CAM part for a uPVC front door handle.
The original metal part had somehow broken into pieces, but this replacement got me up and running again. It does not transfer force to the door lock mechanism, it just acts to make the door handle return to the "default" position.
You will need to apply some silicone grease, or similar, to allow it move freely and get the best performance.
Part fits door handle with spigot diameter of around 15mm with the square sides measuring 13mm side-to-side.
CAM is about 23.5mm "tall" and 19mm wide.
FreeCAD file created with LinkStage3 fork included in case you wish to modify.
Design and description by JS , licensed CC0.
More 3D printed door handles and knobsMore 3D printed replacement parts
Frequently asked
How long does shipping take?
uPVC Door Handle Spring Cassette CAM Replacement is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
