variable horizontal toggle clamp
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~25 g
- Print time
- ~1.4 h
- Express shipping
- $20
More information
I wanted some of those variable holddown clamps, but i am too cheap to buy them. So i designed these in CAD. Everything is designed for M6 screws, as i use this size for everything.

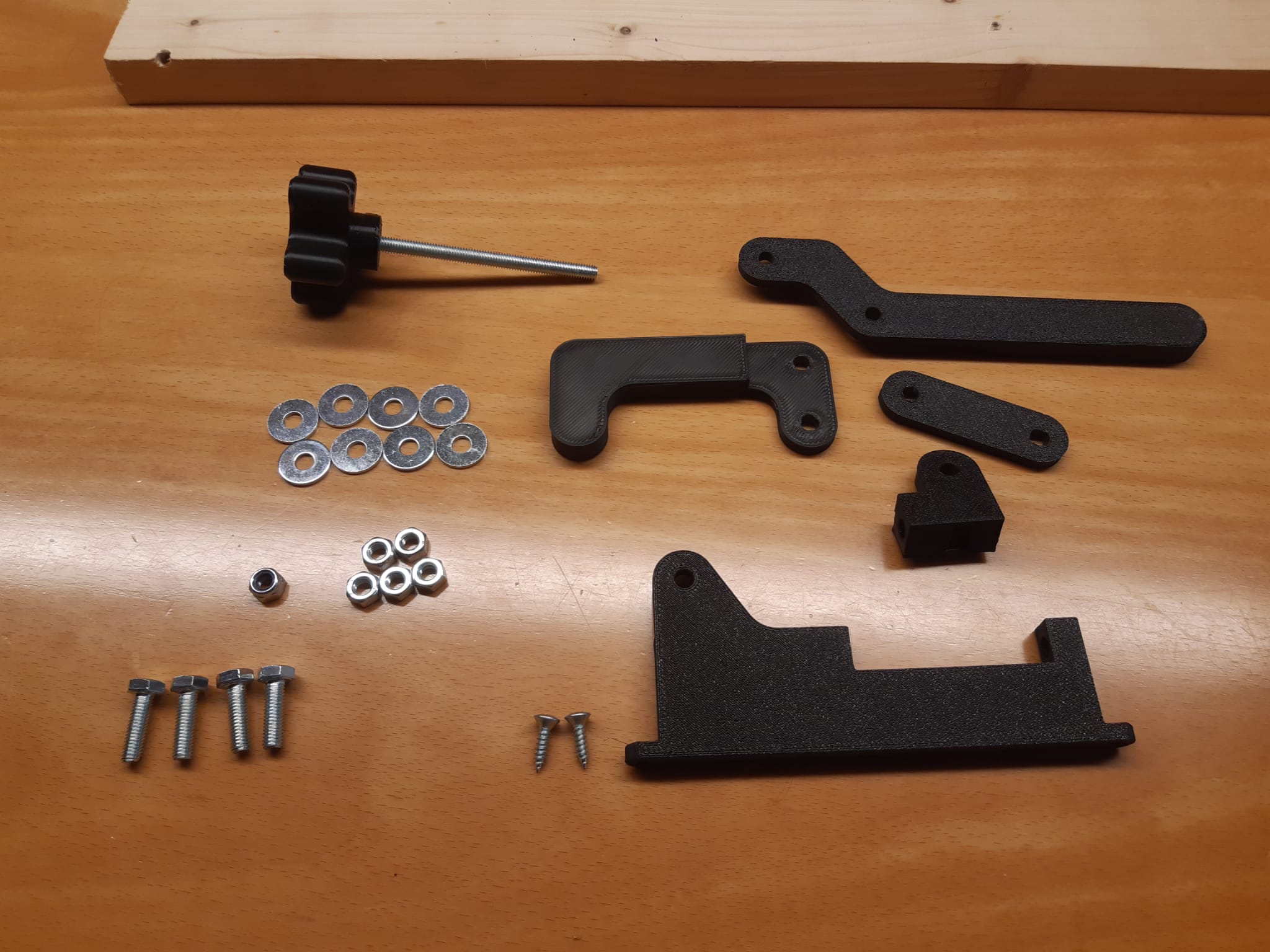

Hardware needed: 4x M6*20, 8 Washes, 1x M6*100, 1x M6 nut, 5x M6 Locknut.
you will also need a knob for the M6*100 screw (i used my own https://www.printables.com/de/model/508638-knob-for-m6-screw) and hardware to screw the clamp down.

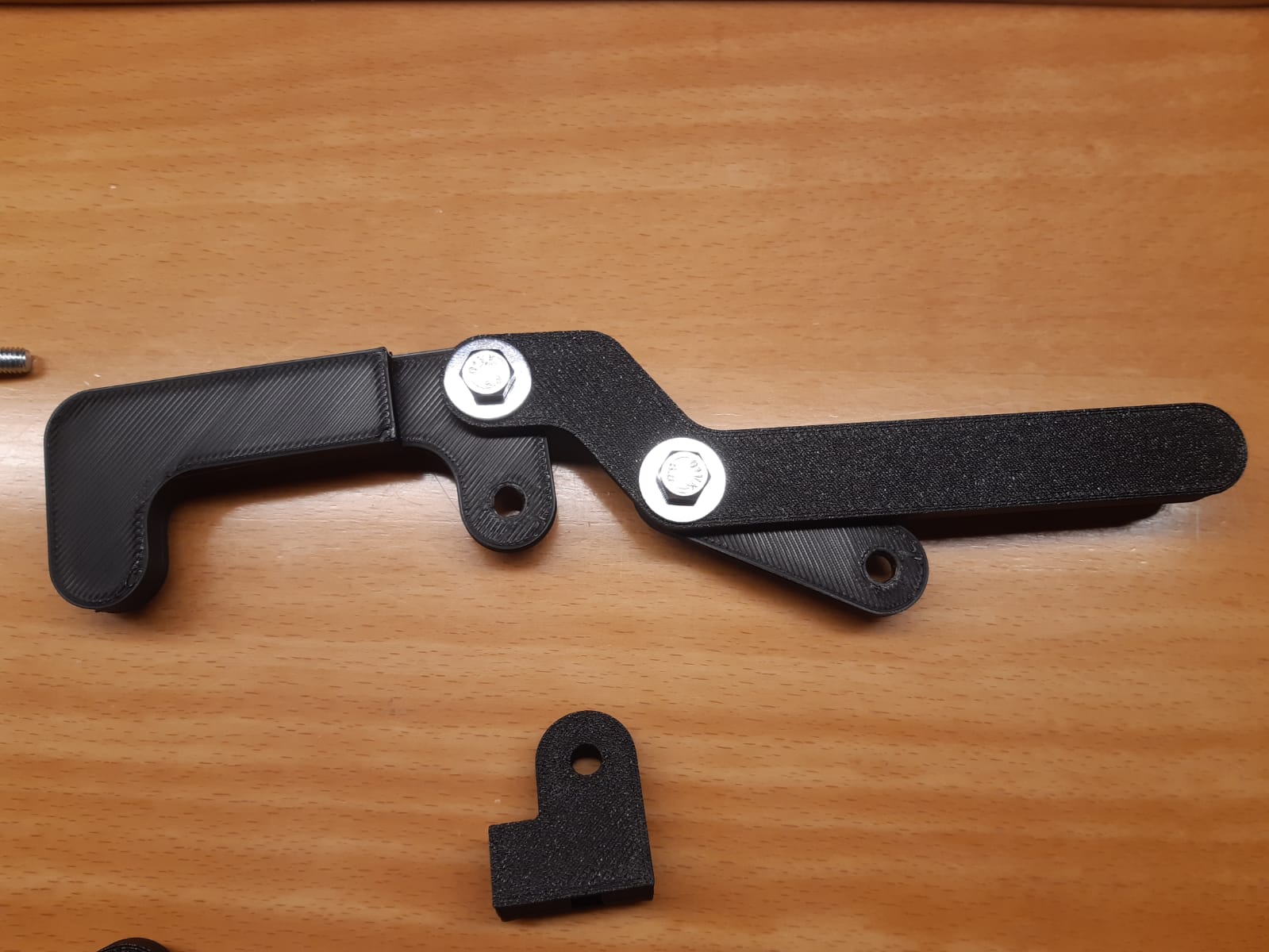

It should be easily assembled, just pay attention to insert a normal nut (not a locknut) in the bottom of the slider, and it unfortunately takes a long time to thread the locknut on the M6*100
Design and description by pflotschhoger , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
variable horizontal toggle clamp is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
