Voron 0.2 Reinforced magnetic door handle and latch
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~76 g
- Print time
- ~4.2 h
- Express shipping
- $20
More information
I felt the original magnetic door latch and handle pair was a bit on the weak side. I didn't feel satisfied using them. Maybe I just had crappy magnets. So, I made a version with more slots to insert magnets into and in the process made the handle a bit taller to better suit my fat sausage fingers.

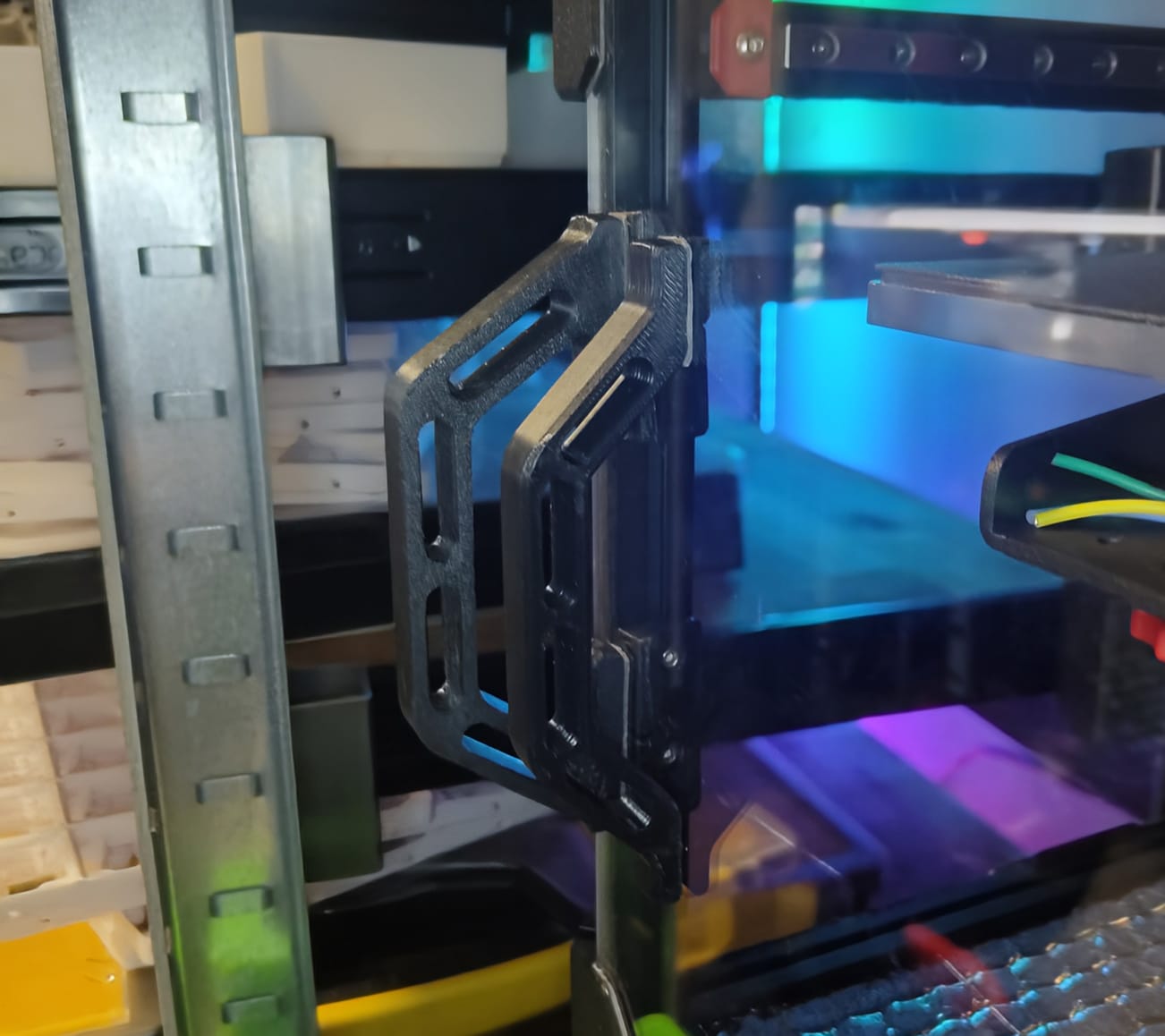

Handle

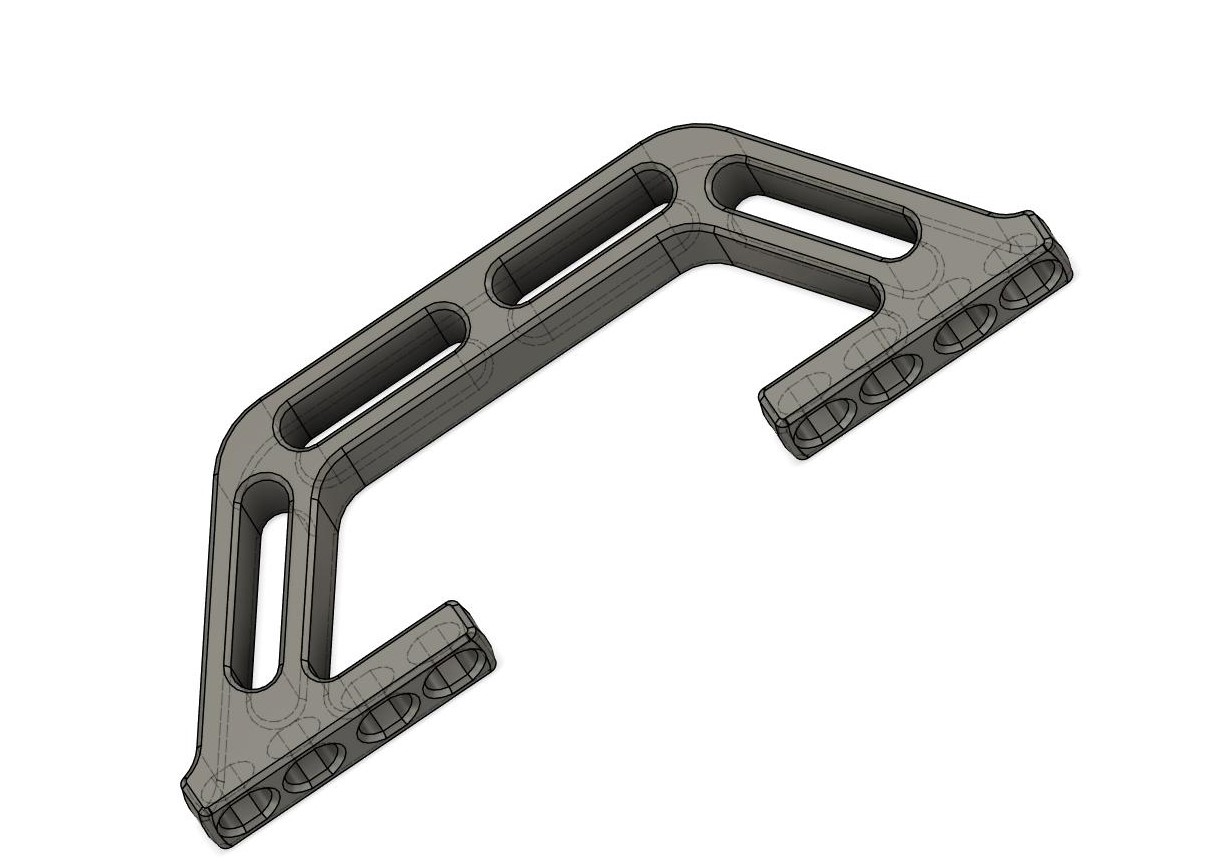

Handle now features 8 holes in it to fit magnets. I only had Ø6 by 4 millimeter magnets, so the holes fit them now. Of course you can still use Voron spec 6x3 magnets, just don't push them all the way in (superglue recommended in both cases).

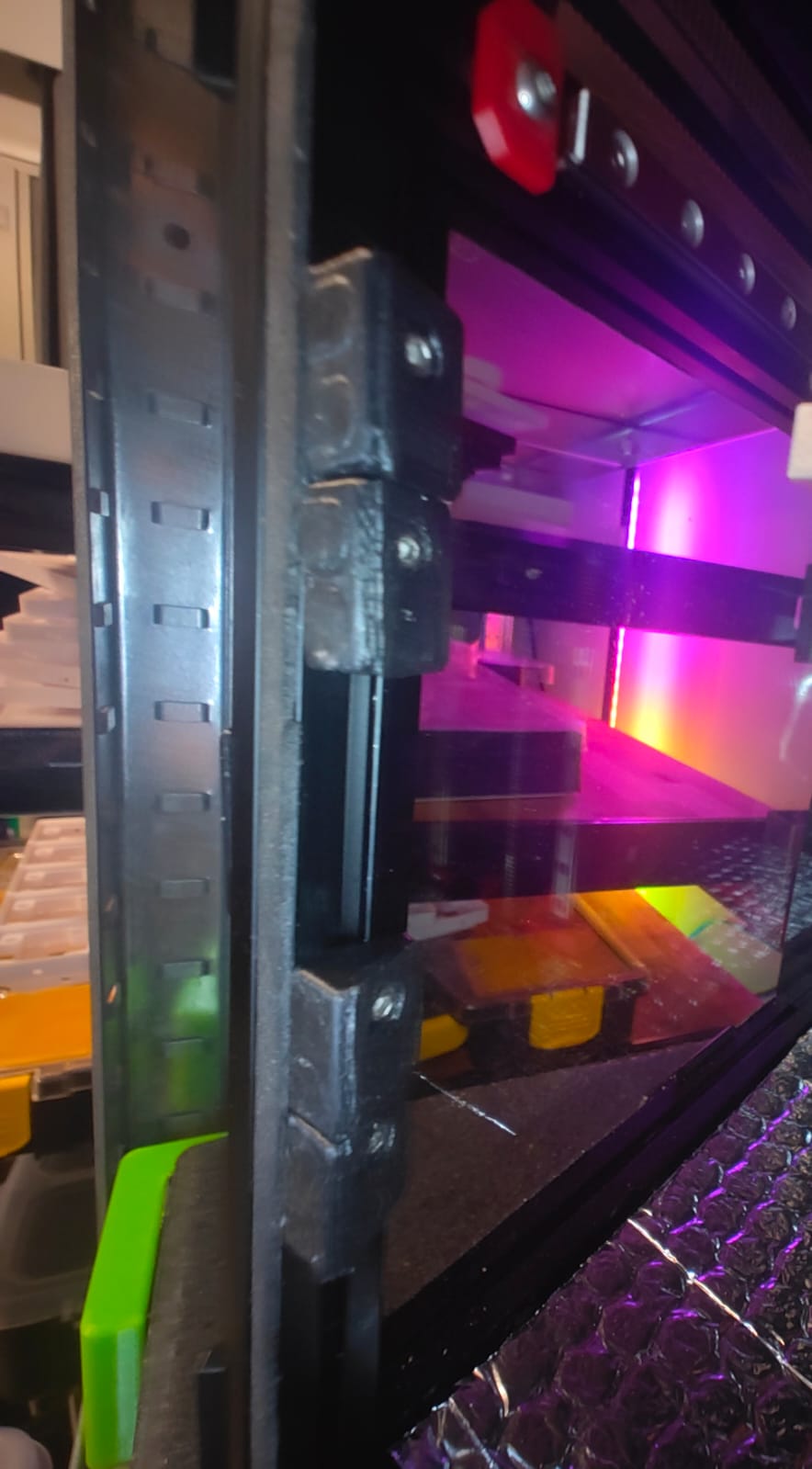

Latches
Latches, which you will need four, have also been modified for 6x4 magnets and they're secured with only one m3x8 BHCS or SHCS (or really any kind of) screw, so you don't have to install new nuts in the 1515 profile (which is a nightmare).
Printing
My suggestion is to print this with PETG or ABS depending on how crazy you get with your chamber temps.
You can use supports on the latch, that might make for a cleaner-looking print, but not required. I printed these with a 0.6 nozzle and faced no issues without supports, your mileage may vary.
Model of course inspired by Voron Design.
Design and description by Ghostbuster , licensed CC0.
