Voron 2.4 Magnetic door hinges
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~31 g
- Express shipping
- $20
More information

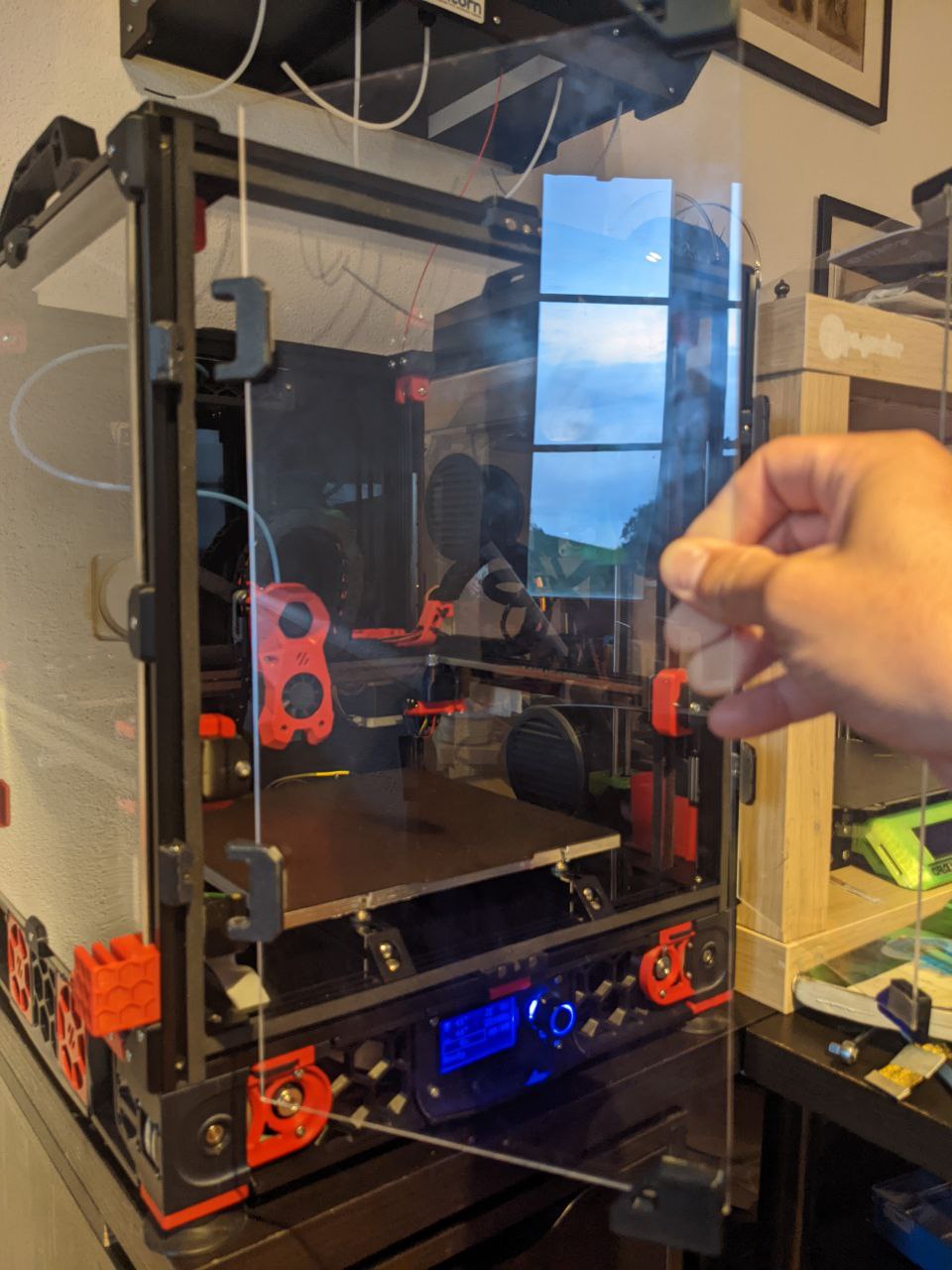

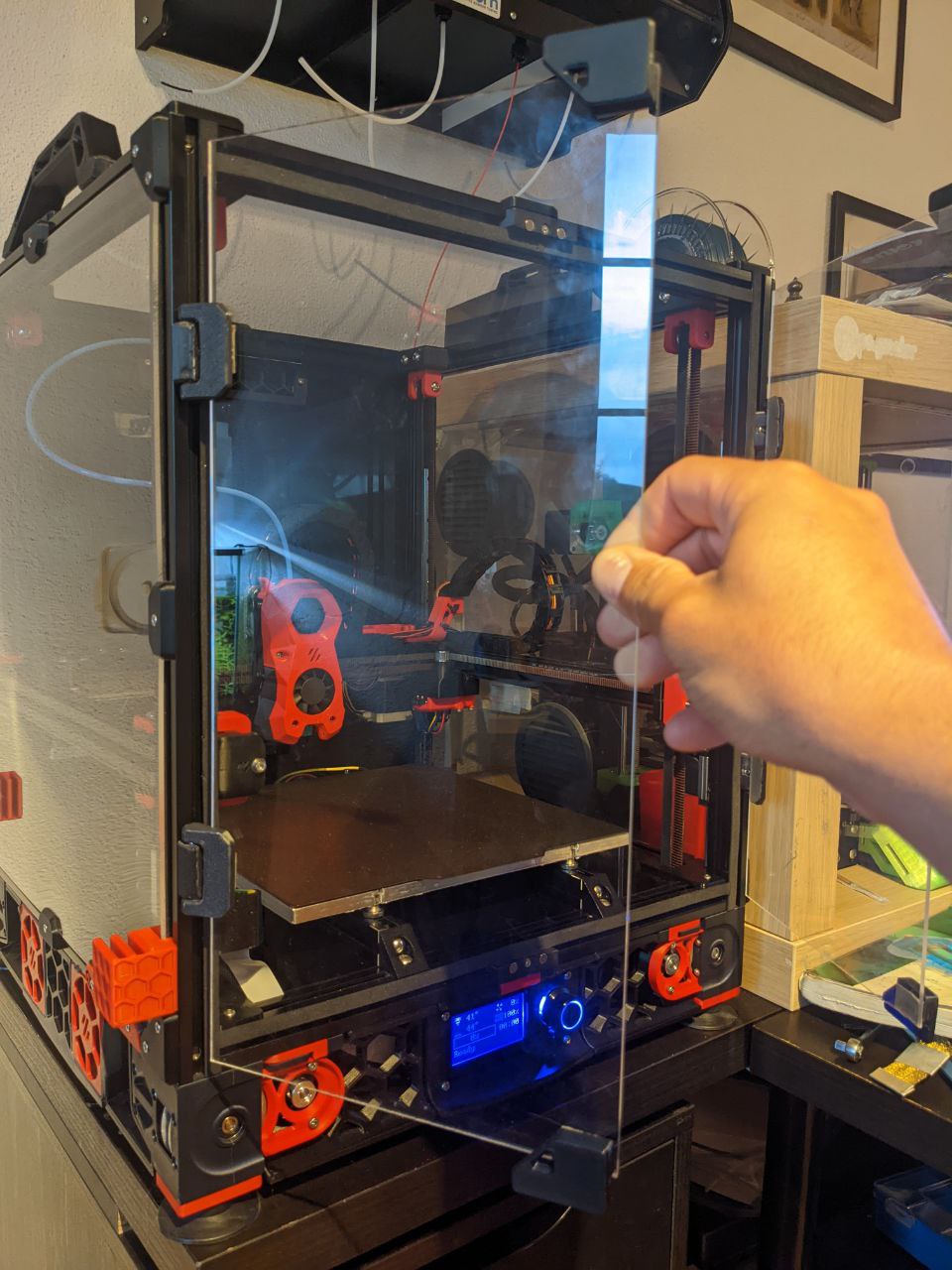

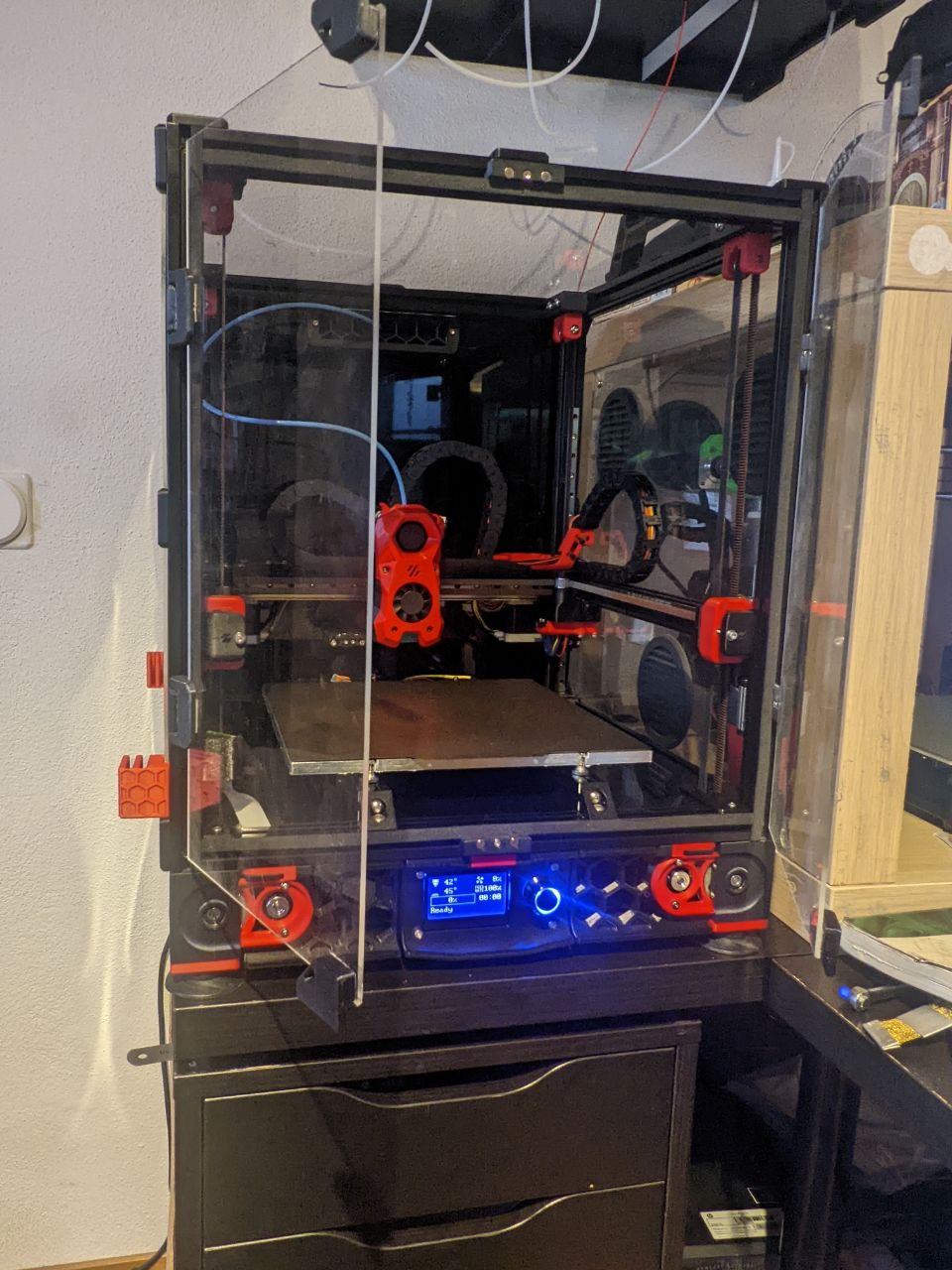

This design allows a quick an easy door removal/installation for the Voron2.4.
Removing the door can be helpful for maintenance work on the printer or for printing PLA.
Once removed the doors can be stored on the side of the printer in the door holder.
BOM
• 6x Screw M3x8 (4x for hinges / 2x for door holders) • 6x T-Nut M3 • 16x Magnet Ø6x3 • Glue • VBH tape
Installation.
Door hinges
Glue the magnet inside the hinge's holes (4x magnets per hinge)
/!\ pay attention to the orientation of the magnet /!\
Use VHB tape to link the hinges to the front door panel (as for the original design)
Install the hinges on the aluminum profil with the 4x M3x8 screws and 4x T-Nut M3
Door holder
With 2x M3x6 screws and 2x T-Nut M3 install the door holder on one of the side of the printer
Print instruction
No support needed
Design and description by PALM , licensed CC0.
Frequently asked
How long does shipping take?
Voron 2.4 Magnetic door hinges is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
