VW ID.3 USB cable management - Improved version
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~11 g
- Express shipping
- $20
More information
An over engineered cable guide for USB cables that snaps into place in multiple versions.
This allows for feeding USB cables out of the
Changelog
VersionDescription
initial06.08.2024
v1.107.08.2024
• Fixed wrong offset for right aligned holes • Increased model length (Y-axis) to better support the holes • Added UpsideDown versions in order to print the visible part on the print bed
How to print
Print settings
Use PETG or similar for heat resistance as this will be used in a vehicle that easily reaches up to 50 °C.
Do use supports for the upside down variant.
Print with 0.10 layer height for best results.
Use a black matte filament (I used a normal black filament which is a little bit too "shiny”). I will reprint this in a different filament and will update the images.
Standard vs. Upside down
The standard model will be print with the bottom part of the model (facing the bottom of the center console) on the print bed. This may look “strange” depending on your printer capabilities for beautiful top layer.
For that reason, I've added upside down versions with v1.1 - these will be printed with the driver facing side of the model on the print bed.
Here are images for comparison - choose to your liking:

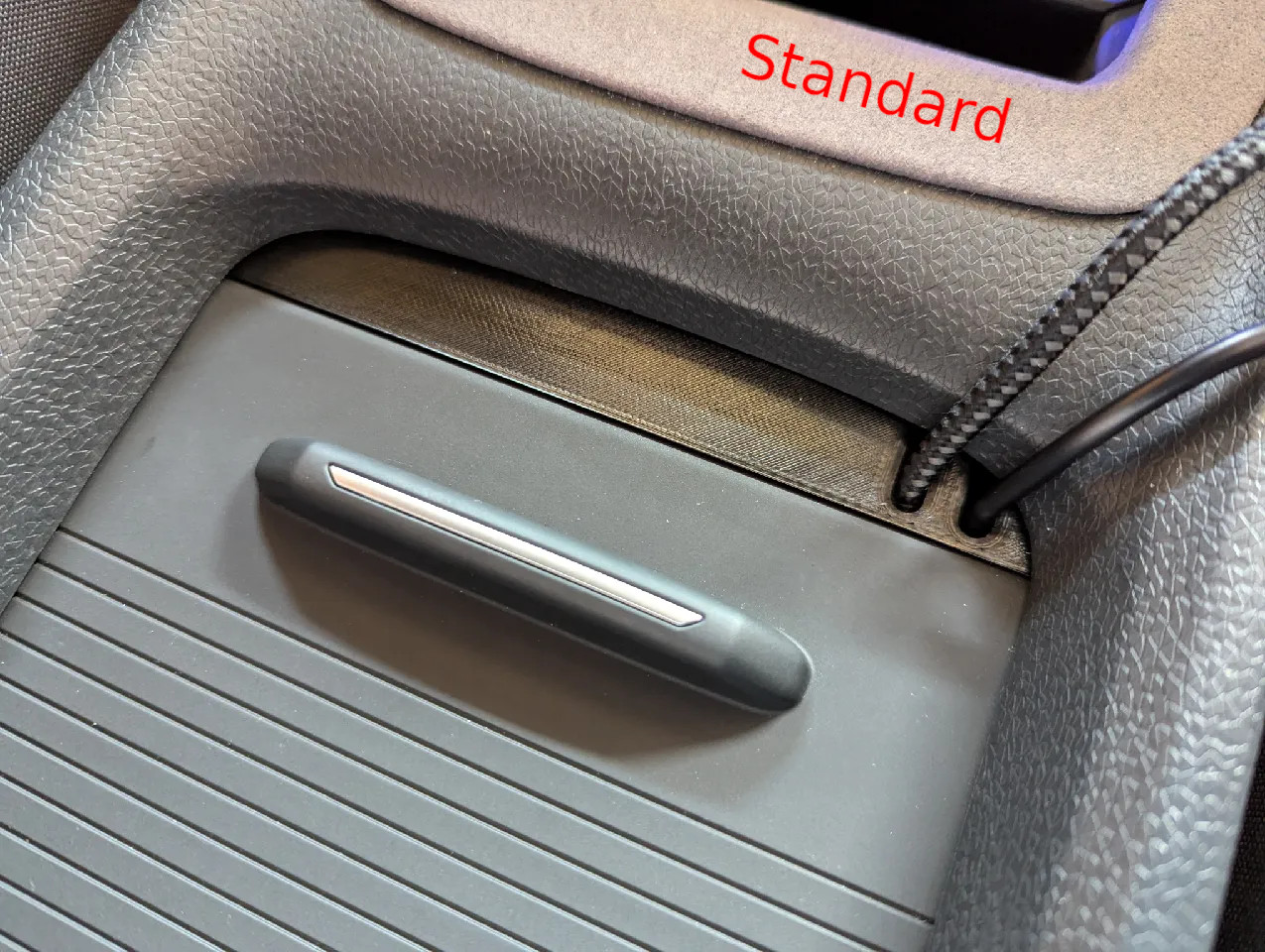

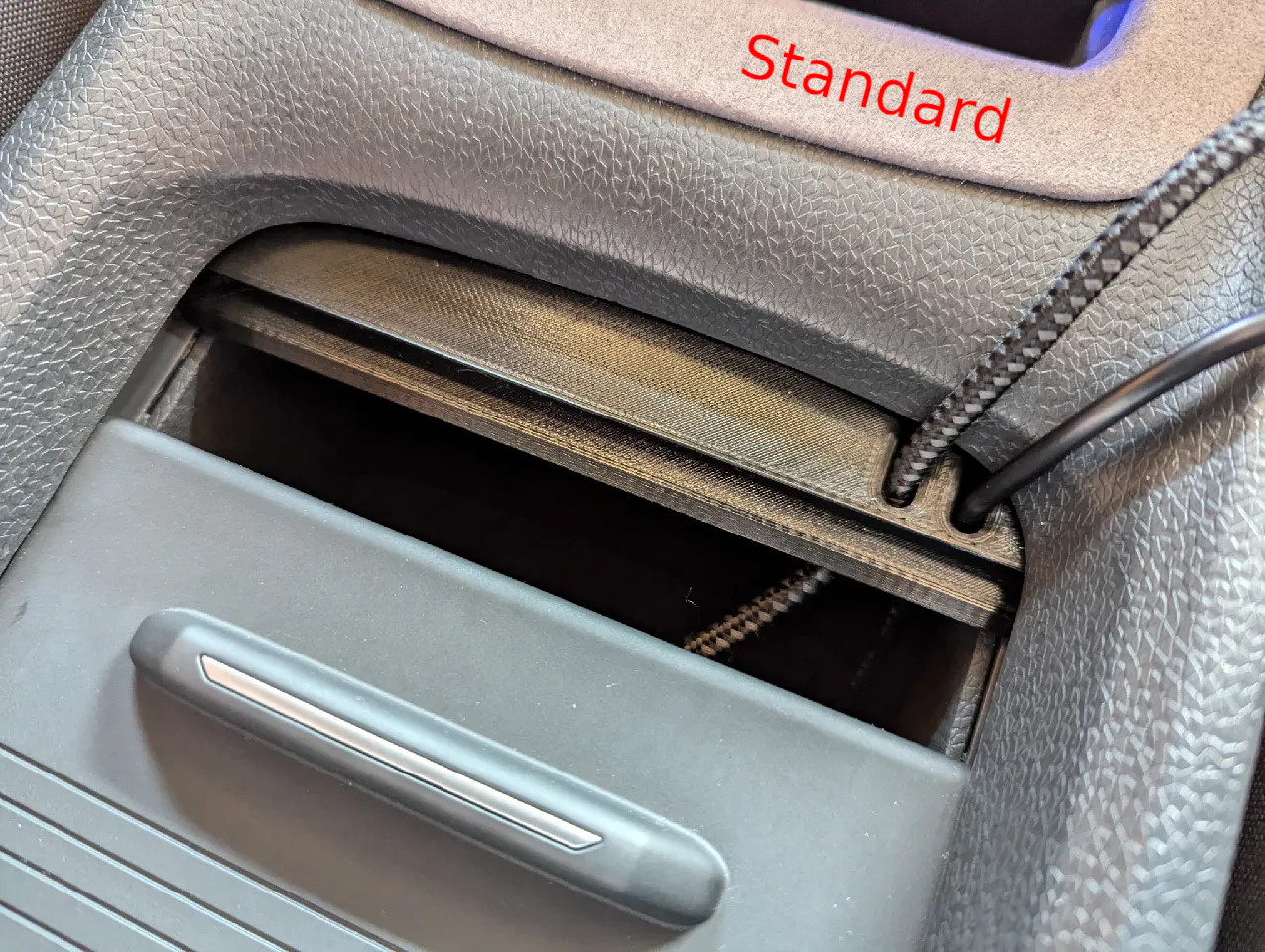

Standard

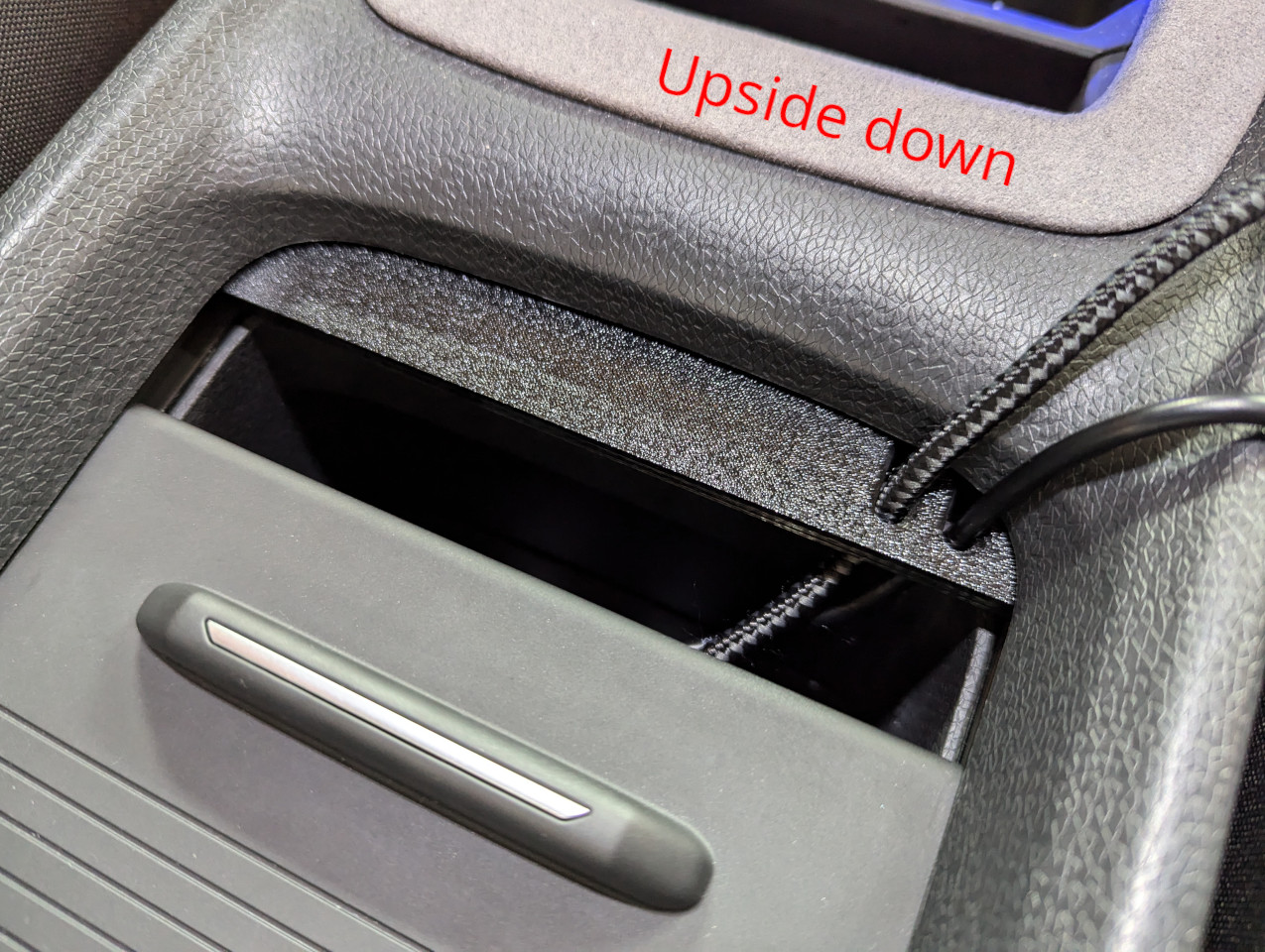

Upside down
Right aligned holes
Holes (4.5 mm diameter) are aligned to the right. This is like the printed model you can see in images above.
Standard
Upside down
Center aligned holes
Holes (4.5 mm diameter) are aligned to the center of the model.
Standard
Upside down
Custom holes
Not happy with the holes (too big, too small, wrong position)?
Just use the STEP file and modify to your liking. When looking from the top, create the holes with some offset from the bottom the snap-mechanism as shown in the image. Use 5mm near the edge. Near the middle you can reduce this to roughly 3mm.
How to install
Follow as shown below. Make sure that the large flat surface is facing down for the Standard variant. Rotate by ~45° and slide into place. Then just press against the top.
The print should click into place. Of course, first add your cables in the holes before that :)
Design and description by sidlogic , licensed CC-BY-SA.
More 3D printed VW parts and accessoriesMore 3D printed car accessories
Frequently asked
How long does shipping take?
VW ID.3 USB cable management - Improved version is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
