Walmart Hart 20V Stick Vacuum Replacement Wheel
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~10 g
- Express shipping
- $20
More information

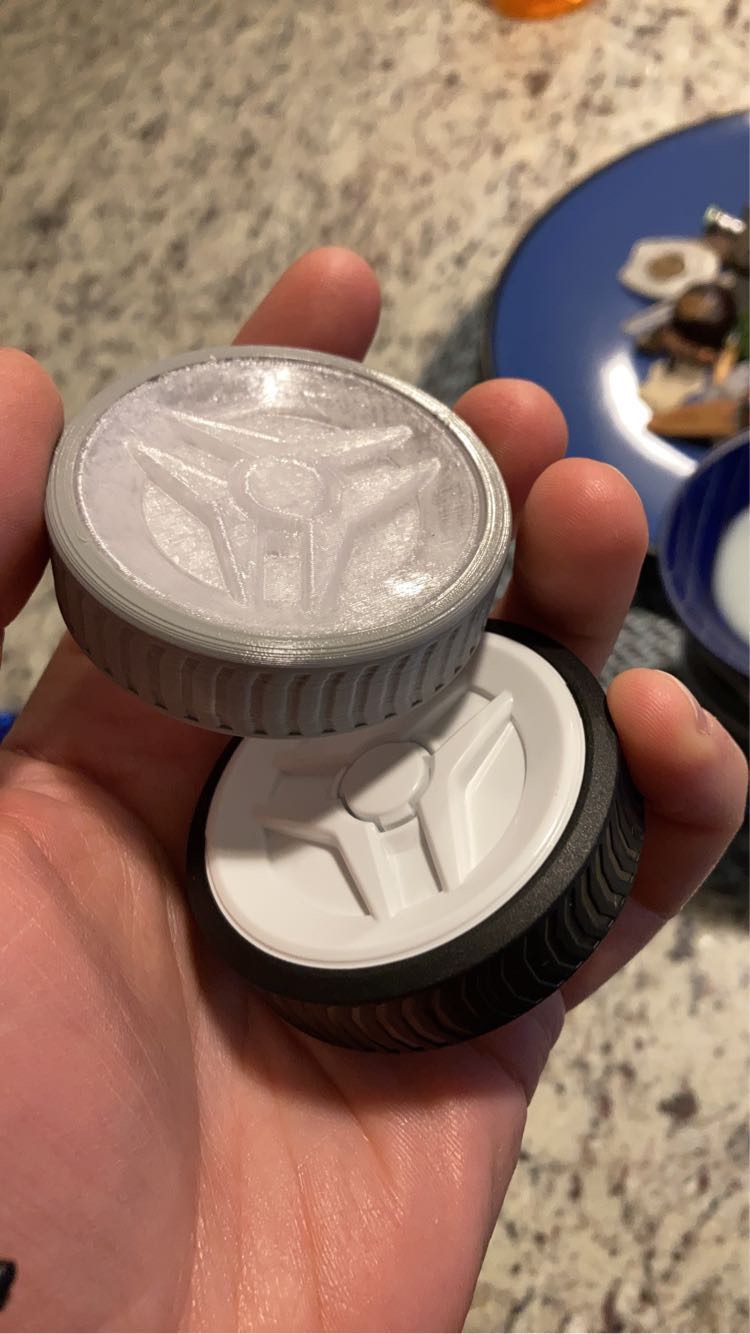

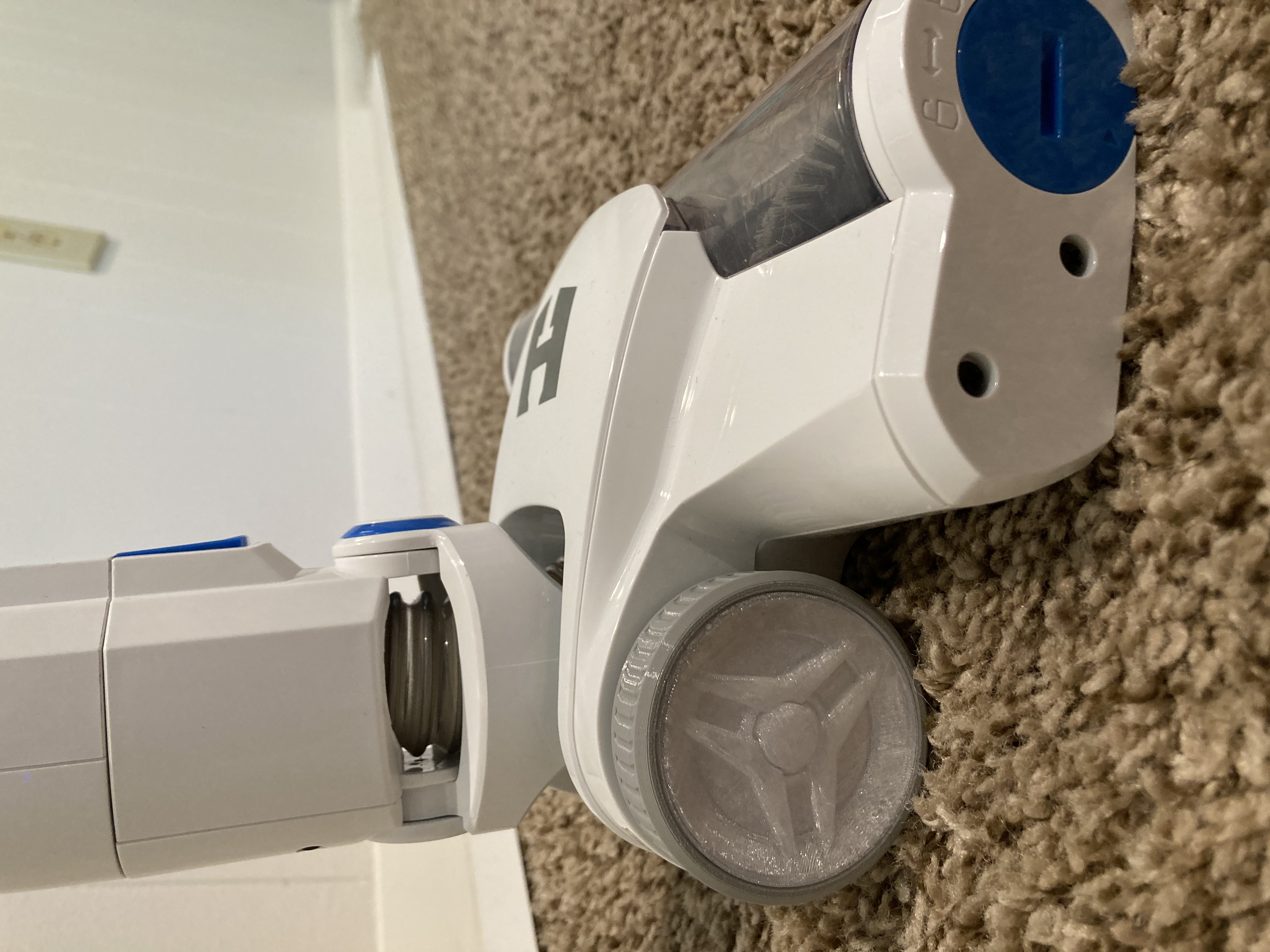

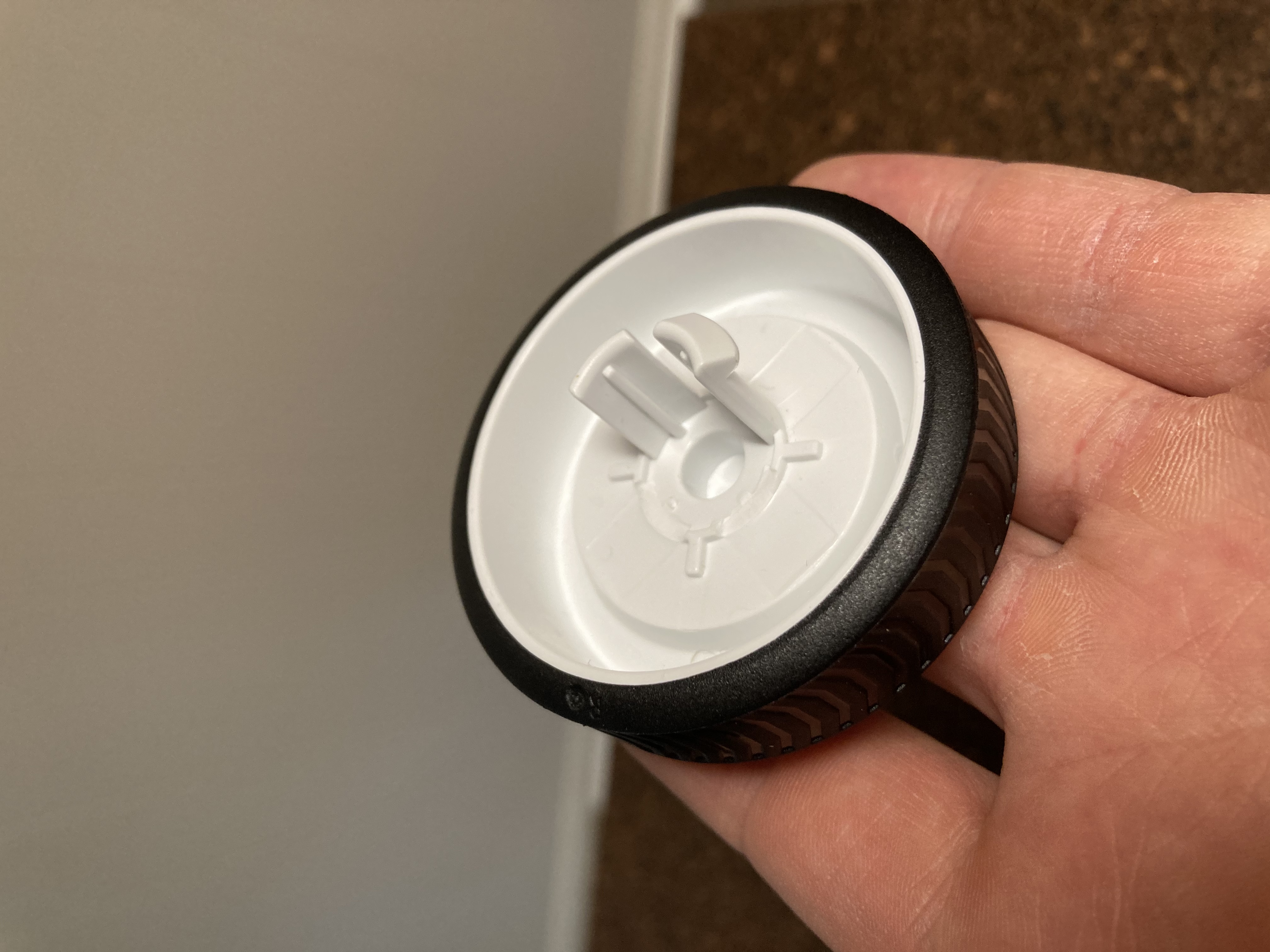

Plastic snap clips on the wheels of the Hart 20V stick vacuum break very easily. I couldn't find any replacement part numbers online, so I made an exact copy using SolidWorks. Attempted to beef-up the snap mechanism for a hardier wheel. Highly recommend printing the rim at 45° relative to the bed to improve interlayer shear strength. Almost 3 months of use and the new wheel is still going strong!
##
Parts List
• 1x Hart 20V Vacuum Wheel • 1x Hart 20V Vacuum Wheel Tread
Print Settings Used
• 0.2mm layer height and settings seen in print files below • I recommend using a PETG material for the wheel of the vacuum and a TPU material for the wheel tread. I used NinjaTek's flexible Cheetah filament (Shore 95A hardness) for the tread • The wheel was printed with its front face at a 45° relative to the build plate using organic supports (see attached print file for support blockers/enforcers) • With the tread being printed from TPU, it is fairly easy to stretch onto the rim of the wheel - two interior ribs hold the tread securely onto the wheel
Updates
24.09.2023:
• V1 Release: • Prusa Replacement Parts Contest!
Design and description by CollinF , licensed CC-BY.
Frequently asked
How long does shipping take?
Walmart Hart 20V Stick Vacuum Replacement Wheel is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
