Wire Shelf Label Holder

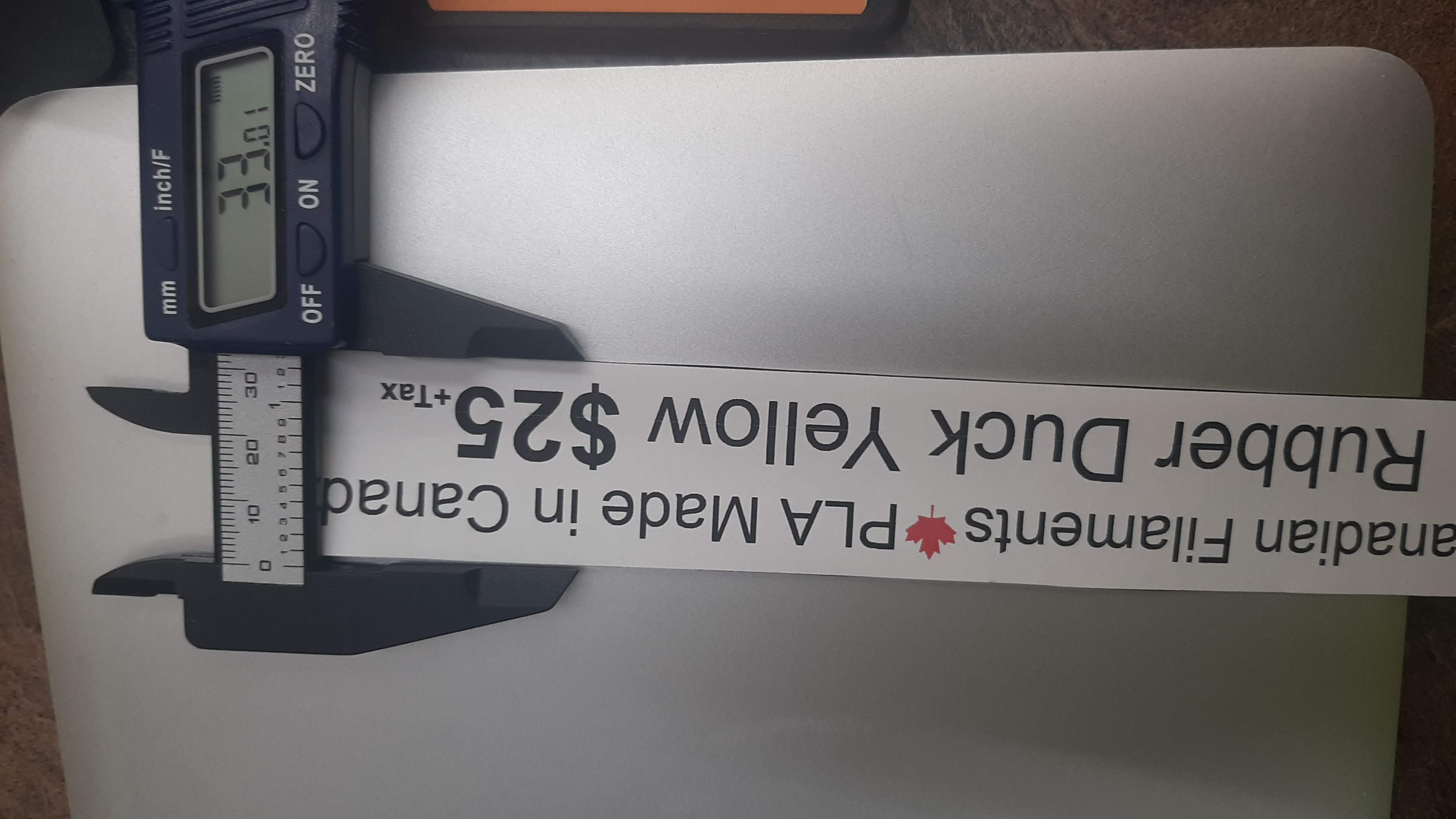

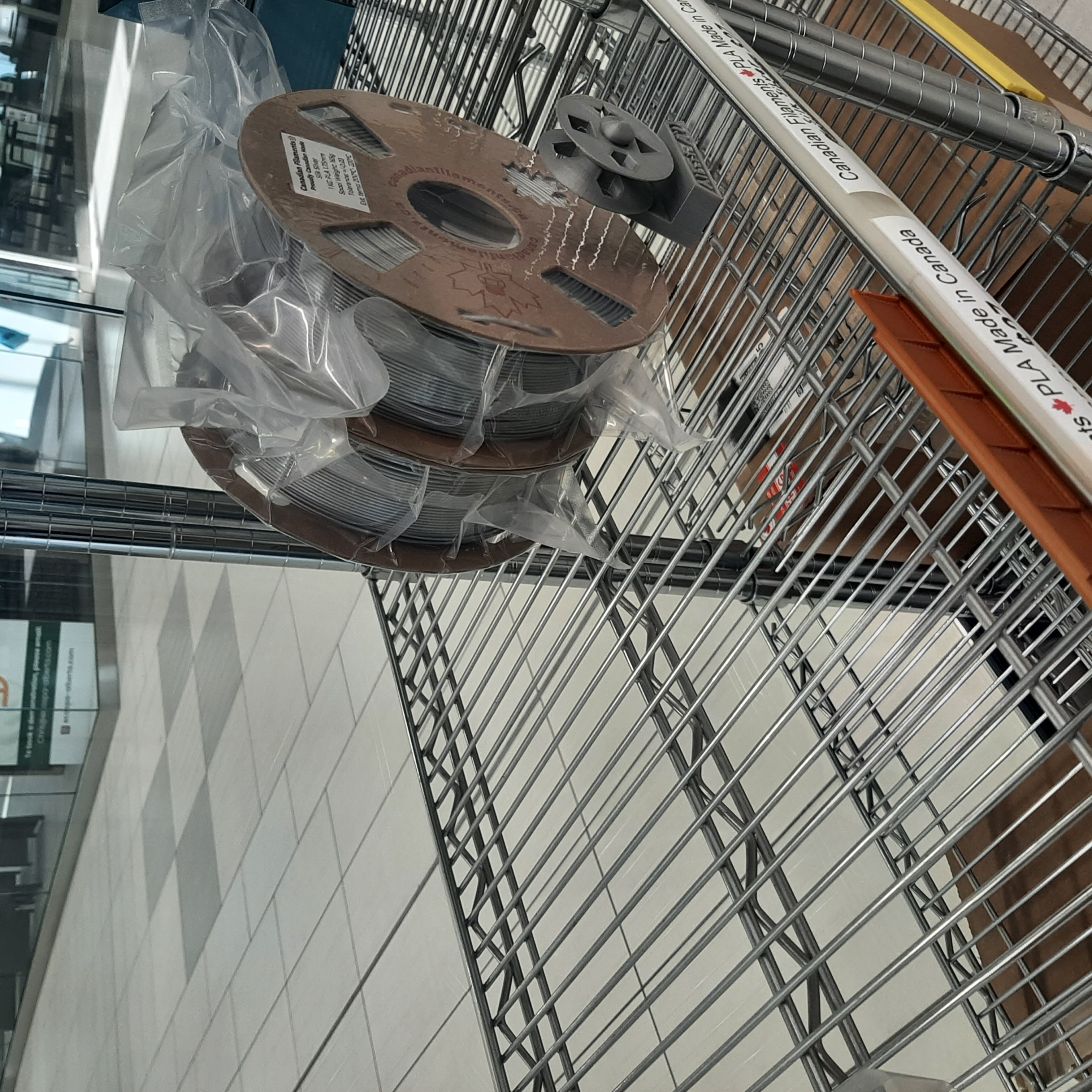

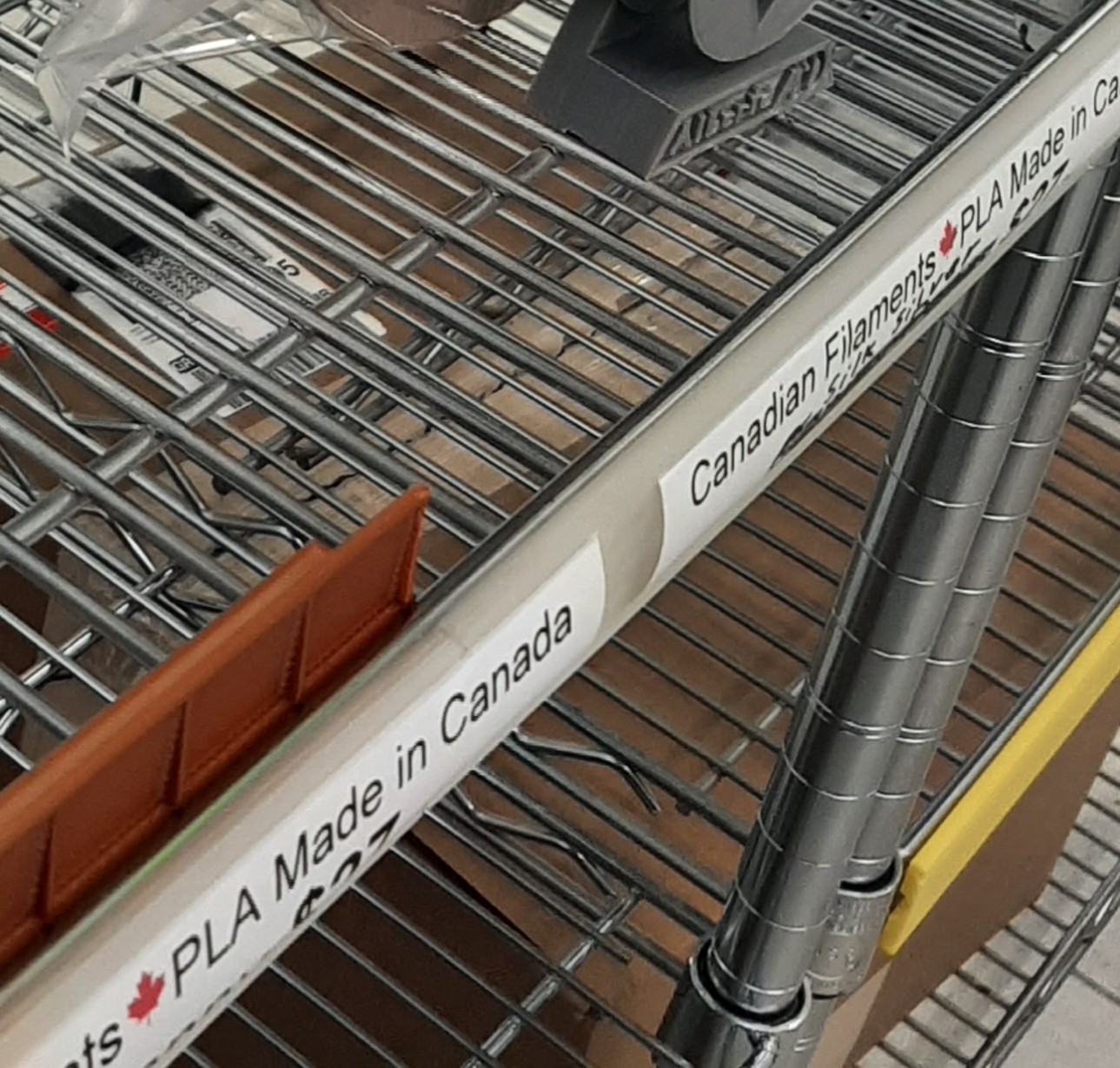

I hope this is a very helpful print, in my case its for the store shelves. I needed something that I didn't have to buy sticky labels for every time I wanted to rearrange, and Also wanted something bigger. So I made these, you can just print off a page full of labels, cut them to 33mm and slide them into the label holders.

You may need to scale them slightly in Y or height as viewed when mounted on the shelf. One shelf of mine was a little to tight. Must have been a different manufacturer.

Prints without support, the tabs can break if they're weak, so I recommend 3 walls. I printed mine with a 1.0mm nozzle so resolution is not a problem, go rough and save the time.

You'll need to print 2 with Aligned Pins, and 2 with Offset Pins. If you want to fit the full shelf width. I've also trimmed one down if you don't have a big printer, I'm not sure how many of those you'd need.

Please leave a like and a review if it works out well for you.

Happy Printing

Design and description by Alberta3D , licensed CC0.
