woozoo fan bedpost shelf
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- PLA (filament)
- Colour
- Grey
- Weight
- ~335 g
- Express shipping
- $20
More information
I designed this shelf to support a round woozoo fan on a square bedpost (2.25" or 57mm). I was planning to print it flat on the bed up-side-down, but it has a 220mm diameter. To fit it on the 250x210mm Prusa bed, I had to print it at a 60deg angle with support. It's a 20 hour print with 0.3mm layer height and 15% infill, but the results look good and it's strong enough to support the fan.

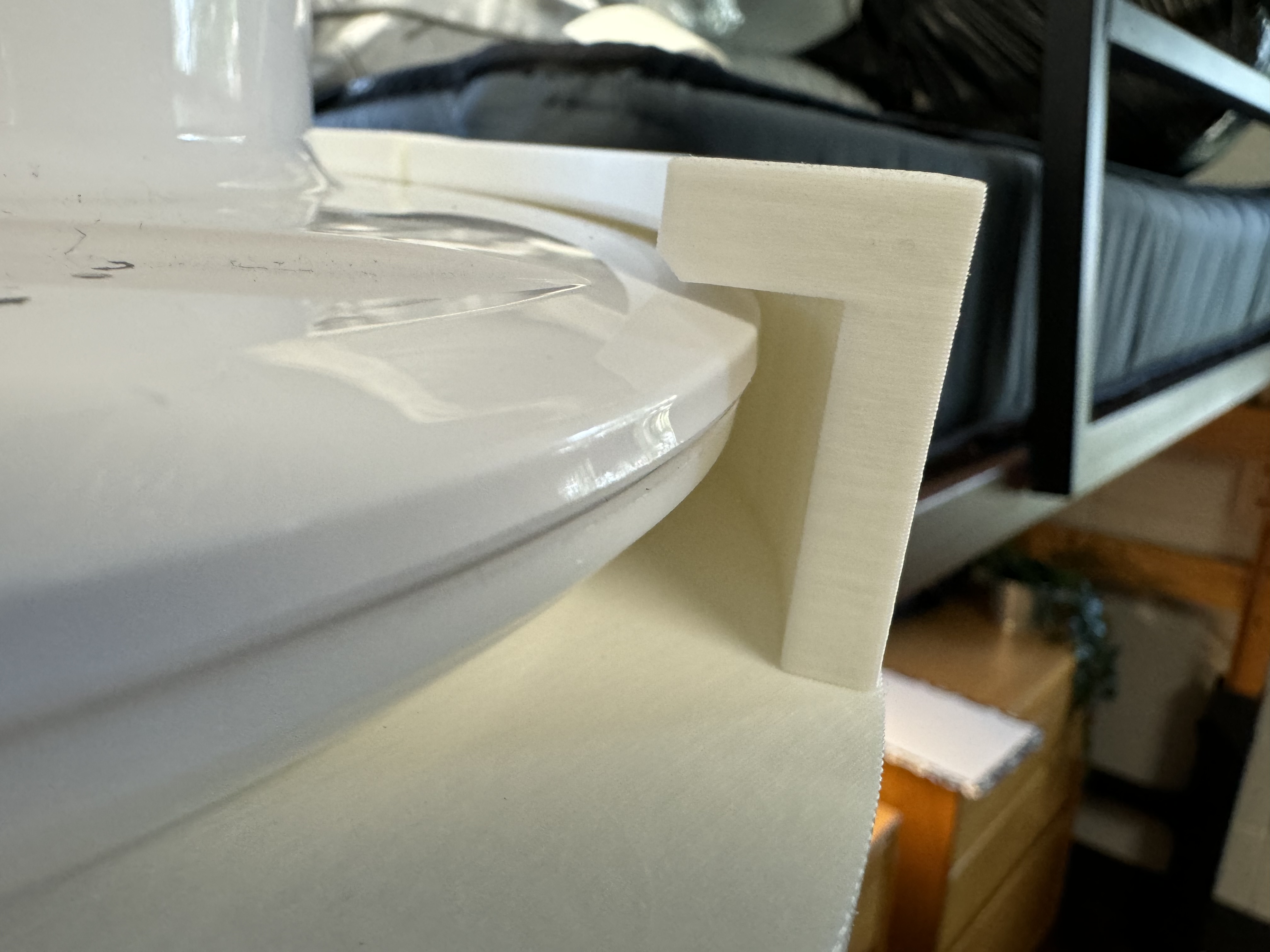

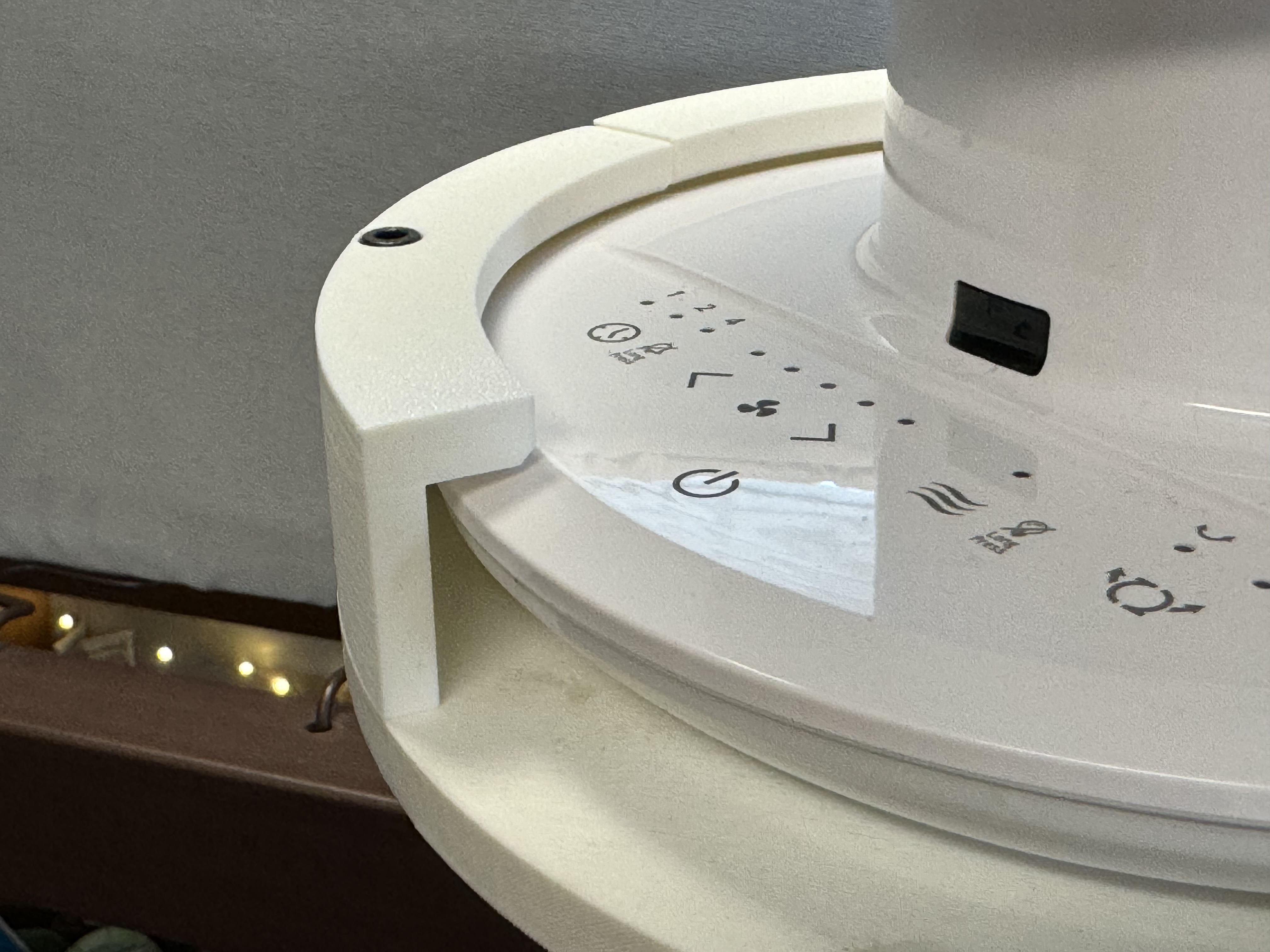

I also included a 5 piece clamp ring so the fan will not fall off the shelf. Each of the 5 clamps require a M5x40mm socket head screws and nut. I included hex hole to recess the nuts into the shelf base, but my first version placed the nuts on the top side of the base as seen in the pictures of the print. I corrected this error in this uploaded version. 2 of the clamps have a chamfer to pass the fan cord through.
This model is available at my onshape profile. Feel free to copy and modify - attribution appreciated!
links:
woozoo bedpost shelf
woozoo bedpost shelf clamp
Design and description by aspiring_maker , licensed CC-BY.
