Z-Axis Hight Calibration Tool / Machinists Jack
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~99 g
- Print time
- ~5.4 h
- Express shipping
- $20
More information

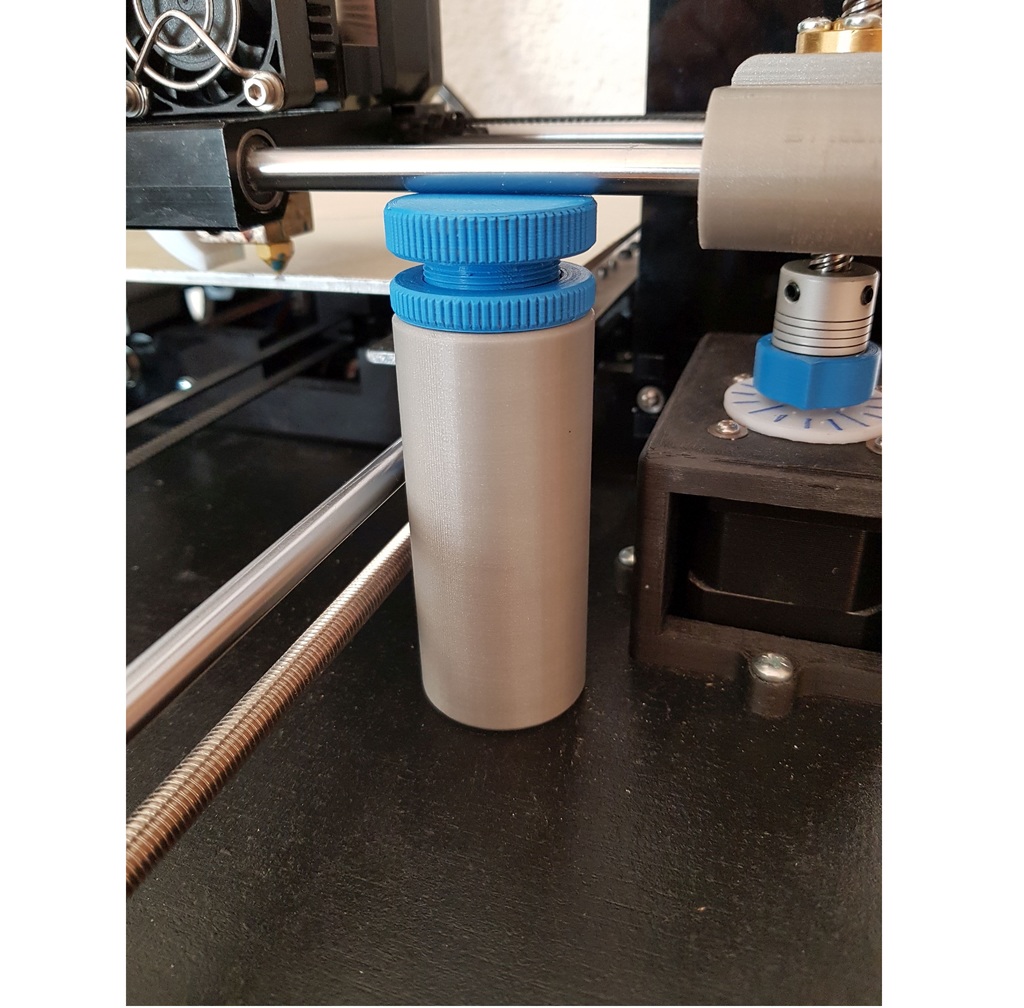

My 3D printer has 2 Z-axis motors that adjust the height of the X-axis. I was looking for a solution to align the two sides as easily as possible. The result is this support.

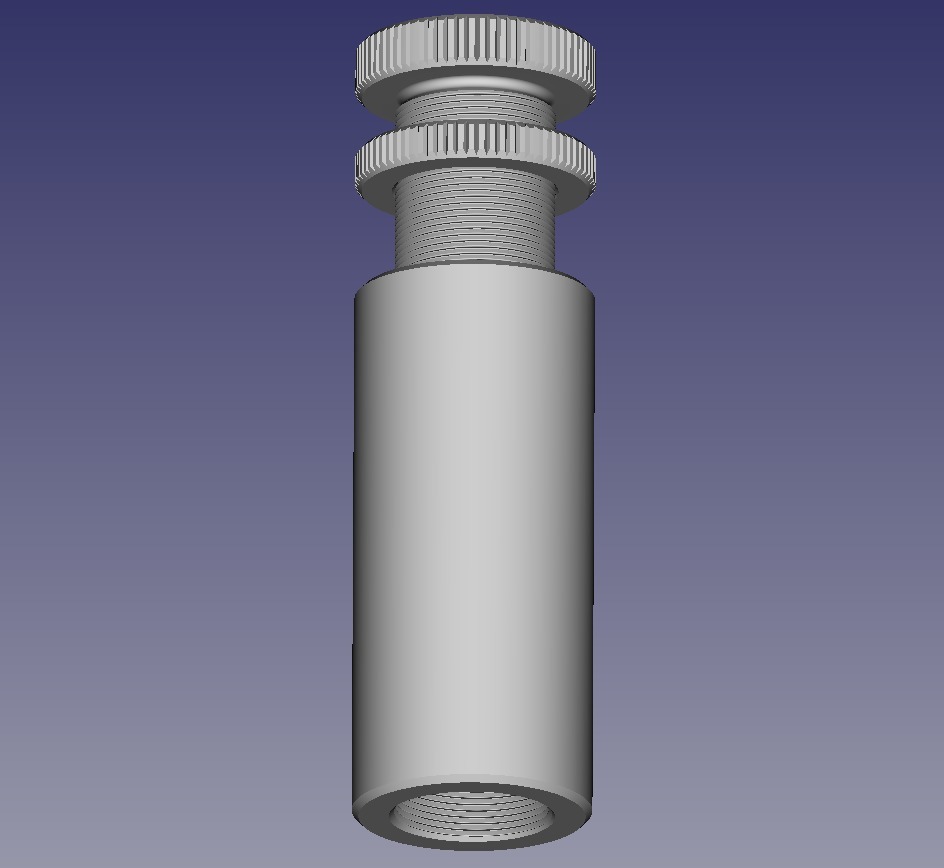

The support has an adjustment range of 96 - approx.160mm and a diameter of 36mm.

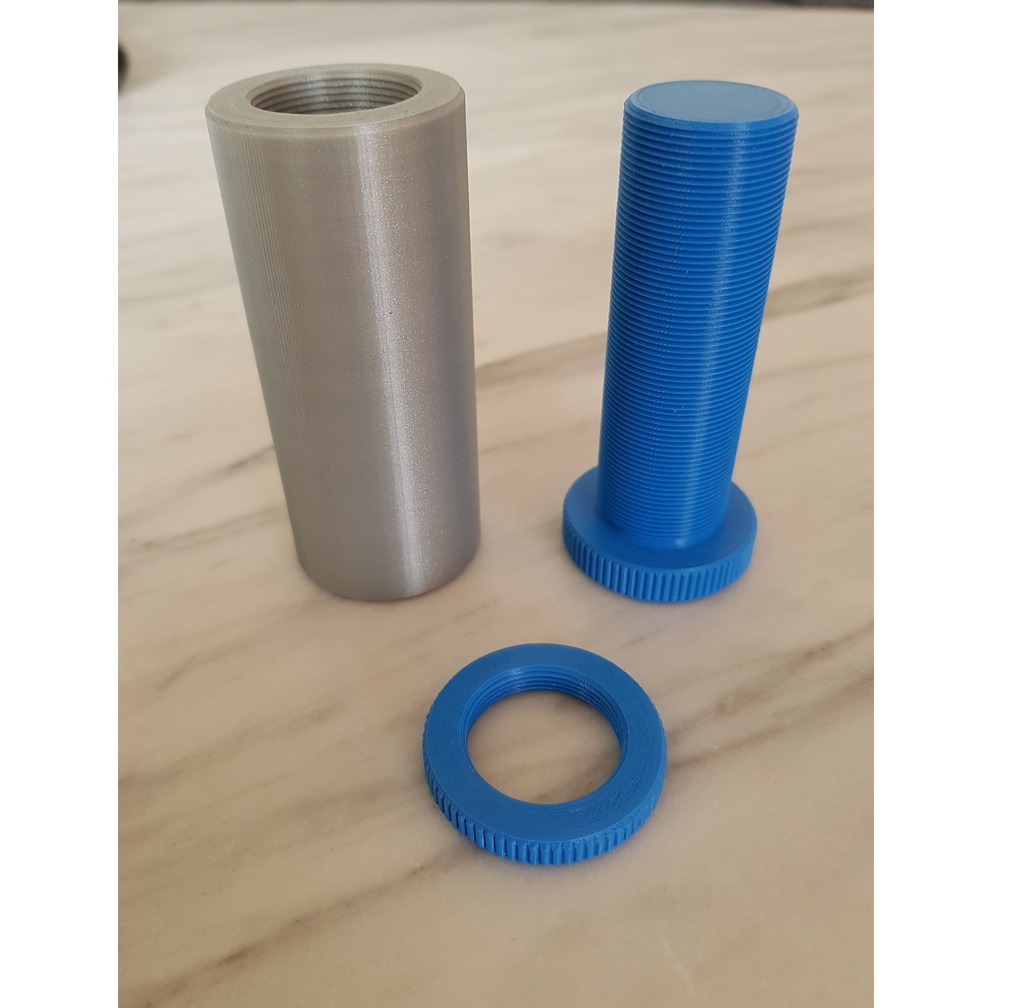

So that the height can be adjusted as fine as possible, I have chosen a thread M24x1. This thread is at the same time self-locking, i.e. even with a load it does not move. To prevent accidental adjustment, the height can be secured with a lock nut.
It is not very easy to print, on the one hand the tolerances are very narrow and on the other hand the thread is relatively long. The resolution for printing should therefore be max. 0.1mm and the printer should be well calibrated. I recommend a test print of nut and bolt.
Printer settings:
Material: PLA
Resolution: 0.1mm (max!)
Wall thickness: 1.2mm
infill: 30%
Support: no
Category: 3D Printer Accessories
Design and description by Sisul , licensed CC-BY.
