60° Heatbed Cable Cover for MK4 v2
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~32 g
- Print time
- ~1.8 h
- Express shipping
- $20
More information
2023-09-05 UPDATE
Please consider using the "circuitboard-cable-holder" to gain some clearance between the heatbed cable and the extruder cable as they might collide/rub against each other on bigger prints! Also consider using this model: https://www.printables.com/model/494623-mk4-main-board-cable-clip
-----------

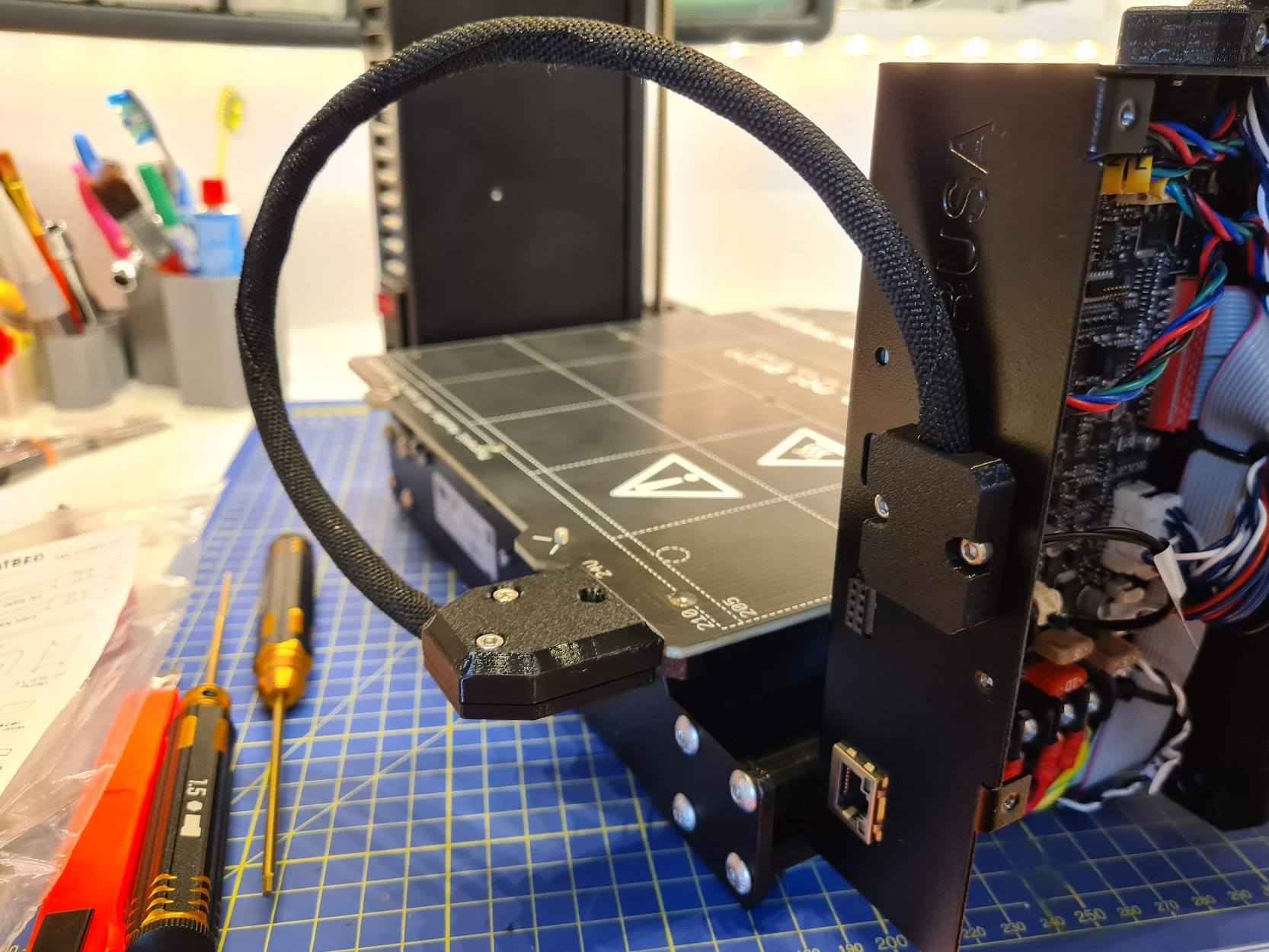

Use this model to avoid the below uncomfortable routing of the heatbed cable in your tight cabinet, like my old MK3…
Remodeled the files completely in F360, but used the original STL files for reference. Made the following adjustments to the original remix:
MK4:

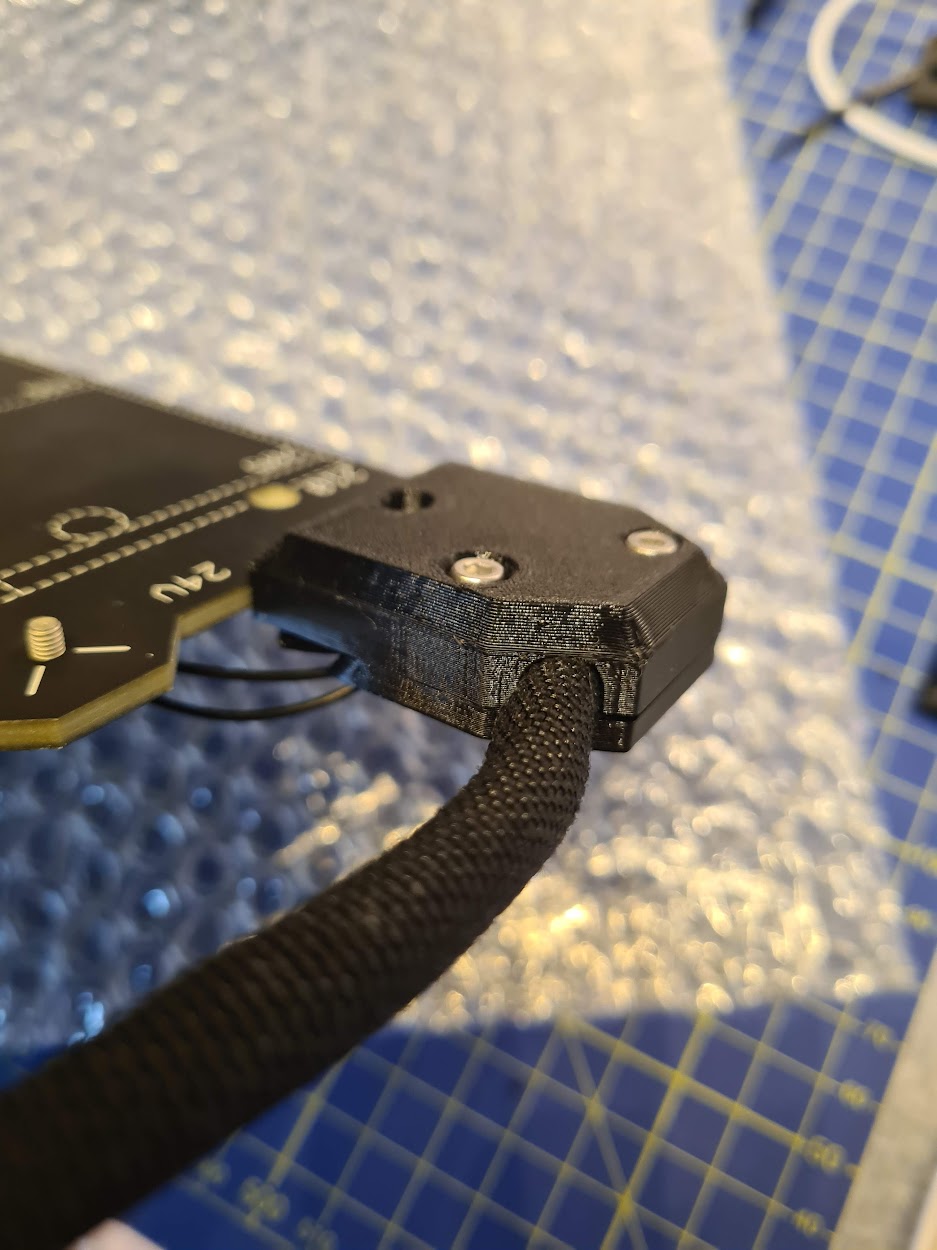

• Added extra M3x10 hole for extra stiffness around the cable entry. • Extended the lower part into the middle screw for more stiffness and easier assembly. • Sliced a slot for the thermistor cable. • Made the heatbed cable hole/entry deeper for more cable support, and added grooves.
MK3:
• Not tested on my MK3s yet.
I created this remix since I had some concerns about the longevity of the heatbed cables with the “original model”, pointed out below (next to the Prusa original cable holder to the right):
PETG 0,2mm quality 15% infill.
Installation

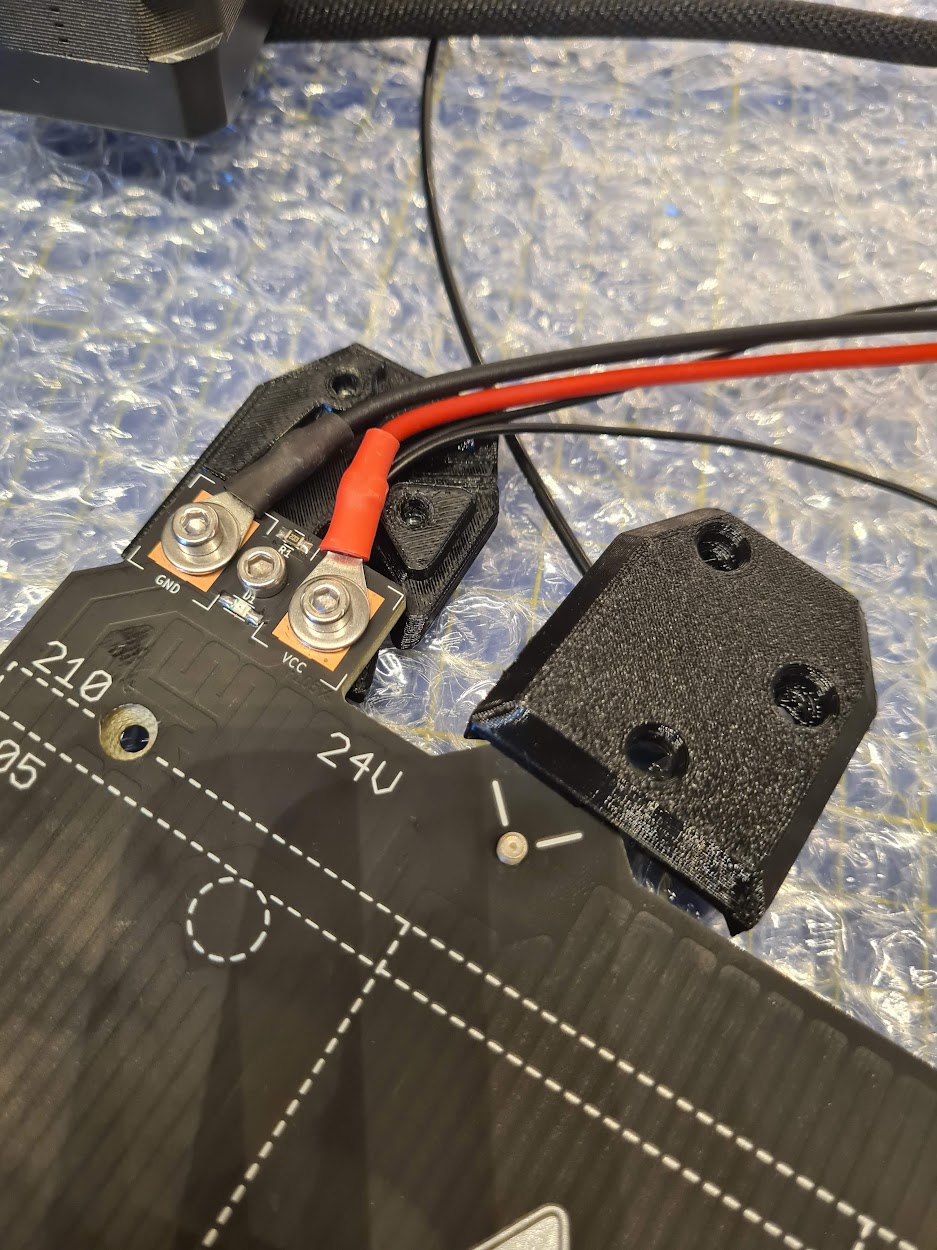

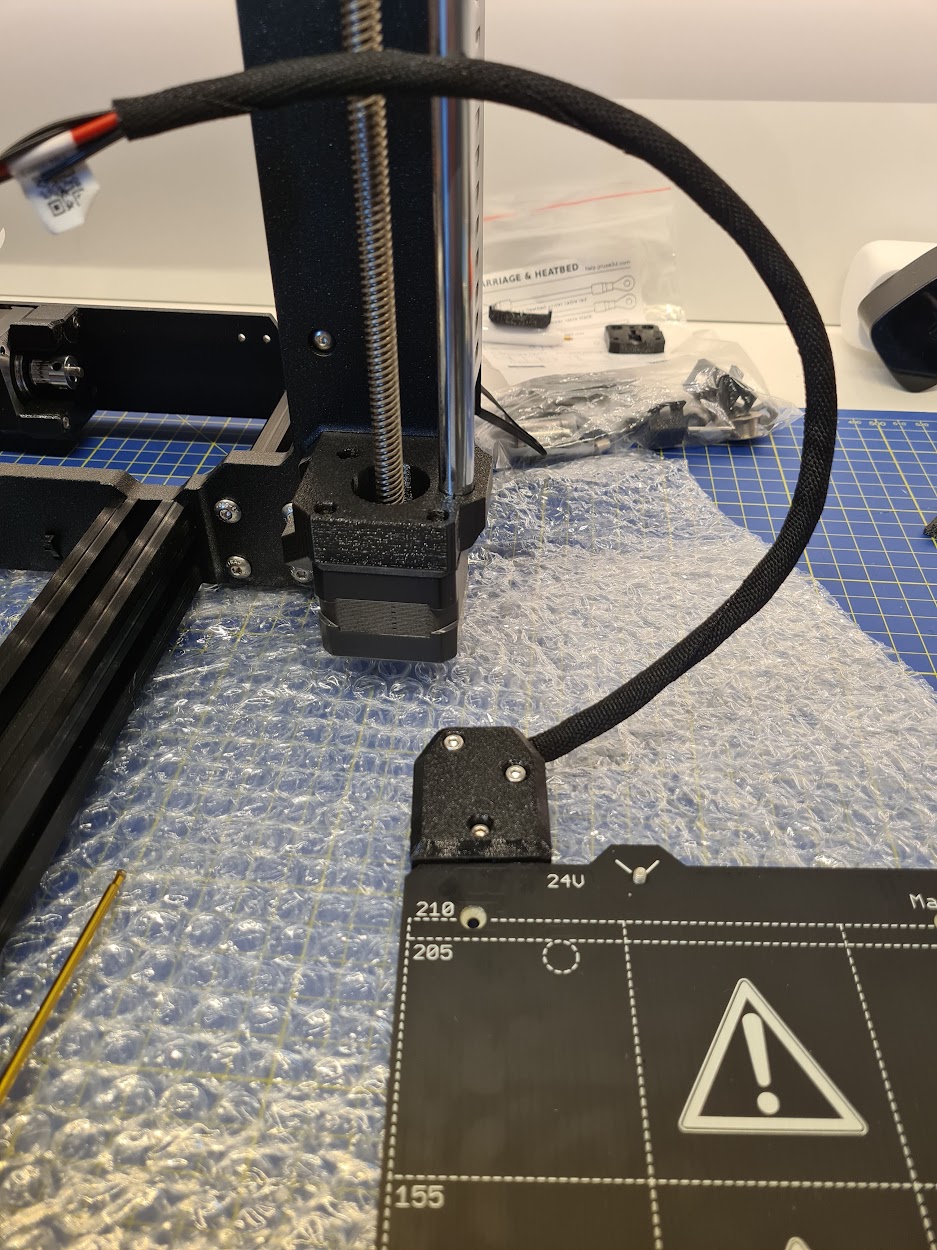

Install as described in the manual for the MK4. Make sure the thermistor cable is not pinched anywhere. First install the lower part, arrange the cables and add the cover. Don't forget the nylon filament.
Design and description by MrNeedlemouse , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
60° Heatbed Cable Cover for MK4 v2 is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
