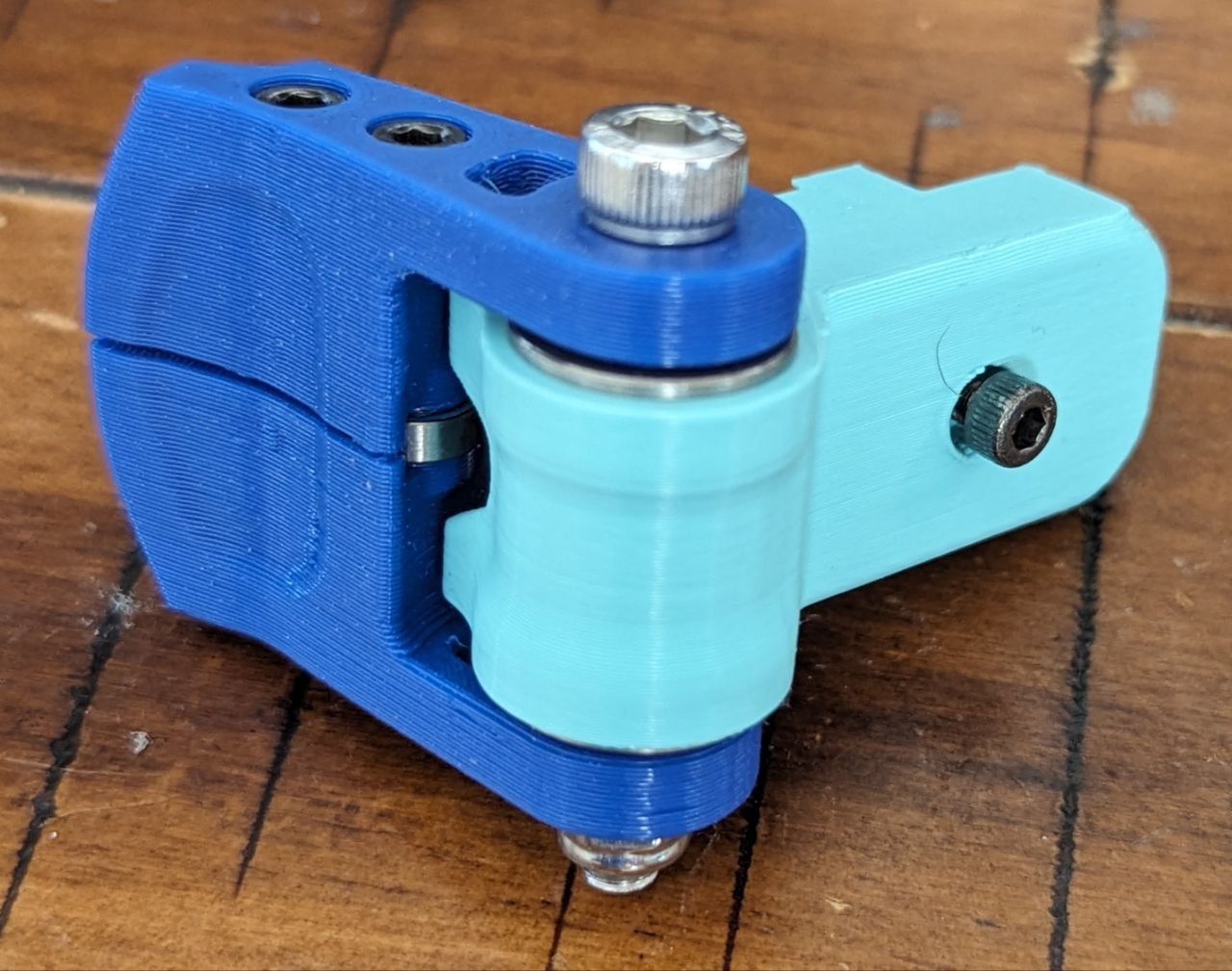

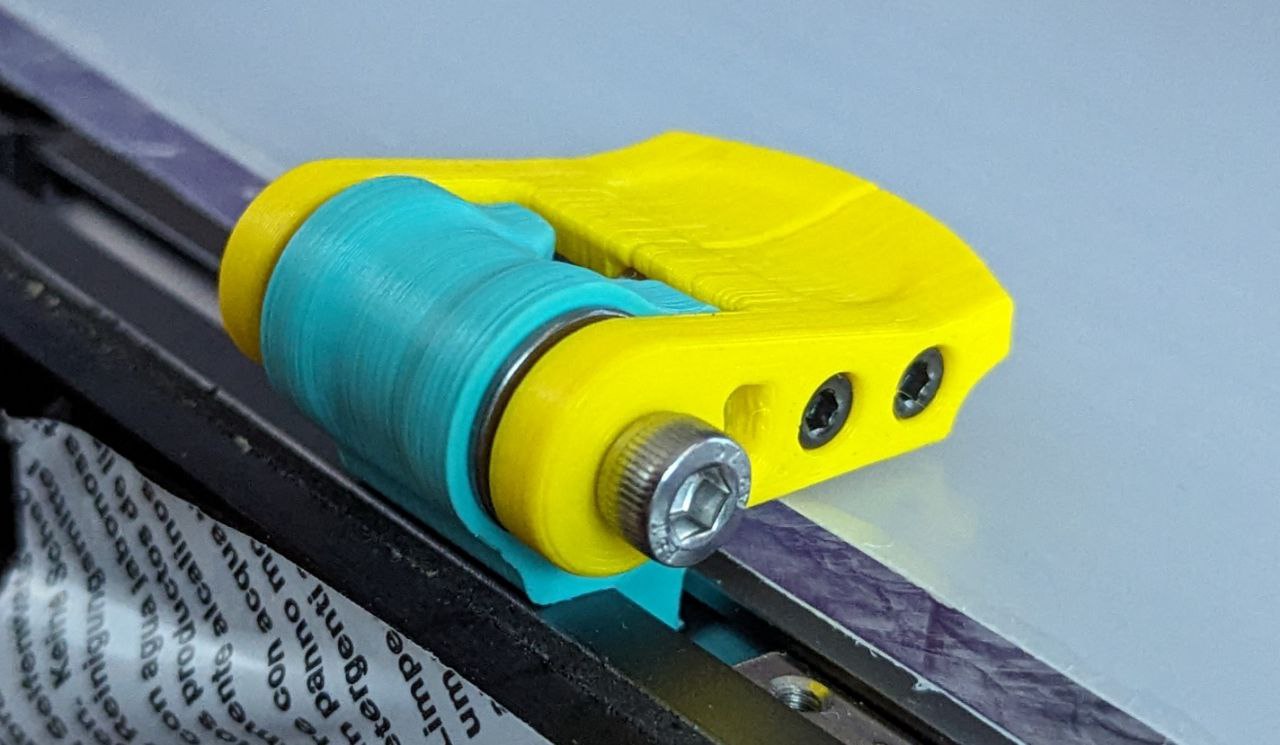

6mm thick door or panel latch, face or side mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~44 g
- Print time
- ~2.4 h
- Express shipping
- $20
More information
I found that some door mods rely on a not so dependable magnet strength to stay in a locked position. Small magnet meets 3 mm bolt head in 2 places. and this bond is expected to overcome the expansion of the weather tape applied for the entire perimeter of the door. Besides over time magnet will weaken even more. Don't see that working too well. I made a modification to an Annex panel latch design – that i really liked, and it appears to serve the purpose quite well.
Print this part instead of original “Body”, and don't print original “Base” Assembly stack of the original design, see original Annex design.
Remix retains all good qualities of the original Annex Engineering design, and it's assembly stack. Contrary to some other latch designs is not over engineered, and does not require the door to be “framed”
BOM:
• 3mm bolt 16mm (1) • BOM of the original model https://github.com/Annex-Engineering/Annex-Engineering_User_Mods/tree/0f5f63e7ad0c5f715204a2a047f9a8b17e6c6701/Printers/All_Printers/annex_dev-Panel_2020_Clips_and_Hinges#latches
Design and description by ToyBear , licensed CC-BY.
