9 caulk cartridges horisontal storage

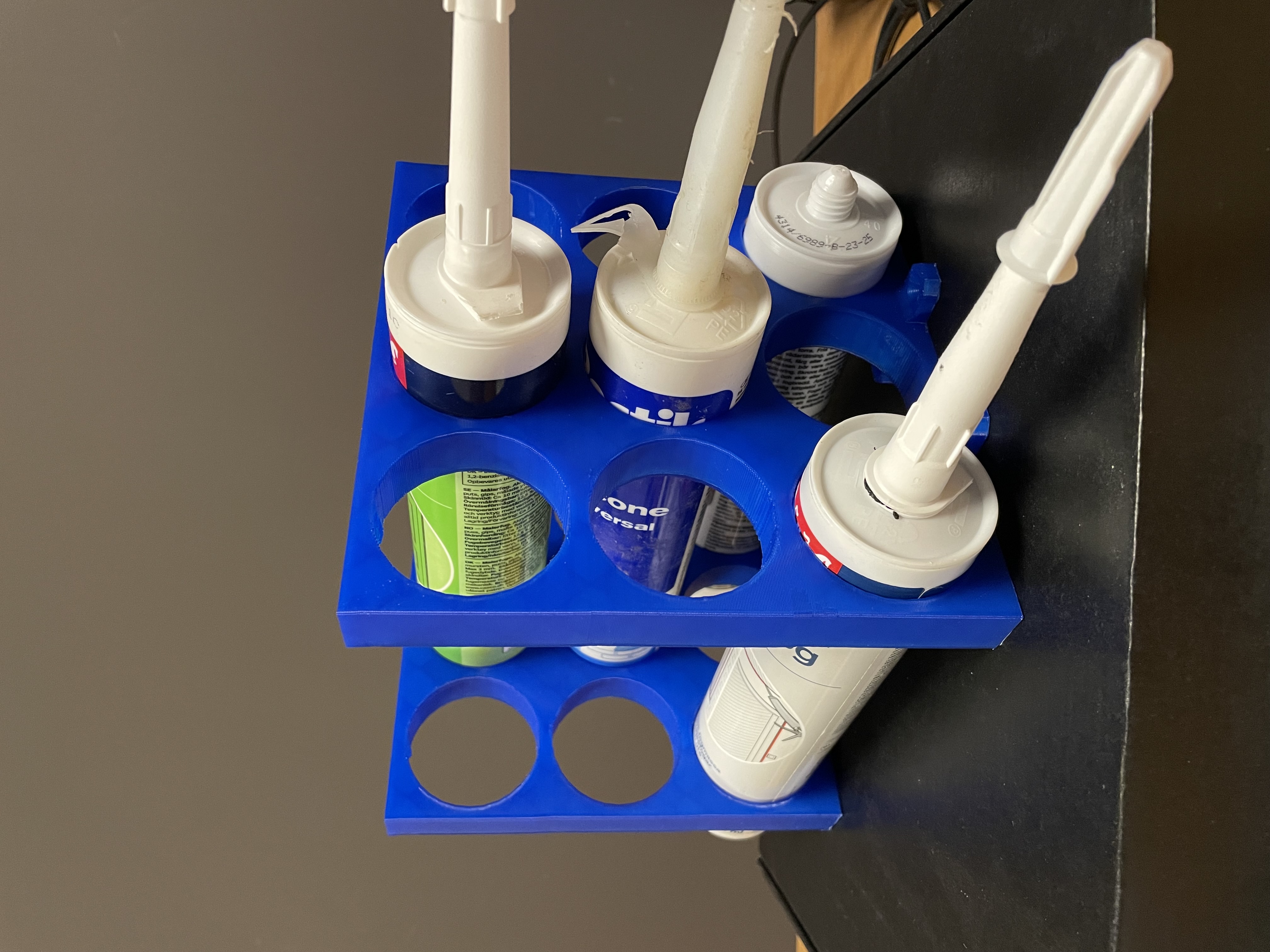

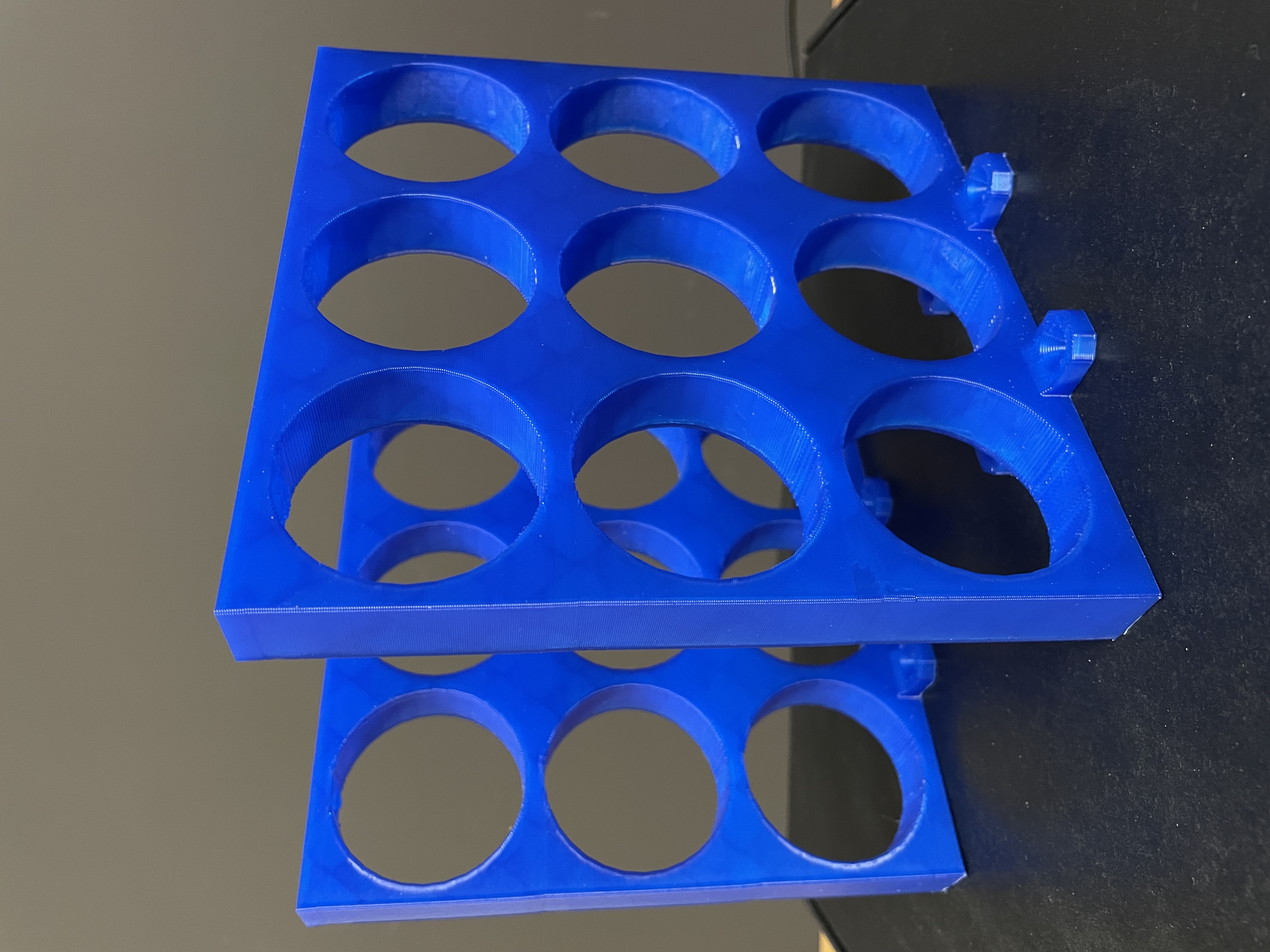

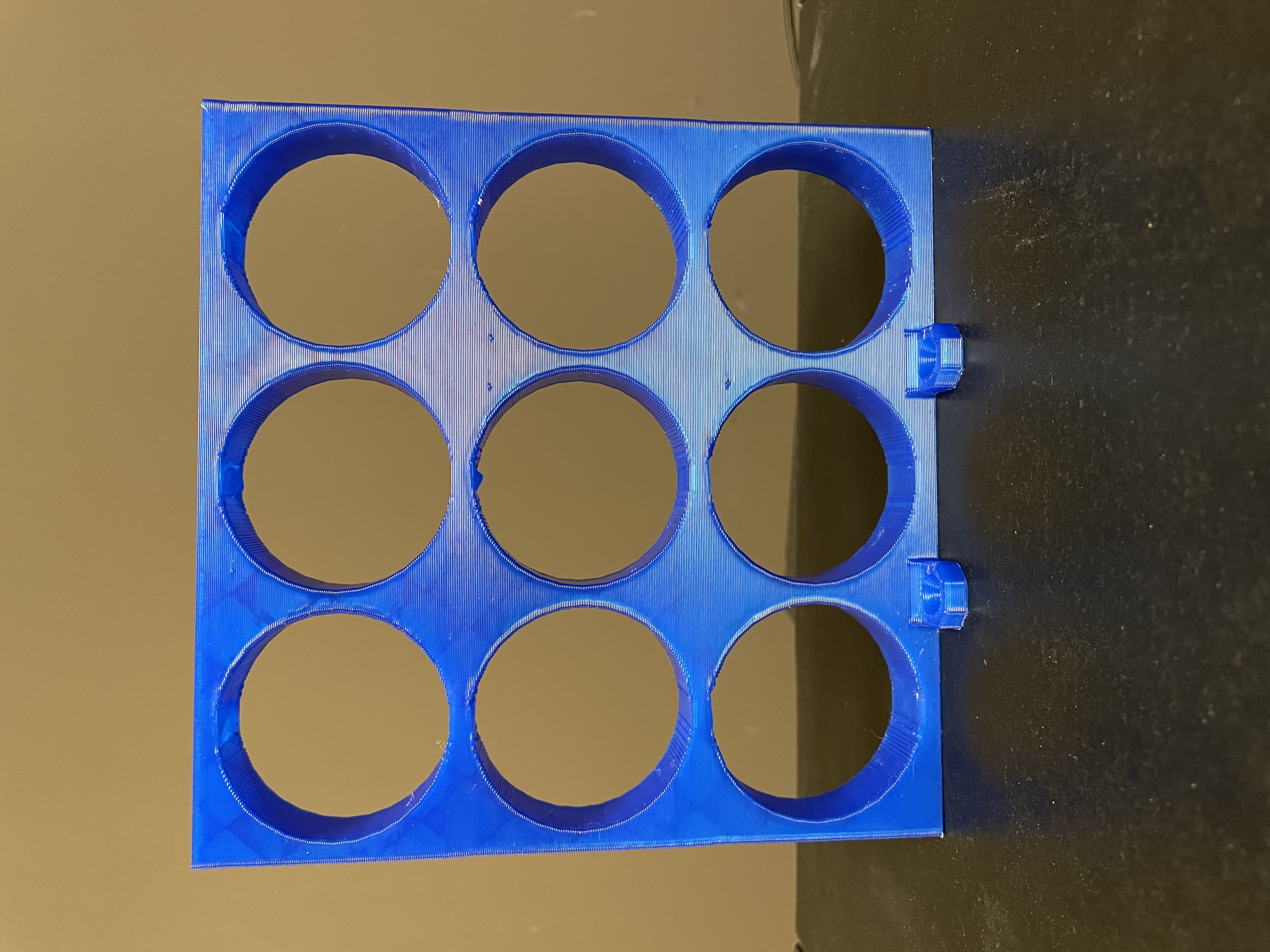

Based on Pitel's design for storing 9 caulk cartrigdes / tubes or similar. Changed to horizonal storage and to be printed in a pair. Thickness changes from the original 51mm to 18mm, which seems strong enough. Added 4 wood countersunk “feet” for anchoring when placed on top of a shelf. Mounting underneet a shelf or even sideways should be possible.

This saves something like 70-90g of filament compared to the original when printed with 15% infill. Should print fine without any supports (accidentally printed with brim), and no support for the overhangs and small bridges. Good calibration is needed to properly print the small bridges at the top middle of the holes.

Can benefit from being printed in PETG, while these where printed with PLA.

Design and description by olekhal , licensed CC-BY.
