AD5M Flashforge Lid Hinge
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~11 g
- Express shipping
- $20
More information

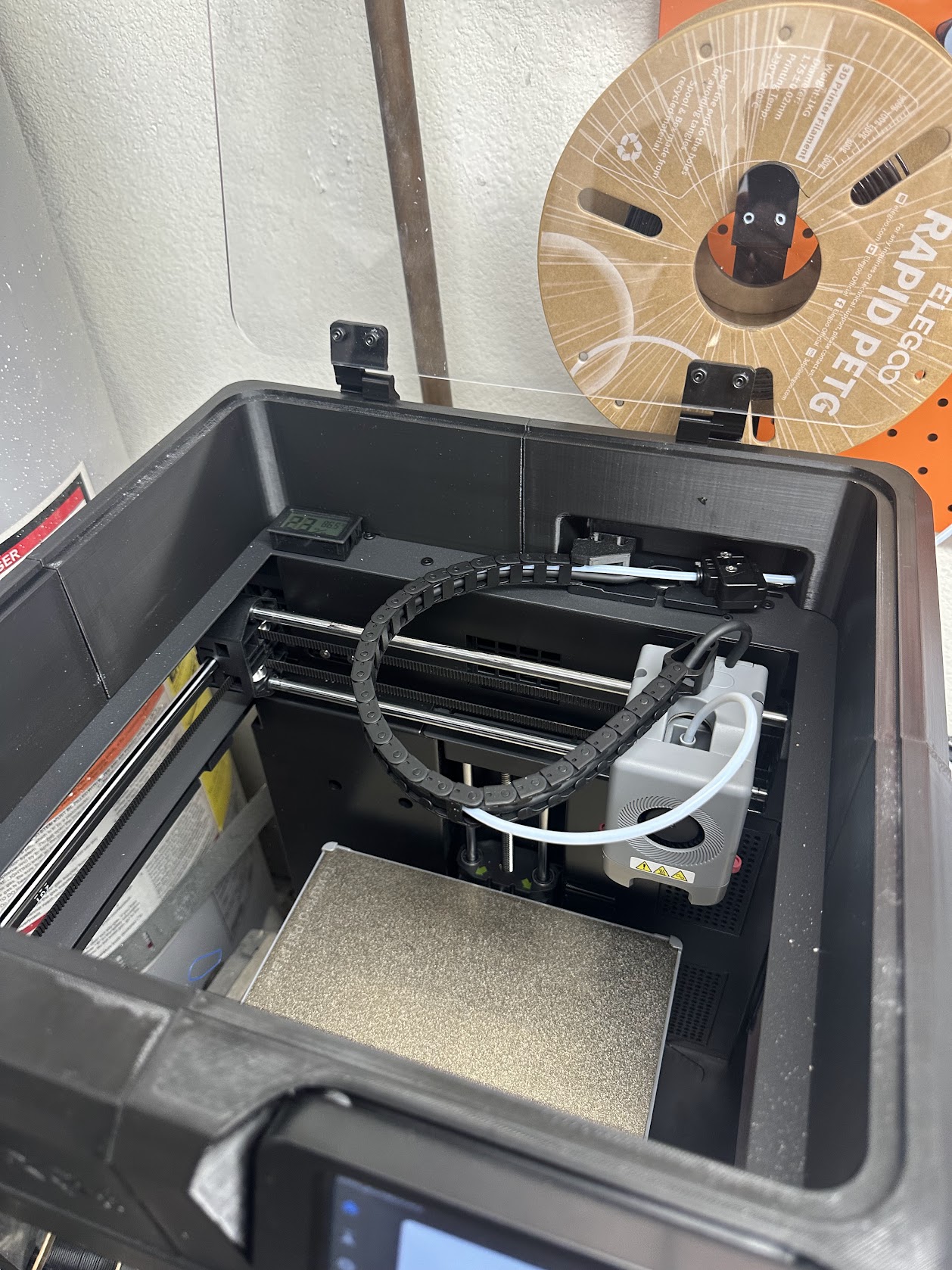

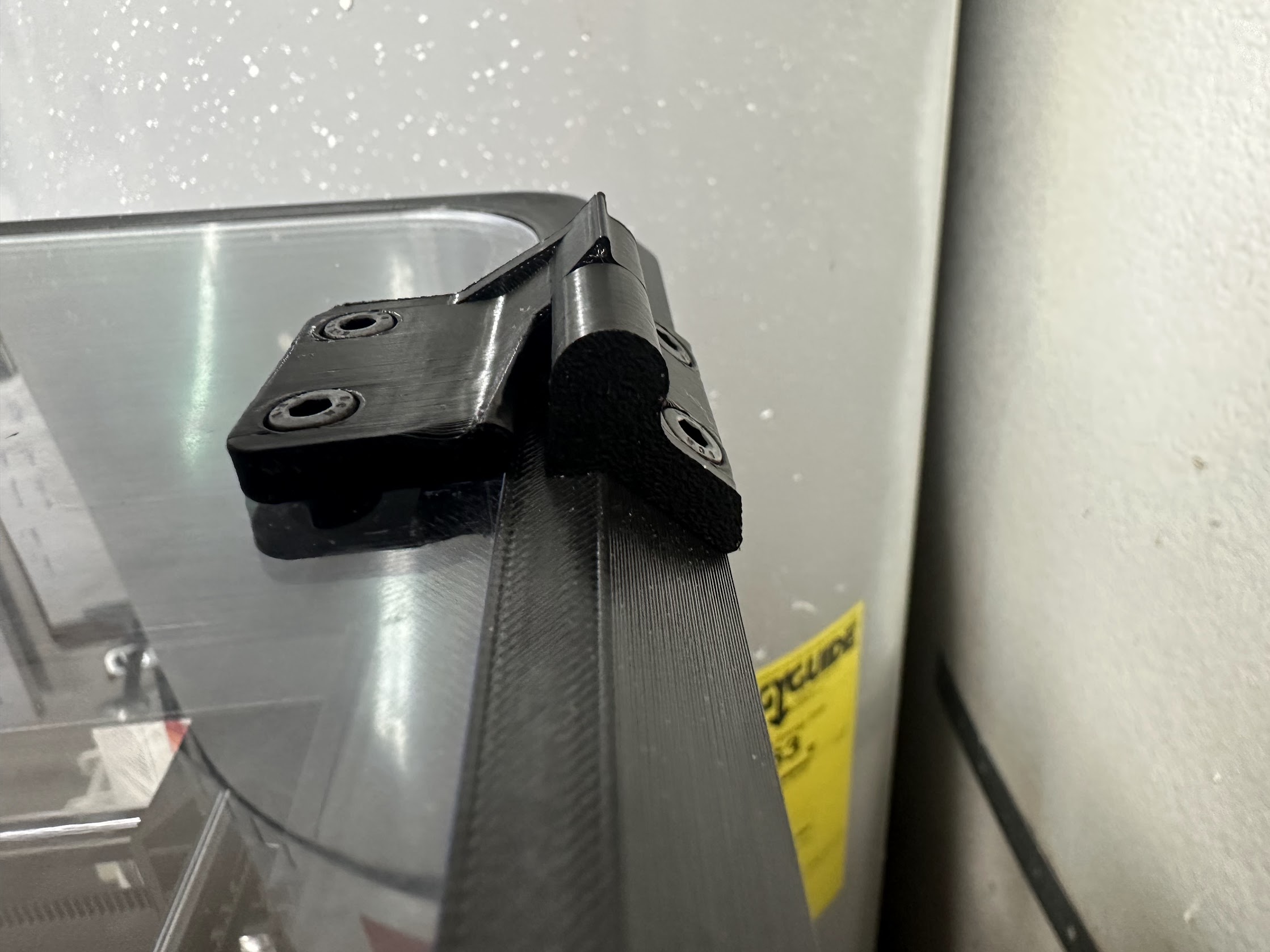

I wasn't happy with the other lid hinges available online, so I made this one. Has a few cute features. Uses standard filament as the axle. Has a stopper on the top so the hinge catches itself and stays upright. I attached mine to the back of the printer, so the filament spool (which is required to mount the filament sensor) stops the lid.
Designed with the standard AD5M enclosure. It is meant to be screwed in on the 45 degree chamfer on the enclosure top.

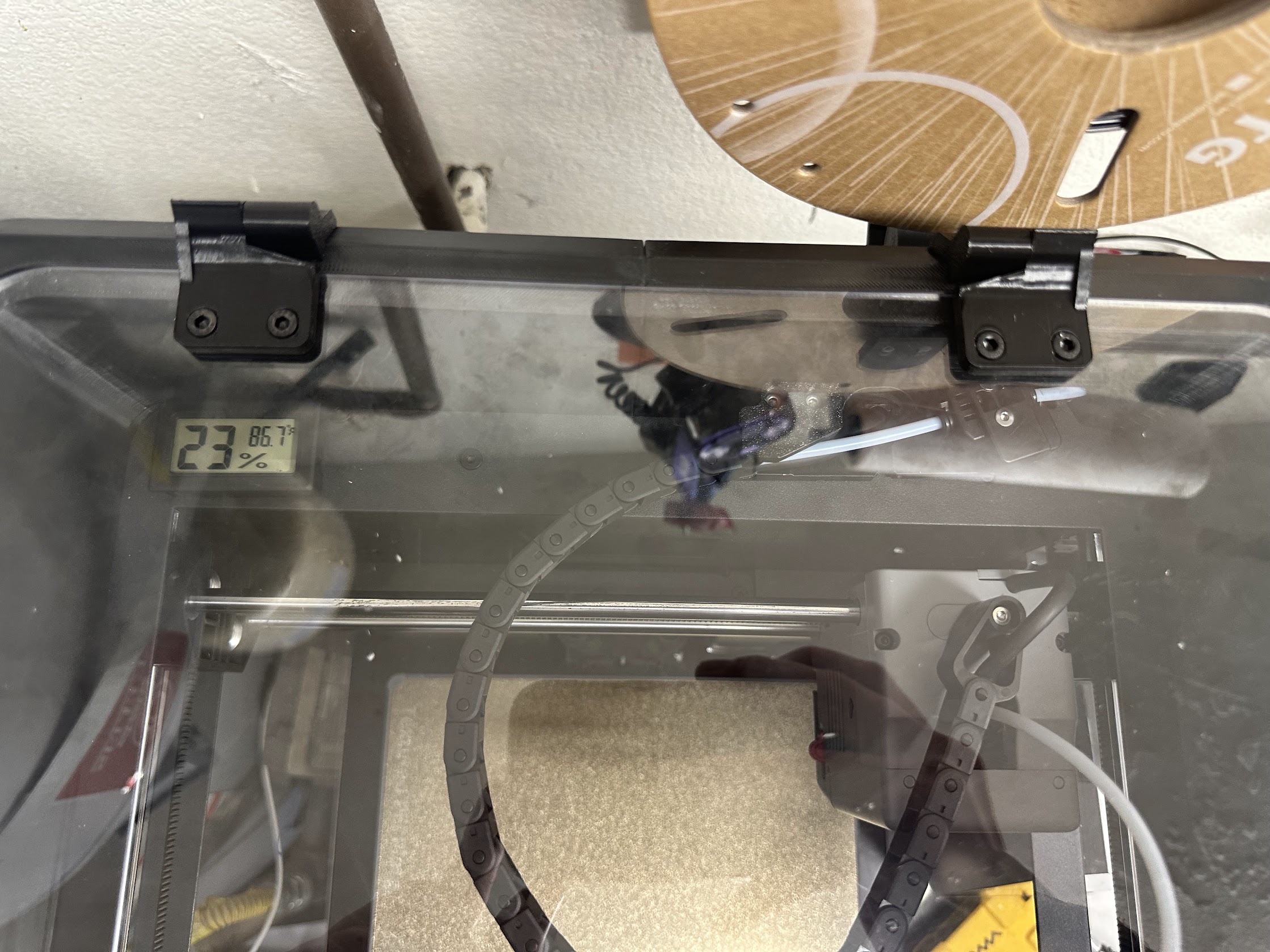

Two hinges come in the file, as they are mirrored. You could easily print 2 of the same so the lid can come off easier. I like the idea of capturing the lid with the hinges.
Requires :
• 4 - M4 x 8 bolts and nuts for plastic lid • 4 - M4 x 8 bolts / screws to mount into enclosure • drilling into the enclosure chamfer and the lid • 2 x 15mm sections of filament
I used some loctite to secure the bolts to the enclosure. You could probably get away with gluing the whole thing.
Recommended Print Settings:
PETG
No support
.4mm nozzle
.2mm layers
Design and description by darthkotor , licensed CC-BY.
Frequently asked
How long does shipping take?
AD5M Flashforge Lid Hinge is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
