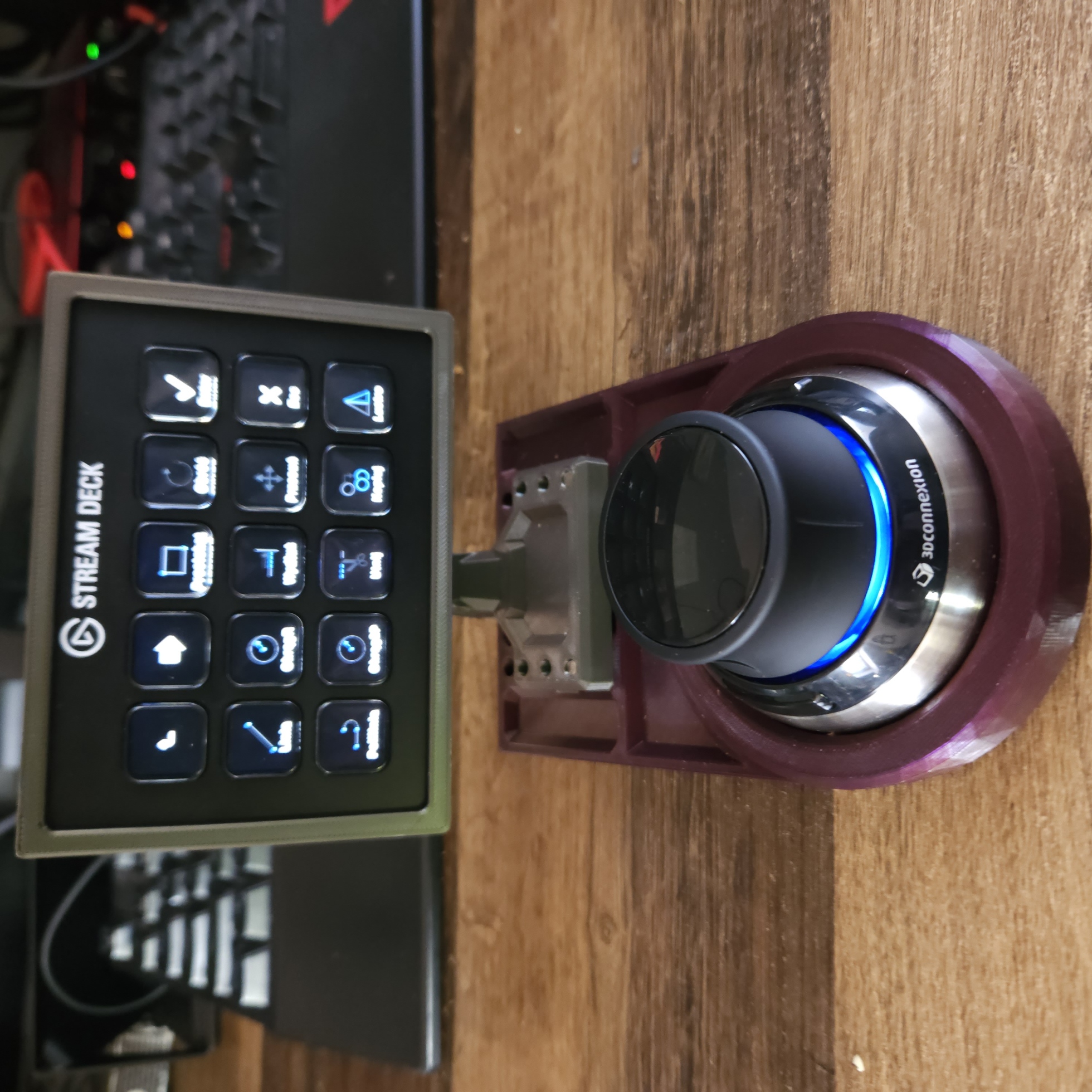

Adjustable mount for Elgato StreamDeck and 3D Connection manipulator

Hello, recently I bought both 3D connection manipulator and Elgato streamdeck. I often use Inventor/Fusion360/CAD so I wanted to boost my efficiency. I designed a mount for both devices, which can be adjusted for every hand.

• To build it, you need: -3 M5 screws -1 M5 nut

I used spare parts from my Prusa Mk3S+

(Optional) - Rubber feet or rubber band

• Adjustment:

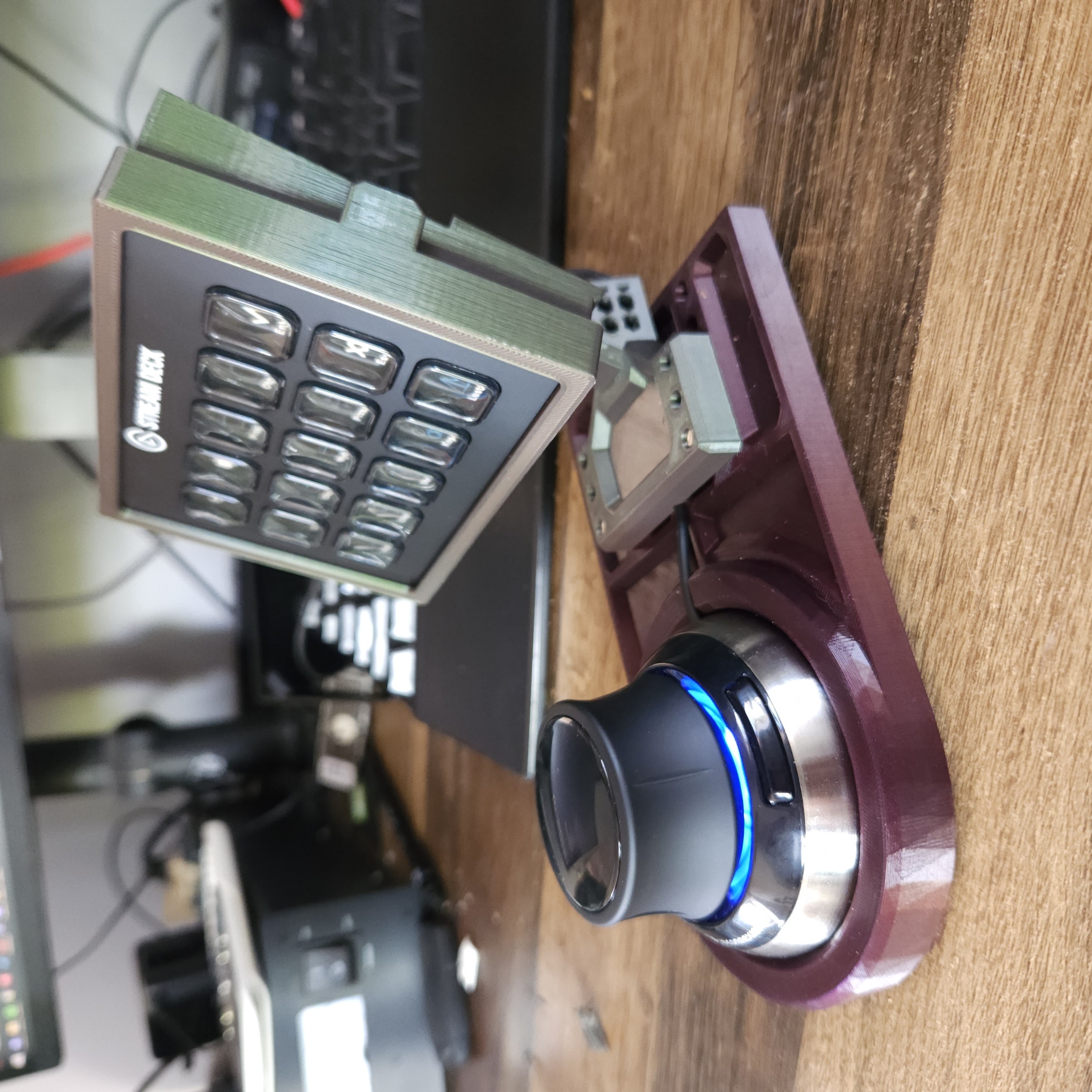

You can adjust the distance between streamdeck and manipulator by lining holes in the “Base” and in “Mount”. Just use two M5 screws and screw them directly into “Mount” part. Connection is pretty solid, no need to add nuts.

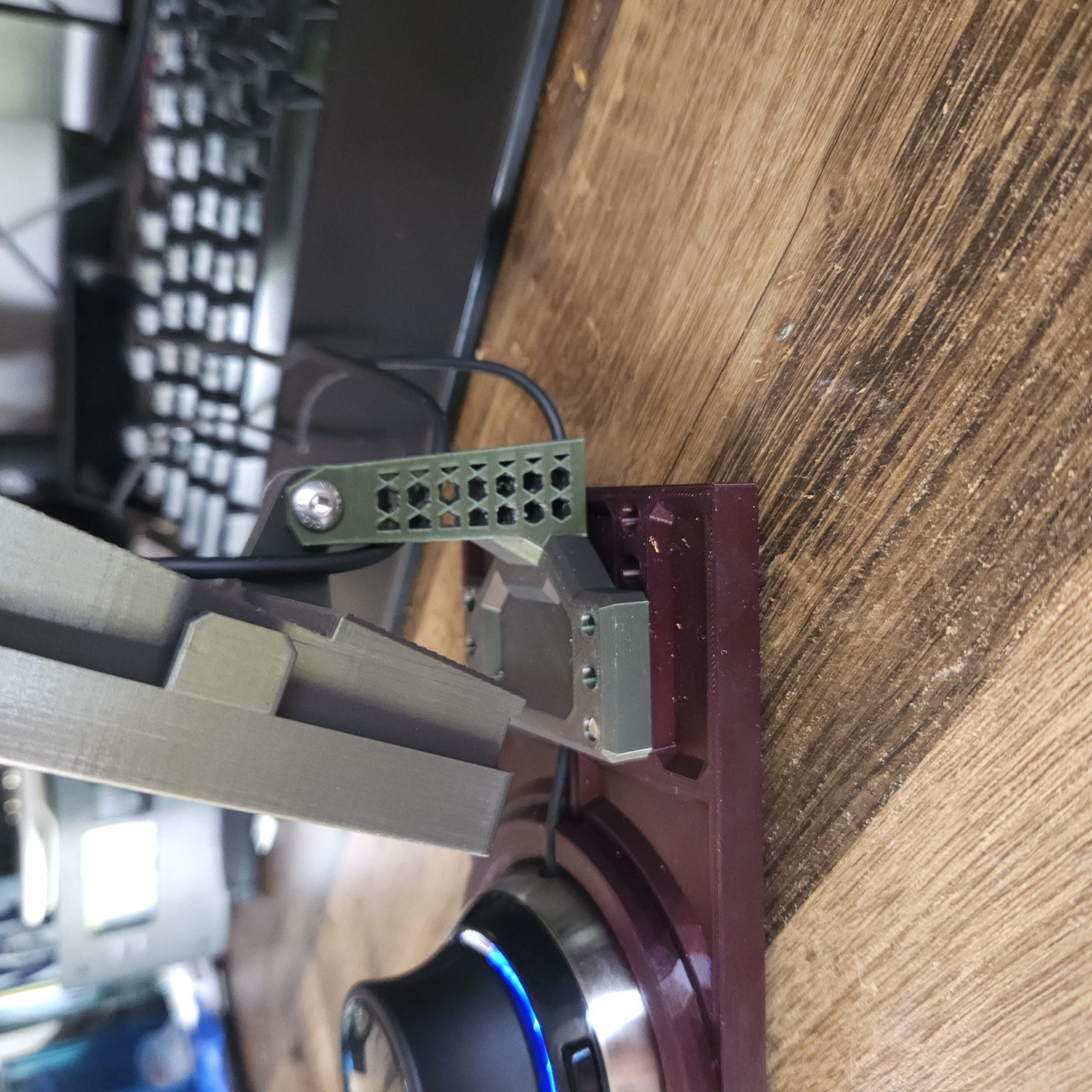

You can adjust tilt of streamdeck by adjusting it as you wish, and screwing the M5 screw with M5 nut through “Back” and “Mount” parts.

• Print Parameters: PLA. Printed on 0.2 Layer, infill 10% with supports generated by PrusaSlicer.

• Orientation of printing : “Base” and “Mount” - Print them just the way they stand on photos “Front” and “Back” - Print them on front faces (this flat ones)

• Notes:

In “Base” part, there is a place, you can fit a rubber band, it give your mount a good grip. Actually I prefer using rubber feet, it's a better way to do it but I leave it as it is, because someone may like it.

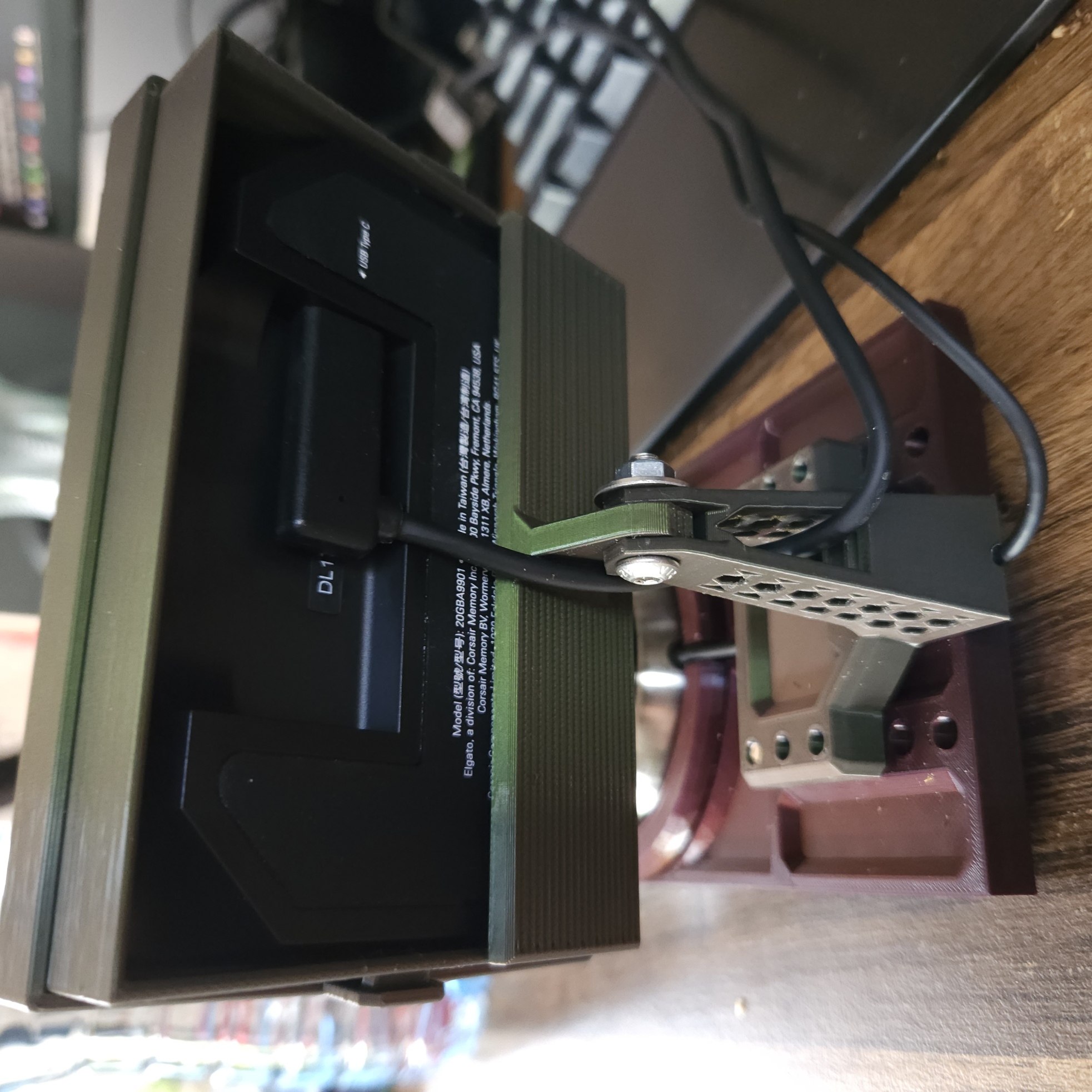

Use canal between “Base” and “Mount” to guide your 3D Connection cable and use hole in “Mount” part to guide your StreamDeck cable (see photos).

Latch parts in “Front” model are suposed to be little bit too big. It's easier to detach it from the “Back” this way.

Design and description by Bartłomiej Dąbrowski , licensed CC-BY.
