Armor Case Raspberry Pi Mount for Original Prusa MK3S+ Frame

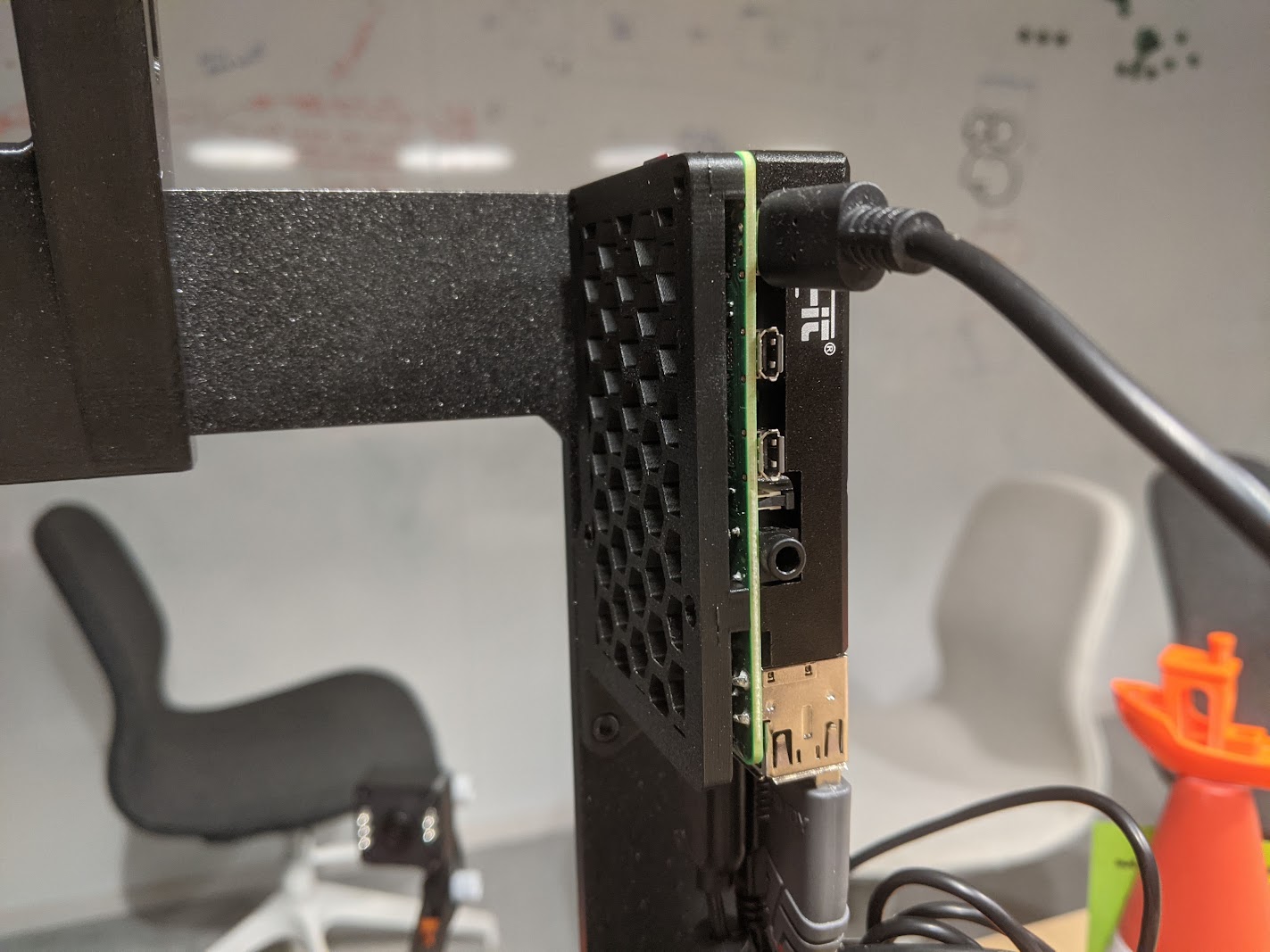

This is a Raspberry Pi mount for the original Prusa MK3S+ that works with heat sink type cases, such as the Sertronics Armor case or the Joi-It Armor Case or any other case of this type. It works with Raspberry Pi 3 and 4. You just have to have the right case respectively.

If you use a Bear frame check out the Bear version of this mount.

Updates

V2 - 2024-03-25: New version with a hook at the top for more stability against material creep or pulling on the power cable. Both versions are totally fine to use.

Features

• Works with Raspberry Pi 3 and 4

• Works with any type of Armor-style case that uses M2.5 screws. Just google “raspberry pi armor case”. All of them are compatible, including the actively cooled ones.

• Short path between Raspberry Pi and the electronics case allows very short USB cables

• STEP file available for easy remixing

##

BOM

Qty

Description

Sourcing

1

Armor case for the Raspberry Pi (only top part needed)

Pimoroni, Amazon

4

M2.5x8mm Socket Head Cap Screws

Take from Armor case

2

M3x10mm Button Head Cap Screws or Socket Head

Aliexpress

##

Printing

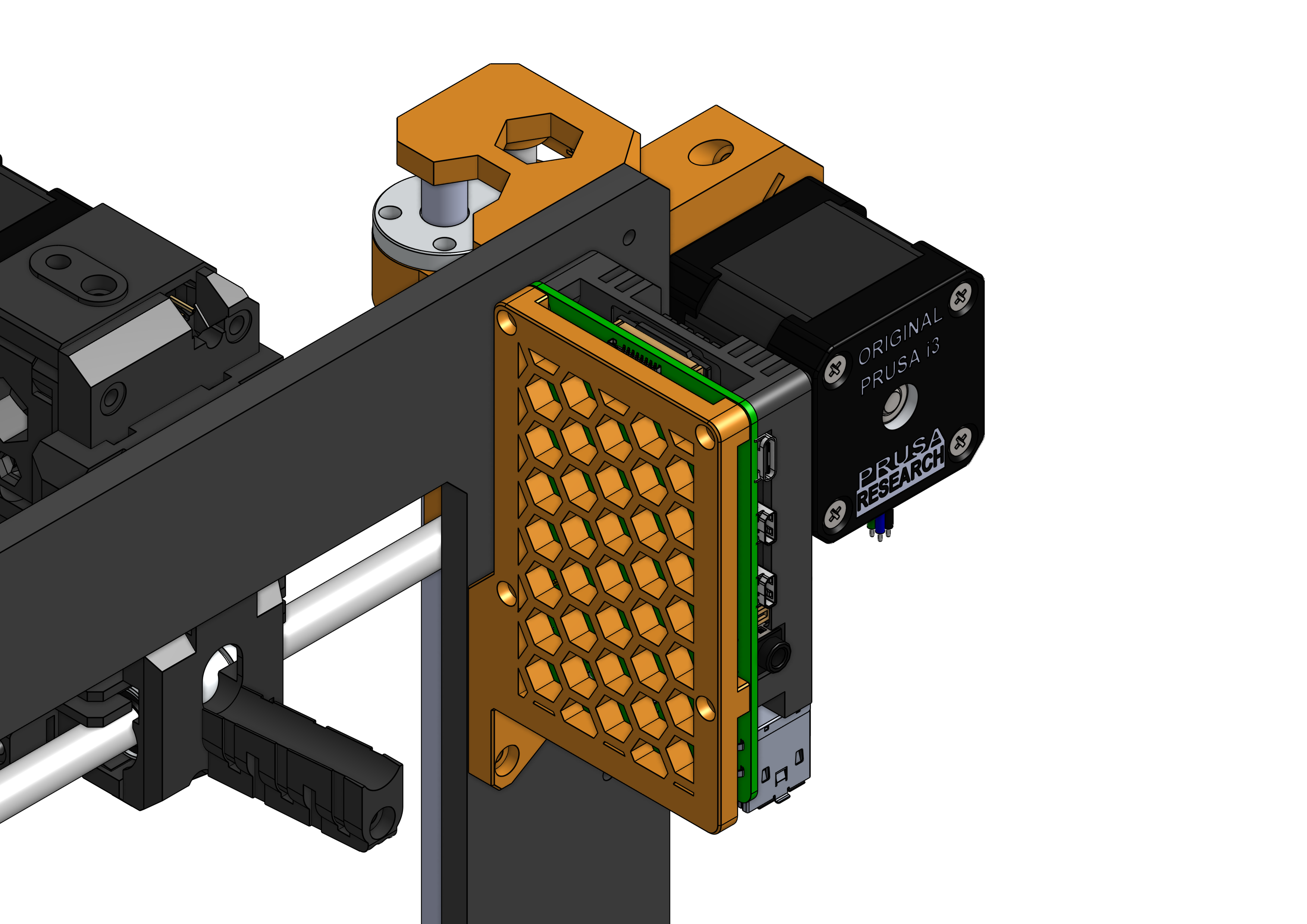

Print with the hex pattern flat on the bed as shown in the screenshot below.

• Material PETG (or any solid material with better temperature resistance)

• Extrusion width: 0.45mm

• Layer height: 0.2mm

• Perimeters: 4

• Infill: 20%

• Solid layers: 5 top, 5 bottom

##

Assembly

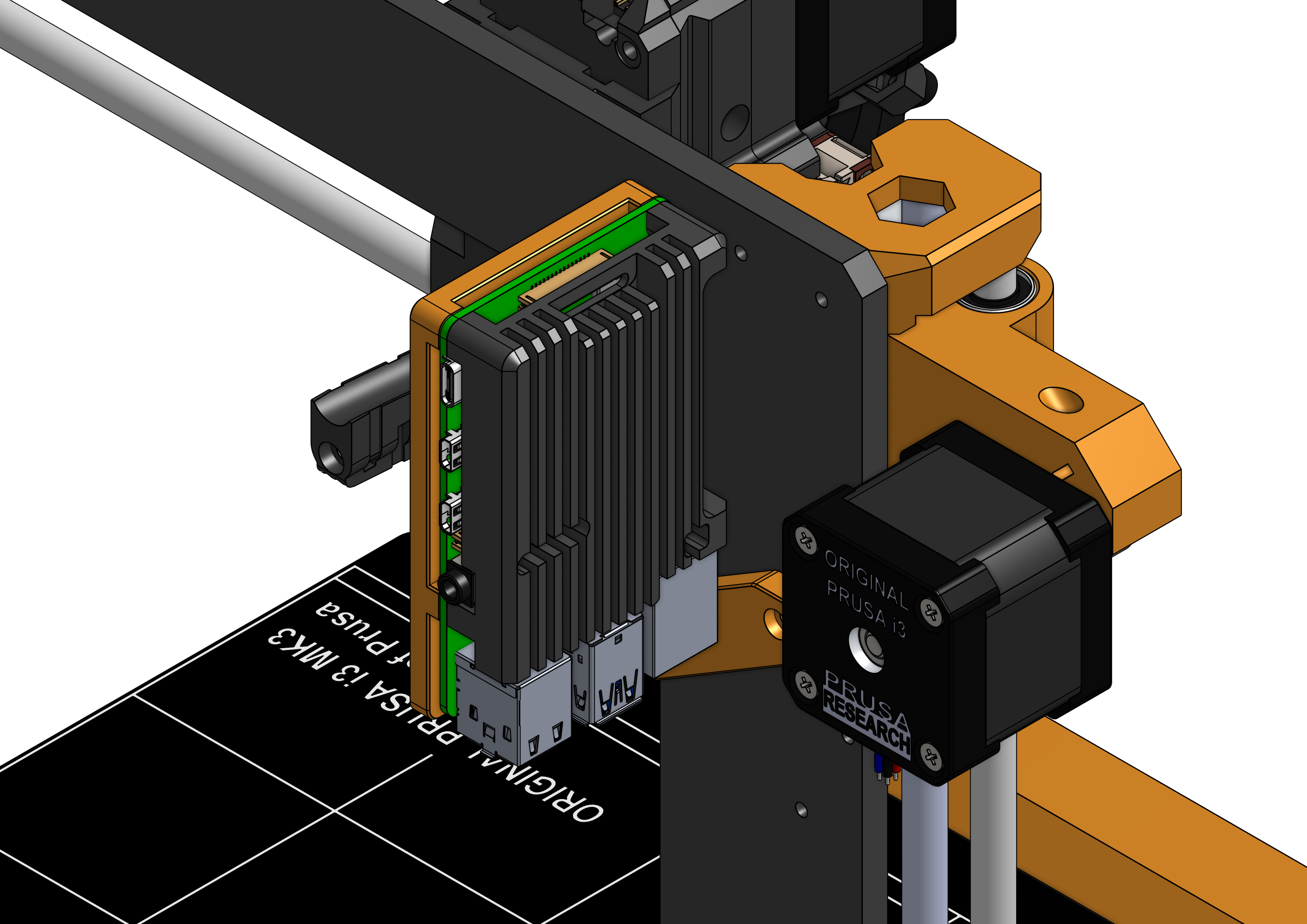

• Secure the Raspberry Pi and heat sink to the printed part using the M2.5x8mm screws from the Armor Case as shown.

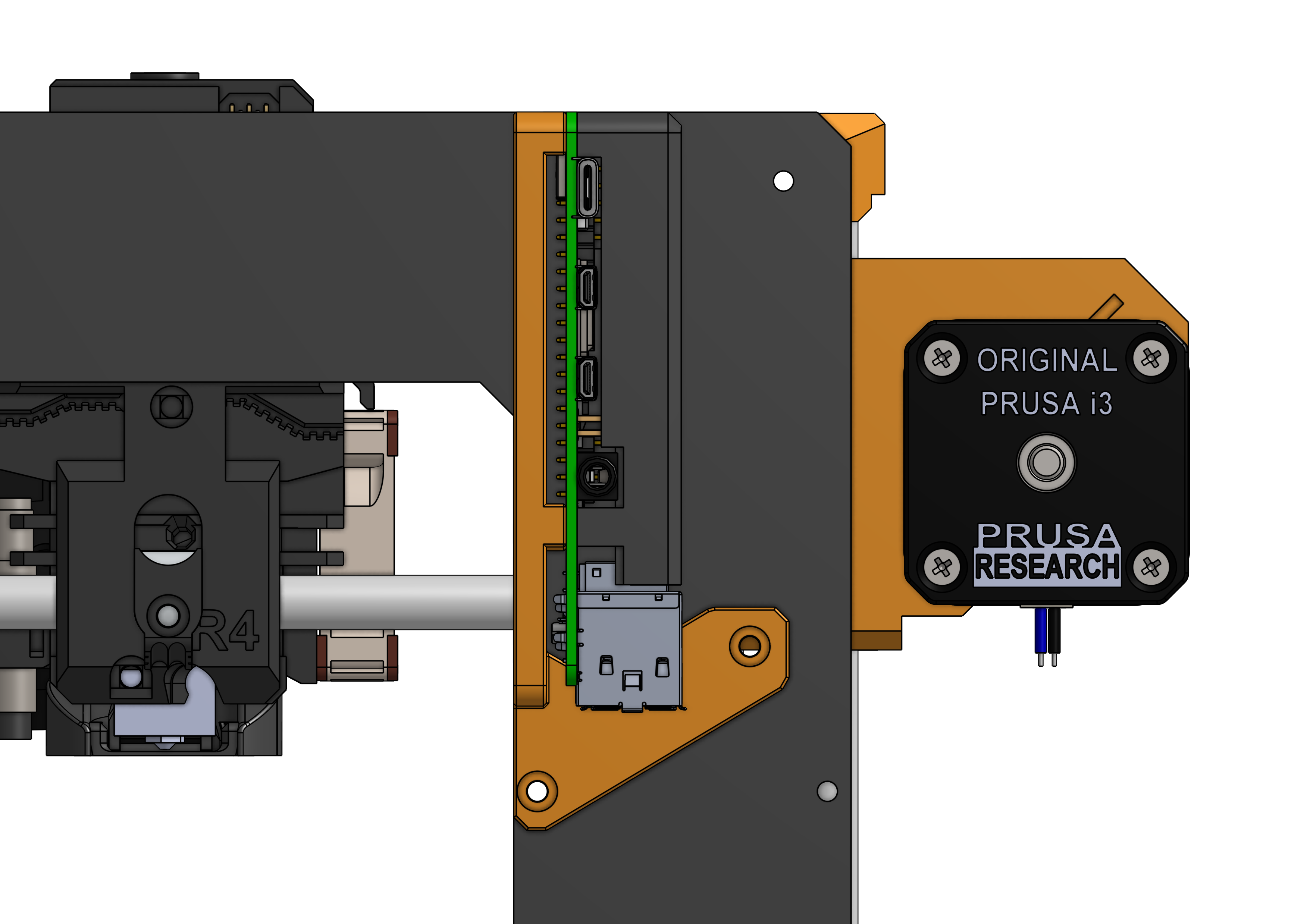

• Secure the mount to the back of the frame using M3x10mm screws as shown.

Additional Credits

• The Armor Case used for the illustrations and as a reference is by Ruslan Magomedov on GrabCAD.

Design and description by 6d6178 , licensed CC-BY-SA.
