Articulating Camera X-Axis Left-Side Mount for Sovol SV06 (Plus)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~48 g
- Print time
- ~2.6 h
- Express shipping
- $20
More information

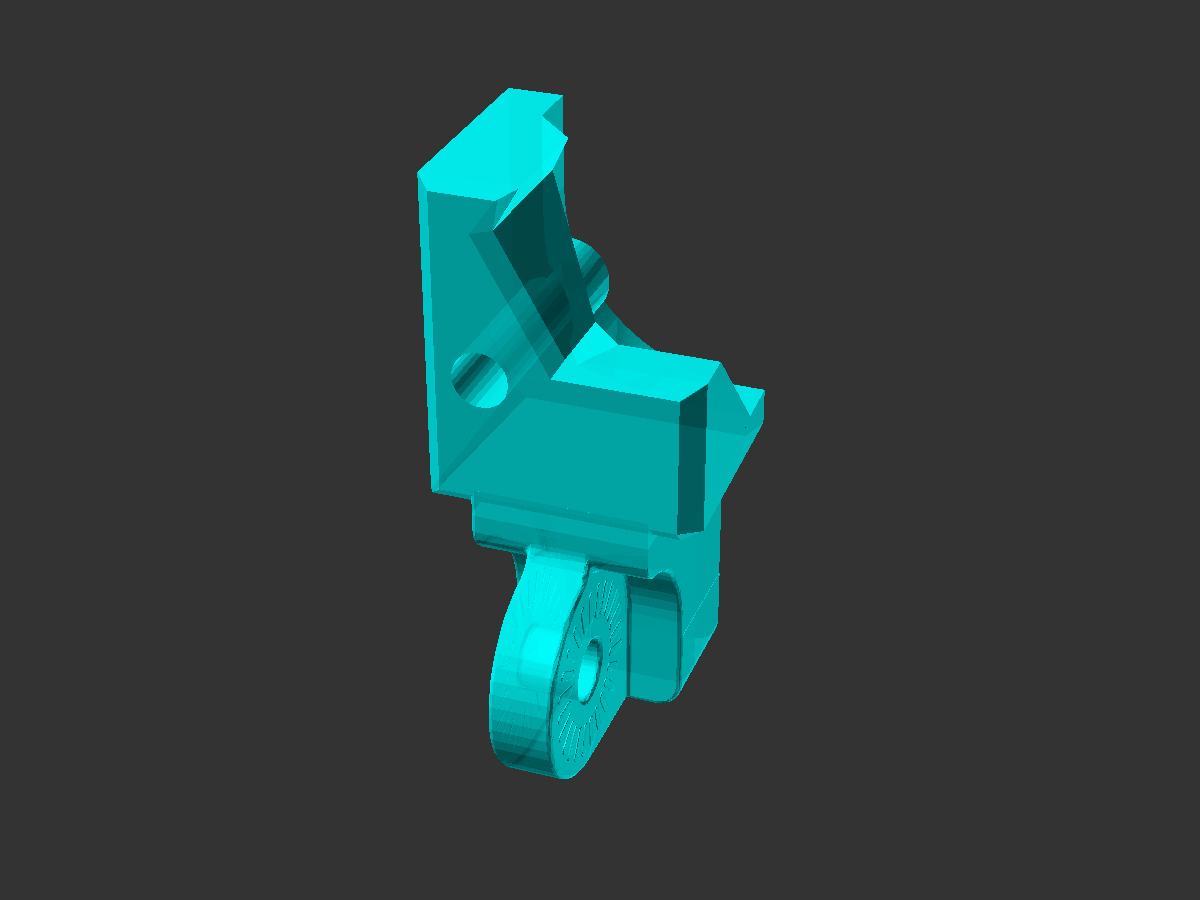

Mount a camera to move with your Sovol SV06 or SV06 Plus' Z-axis with this screw on mount! This part screws onto the the left side X-axis stepper motor housing, and provides an attachment base for Sneaks' articulating camera mount system.
Models for both male and female articulated camera mount bases are provided.
Hardware
A single M3x10 bolt is needed to attach the mount to the stepper motor housing.
Printing and installation
These parts print as oriented in the model files with no supports and no special instructions. Once printed, screw the part onto the left side X-axis stepper motor housing using the M3x10 bolt. Then, attach something to the articulated camera mount!
Remixing

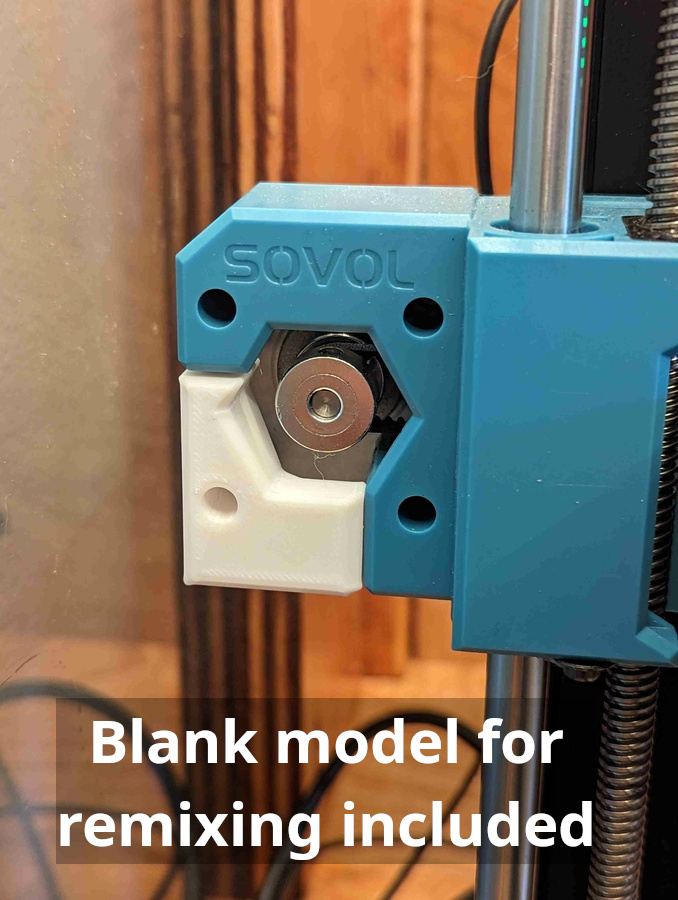

For further remixing, I've also included the blank piece I created to attach the articulated camera mount links onto. I used OpenSCAD to glue these parts together. That model file is included as well. With all of the source files in the same directory, open sv06-xaxis-mount-right.scad in OpenSCAD. The included articulated mount attachment base pieces were prepared in TinkerCAD.
See also
I also have a SV06 (Plus) X-axis right side mount!
I used Zach's remixed articulating camera mount thumb bolt heads with steel M5x20 bolts.
I used areyouferretti's articulated mount tripod bolt to mount a Logitech C920 webcam to my articulated mount.
Design and description by bulbasaur0 , licensed CC-BY.
Frequently asked
How long does shipping take?
Articulating Camera X-Axis Left-Side Mount for Sovol SV06 (Plus) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
