Articulating Camera X-Axis Right-Side Mount for Sovol SV06 (Plus)

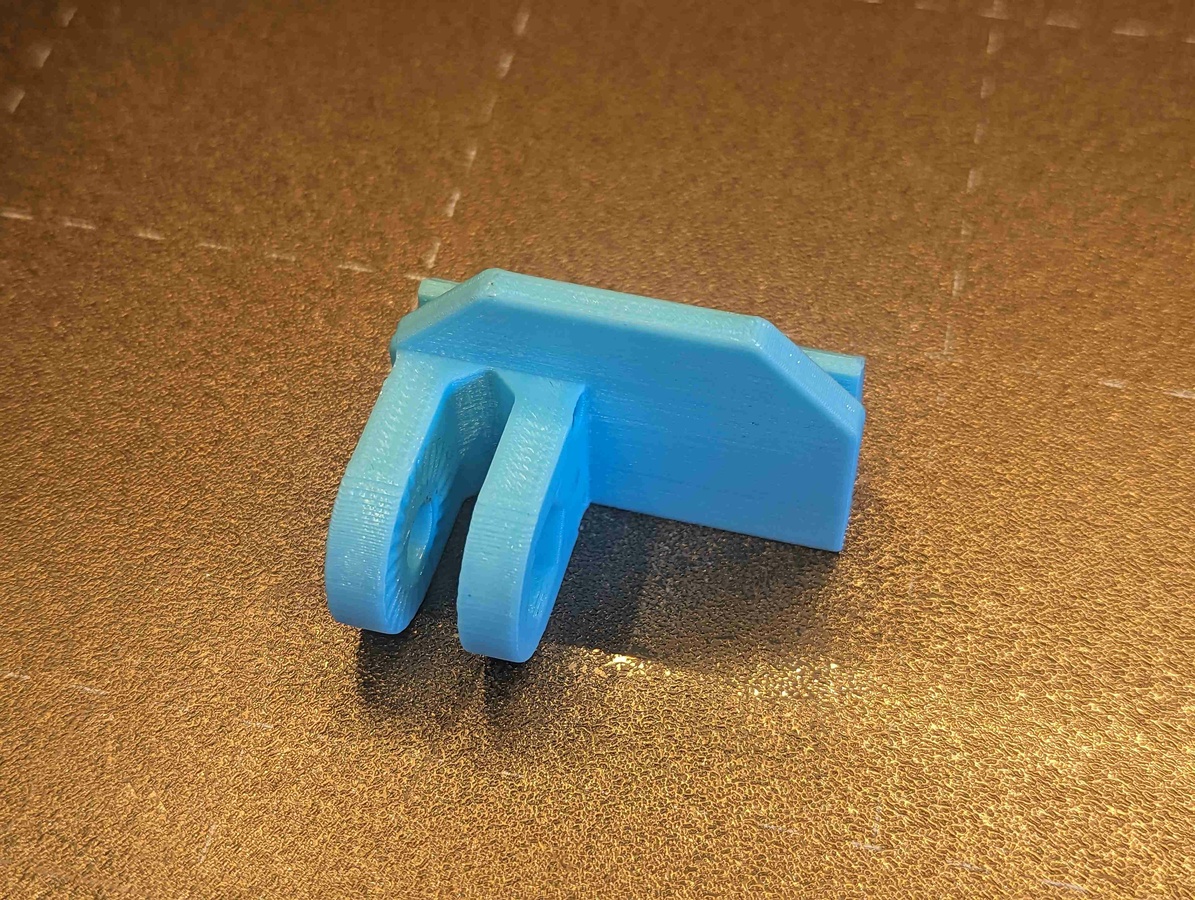

Mount a camera to move with your Sovol SV06 or SV06 Plus' Z-axis with this press-fit mount! This part slides into the right side X-axis linear rod housing, and provides an attachment base for Sneaks' articulating camera mount system.

Note: The X-axis linear rod housing on the SV06 and SV06 Plus are different, and models for both printers are included. Plus, models for both male and female articulated camera mount bases are provided.

Printing and installation

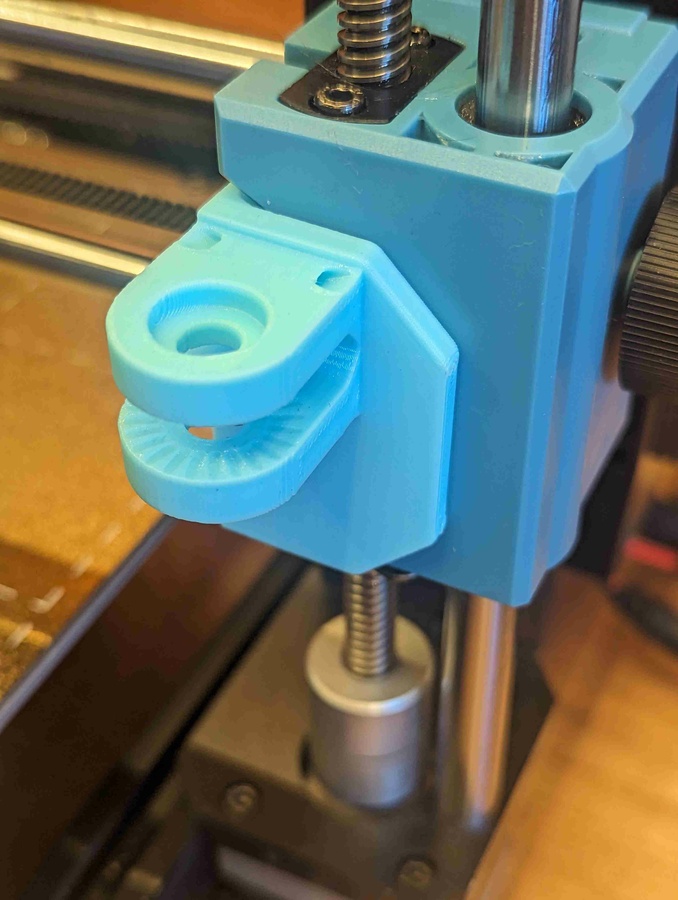

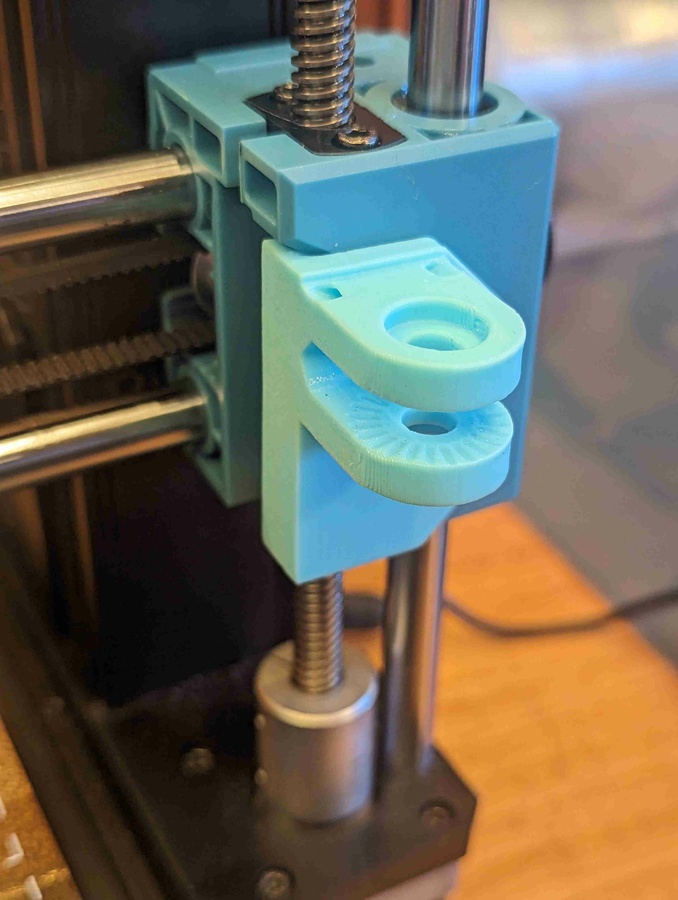

These parts print as oriented in the model files with no supports and no special instructions. Once printed, simply slide the part into the right side X-axis housing and attach something to the articulated camera mount!

Remixing

For further remixing, I've also included blank and bare press-fit pieces for the SV06 and SV06 Plus X-axis housing. I used OpenSCAD to glue these parts together. That model file is included as well. With all of the source files in the same directory, open sv06-xaxis-mount-right.scad in OpenSCAD.

The included SV06 and SV06 Plus tensioning mount slice STL files are reduced copies of Sovol's original parts (also included). I did the initial slicing of the original parts in TinkerCAD as OpenSCAD produced CGAL errors while subtracting from the original parts.

Sovol original part links: SV06 and SV06 Plus

See also

I also have a SV06 (Plus) X-axis left side mount!

My Logitech C920 is attached to the articulated mount using my Logitech C920 articulated mount adapter.

I used Zach's remixed articulating camera mount thumb bolt heads with steel M5x20 bolts, and darkcoffee's steel ball nut remix.

Design and description by bulbasaur0 , licensed CC-BY.
