Bambu Lab P1P ptfe tube bracket
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~29 g
- Print time
- ~1.6 h
- Express shipping
- $20
More information

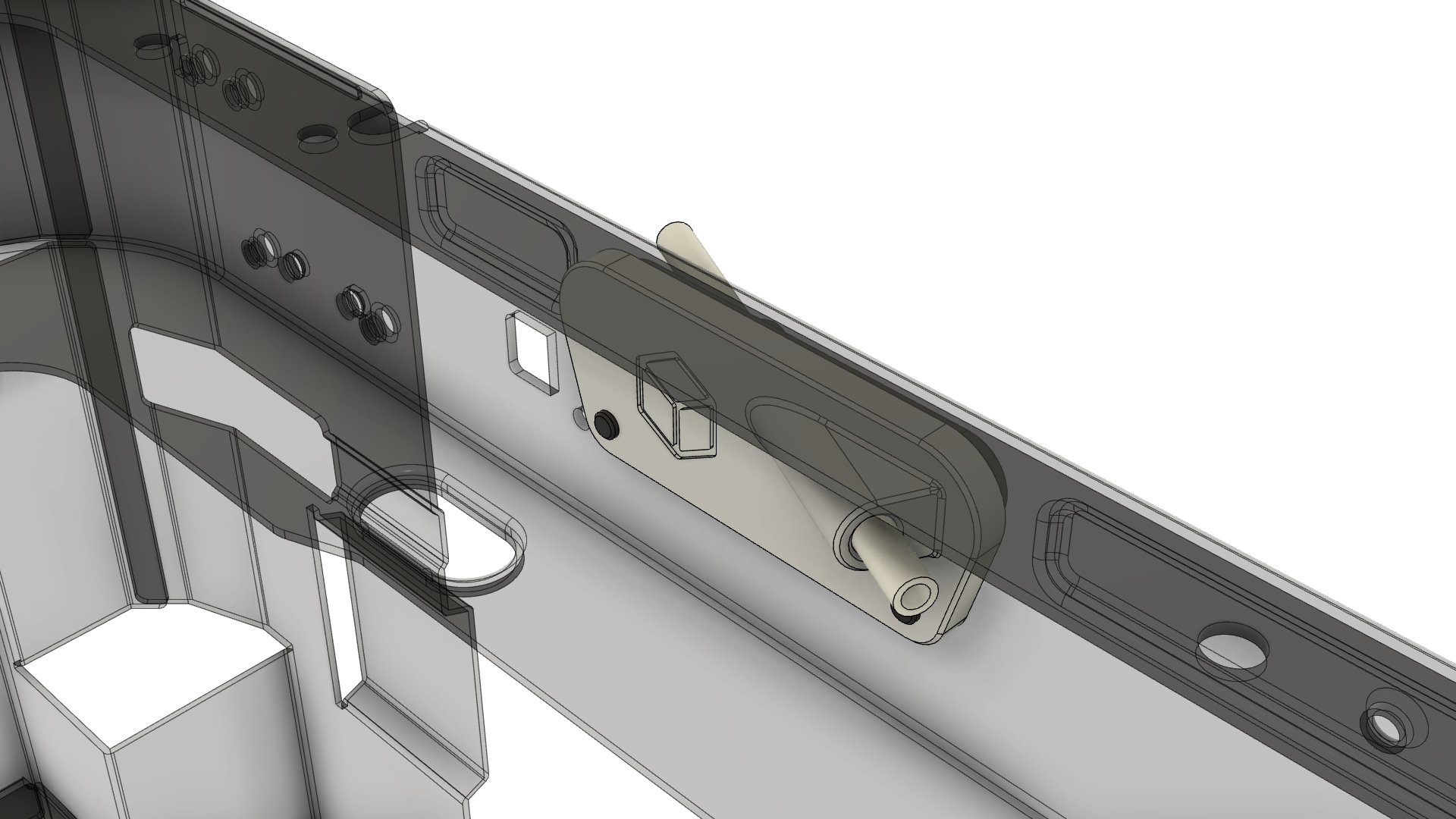

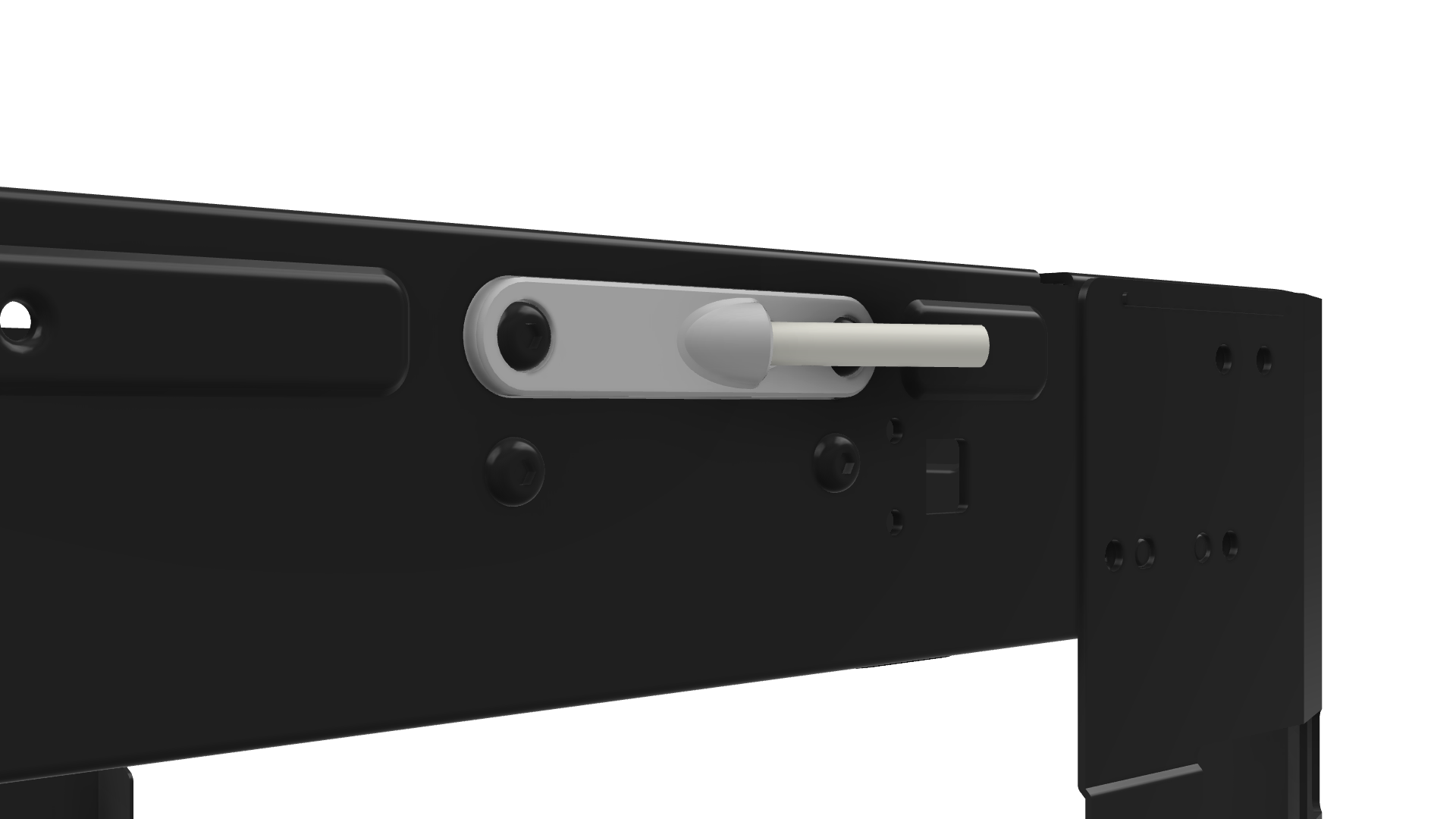

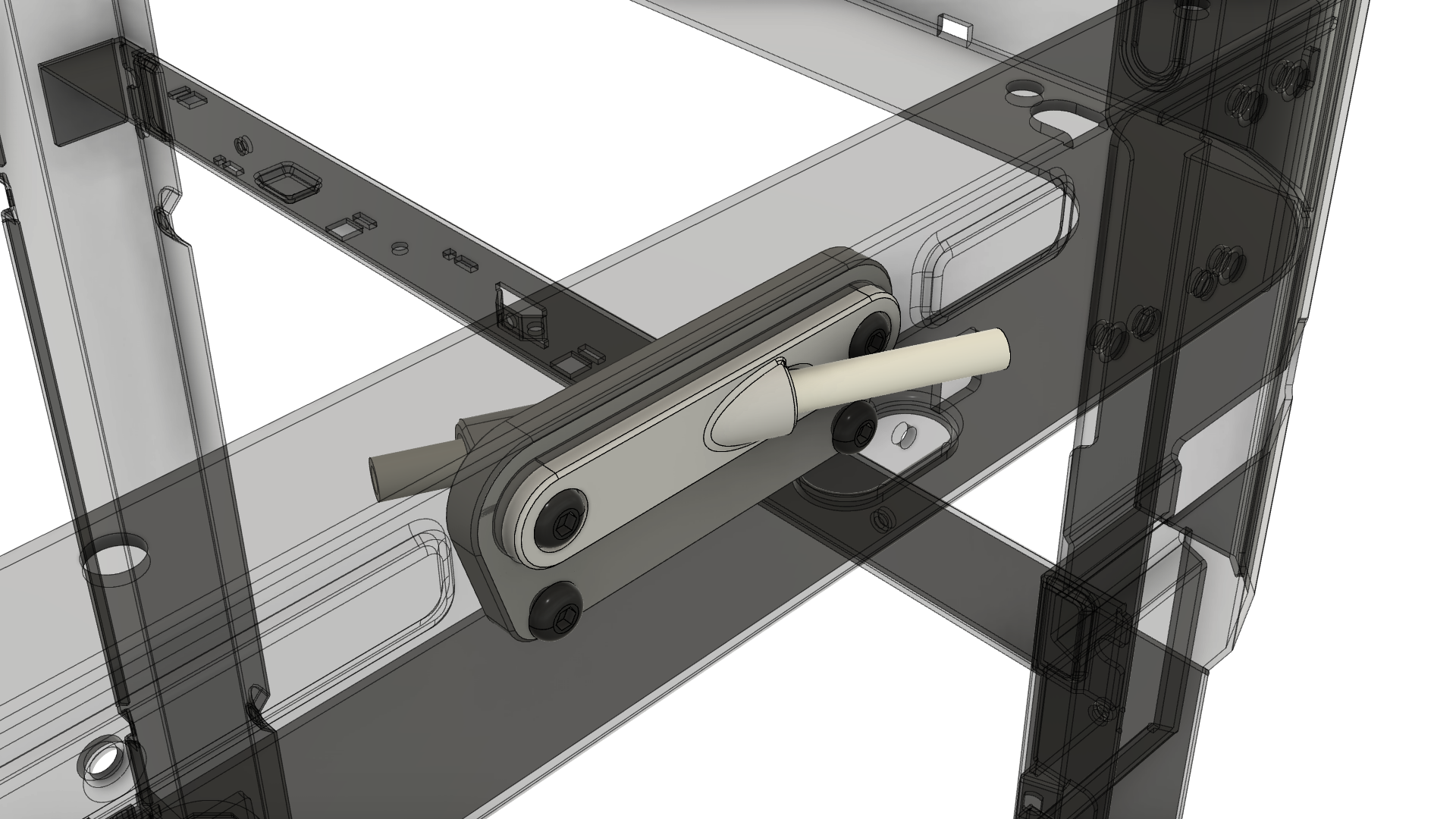

This is a 20° bracket that guides the ptfe tube of the P1P to run the same as X1/C. This can be used standalone and as part of the Arc for the P1P.
The holes for M3 are meant to be self-threaded so I do not need to use an insert.
The hole for the PTFE tube was designed to be tight. This is to provide a good grip on the tube during printing. if it's too tight, use a 4mm drill bit to make the hole slightly wider.
Some might be asking. Why not do a cable chain like the X1 series? Well, I tried. I designed a printed chain, and while robust, it was heavy compared to the manufactured ones. So the far end keeps rubbing against the carbon rod which is a no-no. Maybe I will redesign the chain again in the future.
BOM
M3x4mm 2pcs
M3x6mm 2pcs (without using ARC)
M3x8mm 2pcs (when using ARC)
Conclusion
To date, my designs are free to download and use. There is no Pateron or OnlyFan (hahaha). If you like my them and want to contribute to my coffee addiction & help fund the filaments I need for prototyping, a donation of $5-$10 to Ko-fi or paypal.me will be greatly appreciated.
Caveat
As with all my designs, it may and may not work for you. So print and install at your own discretion.
Design and description by thrutheframe , licensed CC-BY.
More 3D printed PTFE tube clipsMore 3D printed Bambu Lab accessories
Frequently asked
How long does shipping take?
Bambu Lab P1P ptfe tube bracket is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
