Beer bottle shelf hanger / beer rail

Store and Show your beer! 🍺🍻 🍾

Normally my regular beer is stored in crates. But occasionally I have some special beers that just take space on my kitchen worktop be fore making it to the refrigerator.

Please leave a like, rating or comment when you download it!

This solves this issue. And if you have really nice beer bottles, you can hang them for decoration even!

The bottles can be empty or full, the construction is quite strong and uses the glass bulb below the beer cap.

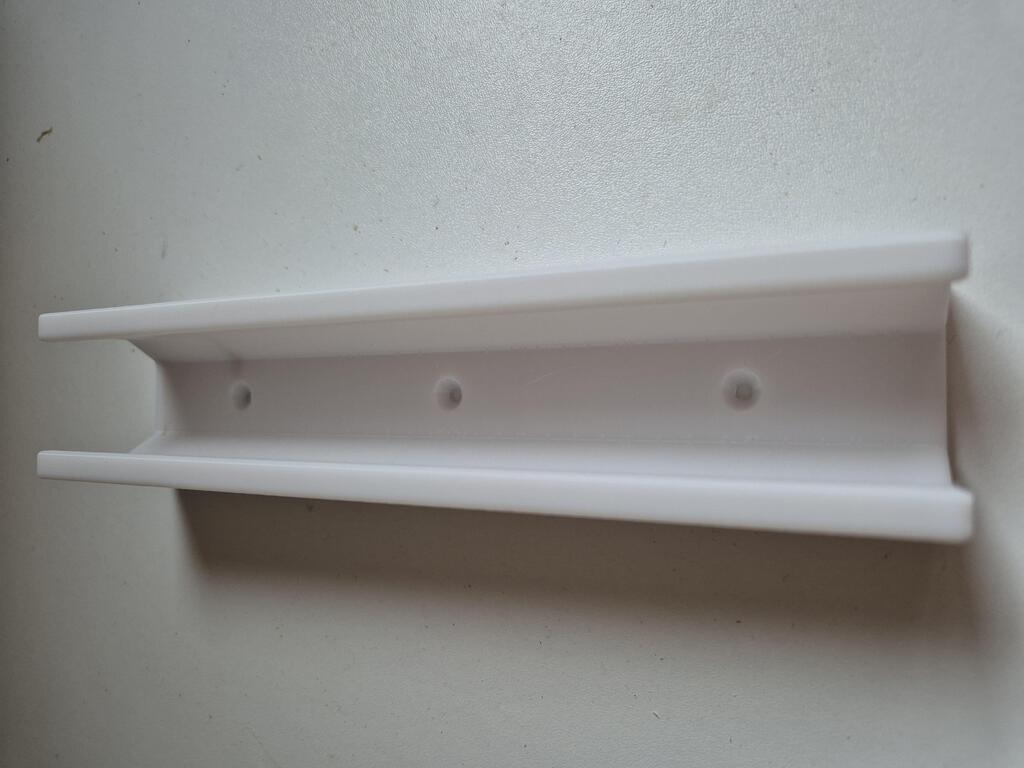

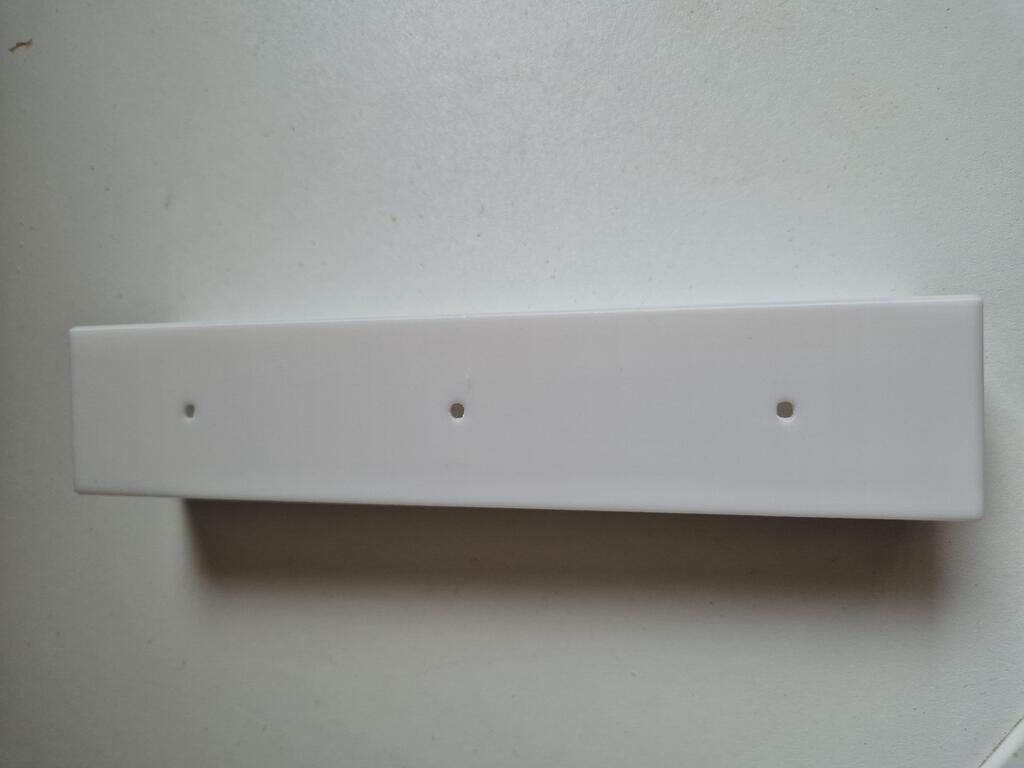

The length of the standard rail is currently suitable for 3 bottles (0.33L, 0.25L and 0.5L all tested) and printable by a Prusa Mini (or bigger). Can be printed in the orientation the STL is in. If possible for your printer, the height can be more percentage compared to the rest, although this will impact the (sunken) screw holes as well. The standard design (3 beers) contains 3 sunken screw holes, where some regular screws will fit in.

Different bottles

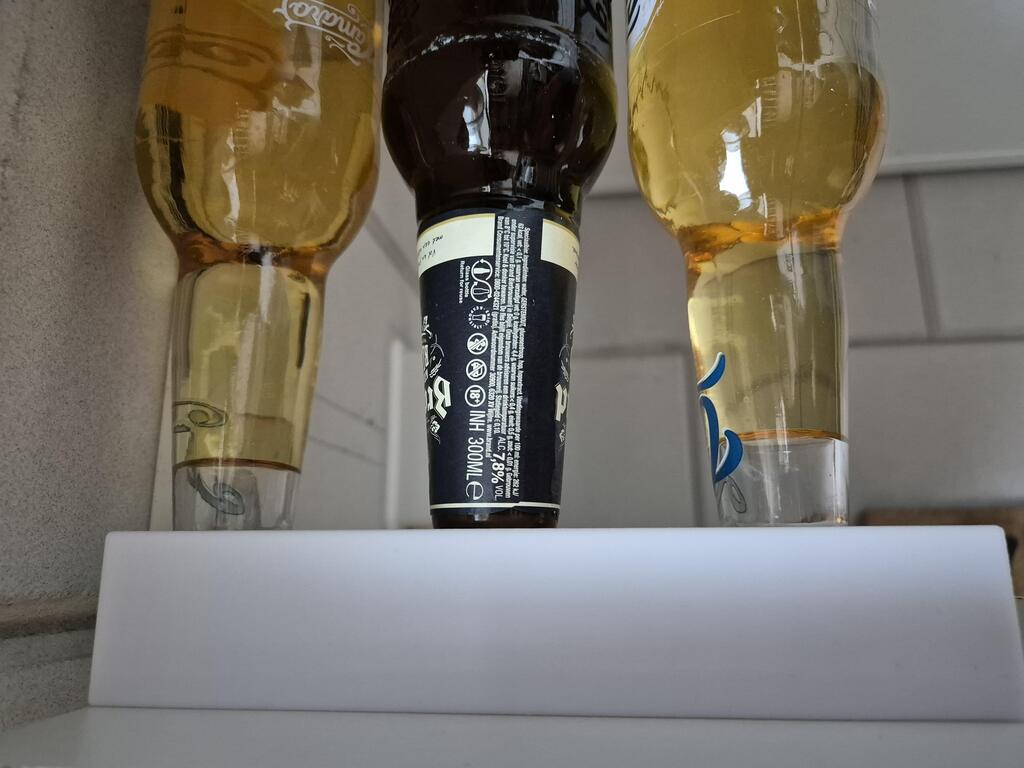

I tried hanging all different bottles I could find in the local store, and they all hang firmly in the rail. Even 0.25L, with a “twist cap”. (See images)

You can also hang several prints in a line to get a longer “beer rail”.

##

Versions

Next to the standard (3 beers) version there is also a single “rail” which can hold 1 beer (with 1 sunken screwhole). This can be used for testing purposes for example.

Printing Parameters

• Filament: PETG • Nozzle: 0.6 (Can be 0.4 as well) • Layer Height: 0.25 (Structural) • Infill: 30% • Infill type: Gyroid • Perimeters: 3 • Combine infill every: 2 • Support: None

Save some storage space and print this beer rail!

Design and description by Groentebroer , licensed CC-BY.
