Behringer UMC22 mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~28 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information

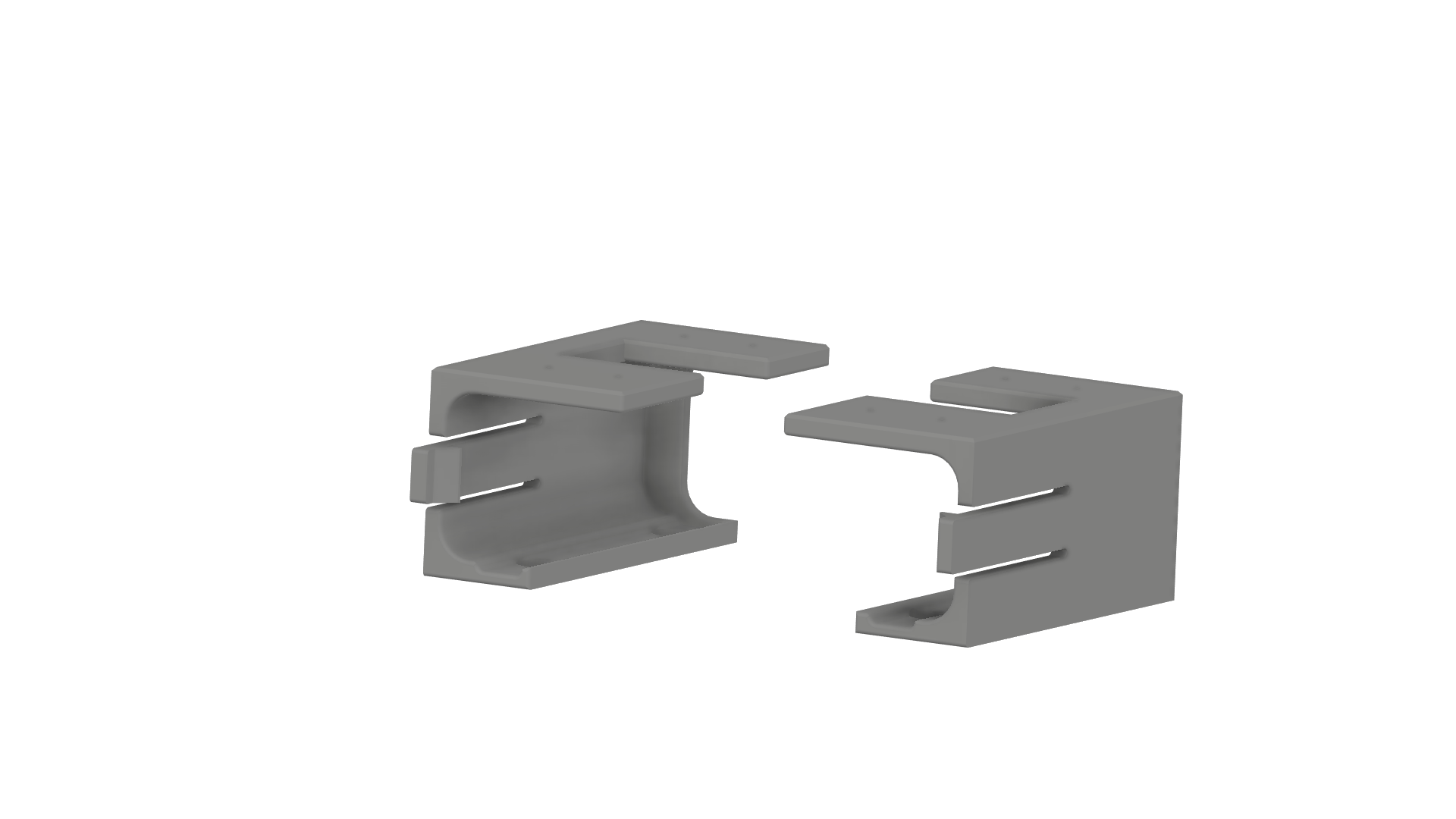

Printed in 2 parts (left and right side). I used PETG, use whatever filament you want.
Parts are oriented for printing, I printed it with 0.3mm nozzle (because I'm insane), you can use whatever you want, preferably 0.4 or 0.6mm. Use a minimum of 4 perimeters on 0.3mm nozzle or 3 on 0.6 and as high of an infill as you feel comfortable, but 20-25% should be enough, use a brim if you're not sure about bed adhesion.
After you're done printing, clean up the parts, and mount them wherever you want (holes for screws are 1.5mm, but you can use any countersink screws with a head diameter up to 7mm.)

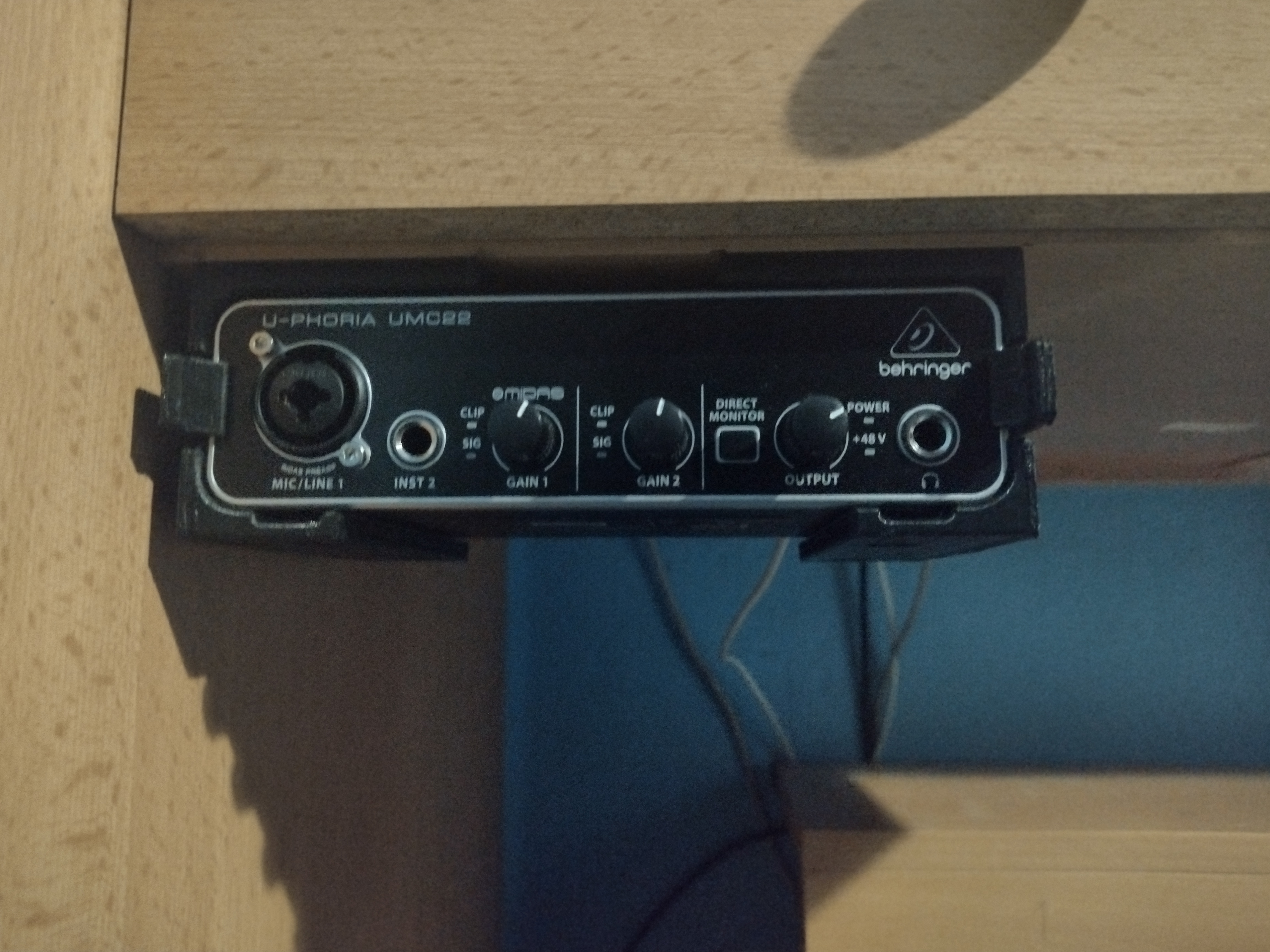

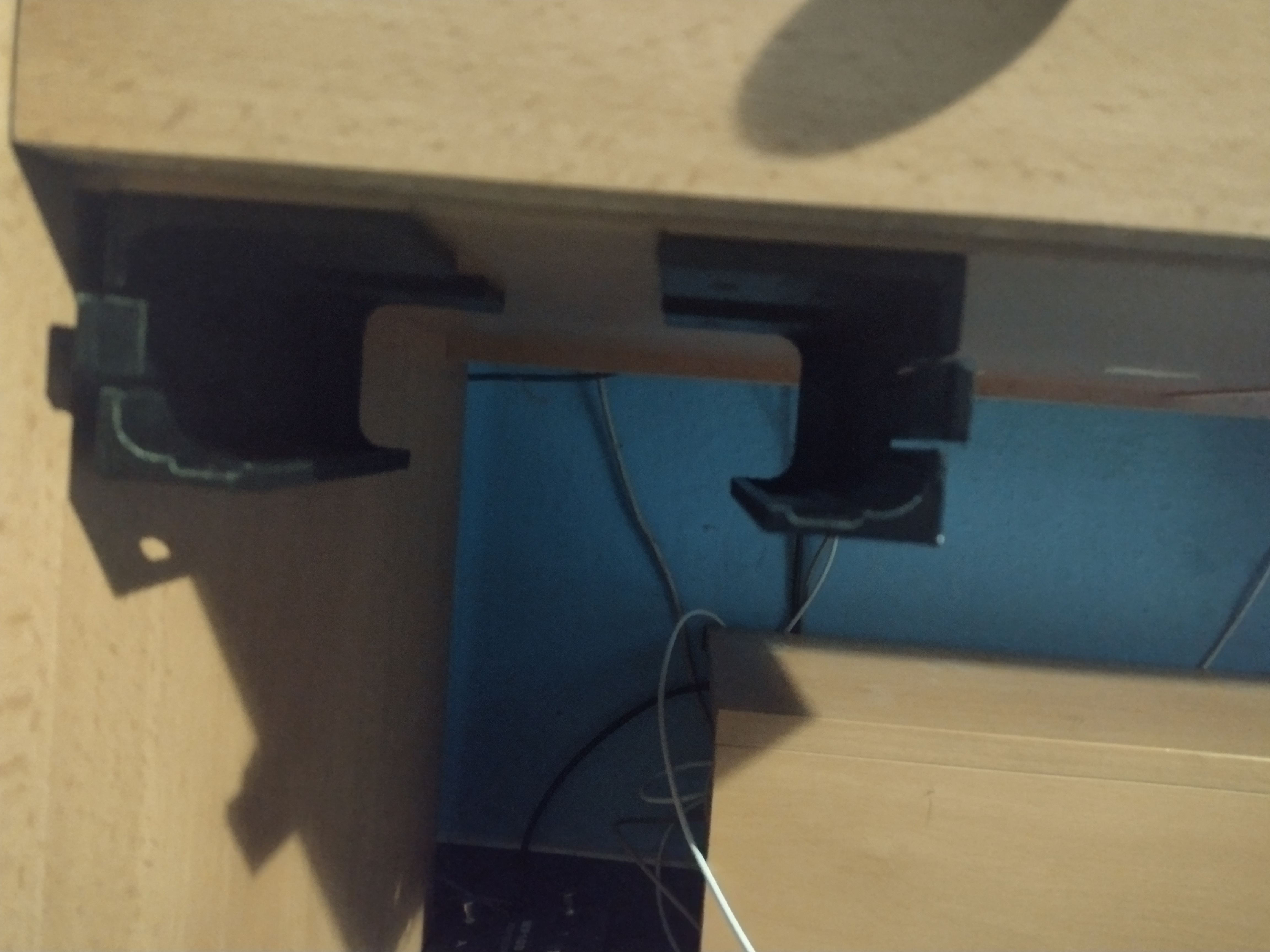

Mount both parts with one screw so it can move, mark the other holes, make sure the interface fits (should just snap into place) and if it does, predrill the other holes and mount it permanently. When you're done, the interface should latch into place, and if you need to remove it, open the clips gently with both hands and push on the interface from behind so it slides out.
Fusion files are provided if you need to edit anything, or just ask in the comments, and I can edit the files for you. Also, If you have any suggestions on how I can improve the design, feel free to let me know.
Design and description by GameFan , licensed CC-BY.
Frequently asked
How long does shipping take?
Behringer UMC22 mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
