BigTreeTech CB1 Heatsink Fan Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~11 g
- Express shipping
- $20
More information

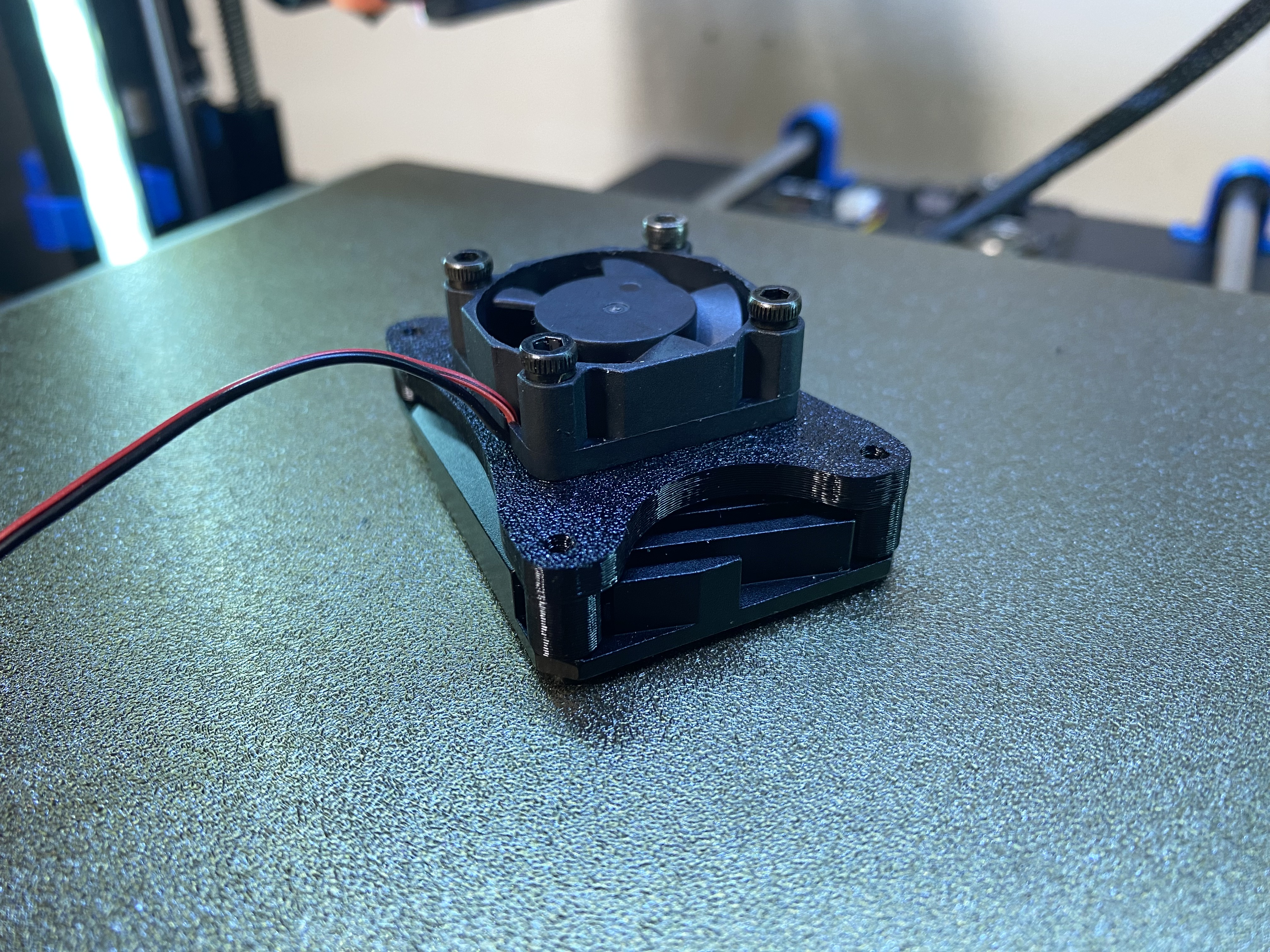

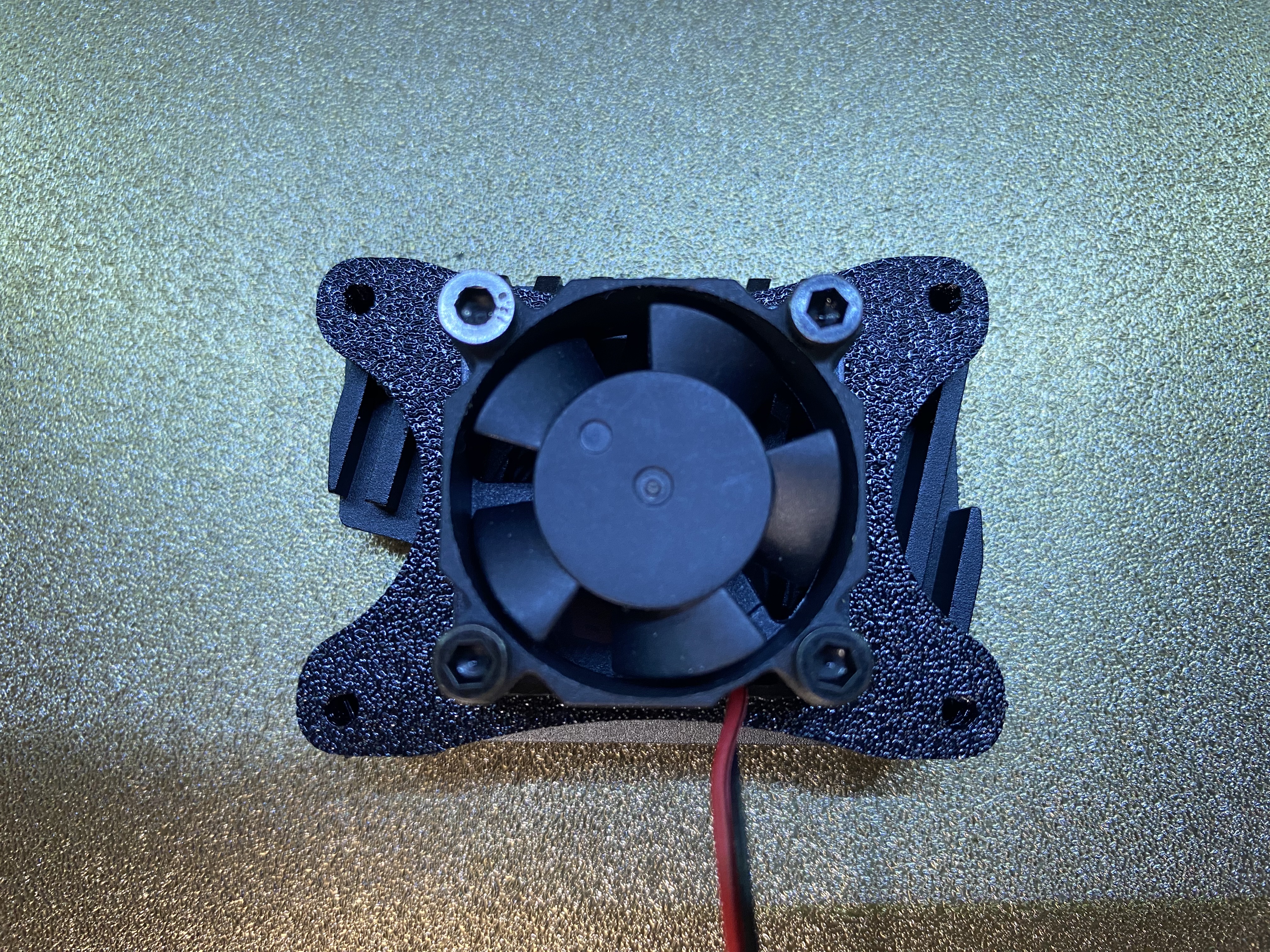

This is a custom mount that fits right onto the CB1 heatsink to mount a fan to it. The 4x holes for the fan needs to be taped (m3) theirs no room for brass inserts.
Hardware needed
1X 3010m Fan
4x m3 x 14mm fan screws
4x m2.5 x 18mm mounting screws
Code to have the fan turn on and off based on the CPU temp
[temperature_fan SoC_fan] pin: CB1: gpio79 #pin: RPI: gpio26 kick_start_time: 0.8 off_below: 0.8 max_power: 1.0 sensor_type: temperature_host control: pid min_temp: 0 max_temp: 100 pid_kp: 1.0 pid_ki: 0.5 pid_kd: 2.0 min_speed: 0.0 max_speed: 0.8 target_temp: 45
Print Settings
Printer Brand: Anycubic
Printer: Mega Pro
Rafts: No
Supports: No
Resolution: 0.2mm
Infill: 50%
Filament: eSun-PETG
Design and description by Tim Oertel , licensed CC-BY.
Frequently asked
How long does shipping take?
BigTreeTech CB1 Heatsink Fan Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
