Bike Wall Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~49 g
- Print time
- ~2.7 h
- Express shipping
- $20
More information

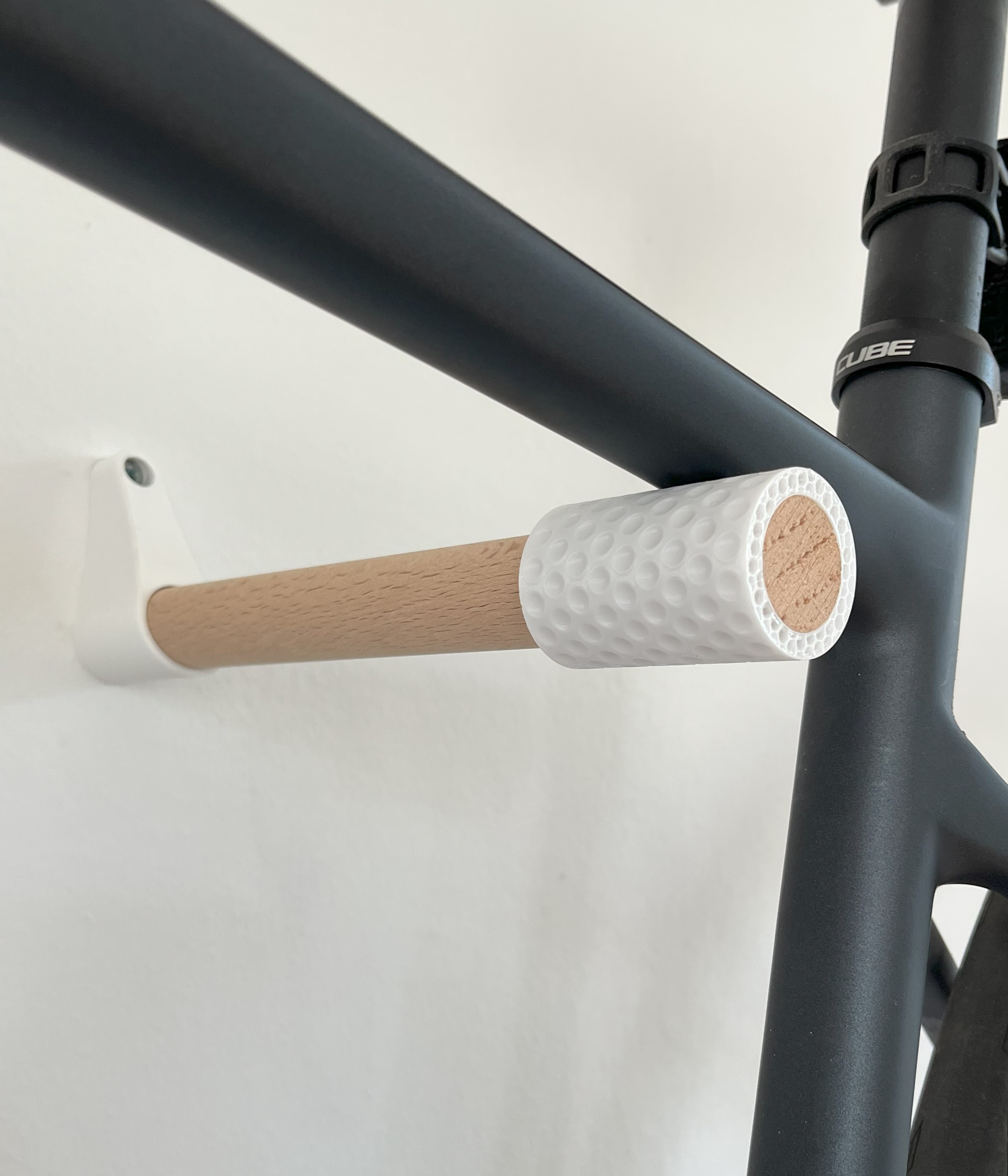

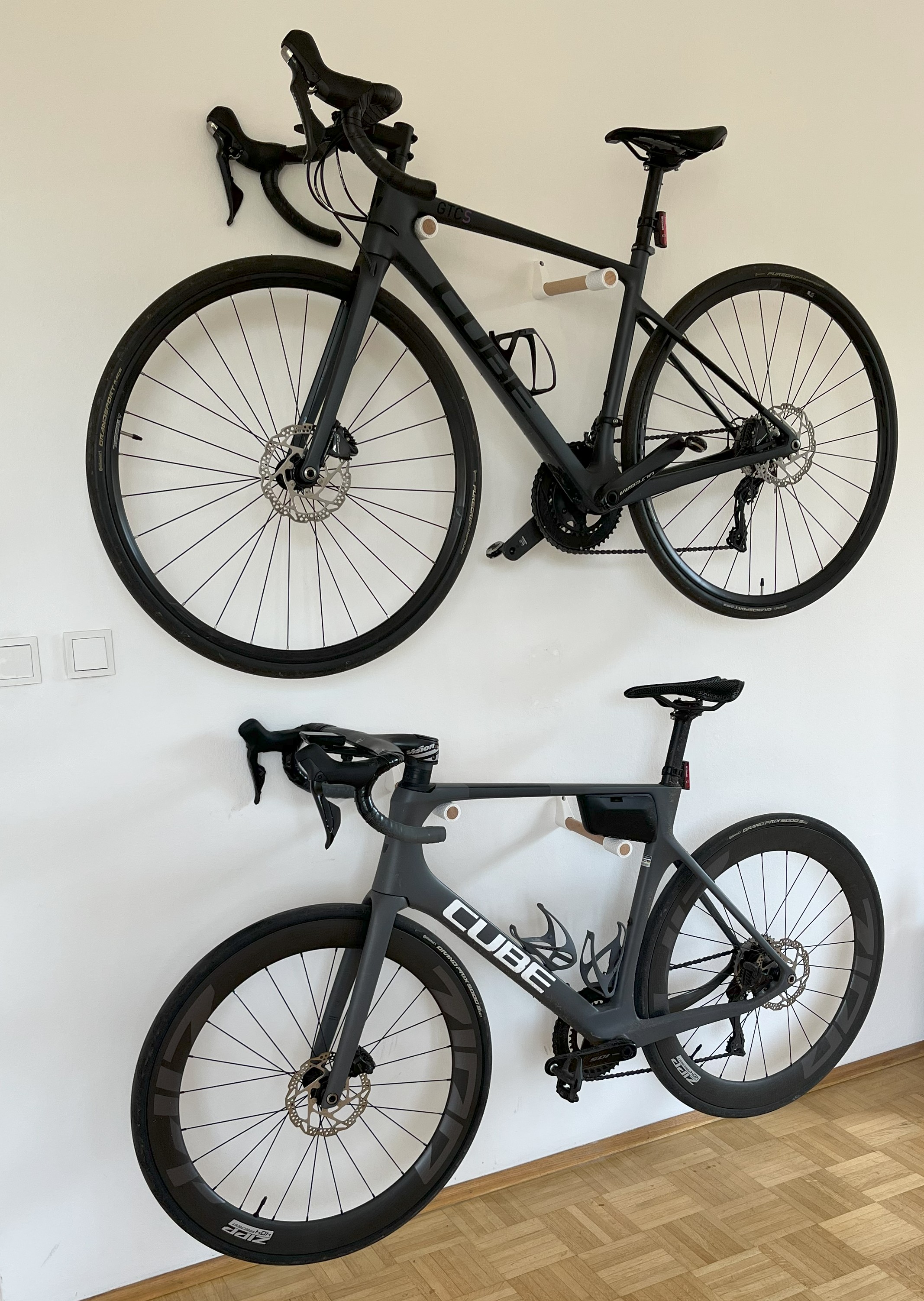

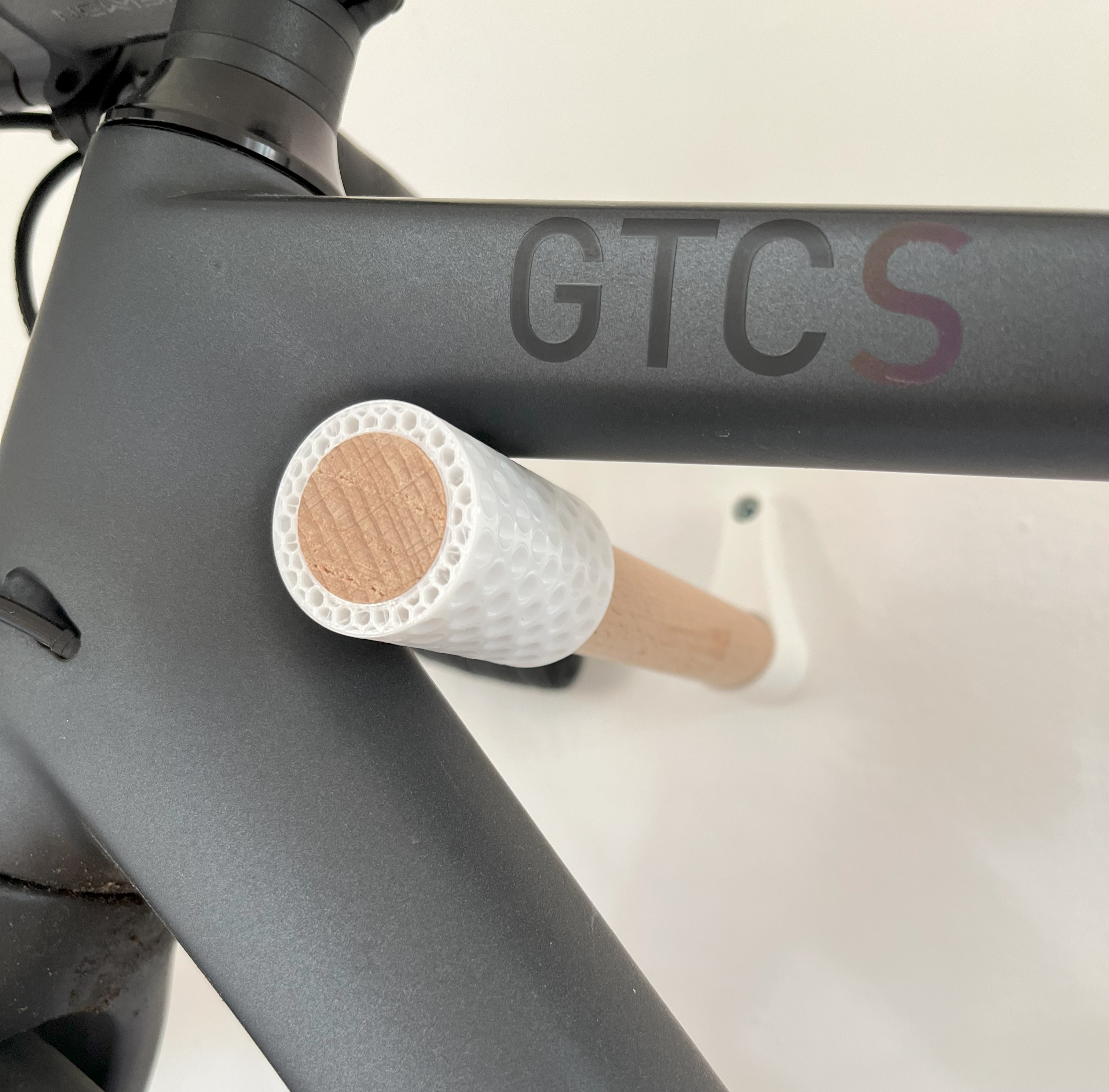

This sleek and functional indoor bike wall mount is designed to securely hold your bicycle while adding a touch of minimalism to your space. The mount consists of three key components: a sturdy wooden rod, a durable wall bracket, and a soft contact surface to protect your bike from scratches. Installation is straightforward, requiring only a dowel and screw.
Wall bracket
The wall bracket should be printed with 4 perimeters and an infill of 80%. The mounting hole has a diameter of 5.3 mm (~ 0.21 inch) and fits a countersunk head.
Contact surface
In order to ensure a gentle yet firm grip on your bike, it is recommended to print the contact surface using a flexible material like TPU. To achieve the honey comb look, you need to set the top and bottom layers to zero and change the infill pattern to honey comb or something else of your preference.
Wooden rod
The wooden rods should have a diameter of 25 mm (~1 inch) and a length of 25 cm (~ 10 inch). Please note that the inner dimensions of both the wall mount and the contact surface should be adjusted to accommodate your 3D printer’s tolerance and the exact size of the wooden rod.
Design and description by Robin Schregle , licensed CC0.
Frequently asked
How long does shipping take?
Bike Wall Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
