Biqu H2 Ender 3 V2 Mount Plate Updated 10/05/23

I liked the previous remix of this file but some things seemed unnecessary. the adxl portion has been removed to allow for a 4020 fan to be installed instead, if adxl is required install via the top two screws (top left of the extruder) as it should be supported via the back and the bottom holes. (which is secure enough) modified to use the carriage wheels as well as support. This does seem to lock the carriage into place very secure and moves perfectly fine. Personally im using a M6 micro-swiss plated wear resistant nozzle which appears to of added some depth, previous print i had to put some washers to space it to the right height. now its perfect for the nozzle and seems to be offset perfectly fine. For cr-touch offsets please refer to original model. i've printed in PLA to test the print but will be going to petg now i have a secure bracket.

UPDATE ** realigned the Holes so Bottom, Back and top all line up. added a part to Zip Tie cables instead of previous system. Also an additional zip-tie / Connector i'll use for my adxl345 mount at a later date. This Mount has 2 holes on the back 2 on the top and one on the bottom allowing the space for this dual 5015 mount - https://www.printables.com/model/300936-5015-dual-fan-ducts-for-modular-biqu-h2-mount-for-

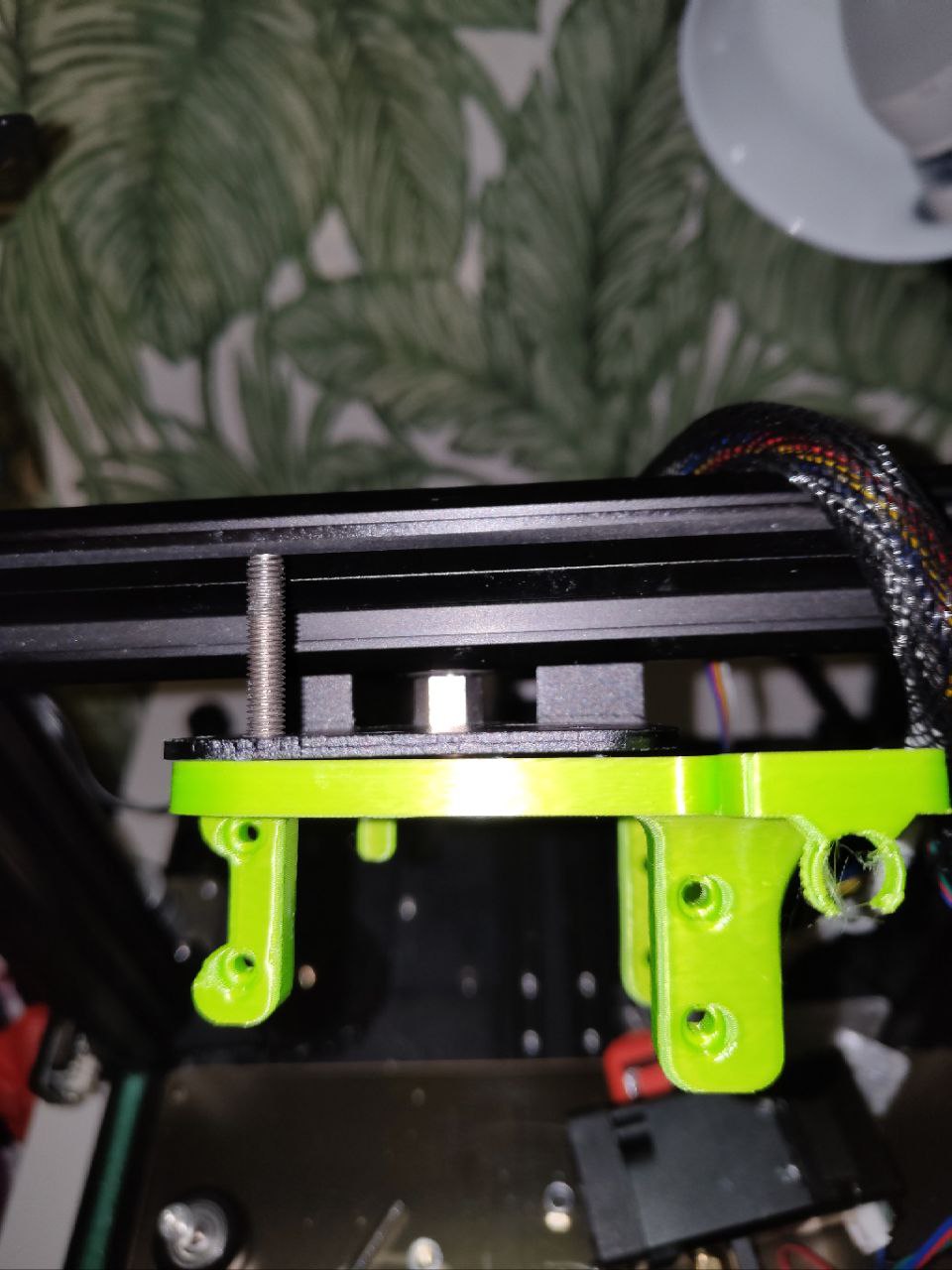

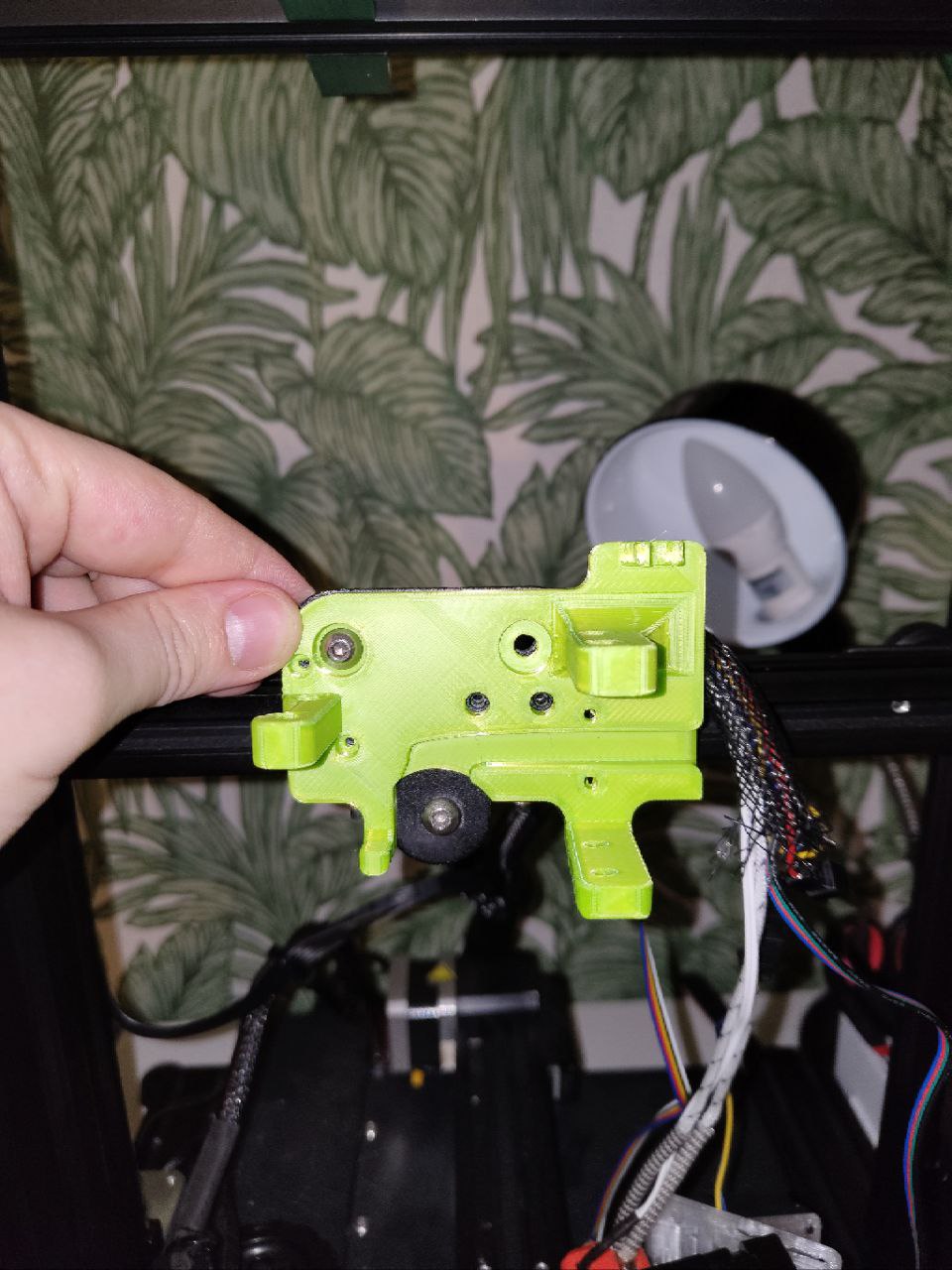

This uses the top 2 wheel holes as additional mounting points, Recommended remove the 2 wheels, hold extruder in place and align the back screws of the extruder the carriage should be screwed onto the machine already at this point as you wont have access to the holes otherwise.. - They are the hardest to get in right.

Step file will be posted if requested

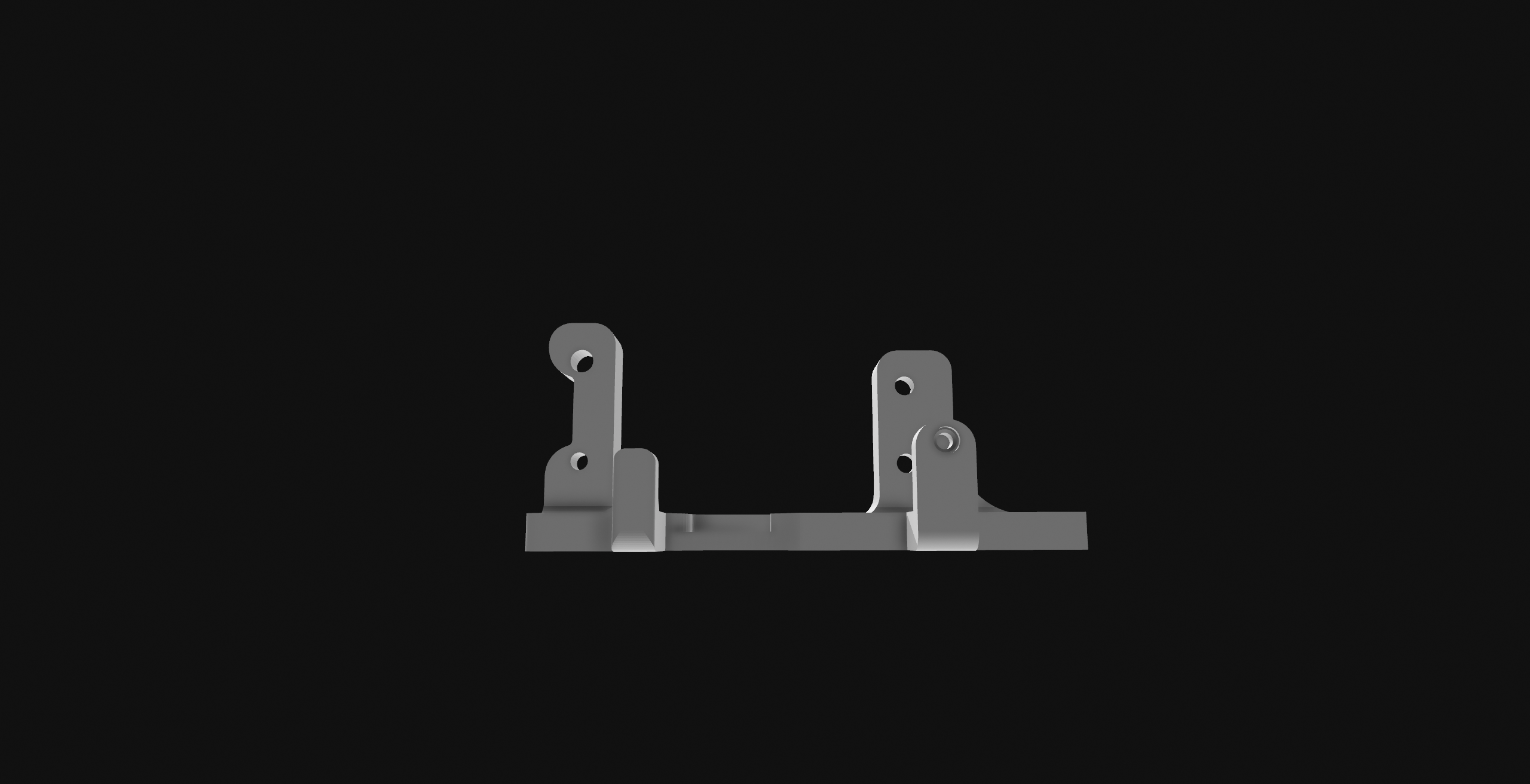

Added Optional Adxl345 - This was a quick edit Adxl 345's should be put on and removed so this option detatches from the mount easily. Please note elephants foot will interrupt with the fitting of the pieces

Design and description by Michael Waldron , licensed CC-BY.
