Bosch/Sortimo l-boxx clamp

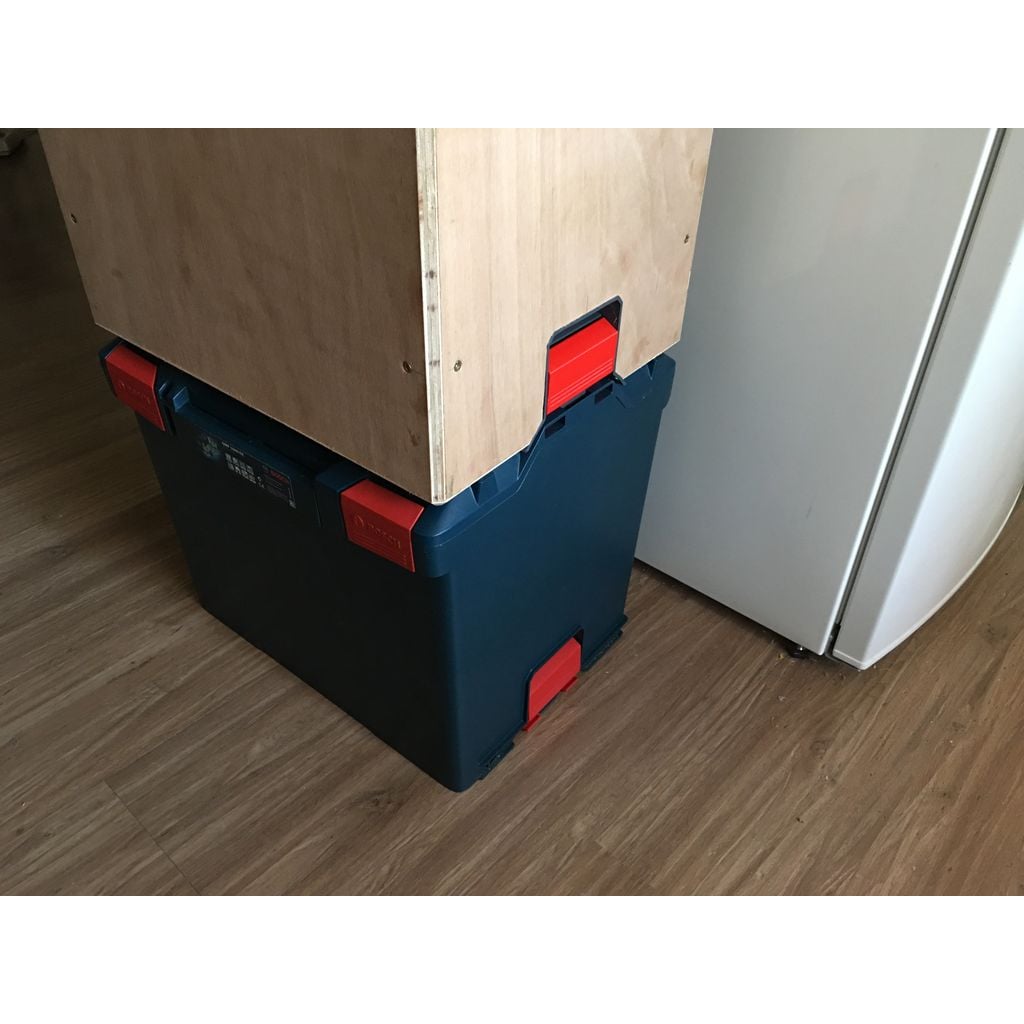

I wanted to make my own wooden version of a l-boxx that is fully compatible with the genuine 370mm l-boxx I purchased with my router. Thus i designed an insert that can be added to a wooden box or crate.

a small 30x8x1mm spring (or similar )should be added to the center pin on part 2.

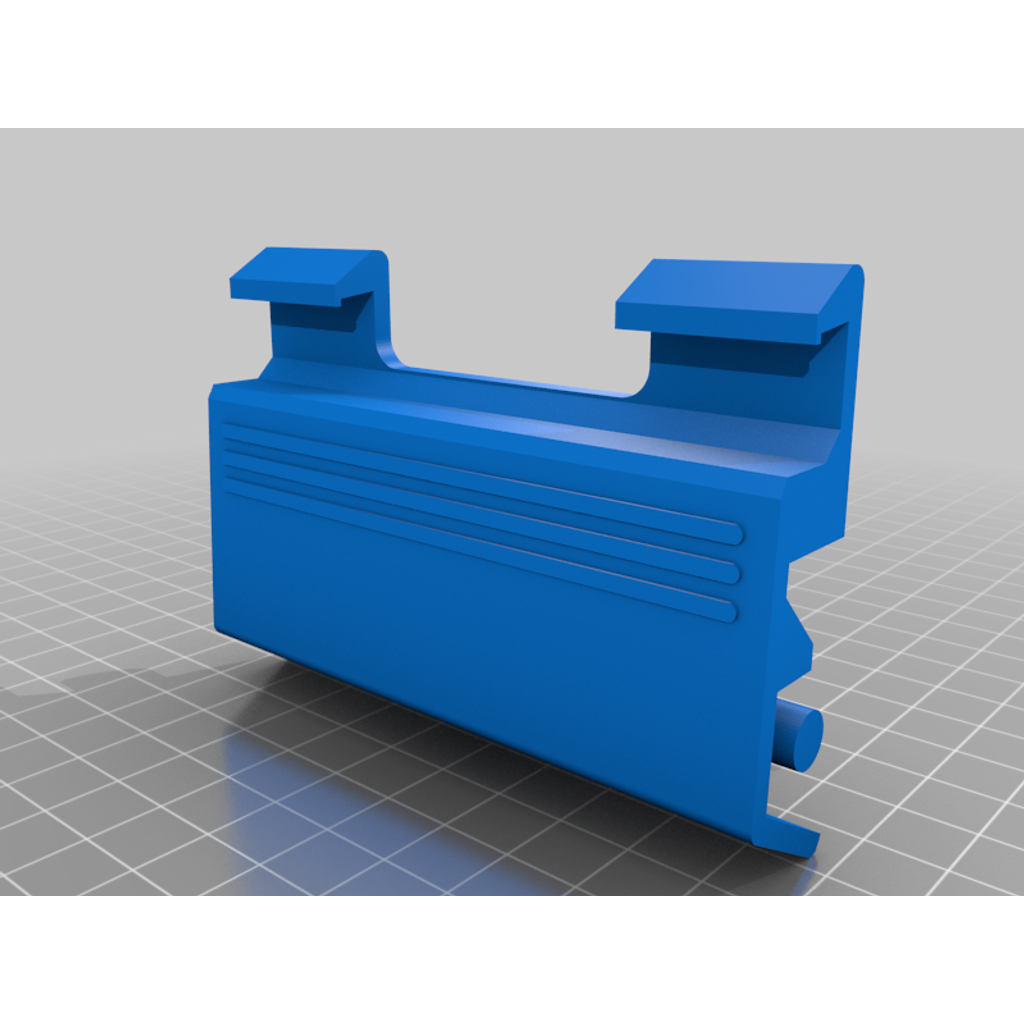

part 2 should be printed sideways to give additional strength to the hooks

this object works with the slimline clamp created by TheMakerShedNZ:

https://www.thingiverse.com/thing:2235462

please post pictures of your makes of this object, I'm very curious how you'll use this design

UPDATE 8/15/2018: I've released a upgraded version of this design that uses a steel rod as an axis. this makes the clamps sturdier but also a bit heavier and more tedious to assemble. Therefore, I will leave this design online and release the heavy duty version seperately: see my profile for the reinforced one

Print Settings

Printer Brand:

Prusa

Printer:

i3 MK3

Supports:

Yes

Resolution:

0.15mm

Infill:

70%

Notes

part 2 should be printed sideways to give additional strength to the hooks, therefore, it will need support. Part 1 can be printed without support

Category: Tool Holders & Boxes

Design and description by Rick , licensed CC-BY.
