Bose Companion 2 Speaker Wall Shelf / Shelves - Versions 2-4
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~141 g
- Express shipping
- $20
More information
Version 1 of these shelves (https://www.printables.com/model/134832-bose-companion-2-speaker-wall-shelf-shelves) has shorter sides such that the cantilever dips 1-1.5mm. They hold up for at least 10 months in service but I wanted to make some improvements. The longer sides provide a better support for the cantilever while still angled to minimize visually. I've also created shadow lines, improved the screw holes, and used one large hole for wires so one model is used for left and right speakers.

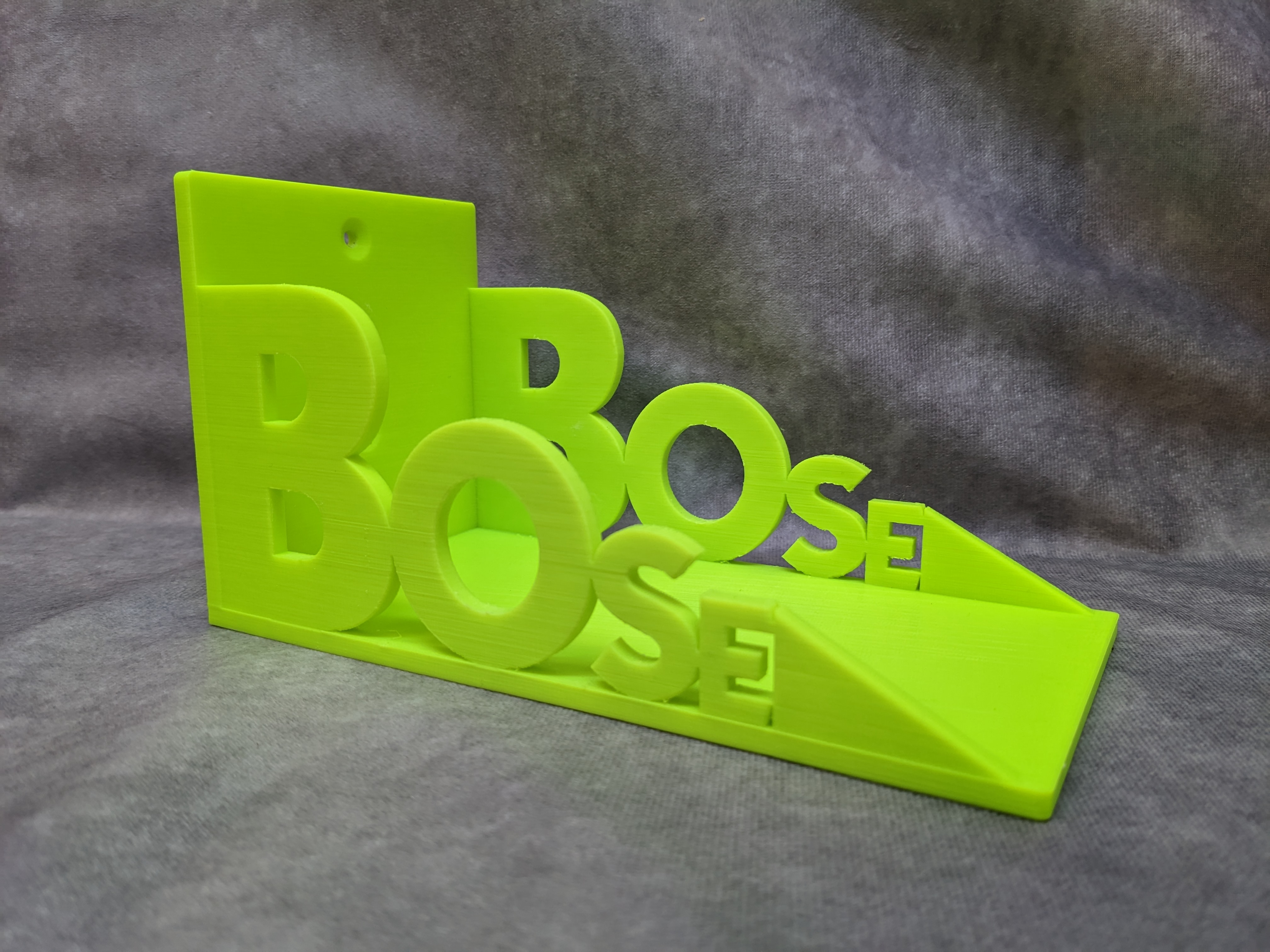

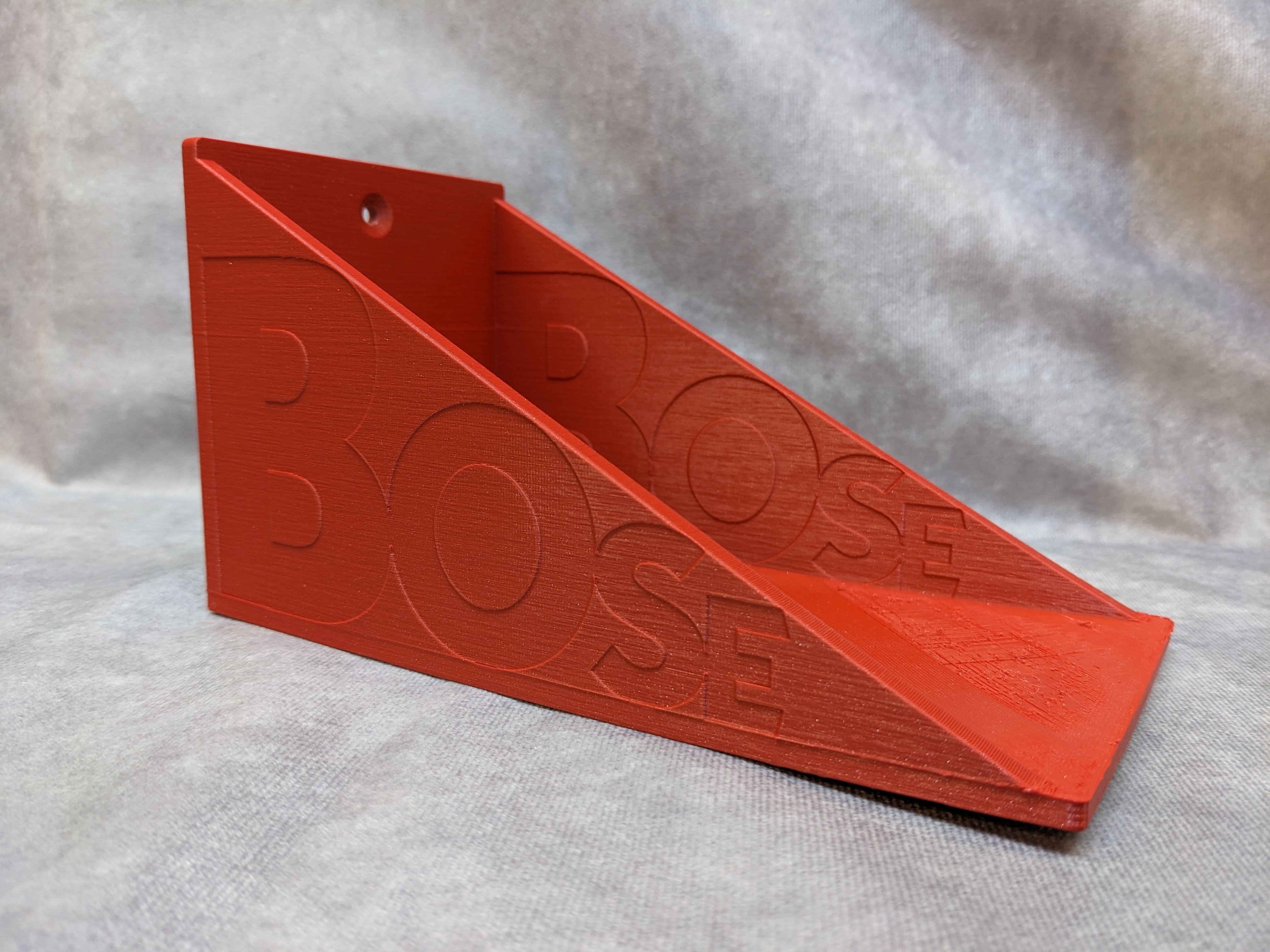

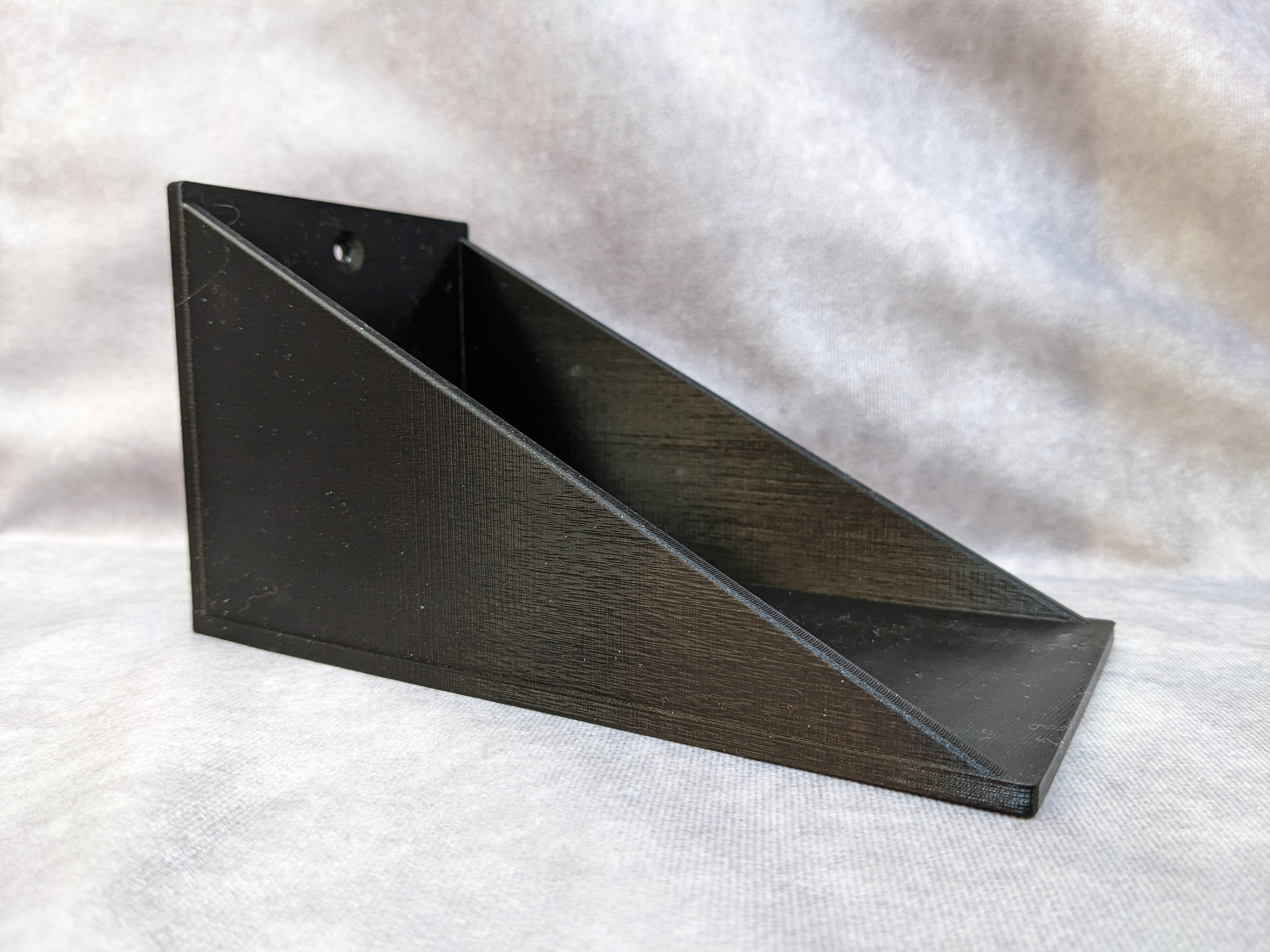

Version 2 is just an extension of the side. Version 3 incorporates connected letters to form the sides. Version 4 embosses the sides with those letters. I've not measured any cantilever dip upon initial use of these models. Version 3 is the only model needing supports to print.
I printed with 0.2 quality with PLA. I used an infill of 15% which is a reduction of the original model where I thought more infill would prevent cantilever dip. The shelves take some time to print at about 12-15 hours for each shelf on an Mk3S+ or an MK3S+ (MMU2S modified).
Because of the print time and the large base of each shelf, I sometimes ran into issues of corner lifting with some combinations of filament and printer without changing other printer conditions (1 out of 4). If this is an issue, you could try printing with the back down, different filaments, addition of a brim, or other printer conditions like varying table temperature.
Design and description by gdownton , licensed CC-BY.
More 3D printed speaker and smart speaker mountsMore 3D printed wall shelves
Frequently asked
How long does shipping take?
Bose Companion 2 Speaker Wall Shelf / Shelves - Versions 2-4 is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
