BTT ADXL345 / S2DW Bedslinger Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~27 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information
A simple, single use mount to hold a Bigtreetech ADXL345 or S2DW accelerometer for input shaper calibration of the Y-Axis on bedslinger printers. Print in the center of the bed, then attach the sensor. Print with Brim for extra bed adhesion, PETG recommended. Two M3x6 screws required.

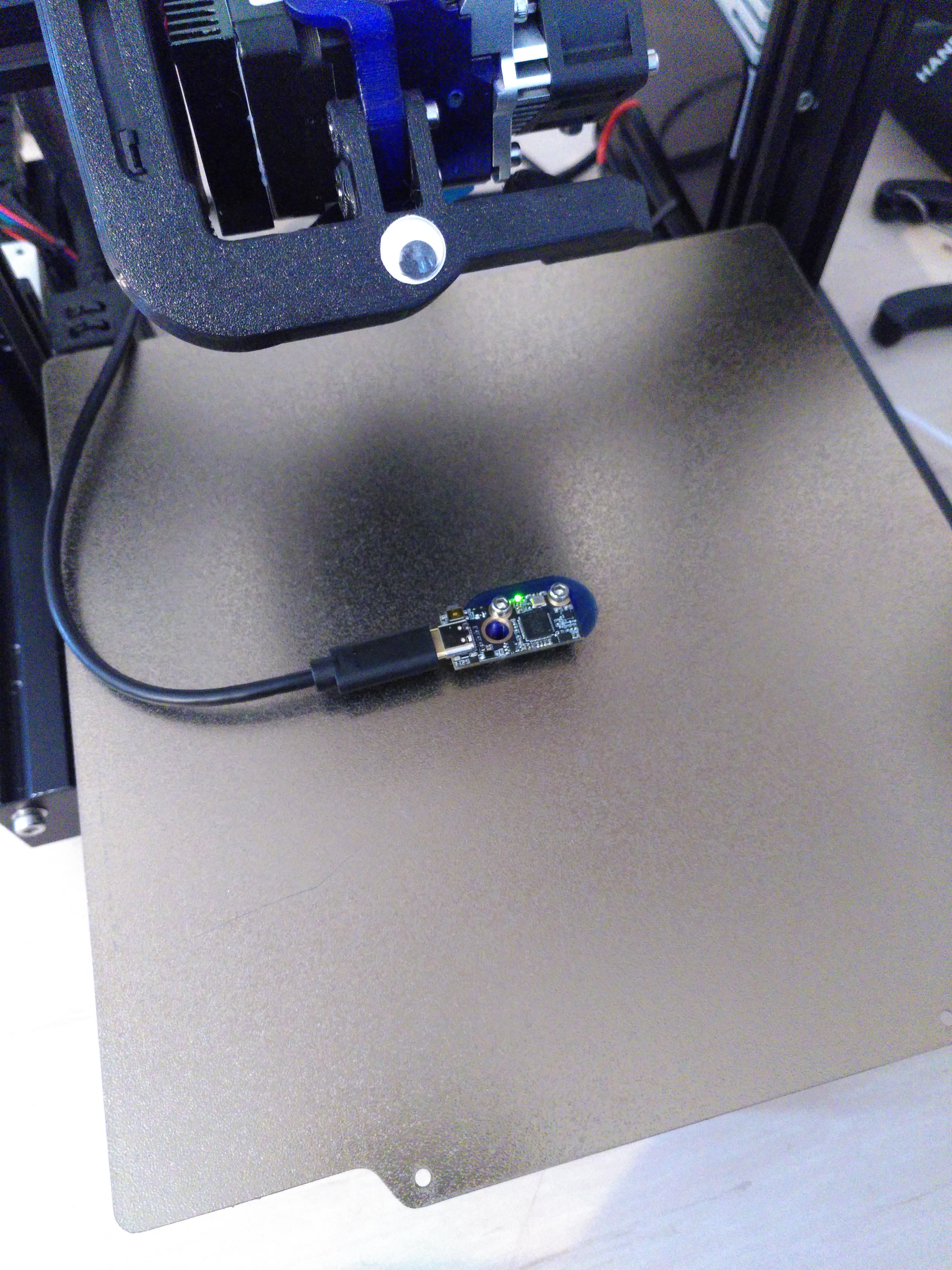

On normal bedslinger printers (x0,y0 = bottom left corner of printbed), if the accelerometer is mounted with the USB-C port to the left (see picture) one can use axes_map: x,y,z in the sensor's section in Klipper's printer.cfg for tuning the Y-Axis.
Design and description by HerrWu , licensed CC0.
Frequently asked
How long does shipping take?
BTT ADXL345 / S2DW Bedslinger Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
