BTT Octopus 2 x 80mm Fan Magnet Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~51 g
- Print time
- ~2.8 h
- Express shipping
- $20
More information

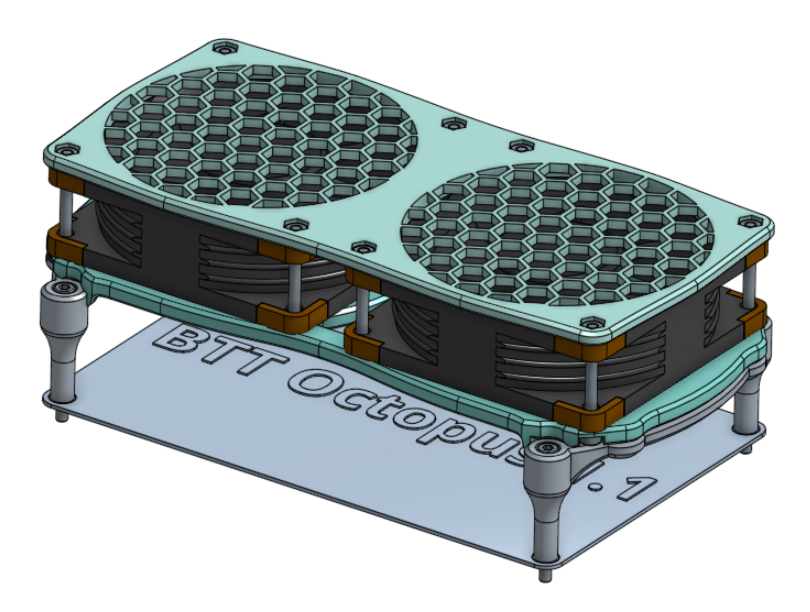

Keep your stepper drivers cool with this overkill solution. Mount 2x 80mm fans over your BTT Octopus 1.1, but they are detachable for fast access to your mainboard.
BOM
ItemQuantityDescription
M3 x 35 Bolts4Attach magnet holder to BTT
M3 x 30 Bolts8Attach fans to casing
M3 Nuts8Attach fans to casing
⌀ 8mm x 3mm (depth) Magents8
80mm Fan2
Super glue-(Optional)

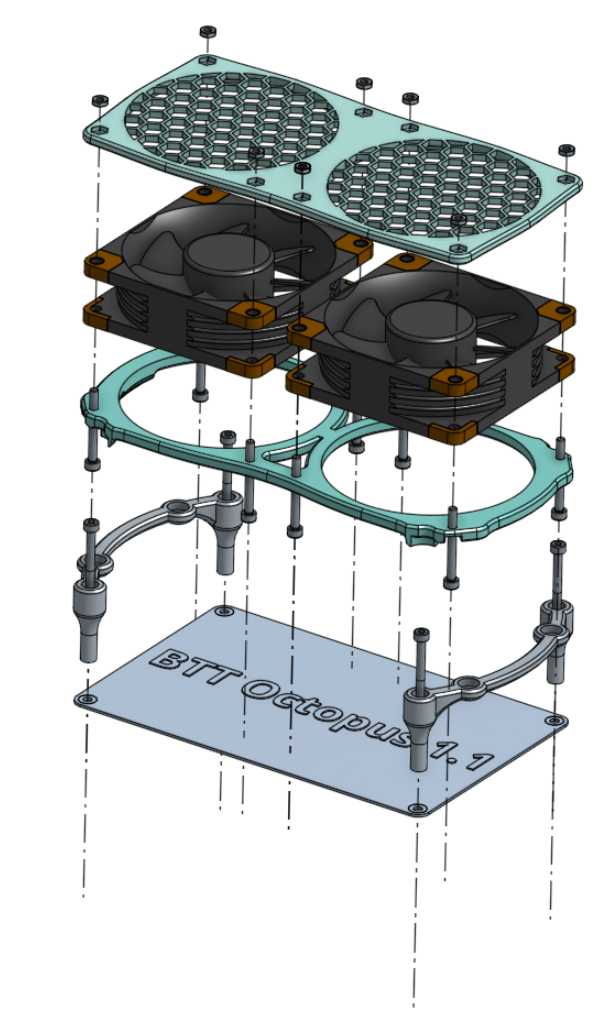

Assembly Instructions
• Insert magnets into base left and right, and the bottom fan casing - may require super glue. • Attach base left and right to BTT octopus board with M3 x 35 screws • Encase 2x 80mm fans with 8 M3 x 30 bolts, mounting through the base casing to the front cover • Secure M3 x 30 buts with M3 nuts on the front cover
CAD
Onshape
Design and description by Fractal , licensed CC-BY.
Frequently asked
How long does shipping take?
BTT Octopus 2 x 80mm Fan Magnet Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
