BTT Smart Filament Sensor v-slot mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~37 g
- Print time
- ~2 h
- Express shipping
- $20
More information

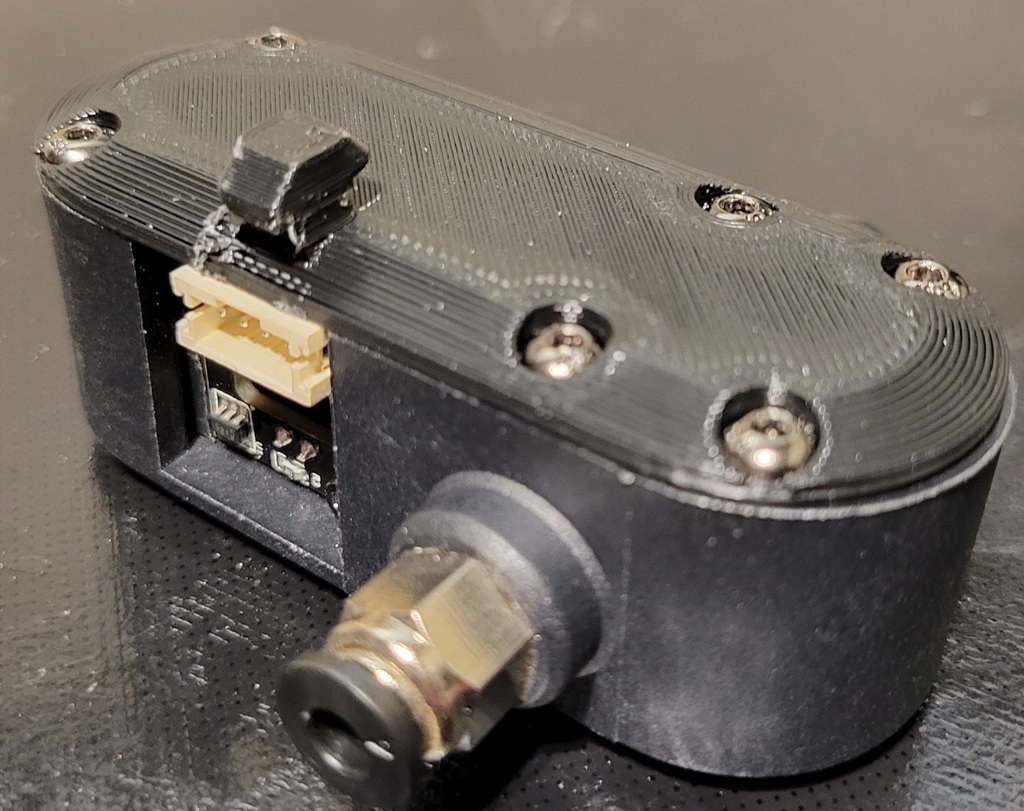

This is a universal mount for the Big Tree Tech smart filament sensor. It replaces the back cover of the sensor and mounts into aluminum extrusion.
I used the same twist-in/cam-lock design of v-slot nuts so you don't need to disassemble the extrusion to mount it. It also makes it toolless to install and remove once you have replaced the backplate.

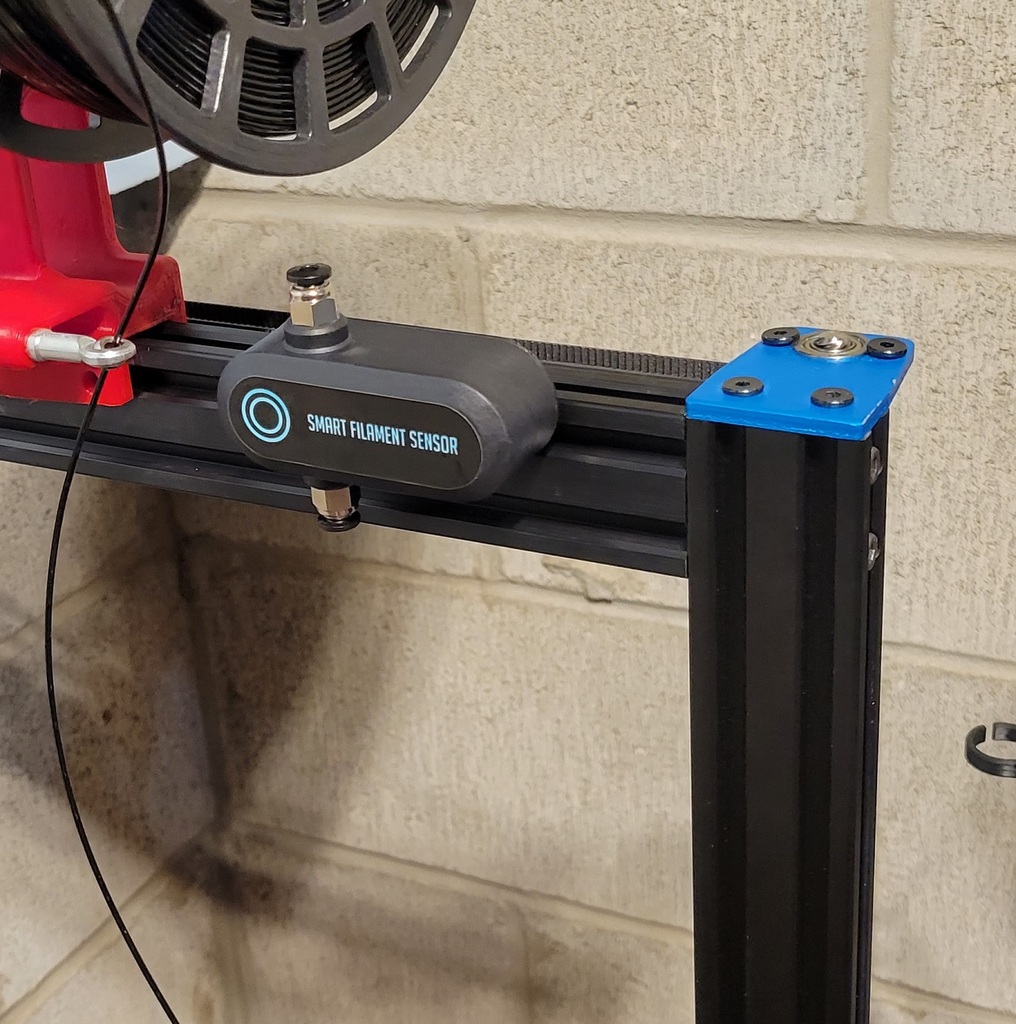

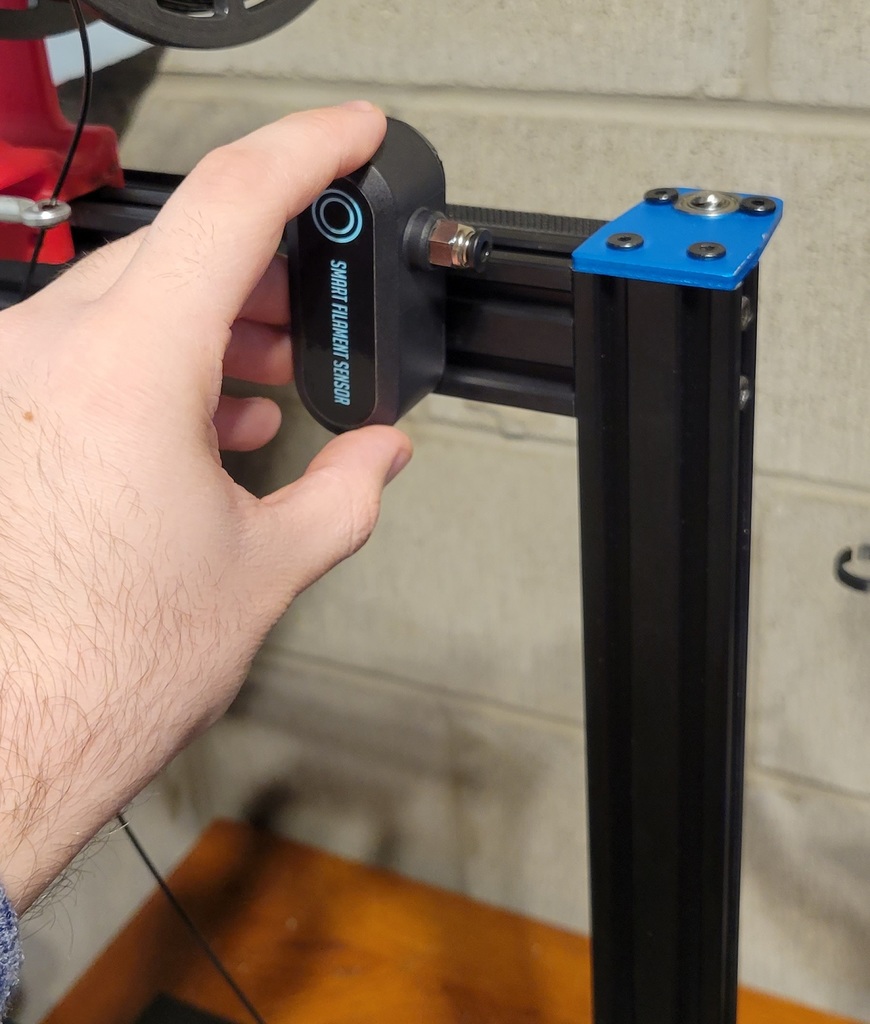

You just need to replace the backplate of your filament sensor and you are good to go. To install, put the sensor in the desired slot and turn counterclockwise. It is tighter on my Ender 3 than my Sidewinder, but it works just fine in both. It has a stop so you cannot turn it past 90°.
The hole pattern also came out a bit tight for the back cover. BTT gives out files for the stock housing, and I projected my holes from theirs, so it may be calibration on my end.
Print Settings
Printer Brand:
Creality
Printer: Ender 3
Rafts:
No
Supports: Yes
Resolution:
0.2
Infill: 20%
Notes
Place the flat part of cover on the bed and use supports on the overhangs for the v-slot tabs.
Category: 3D Printer Accessories
Design and description by Bupher , licensed CC-BY.
Frequently asked
How long does shipping take?
BTT Smart Filament Sensor v-slot mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
