Build Tray Insert Remix

My tips of my fingers have lost a bit of sensitivity, and I was having some difficulty picking up some mini bits within the amazing inserts provided by Polymorphic.

Had a similar idea as fuchsrbut I wanted fillets to extend to all walls.

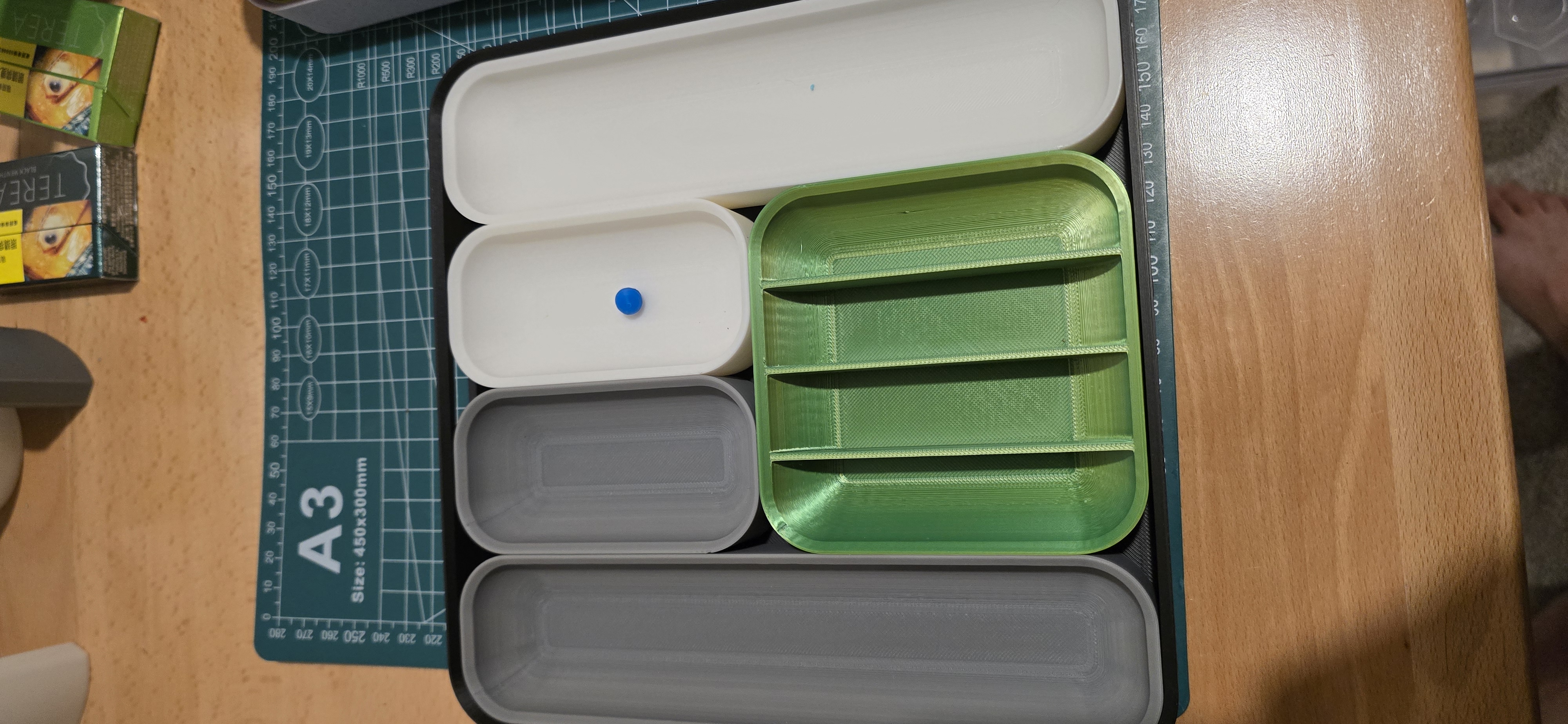

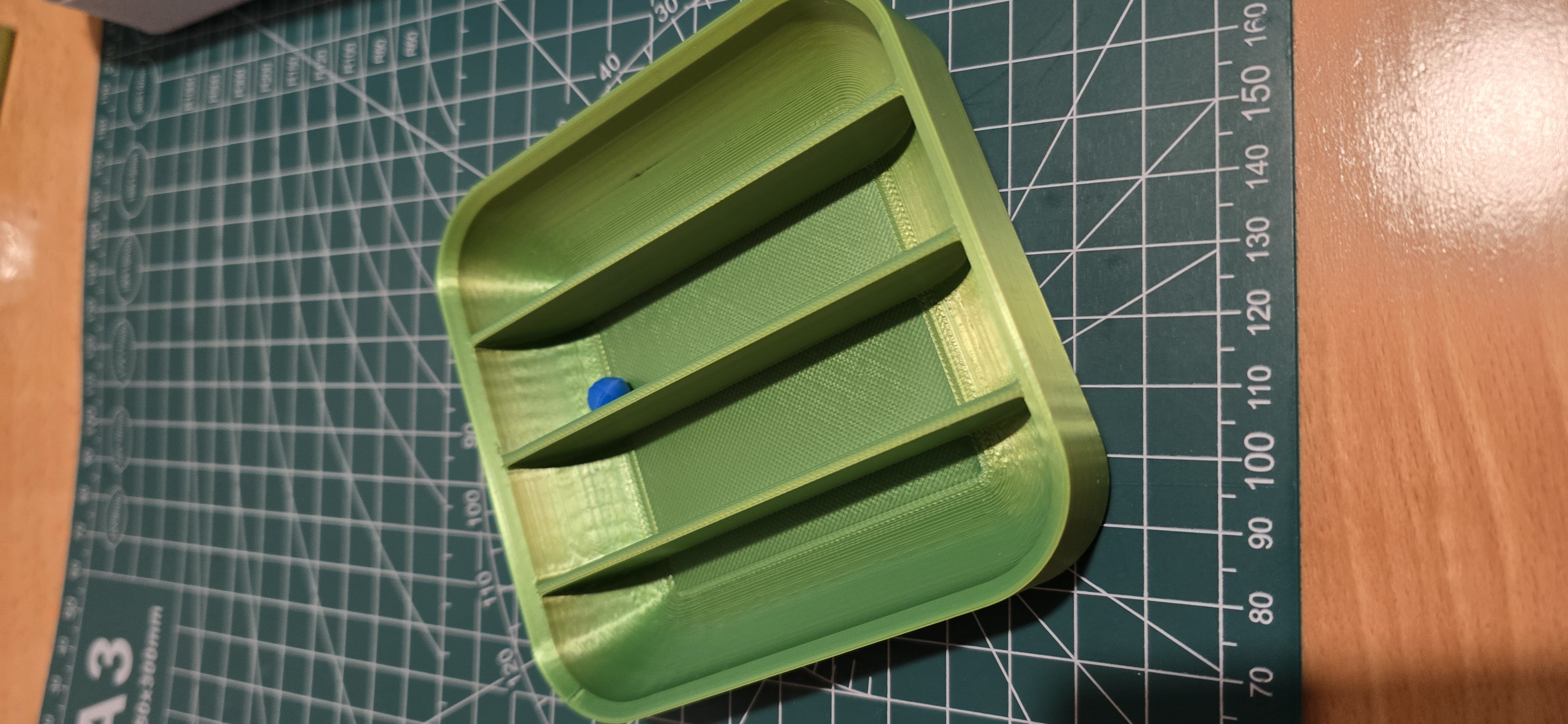

I also added 2 variations of a new model, a 3 compartment 1x4 insert.

I've included the step for the 3 compartments non fillet versions like original author @Polymorphic and stl for the fillet version.

I haven't had the chance to print all of them yet, but I am working on it and will update photos.

I recommend concentric top layers, as this will improve the look of the fillets.

Update - July 28 : Added rounded 3 compartment model

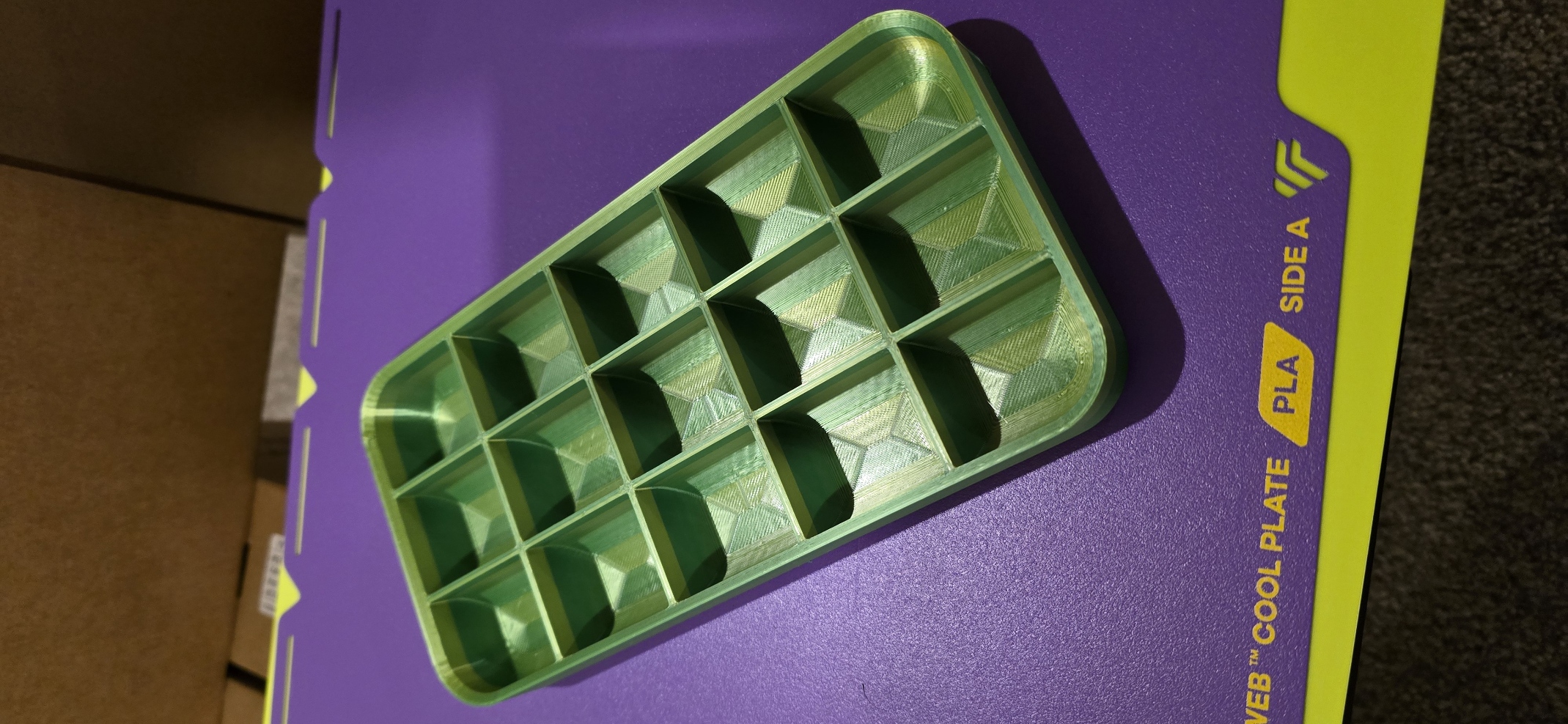

I just had to make all the inserts rounded, which led me to the subdivided4 with 14 holes. Had issues with the typical fillet parameters I was already using, so I decided to unify everything with the ones that looked good, didn't take up too much space, and still had the type of fillets all around I wanted.

V2 models should hold roughly the same or a bit more, due to the less aggressive floor fillets, but added area from corner fillets.

Design and description by M T , licensed CC-BY.
