Cable Clips for Modular Mounting System Arms - Customizable
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~33 g
- Print time
- ~1.8 h
- Express shipping
- $20
More information

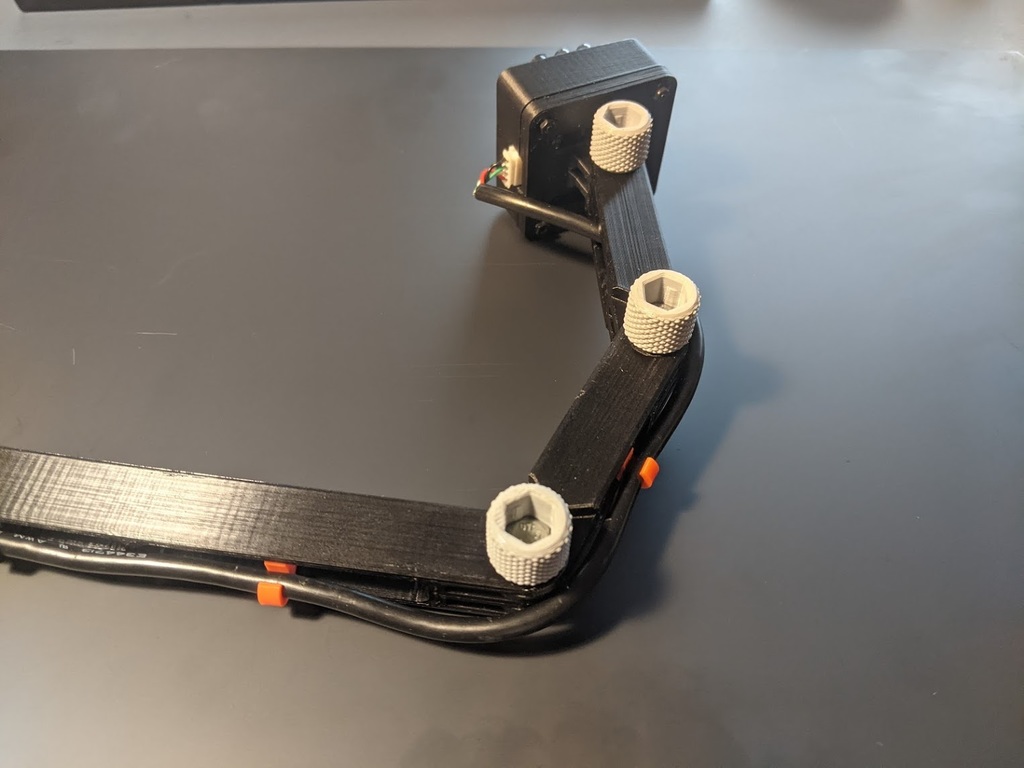

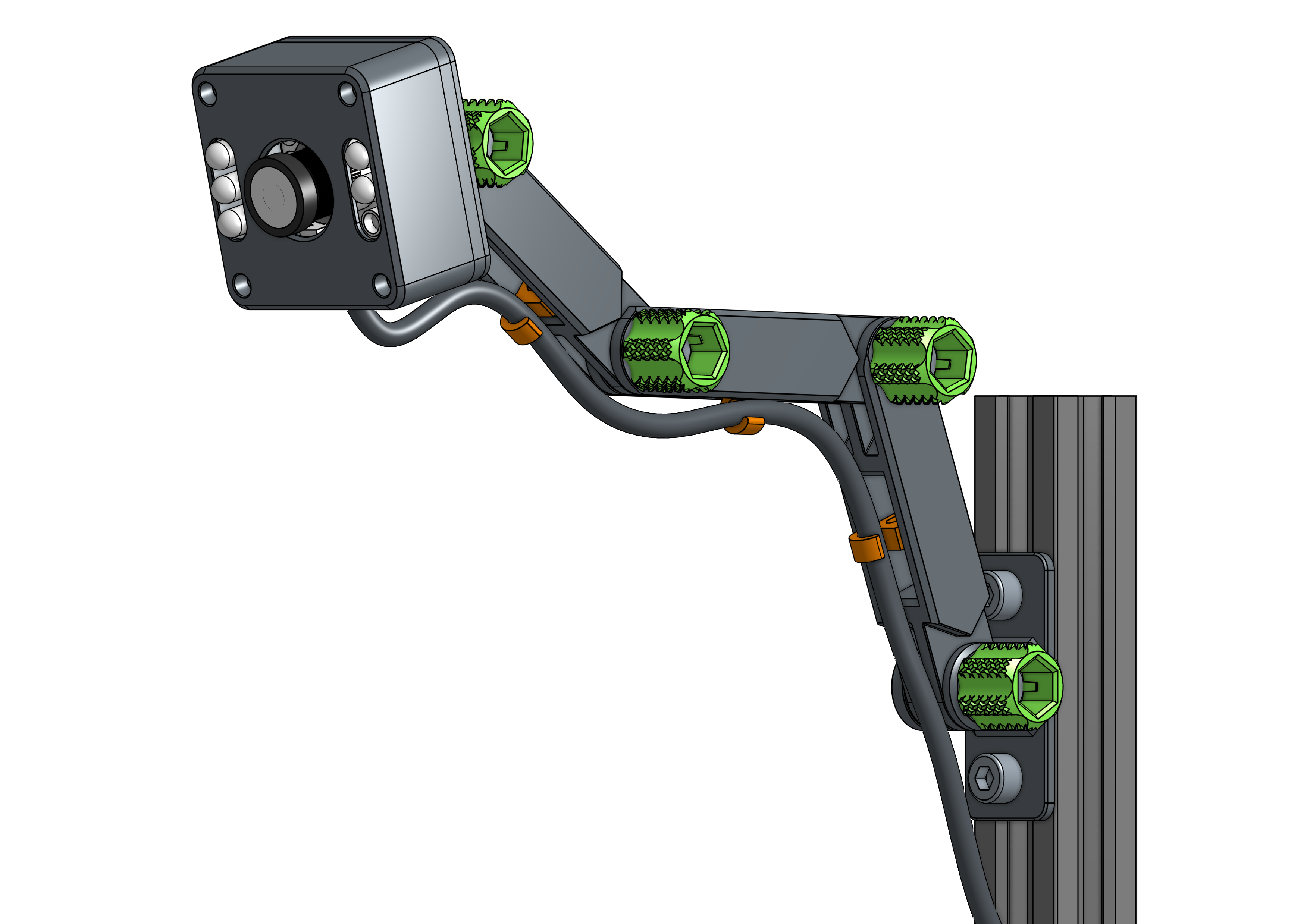

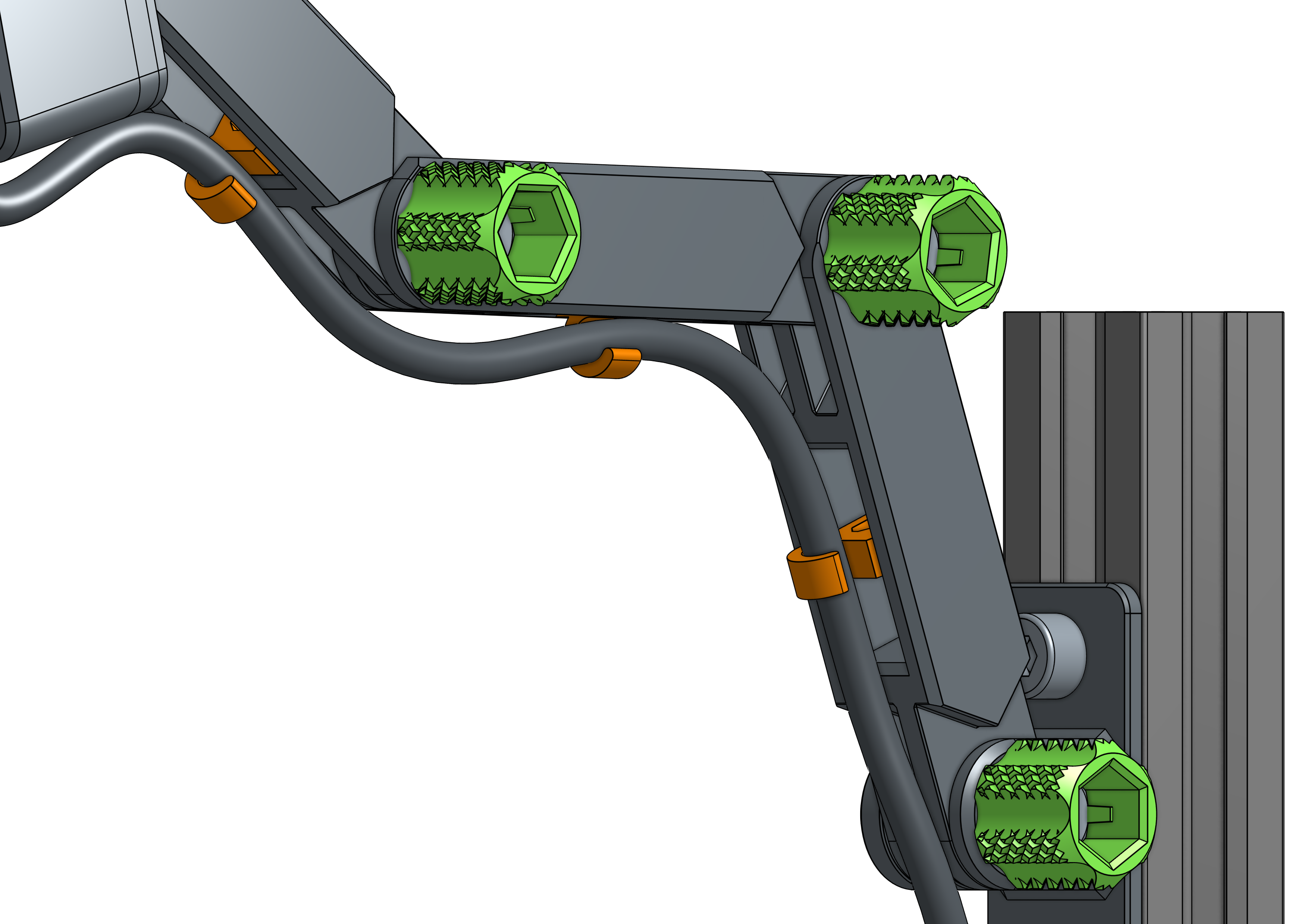

These are cable clips for the Modular Mounting System Arms and thing:3689842 by jtronics that allow you to neatly route any cables along the arms.
The clips are available for cable sizes ranging between 2mm and 9mm in 0.5mm increments.
You can also customize this part in Onshape and create your own custom-sized clips. Edit the configuration parameters in the upper left to your specific requirements. Then right-click on the part in the lower left and select "export".
Installation

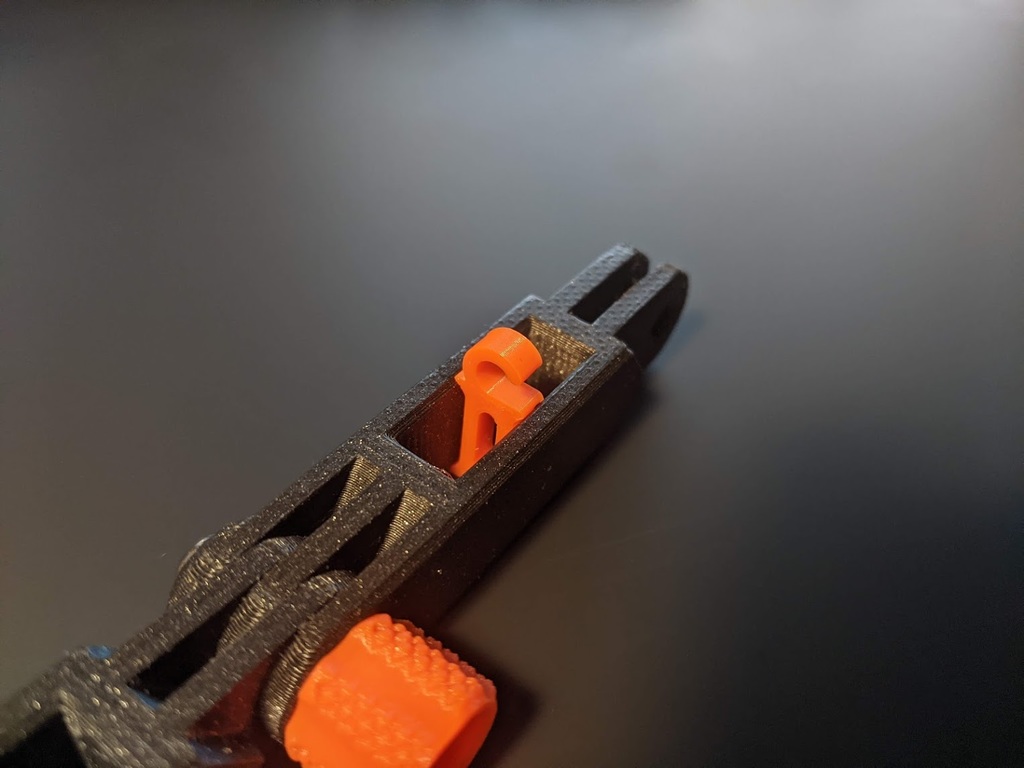

Insert the hook between the 2 beams of the arm and rotate it 90 degrees. It's intentionally a very tight fit so that it stays in place. Use a pair of needle nose pliers to hold the clip and twist it in place if you have them available. It can be done by hand too though.
Clip the cable into the hook. The opening measures 80% of the cable diameter which is small enough so that the cable doesn't come loose and large enough so that it's easy to insert the cable.
Printing
Print the parts in the original orientation. The STLs are pre-rotated for printing.
• Material: PLA, PETG, ABS, ASA, etc • Line height: 0.2mm • Extrusion width: 0.4 - 0.45mm • Perimeters: 3 • Infill: 20% • Supports: No
Design and description by 6d6178 , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Cable Clips for Modular Mounting System Arms - Customizable is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
