Cable Organizer with Slide-in Lock – Various Sizes
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~13 g
- Express shipping
- $20
More information

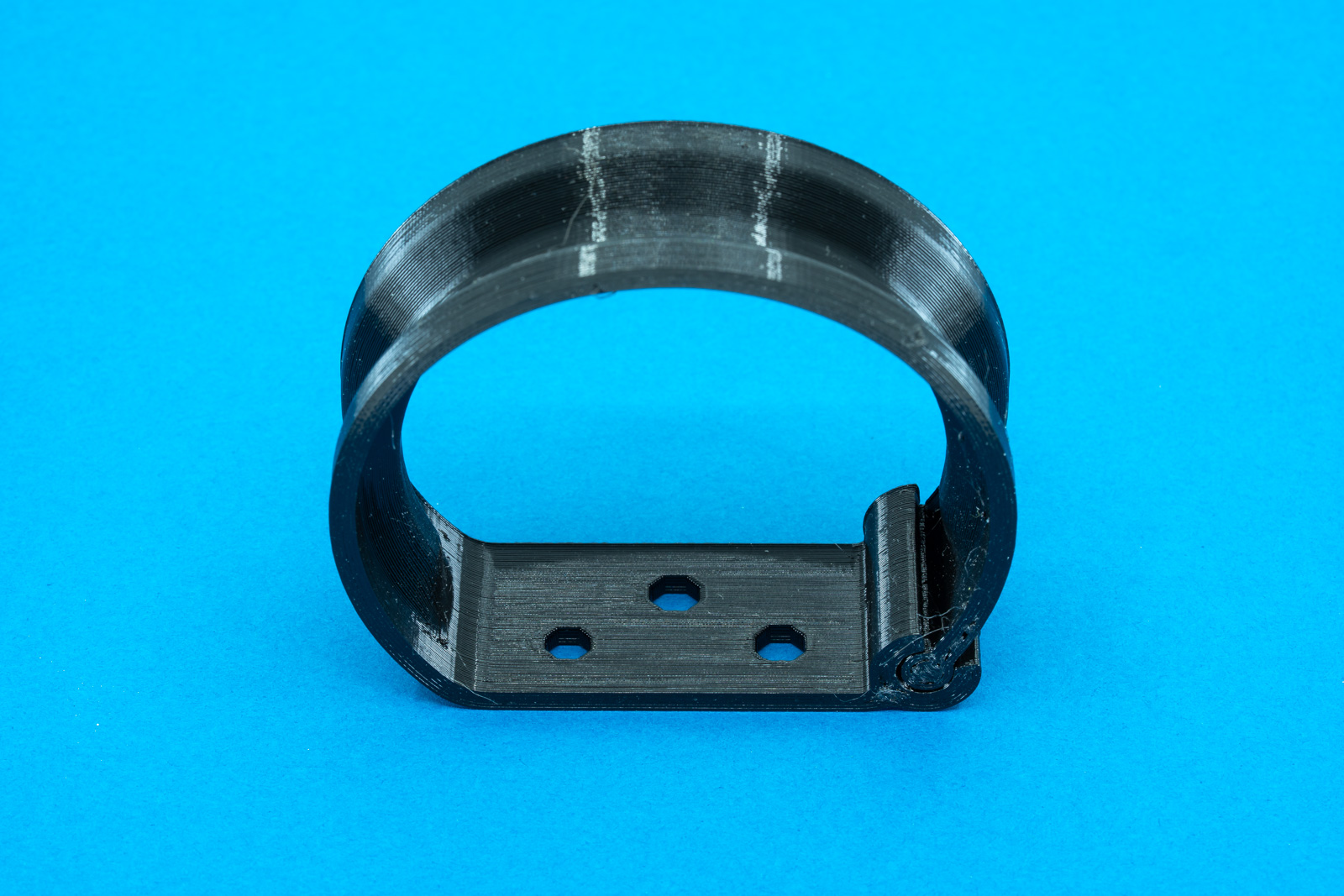

This is another design of a cable organizer for power and network cables. It has a slide-in lock to easily add and remove cables. The design is specially made for the FFF process printed with PETG or ASA filament.
How to Print the Cable Organizer
There is a Prusa Slicer example project LR2208-055 Print.3mf where all recommended settings are made. Use this, or see the table below:
Orientation:The cable organizer is printed on its side.
Nozzle Size:0.4mm, 0.6mm or 0.8mm
Layer Height:0.2mm for 0.4mm nozzle 0.3mm for 0.6mm nozzle 0.4mm for 0.8mm nozzle
Filament Materials:PETG or ASA
Perimeters:3 perimeters (important!)
Infill:0%
Prusa Slicer Profile:“0.2mm Quality”
Extra settings: • Enable “Avoid Crossing Perimeters" • Disable “Fill Gaps” (only for 0.4mm nozzle)
I do not recommend using PLA for this model. Especially for the smaller diameters (<70), the material is too stiff and brittle for the lock to work correctly. Use it at your own risk.

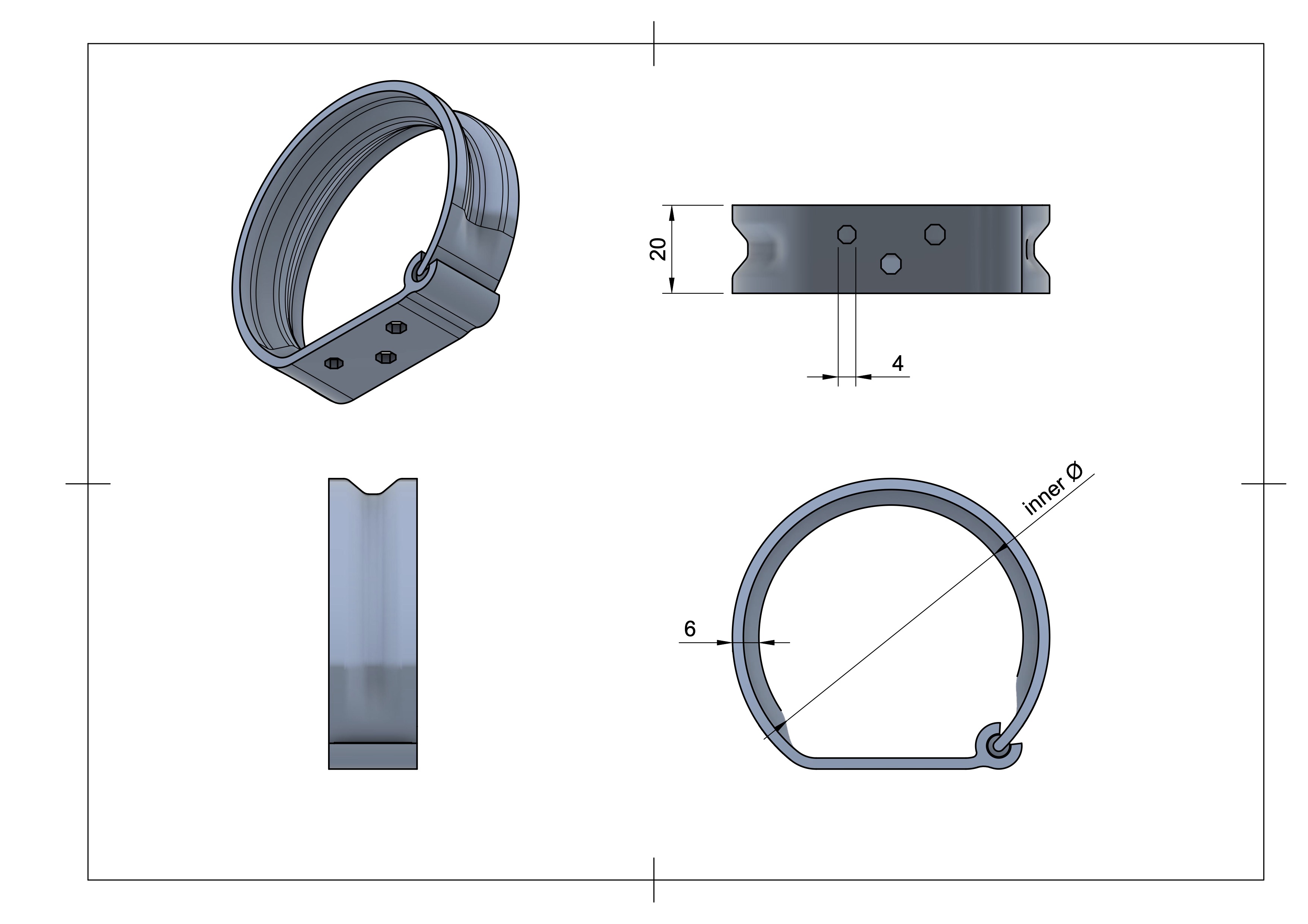

Dimensions
The part number and file name have the following format:
LR2208-<inner diameter>.3mf
Inner Diameter
The inner diameter of the model is specified in millimetres. The slide lock is harder to operate on smaller diameters.

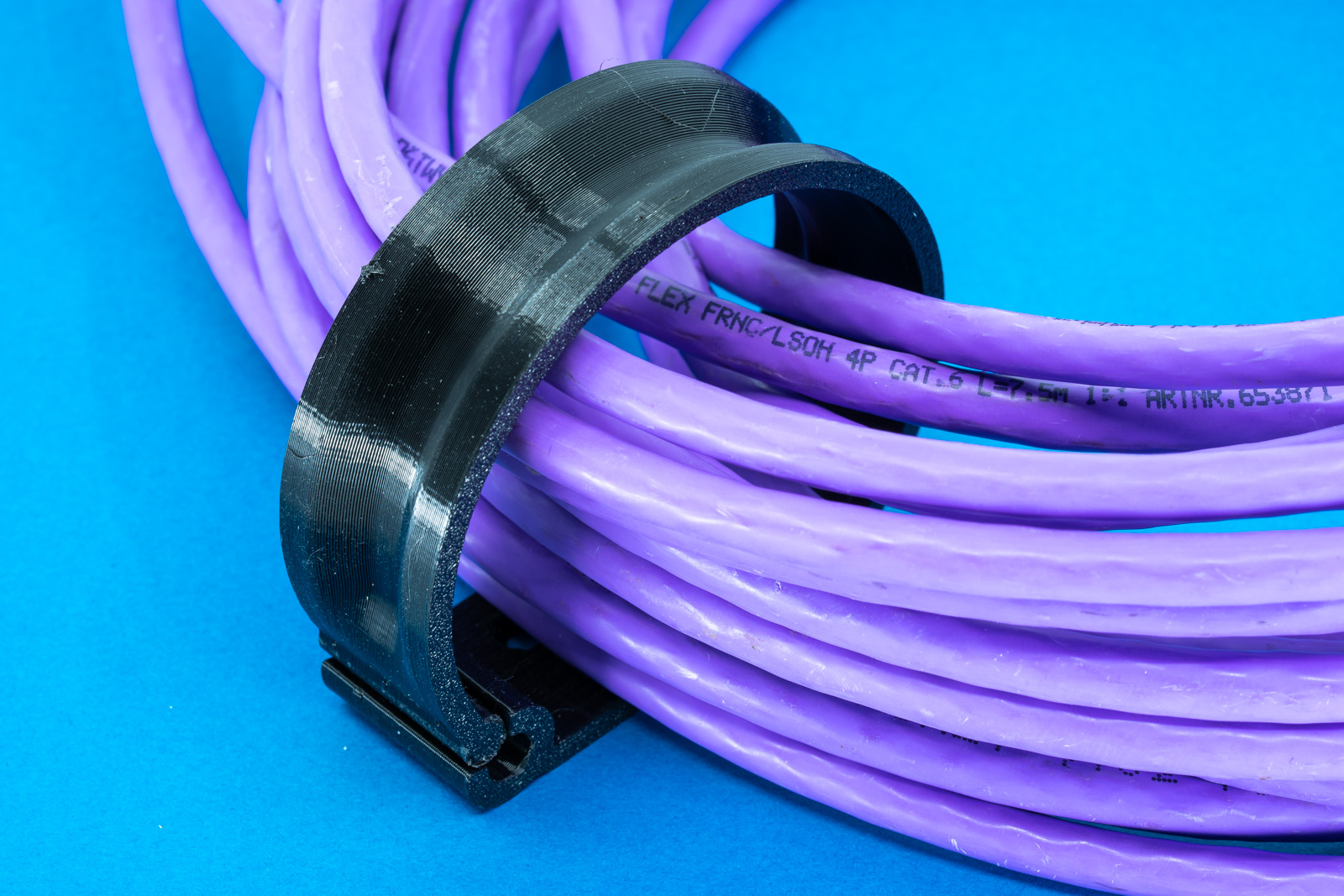

How to Use the Cable Organizer
This cable organizer is designed to be screwed to a wall, ceiling or under a desk or other furniture. Use flat head wood screws 3.5mm or 4mm ones.
If you attach the organizer to a wall, make sure the lock is on top.
The sliding lock is designed to block when a small pulling force is applied to it. The grooves from the layers will interlock in this case and prevent it from sliding sideways.
Alternative Design
There is a more rectangle design with a ring lock:
• LR2203 / Cable Organizer / Routing Hook - Various Sizes
Explore More from Meti·kumi
Interested in my designs? Browse through my collection of 3D models:
👉 https://metikumi.com/3d-models/
Stay connected on social media for the latest updates and work-in-progress insights:
👉 https://metikumi.com
Conclusion
I hope this cable organizer will tidy up your server room, desktop or living room. If you find this print useful, please rate it and upload photos of your prints.
Happy printing! 😄
Design and description by Metikumi , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Cable Organizer with Slide-in Lock – Various Sizes is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
