CI Practice Lock Bitting Tray and Stand

This is a simple two-part print intended for use with Covert Instrument's CI Practice Lock.

The bitting tray makes it easy to keep track of the bits, pins and springs you want to load into the lock, while the stand can be used to hold the lock to allow for picking at your desk.

Keep in mind, the lock stand and tray are supposed to be friction fit, so they may be difficult to press together. Your lock may also be a bit too snug in the holder. If that's the case, just give the inside of the stand a quick sanding, or pop the lock body in and out a few times.

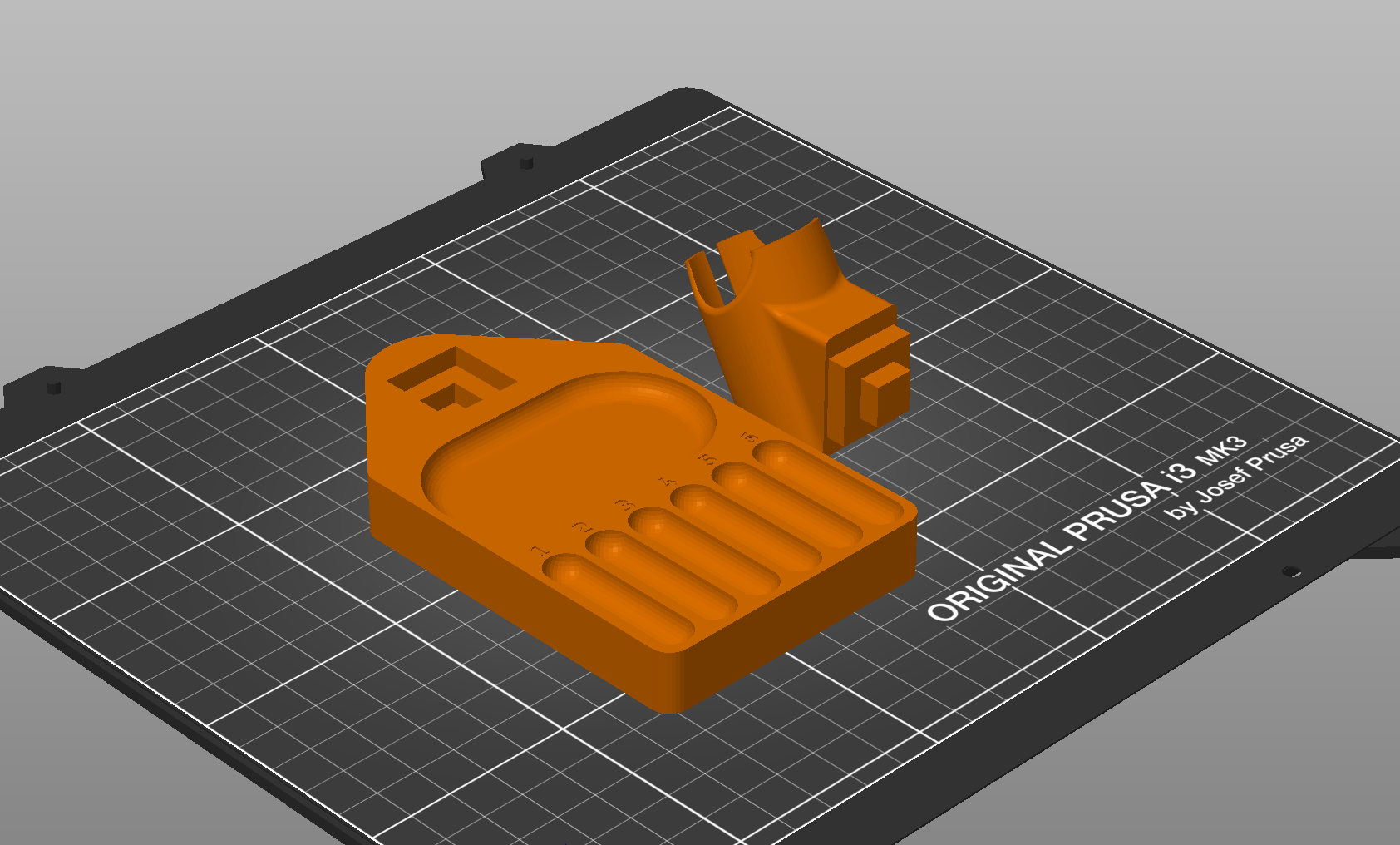

When printing, try to print the lock stand on the flat plane on the back of the stand. Make sure to set supports to “support on build plate only” to properly print the press-fit squares.

I've included my Fusion 360 file as well for anyone who is interested in remixing the model, or fix an issue I might've missed.

Versions 1.0 Initial Release 1.1 Added rails to lock stand to prevent lock from spinning under tension, as well as slot on top of the lock stand for pin loading. 1.1.2 Thickened rails.

Design and description by JohnnyThreeDee , licensed CC-BY-SA.
