Click-in Hinge
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~14 g
- Express shipping
- $20
More information

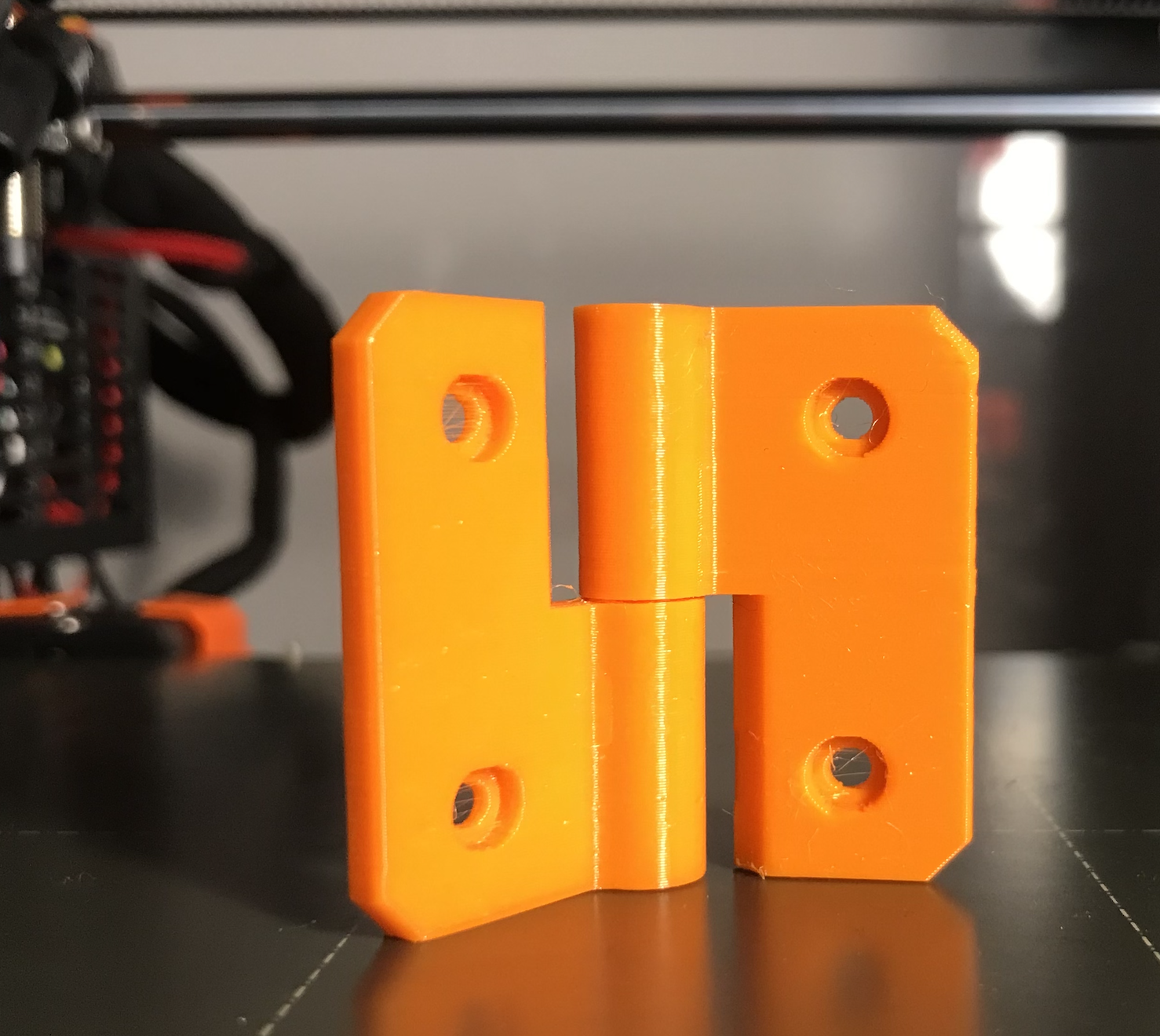

EDIT: the axis of rotation is moved forward to enable better adhesion to flat surfaces

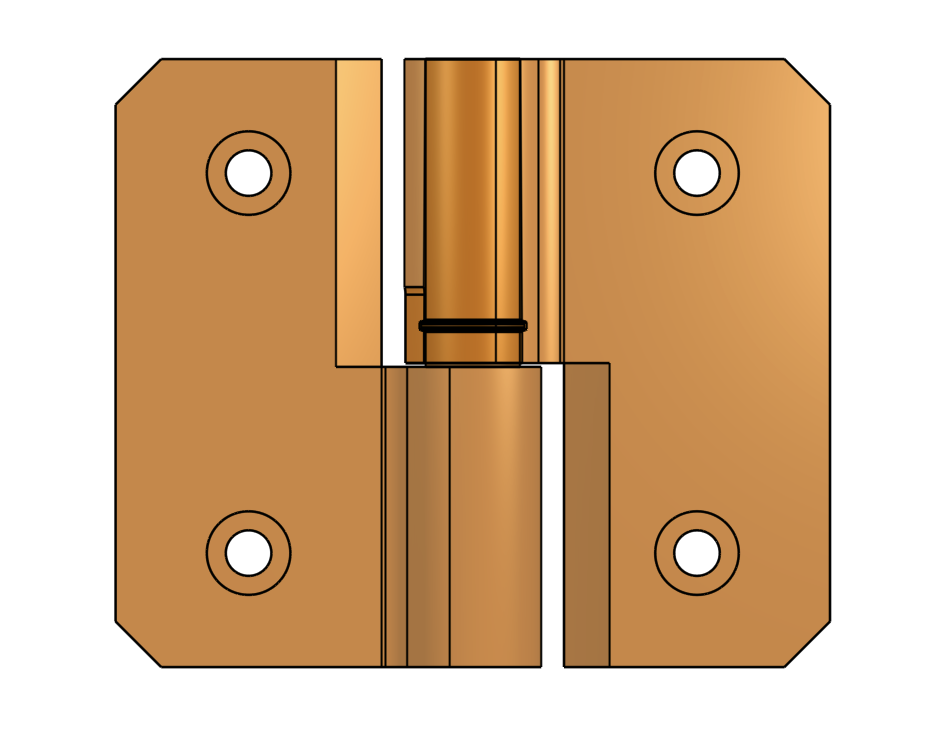

Originally created for a custom printer enclosure (will be published soon). The inner part of the hinge is tapered in order to make sure that the hinge won't sag under load.
Total dimensions: x - 47mm, y - 40mm, z - 3.5mm
Materials
Designed for M3 screws, diameter of the counterbore fits DIN912 and DIN7984 screws (those should sit flush with the surface of the hinge)
Print settings
Material: PETG Nozzle: 0.4mm Layer: 0.2mm Infill: 75% Perimeters: 3 Supports & Brim: not necessary
Design and description by Sunny , licensed CC-BY.
Frequently asked
How long does shipping take?
Click-in Hinge is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
