Compact Quick-Release Tube Clamp for Modular Mounting System
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~79 g
- Print time
- ~4.3 h
- Express shipping
- $20
More information
This clamp is designed to mount Modular Mounting System (MMS) components to a 16mm tube/pipe/pole. If you need other sizes, you can use the linked OnShape document as a starting point to create them. This is a more compact version of my other quick-release MMS tube clamp.
This clamp uses my anti-slip MMS tabs, since they are completely backward-compatible work the original tabs. Going forward, all my MMS components will use the anit-slip tabs.

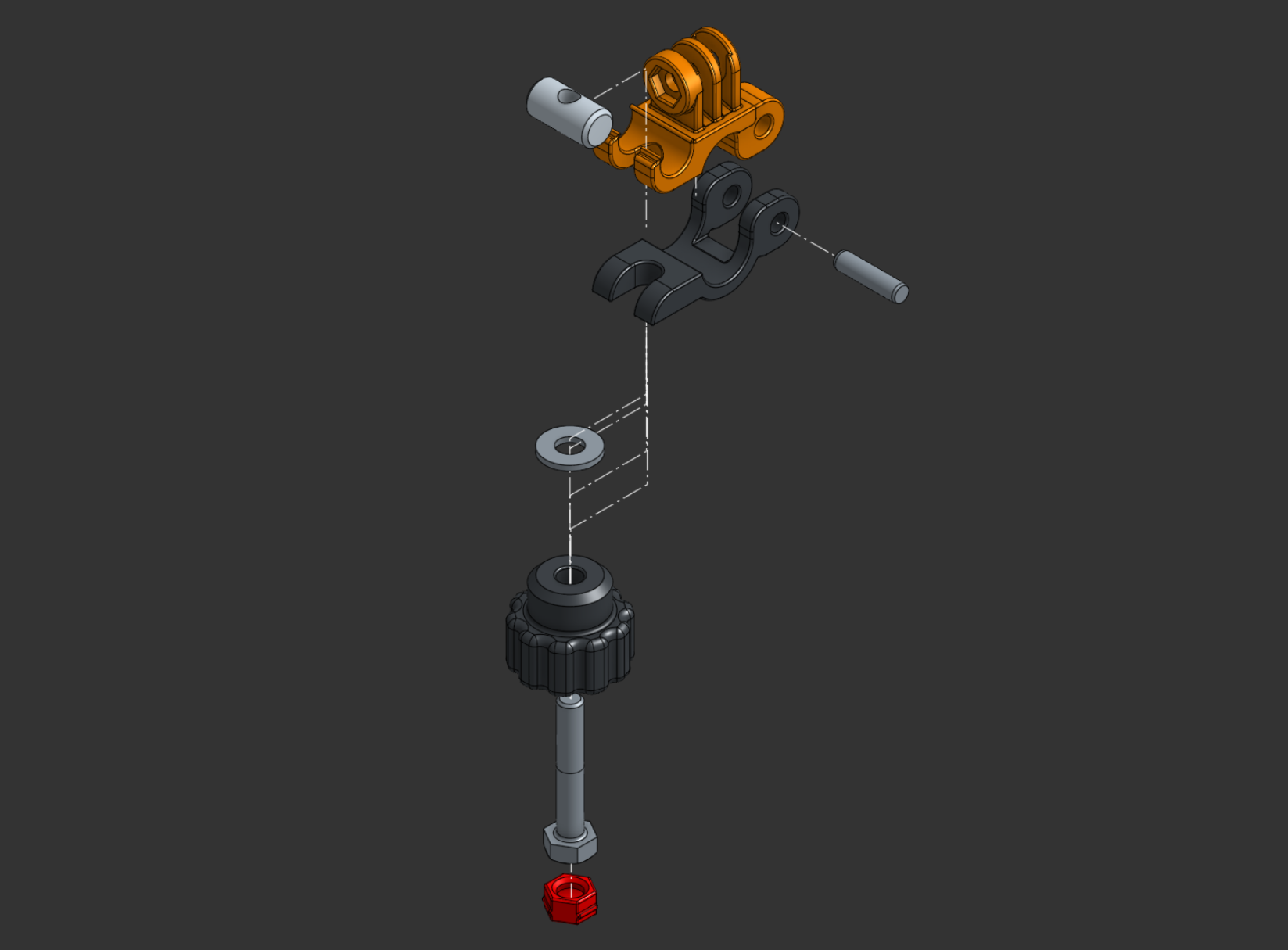

The hinge pin is designed for M5 x 20mm steel pins which are easy to find on Amazon, or you can use an M5-0.80 x 40mm bolt and nylon locking nut.
The clamping hardware used is a M6 bolt with a washer and a cross dowel nut, available from Amazon. The OnShape document also includes a configuration for 1/4-20 hardware available from Home Depot.
I've also included a compatible knob for convenience.
GoPro compatible.
Configurable OnShape model: Quick-Release Tube Clamp - Compact Version
Check out my Configurable Bolt Knob to create knobs for this and other projects!
Design and description by YourRobotOverlord , licensed CC-BY.
Frequently asked
How long does shipping take?
Compact Quick-Release Tube Clamp for Modular Mounting System is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
