Derailleur hanger tool / Schaltaugenlehre
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~32 g
- Print time
- ~1.8 h
- Express shipping
- $20
More information
Description

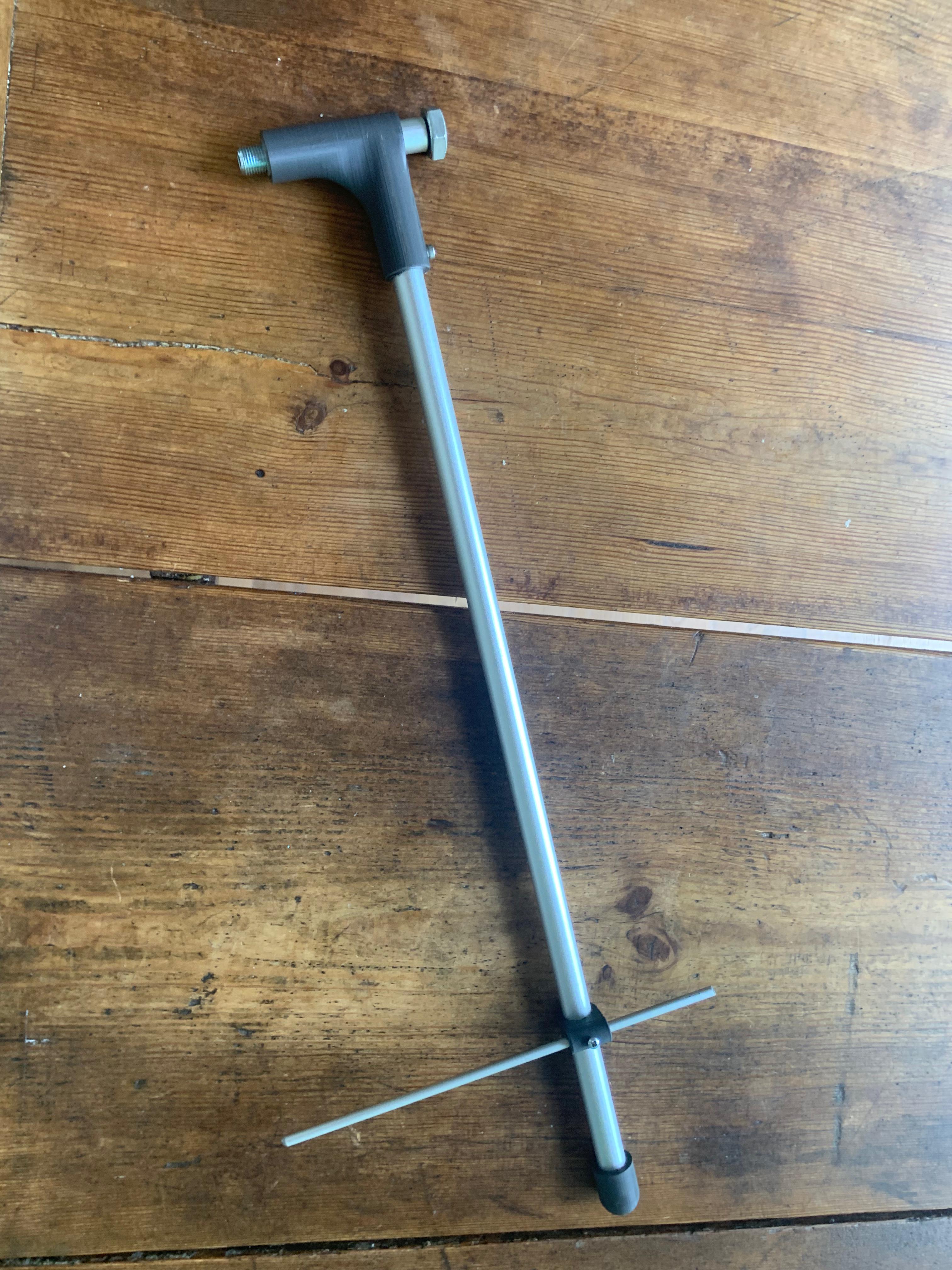

This is the solution for everyone who wants to check or fix their derailleur hanger.
Model: The “Messstange” and the endcap are only required for convenience
For printing: I would recommend only printing the non-aluminum parts, and using aluminum rods and screws for the rods and Screws
I used 35% Infill and 3 wall/top layers andd PLA from FILAFARM, which seems by far strong enough.
Aluminum parts: Those could be printed, however, for the proper strength and function of the build, I recommend buying them in metal, for example aluminum.
Dimensions
big rod: diameter 12mm, length about 50cm and a small partition (60mm) for inside the headpart in order to keep the crew running properly.

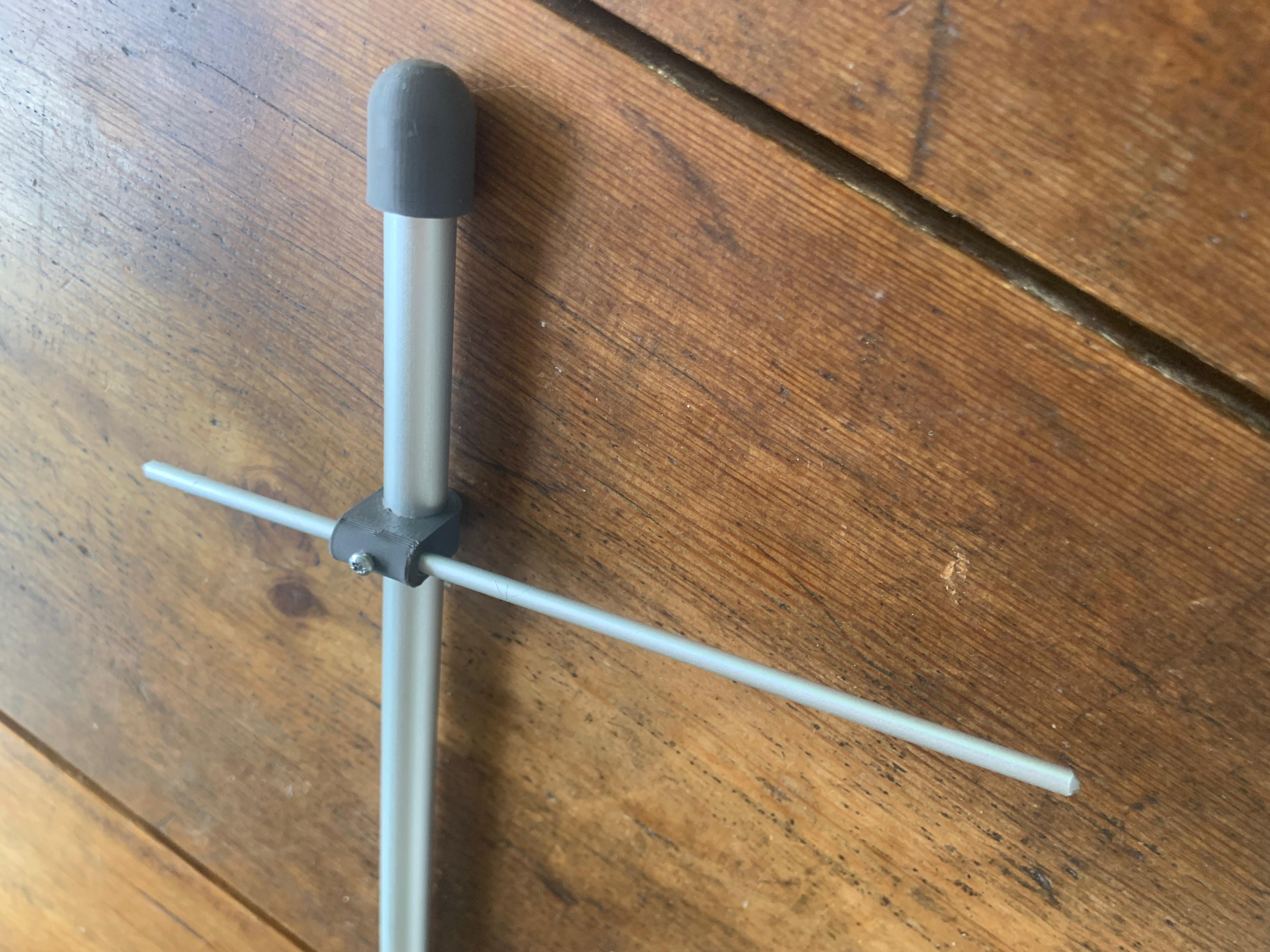

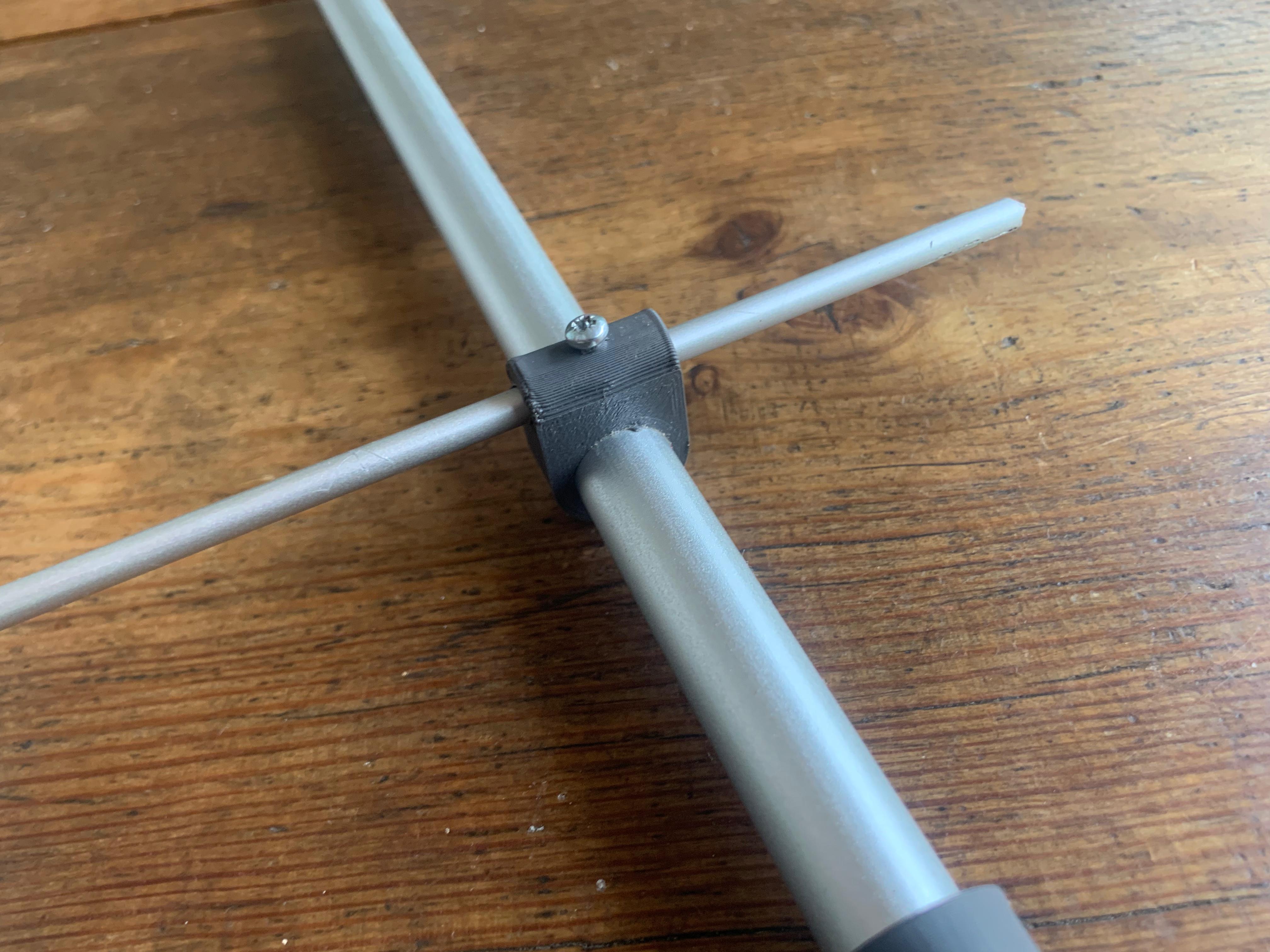

small/measurement rod: diameter 4mm, length about 20cm, can vary for different bicycles
small screw: M3, pretty short and only if really necessary beacuse of a lot of waer on the part it screws into. big screw: M10, 70mm in length, m10x1 THREAD
Design and description by TheCreativeSpectre , licensed CC-BY.
Frequently asked
How long does shipping take?
Derailleur hanger tool / Schaltaugenlehre is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
