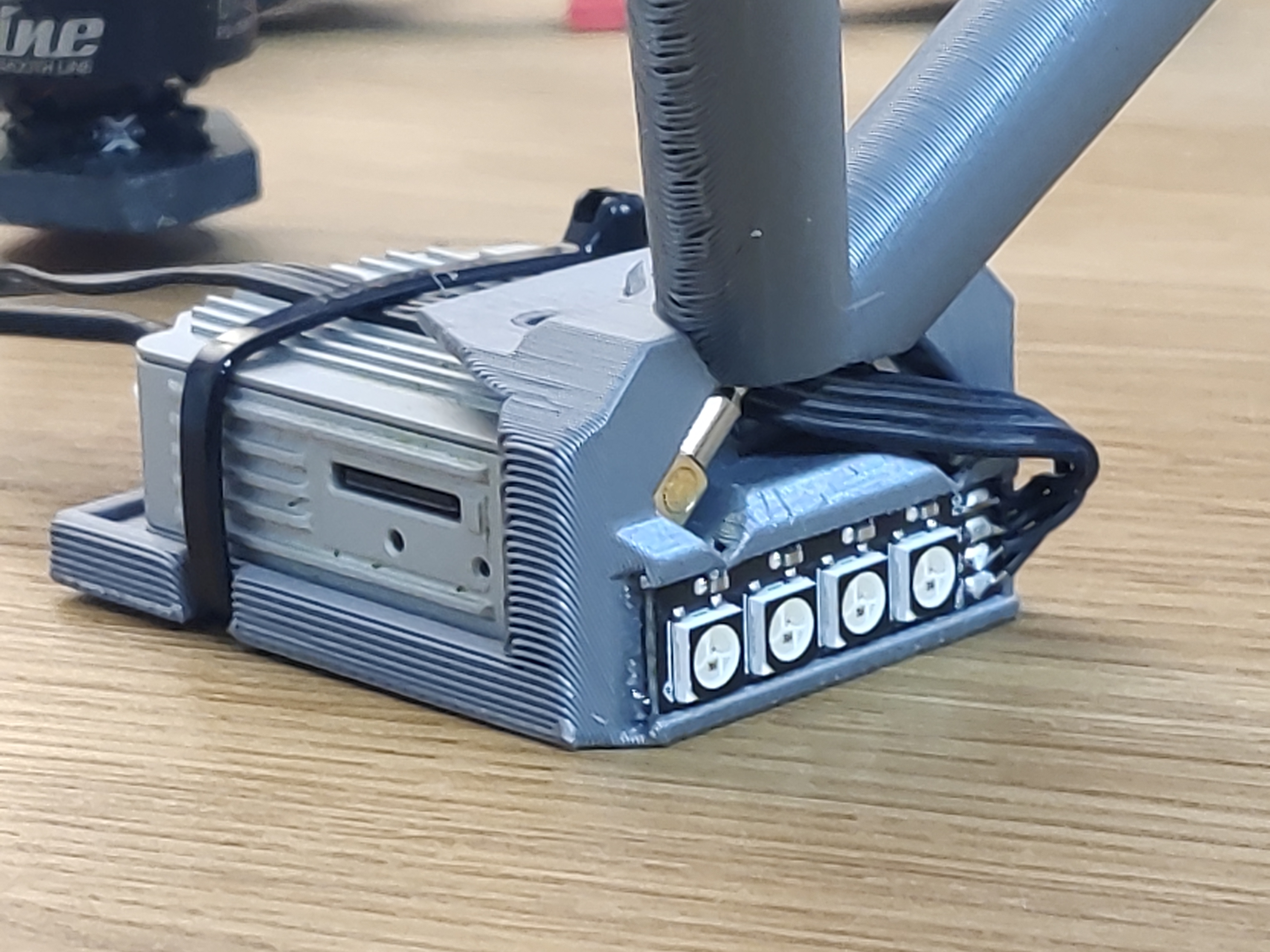

Update: new v4 added. Changed directions of antenna, and made it easier to plug them in. Plus possibility to add a PCB LED strip (Lumenier Digital RGB Arm LED Board)

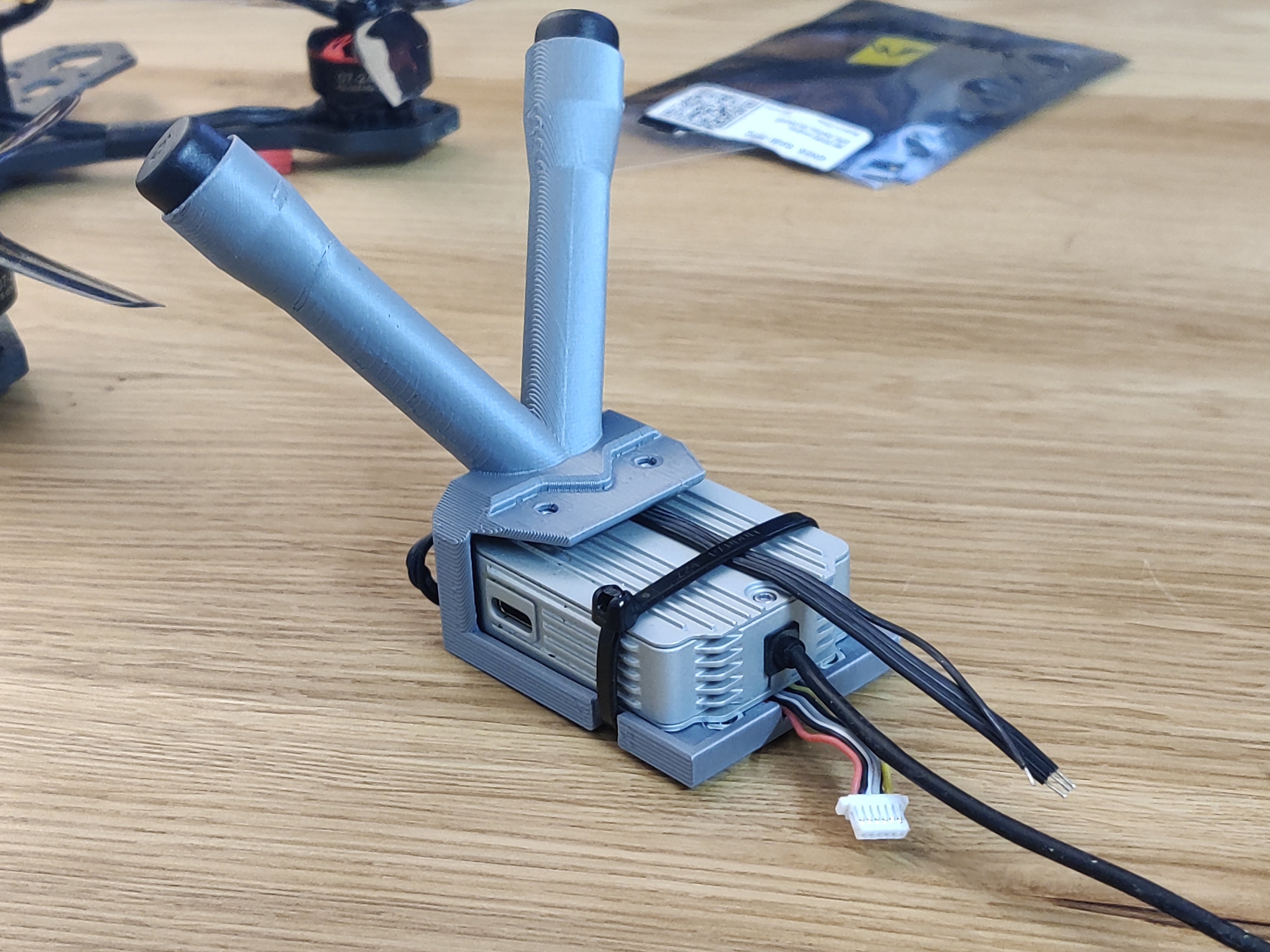

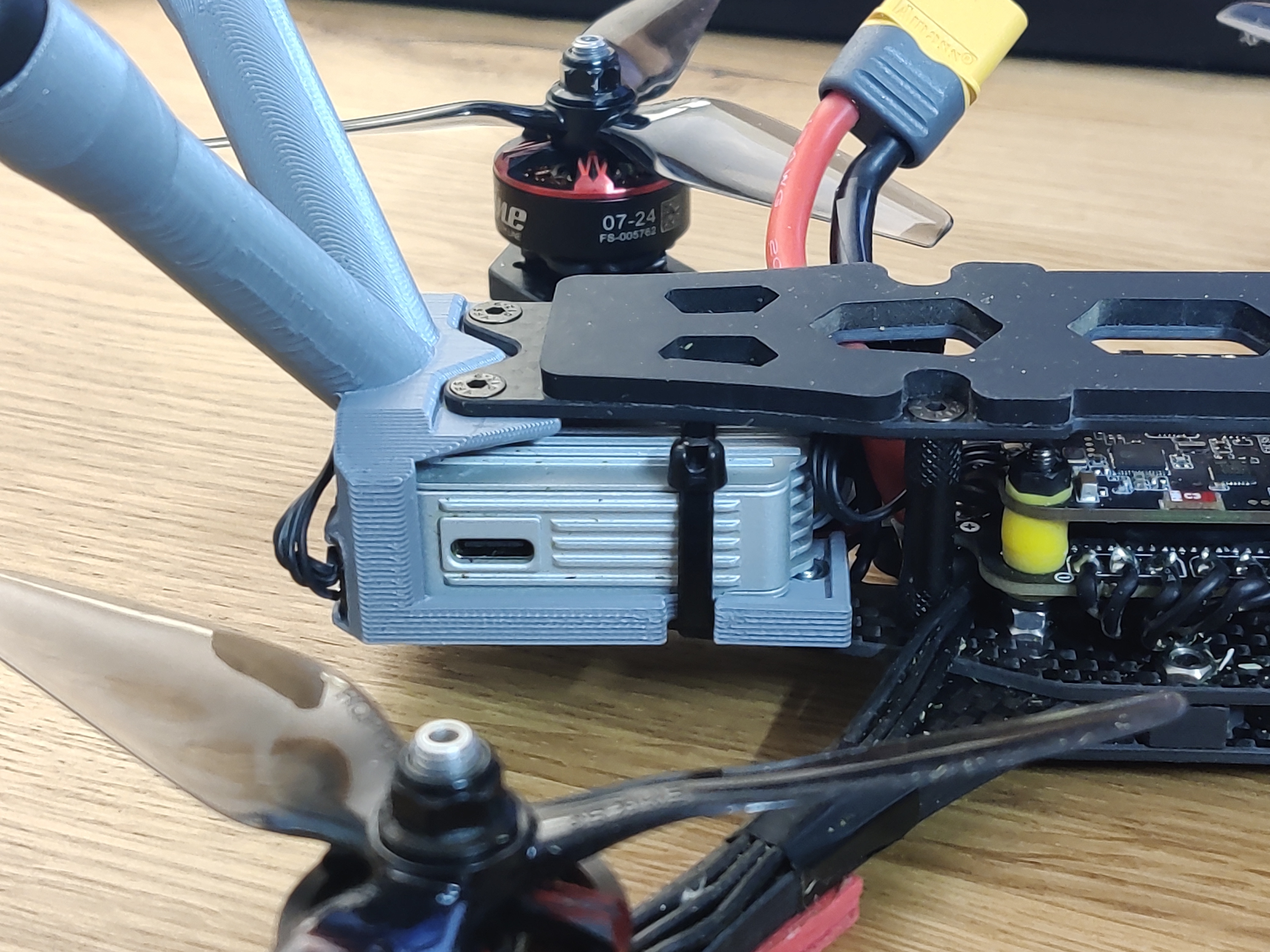

This is a remix from drewzh (thanks mate). His intentional design was great, replacing the far back standoffs with this printed mount for the DJI Air Unit. so you still have some stability and enough space for the Air Unit. I just changed the holes and made it to fit a Lumenier QAV-S 5" frame, and added hexagoncutouts to insert the M3 nuts. (the M3 nuts will fit tight, if not: use some glue to keep them in place while torquing the screws. I had no issues with mine so far.)
For more information head over to the original mount from drewzh
PS.: Somehow my antennas are longer or I just couldn't bend them enough so they don't stick out of the printed fitting for the antenna head. maybe I will upload a next version with other antenna holders, which fit mine better. For now I just put some tape around the holder and the first few millimeters of the antenna, to secure them.
Print Settings
Printer Brand:Prusa
Printer: I3 MK3S
Rafts: No
Supports: Yes
Resolution: 0.2
Infill: 20
Notes
Print on side with support on buildplate.
Post-Printing
Insert 4 M3-nuts in to the hexagon fittings
Design and description by Dimsch , licensed CC-BY.
