Drilling jig with centre distance for handle (door and drawer)
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~53 g
- Print time
- ~2.9 h
- Express shipping
- $20
More information

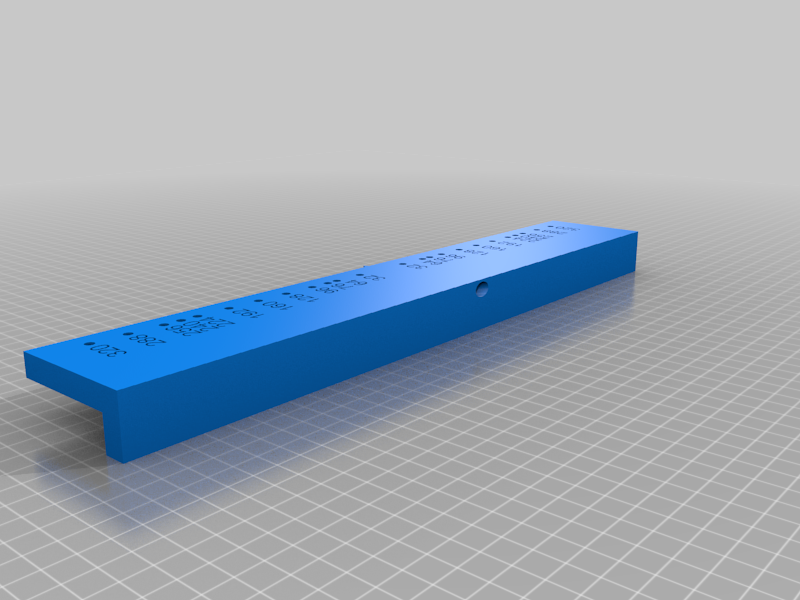

This drilling template allows you to easily place and drill a handle on all types of fronts kitchen door or drawer door with the 12 most common centre distances.

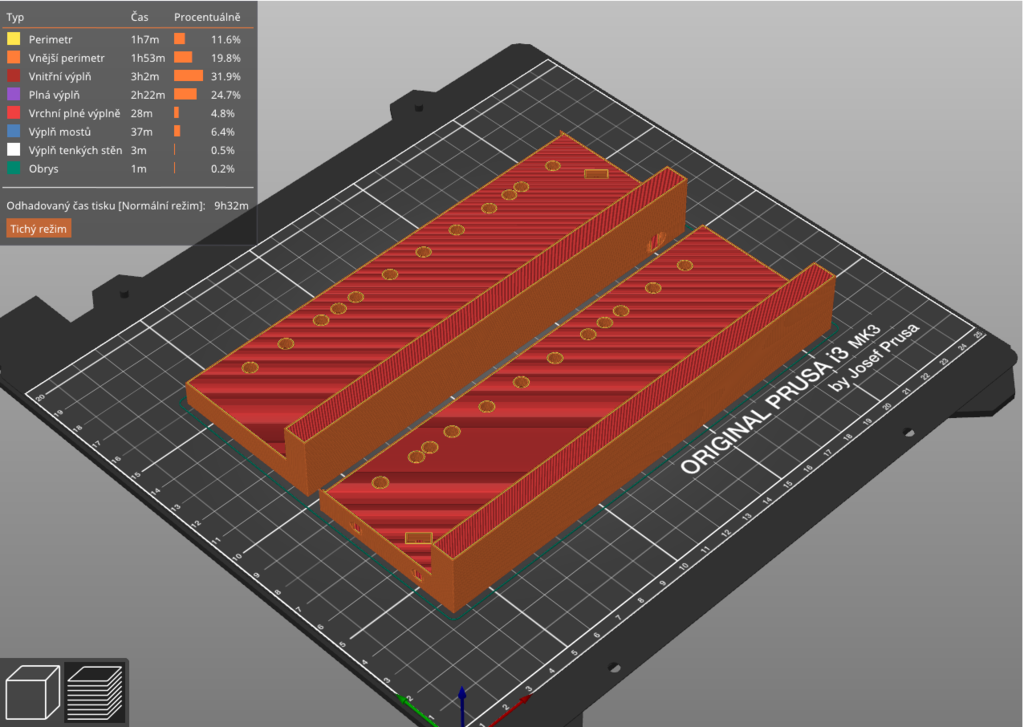

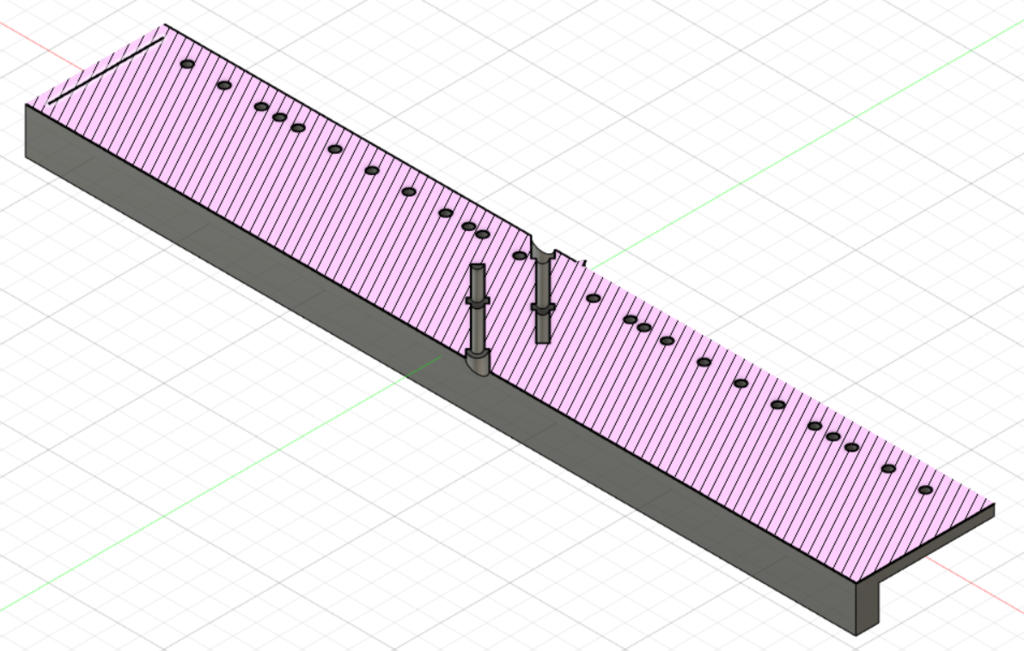

The model is probably larger than your print area. Use your favorite slicer to split the model exactly in the middle. There are holes in the model for screws and nuts to rejoin the two parts.
You will need:
2x M4 45mm, Allen screw
2x M4 nut
Print Settings
Printer Brand:
Prusa
Printer: I3 MK3S
Rafts:
No
Supports: No
Resolution:
300
Infill: 5
Filament: PM PLA Black & White
Notes
It's probably a good idea to use a larger infill if you want to hold the jig with joinery clamps. This will give it more strength. I used 3 perimeters of the wall on my printout.
Category: Hand Tools
Design and description by TátaGEEK , licensed CC-BY.
