Dual plug-in mount compatible with Ryobi 18v
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Express shipping
- $20
More information
Updated 04/22/2025
Easily mount two 18v batteries with electrical connection
Supports 18v in series for 36-40v output (optionally incl. a “center tapped” 18v output via the 3rd PowerPole pin or leave disconnected)
Supports 18v in parallel for 18v output with double the Ah rating (suggest blocking diodes on the + side of each battery)
Do NOT charge batteries in series or parallel, remove them from this adapter and insert only in approved chargers.
Insert Qty.4 of Keystone 209. 1 Cell Leaf Spring Battery Contact, Spring Steel, Nickel Plating (into the dual holder after soldering wires on, MINIMUM of 14 AWG suggested)
Use Qty.2 of M4*16mm or 18mm cap head screw on the thick side and Qty.2 of M4*8mm cap head screw on the thin side
Pass wires through the hole between the dual holder and the plug-in mount plate, finally cut wires to length and crimp on Qty.3 of PowerPole pins.
Glue in Qty.4 battery clips to prevent spring leaf contacts from getting pushed out.

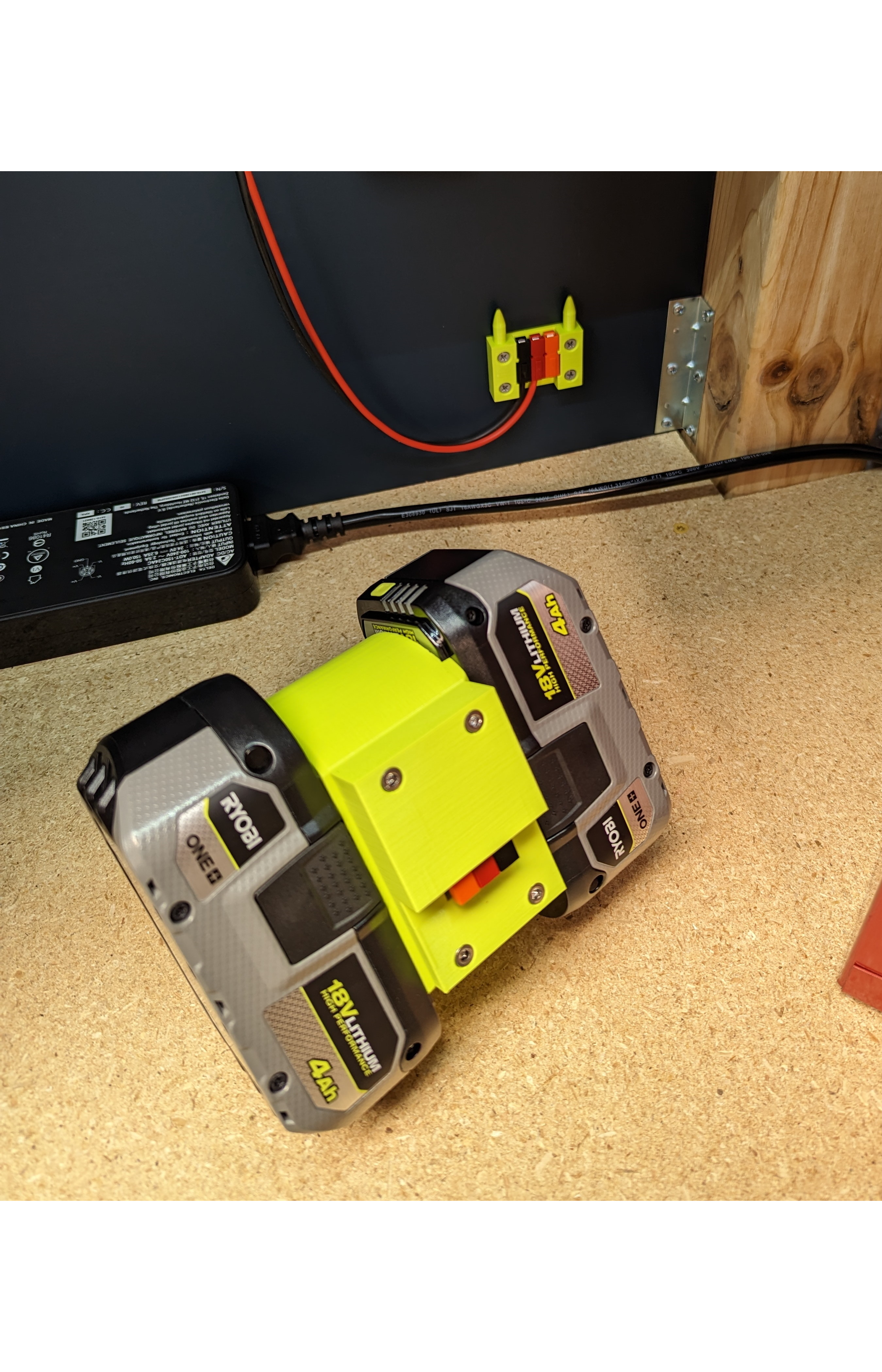

PETG suggested for strength and heat resistance. Pictured using OVERTURE PETG Grass Green which is very close to Ryobi green.
See my other Ryobi 18v compatible adapters.
Design and description by JPMakesStuff , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Dual plug-in mount compatible with Ryobi 18v is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
