Easy print VESA wall mount for TV or monitor
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~19 g
- Print time
- ~1 h
- Express shipping
- $20
More information
!USE AT YOUR OWN RISK! It works for me, and feels solid. maybe it is worth spending 10 euros on certified solutions… But we are makers ;-)
I think it could go up to 55 inch, I would not go above 15 KG load. Make sure to use adequate wall mounting plugs.

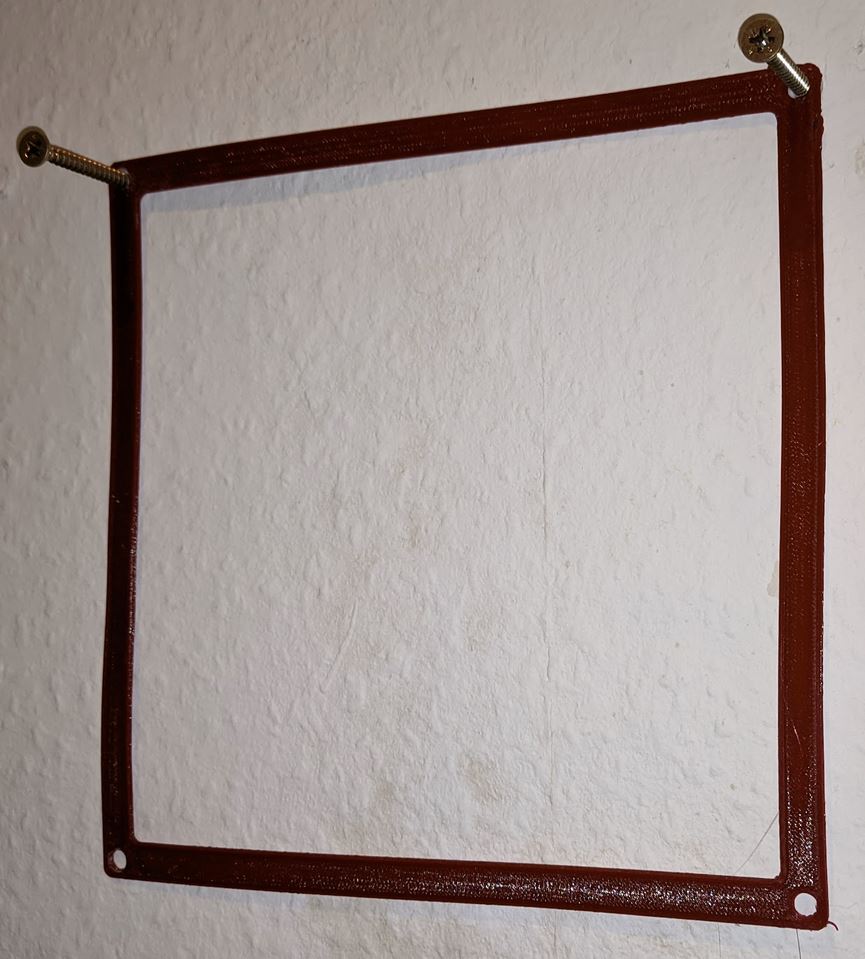

Drill guide is included to ensure easy hole spacing and horizontal mounting.
Use 5mm/6mm wall screws. For the TV side i used 30mm/6mm hex screws.

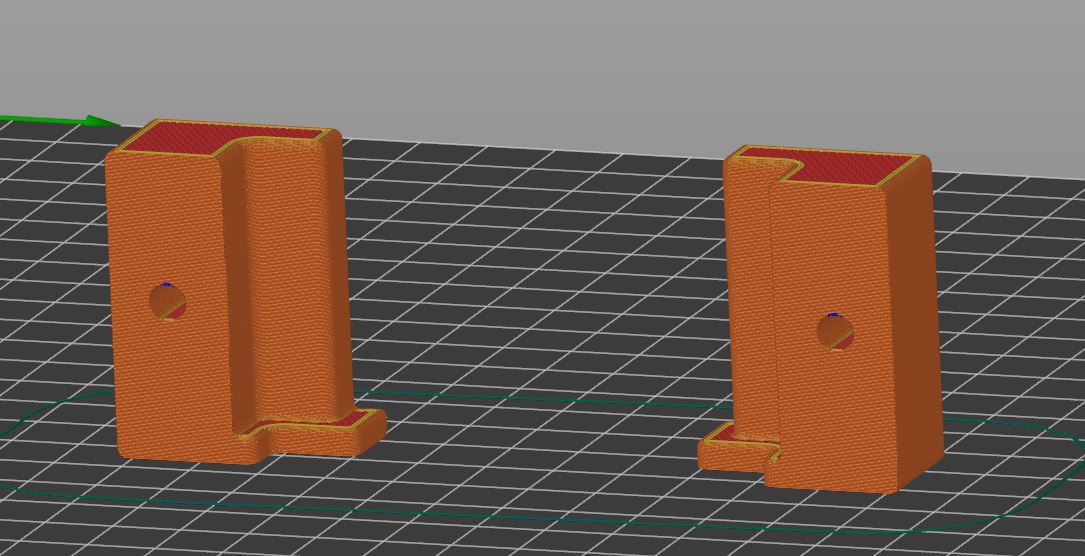

Print the wall parts mirrored as per slicer screenshot. Print the parts upright to ensure strong horizontal strength when mounted.

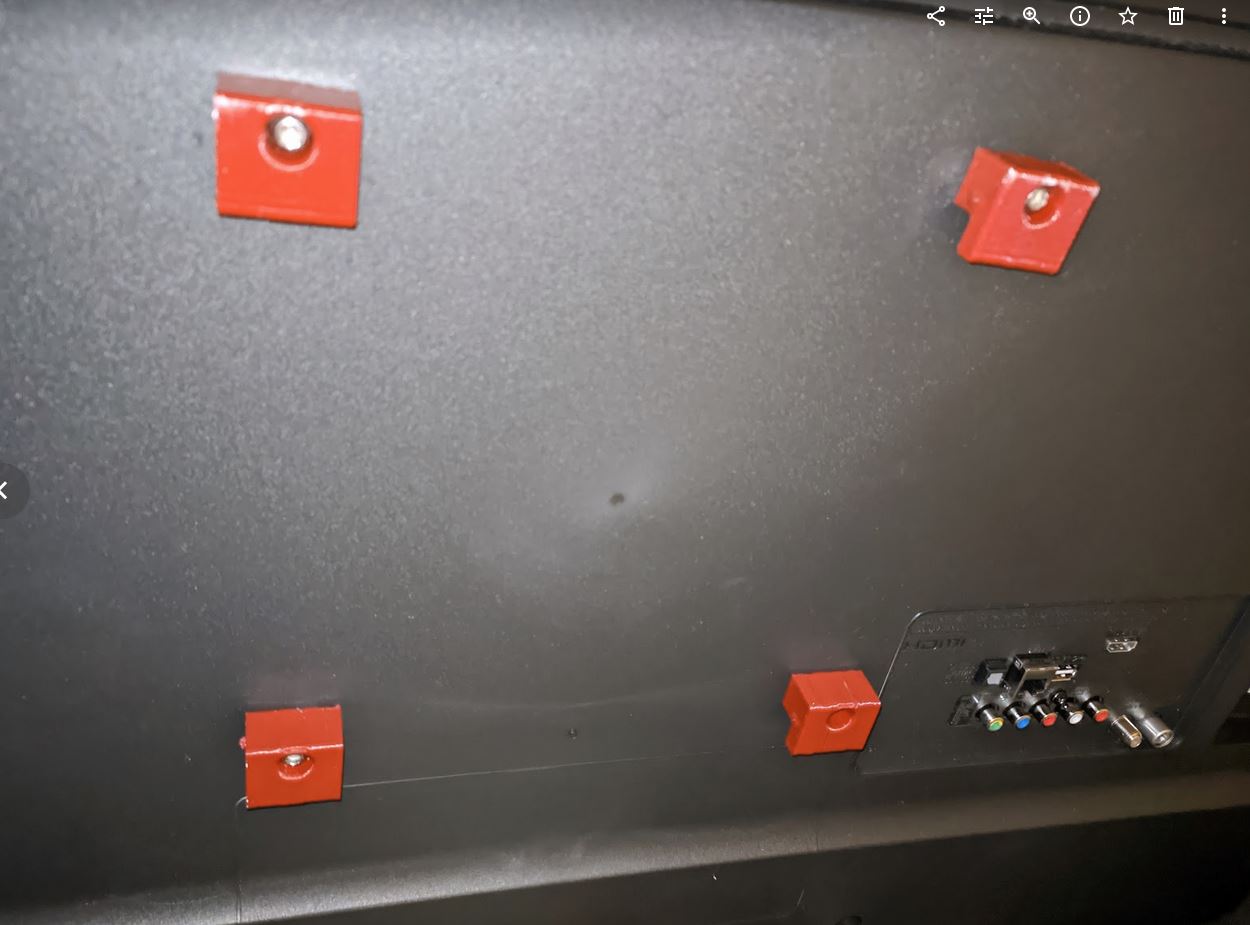

Use the guide to drill the 4 holes, mount the parts to the wall and TV- and just hang slide the TV onto the wall brackets.
PLA works fine, print a bit hotter than normal to go for optimal adhesion. Minimum 3 walls.
Do not overtighten the screws (to avoid layer separation).
F360 source included.
Design and description by GeekMystique , licensed CC-BY.
Frequently asked
How long does shipping take?
Easy print VESA wall mount for TV or monitor is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
