Edge Tracing / Outline Tool with Flat and Round Guides
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~27 g
- Print time
- ~1.5 h
- Express shipping
- $20
More information

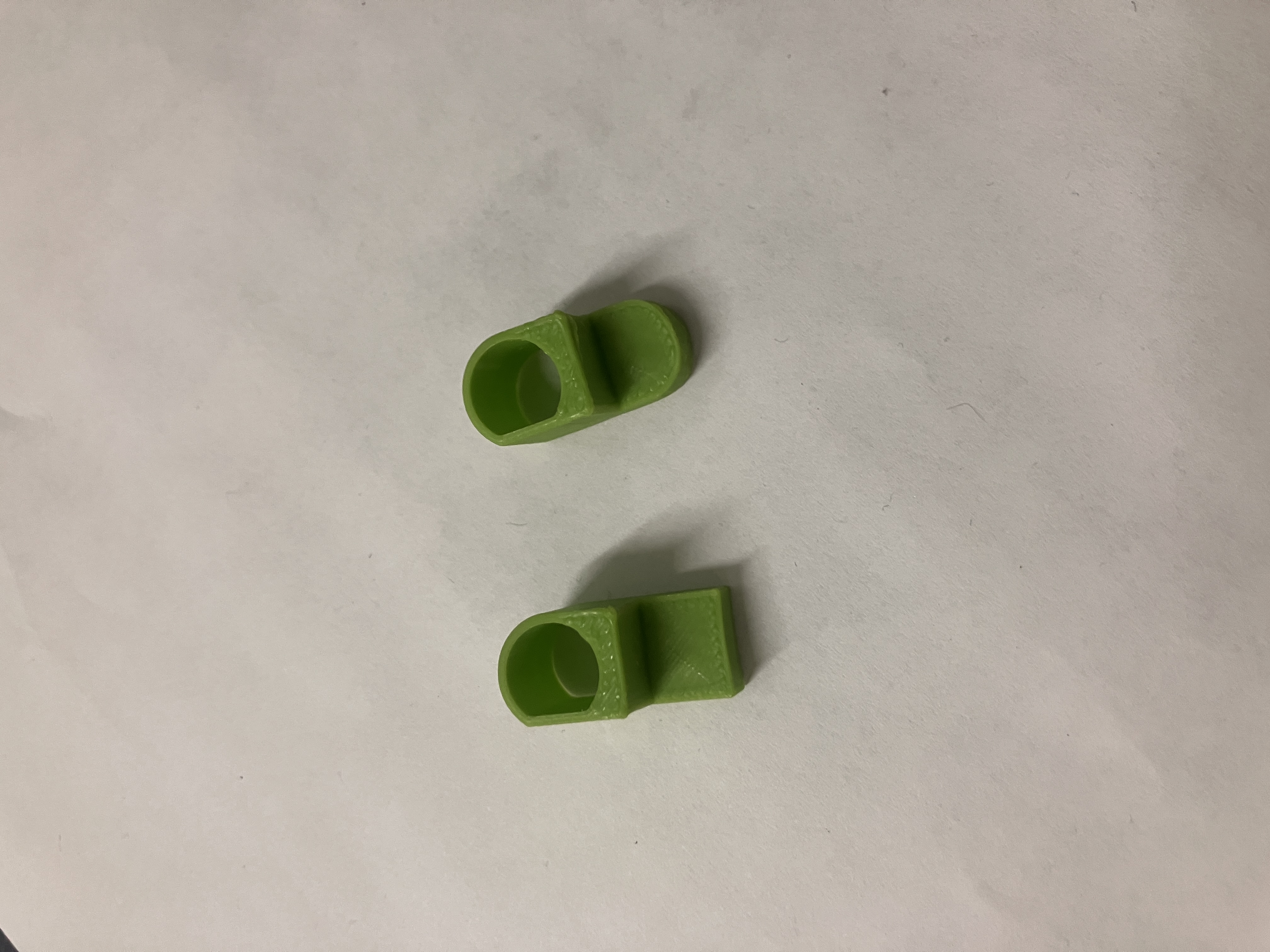

Flat and rounded edge tracing / outline guides to replace the original tracing wheel.

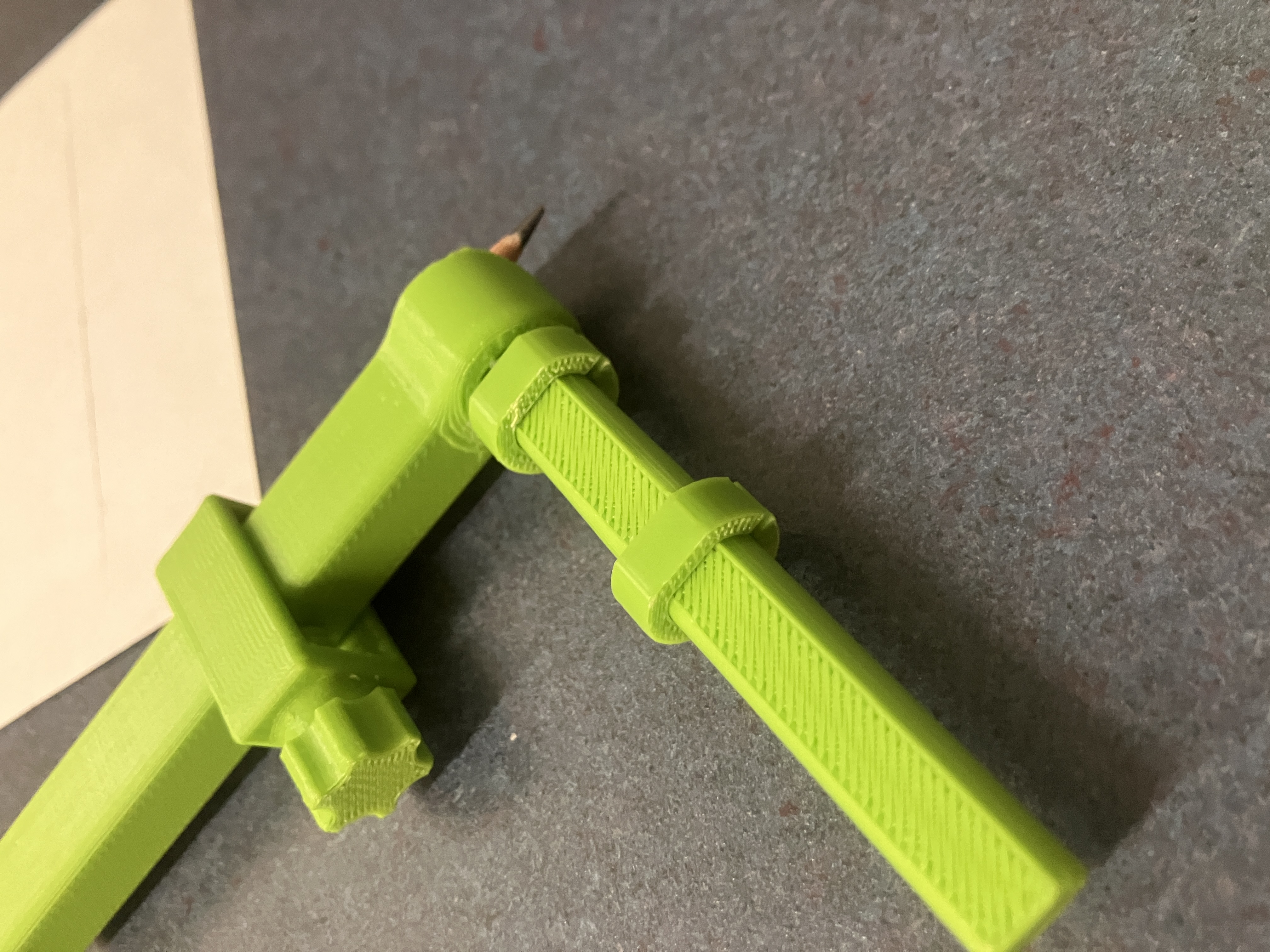

I created new guides to fit on the Edge Tracer since the wheel sometimes didn't work as well as I would like. The rounded guide is helpful if you want to trace with the tool at an angle.
I reduced the tolerance so the guide fit on the post without any split rings, but the split rings can still be used for some added security.

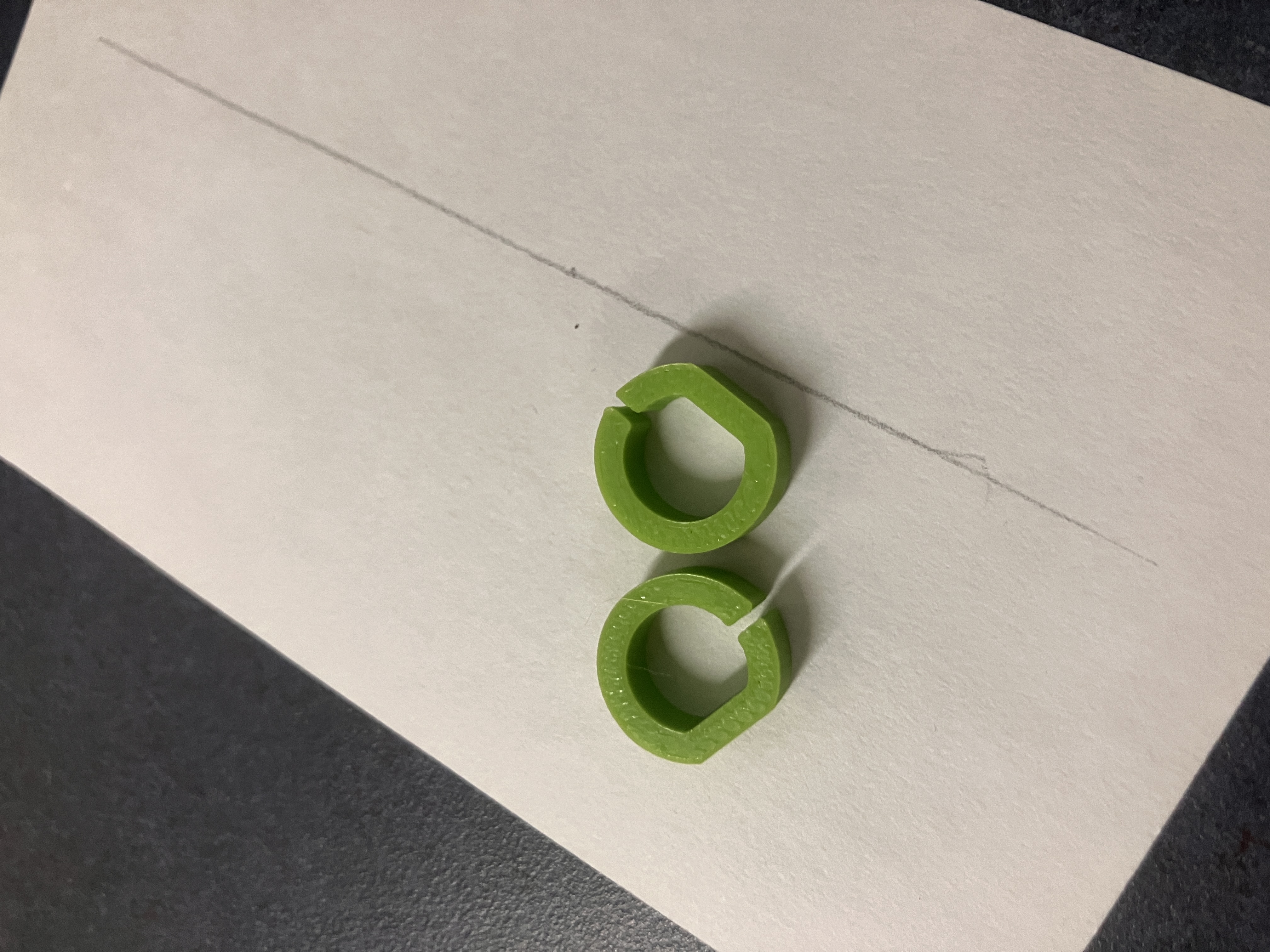

I also created my own split rings because the original ones did not fit very closely to the tool.
To Print:
Use the original Edge Tracer file (Reuploaded below) along with either the flat or rounded guide. Optionally, you can also use the modified split rings.
Design and description by Cpt Millenium , licensed CC-BY.
Frequently asked
How long does shipping take?
Edge Tracing / Outline Tool with Flat and Round Guides is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
