Elecrow screen mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~13 g
- Express shipping
- $20
More information

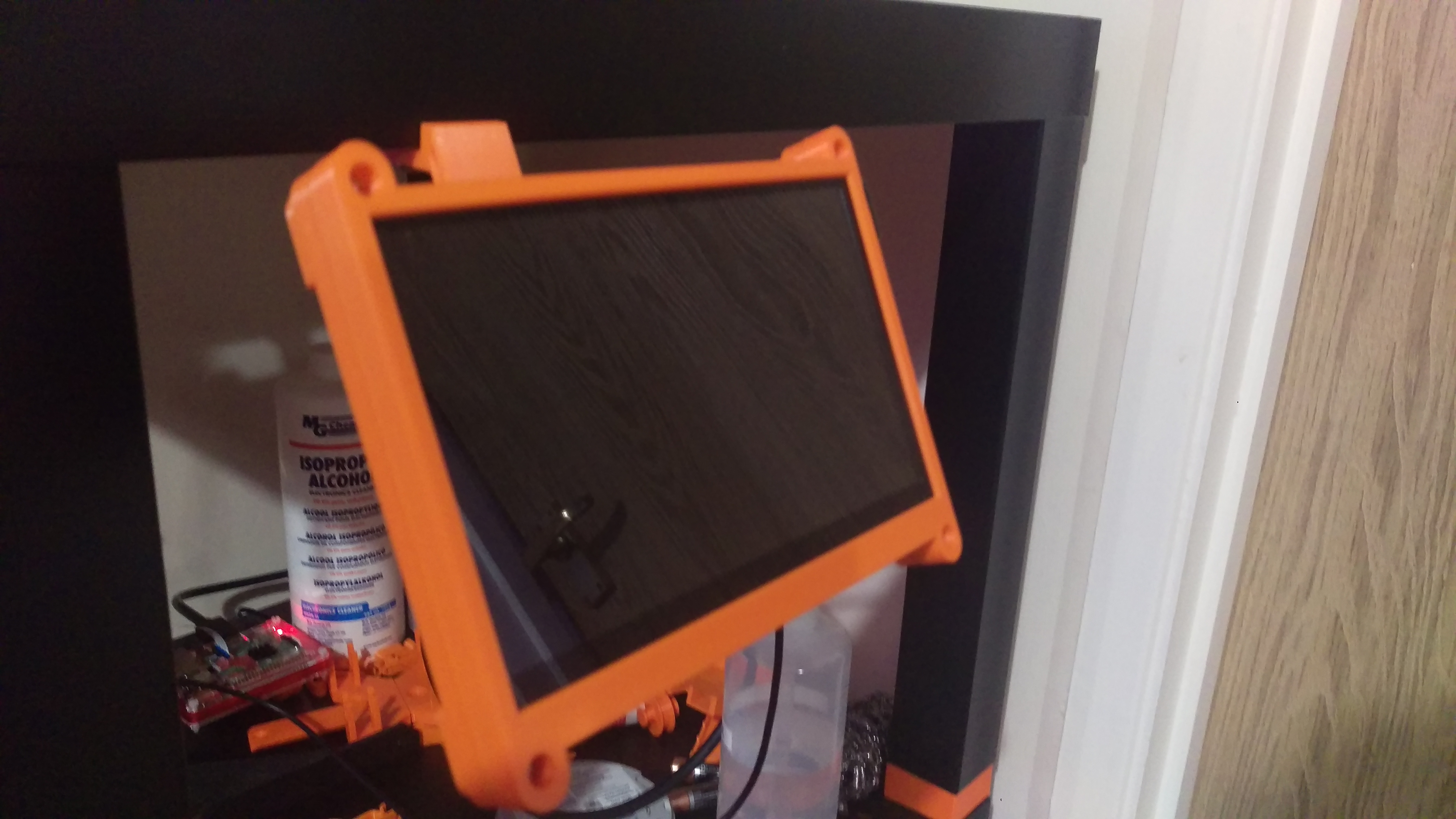

This is a set of accessories to mount the 7 inch LCD screen to a table or desk, such as an Ikea LACK.
The mount is attached to the screen case with 4 off M3x16 bolts and nuts. The arm is mounted using 4 off M3x8 bolts and nuts. The arm can be mounted to a table using No. 12 screws. I have used captive nuts on all the components to make assembly easy.

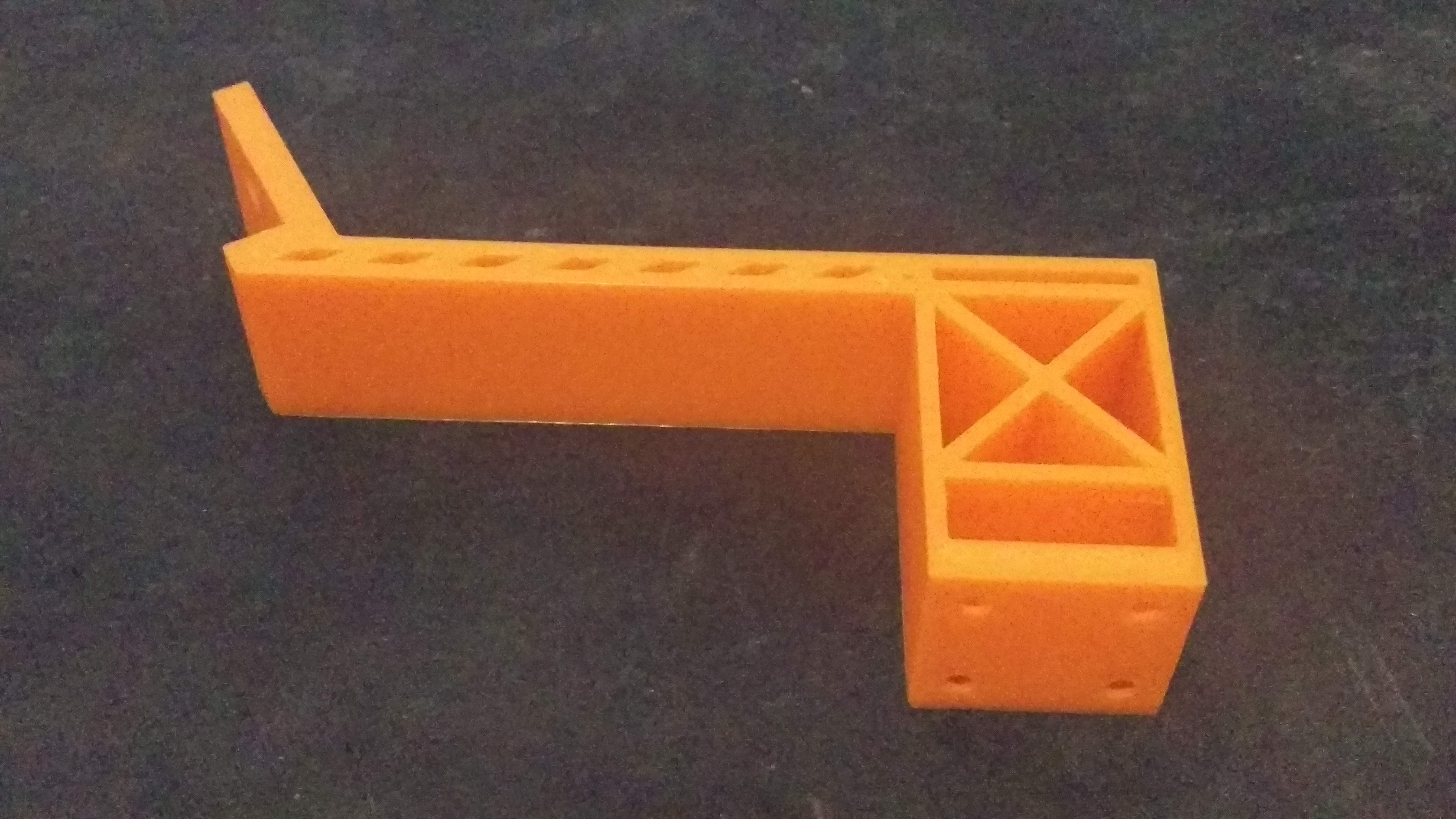

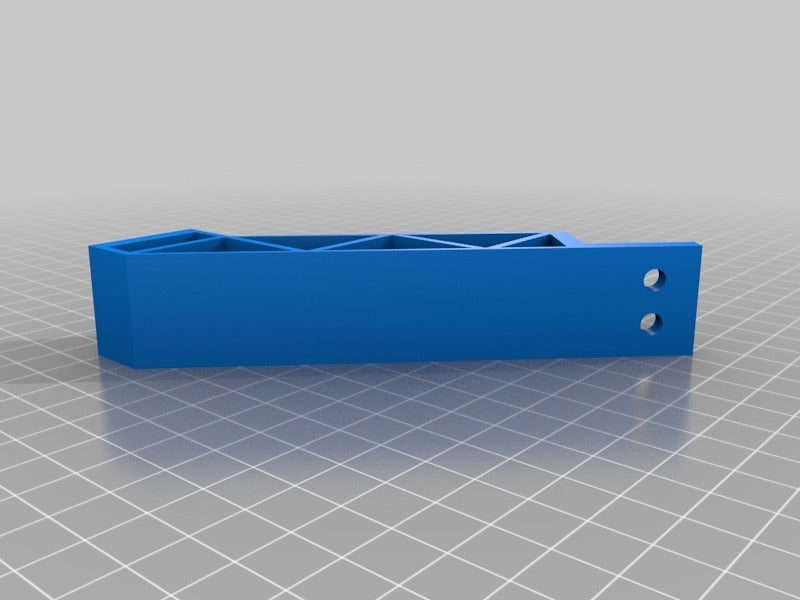

There are a pair of arms available, the one called mountarmlowz I designed to work with the Prusa i3 MK3 LACK enclosure, and offers sufficient space between the case and the doors of the enclosure. The other arm is for more generic mountings.
The mountarmlowz now has a version 2!, this version has some extra stiffening to make it more rigid when attached!
If you want to see how I used octoprint to automatically turn the screen on and off go and have a look at my github repo here!
Update 26/09/2019
Removed mirroring and combining artifacts from the casemount file, republished as V2.
Issue with V1 did not occur on PrusaSlicer and therefore I did not notice it. Thank you to RyanParle for raising the issue.
Print instructions
Category: Electronics
Design and description by Darragh , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Elecrow screen mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
