Ender 2 Pro / Ender 3 - 5015 Part Cooling Fan Duct with Magnetic Mount
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~29 g
- Print time
- ~1.6 h
- Express shipping
- $20
More information

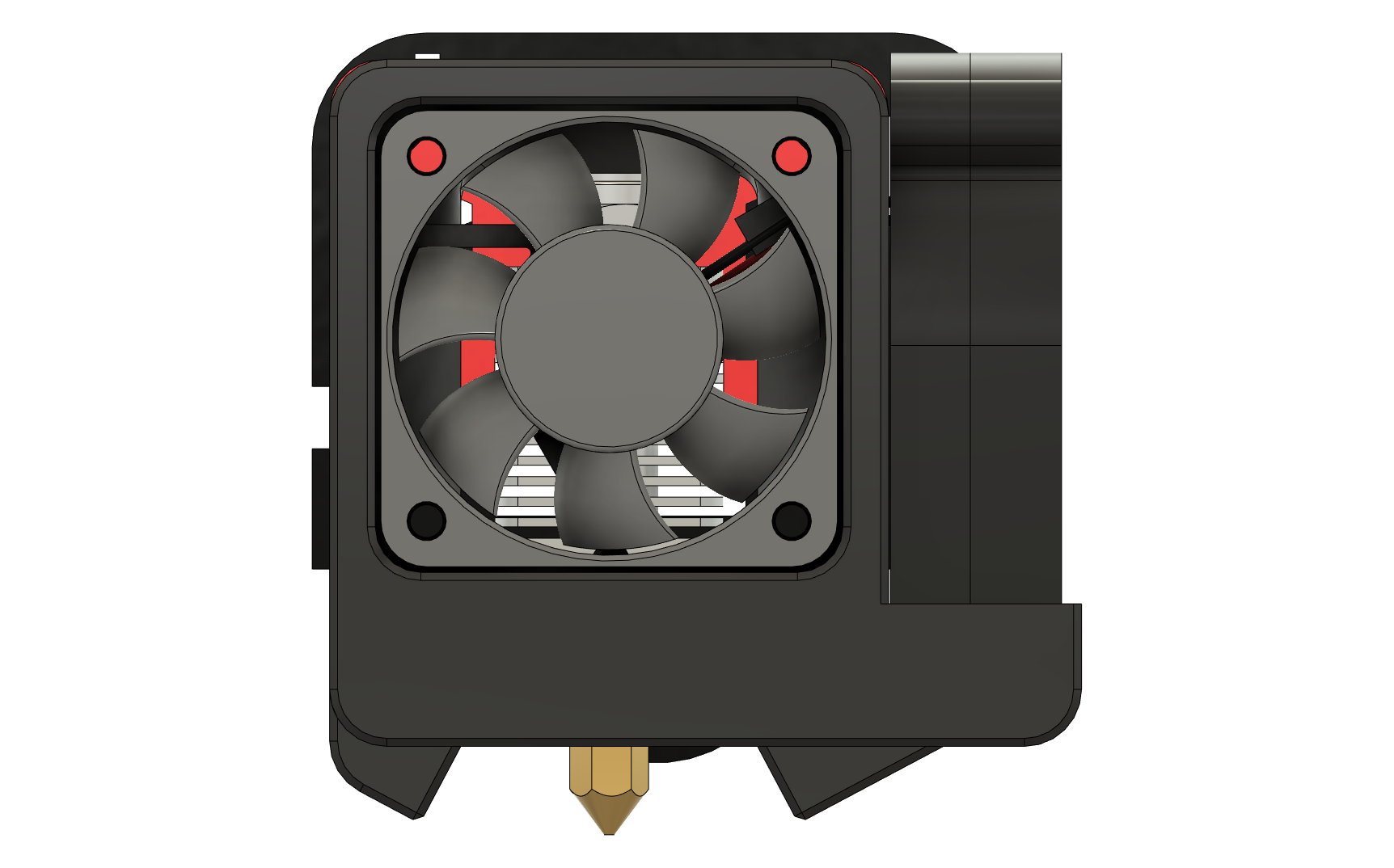

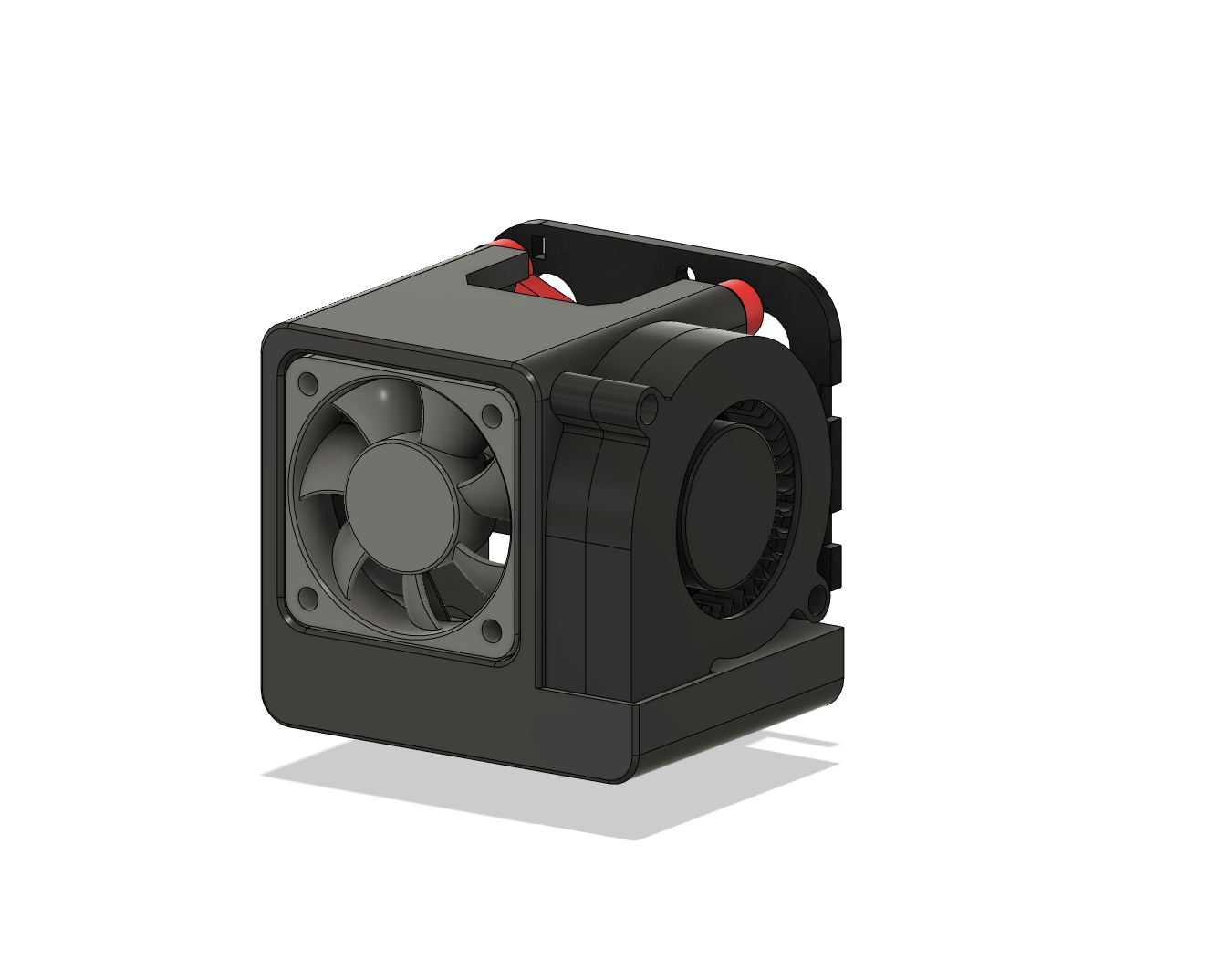

Ender 2 Pro / Ender 3 - 5015 part cooling fan duct with easy to install magnetic mount. Compatible with separate CR touch mount. Minimalist, compact and flexible design. This design has considered easy remix of your own mount for other printers.
Note: 5015 blower fan - set to 75% power for adequate and quiet part cooling
Compatibility
• Ender 2 Pro • Ender 3 Pro / V2 • Ender 3 Neo / V2 (same as Ender 2 Pro mount? - not tested)
Printing requirements
• PETG preferred • Standard supports for best quality
Other required parts/material
• 8x magnets 6mm (diameter) x 3mm (thickness) • a few dabs of super glue to secure the magnets • 4x M3 screws for 4010 hotend fan • 1x M3 screw for 5015 part cooling fan • 1x M3 hex nut for 5015 part cooling fan
Installation - Mount

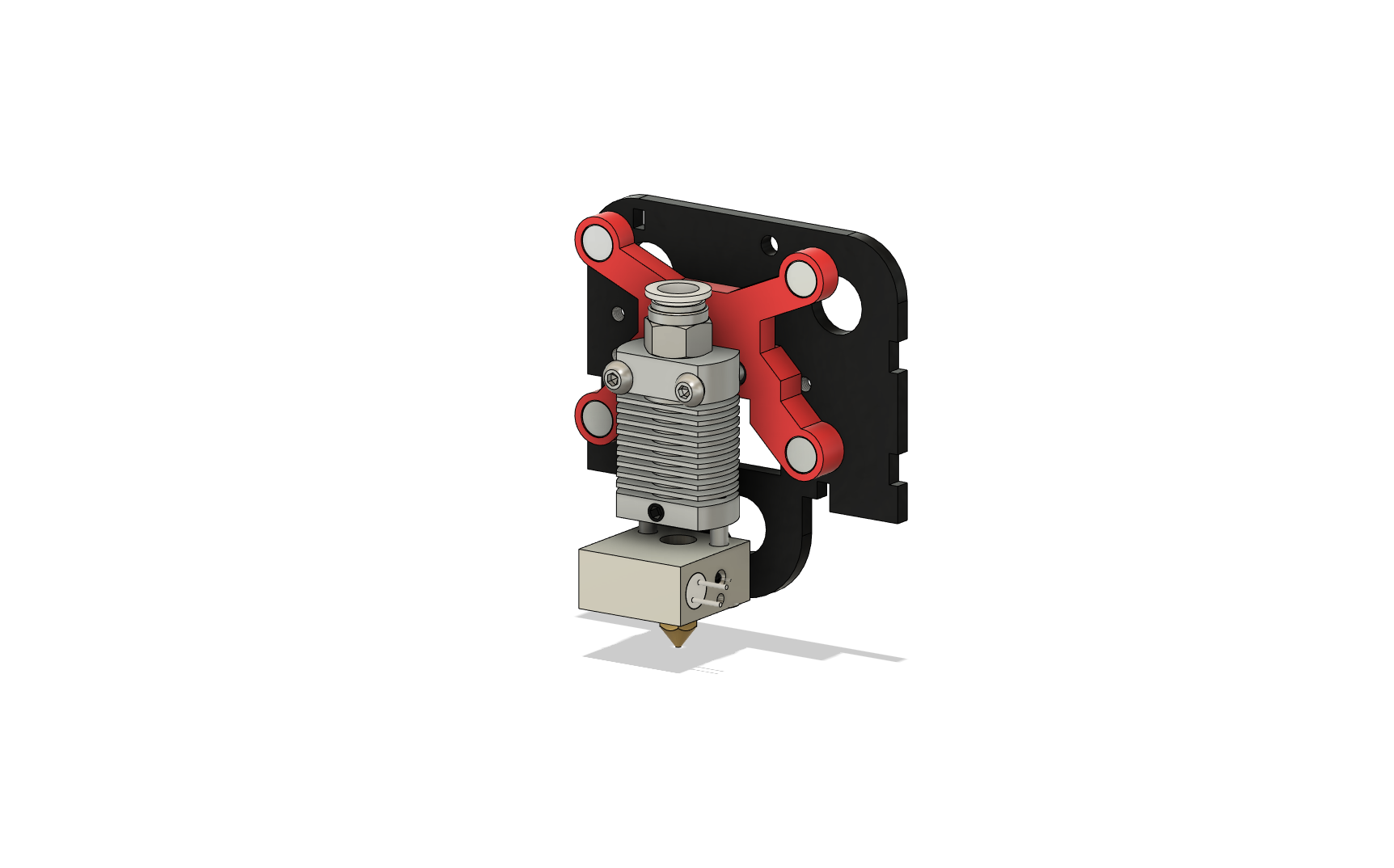

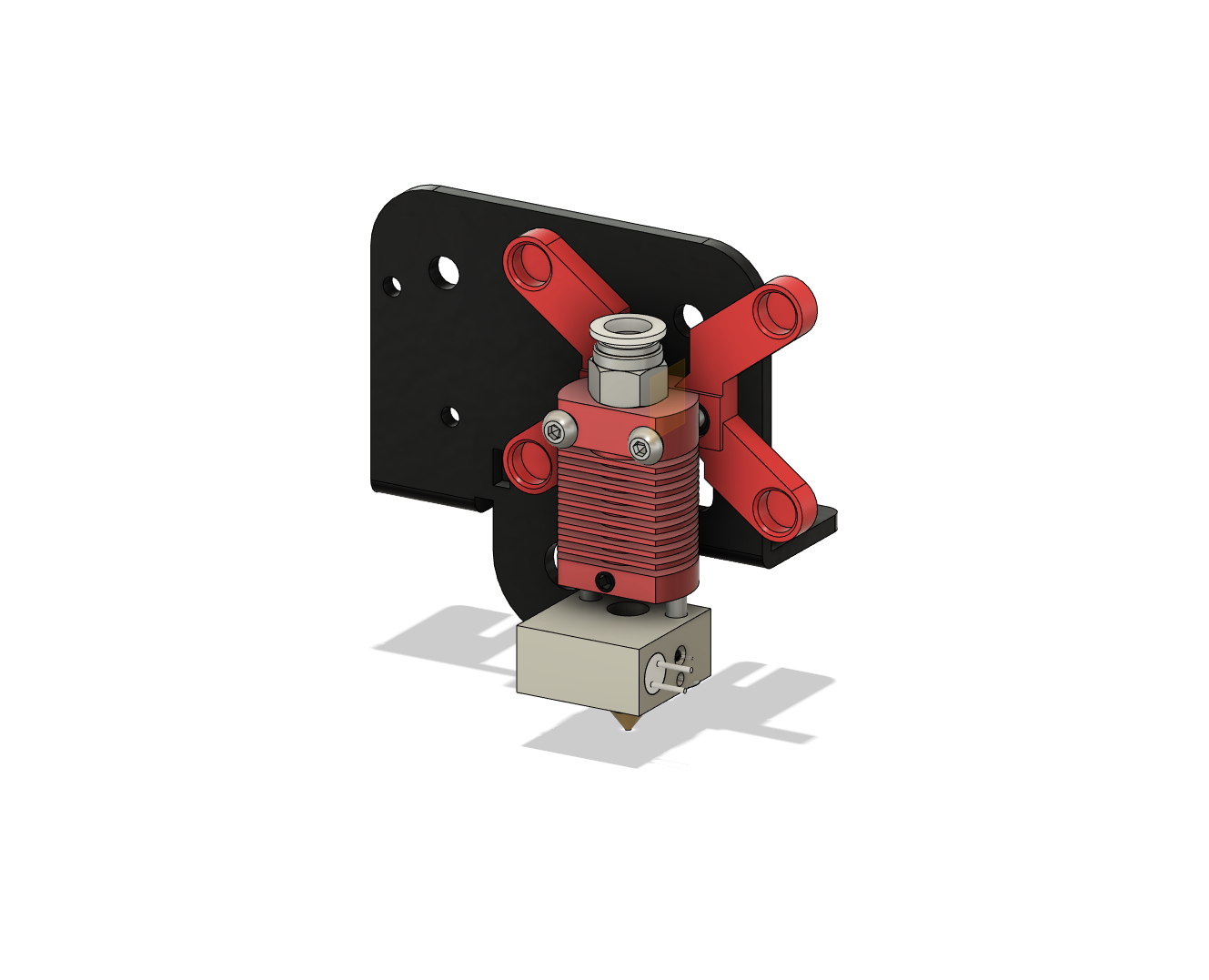

• Install magnets on to mount (4x) and shroud (4x). Make sure the polarities of the mount attract the shroud (i.e. N-S poles) • Unmount the original hotend and slot the mount through the hotend standoffs. • Reinstall the hotend
Design and description by Bosco Lau , licensed CC-BY.
More 3D printed printer fan ducts and fan mountsMore 3D printed Creality Ender accessories
Frequently asked
How long does shipping take?
Ender 2 Pro / Ender 3 - 5015 Part Cooling Fan Duct with Magnetic Mount is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
