Ender 3 V2/S1 - Dial Gauge Mount [X;Y;Z Axis]

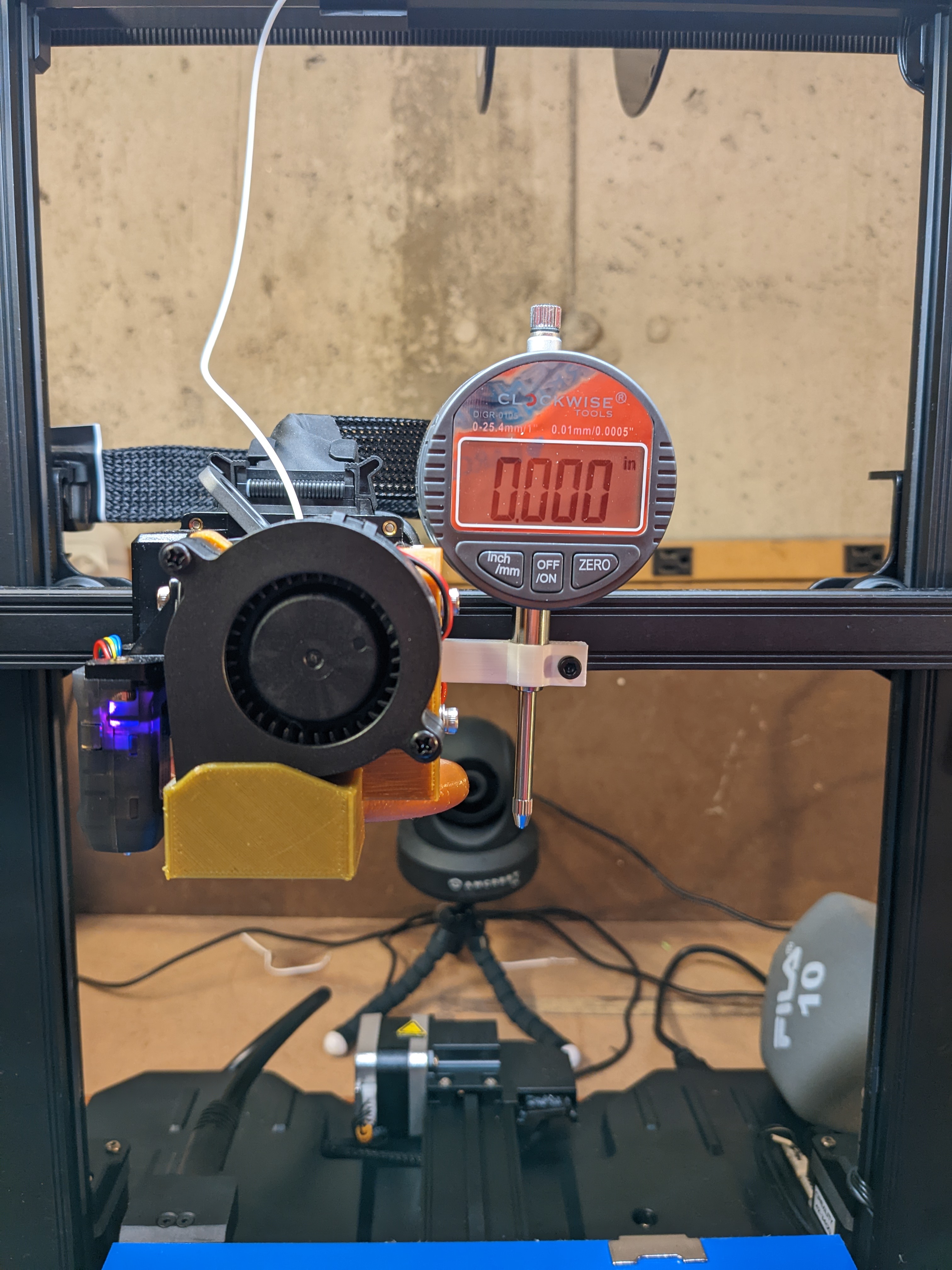

I needed a dial gauge mount so that I could perform the ‘XYZ steps Calibration’ within the written guide ‘Teaching Tech 3D Printer Calibration’. After reading the calibration guide I strived to create mounts that I could accurately measure physical distance to adjust my e-step accordingly.

If you download the file(s), please leave a like! Also please share your makes and constructive criticism for future versions. {Please note this was tested and designed on an Ender 3 S1 Pro}

Tools/Hardware Needed:

• Dial gauge - found on Amazon: “Clockwise Tools DIGR-0105 Electronic Digital Dial Indicator Gage Gauge" • M3x8 Screw • M3 Nut (however, with the inner diameter used the M3 screw threads pretty nice)

Current STL Files & Version(s)

• Z-Axis: {Z-Axis_Dial-Gauge-Mount_v1} • Accommodates 'Ender 3 S1 Twin Jet 5015 Fan Duct' by TX_Ryan • No custom air duct? See final note below

• X-Axis: {X-Axis_Dial-Gauge-Mount_v1} • Y-Axis: {Y-Axis_Dial-Gauge-Mount_v1}

Printer Settings:

• 0.2mm Layer Height • 15% Infill • No Supports

Orientation:

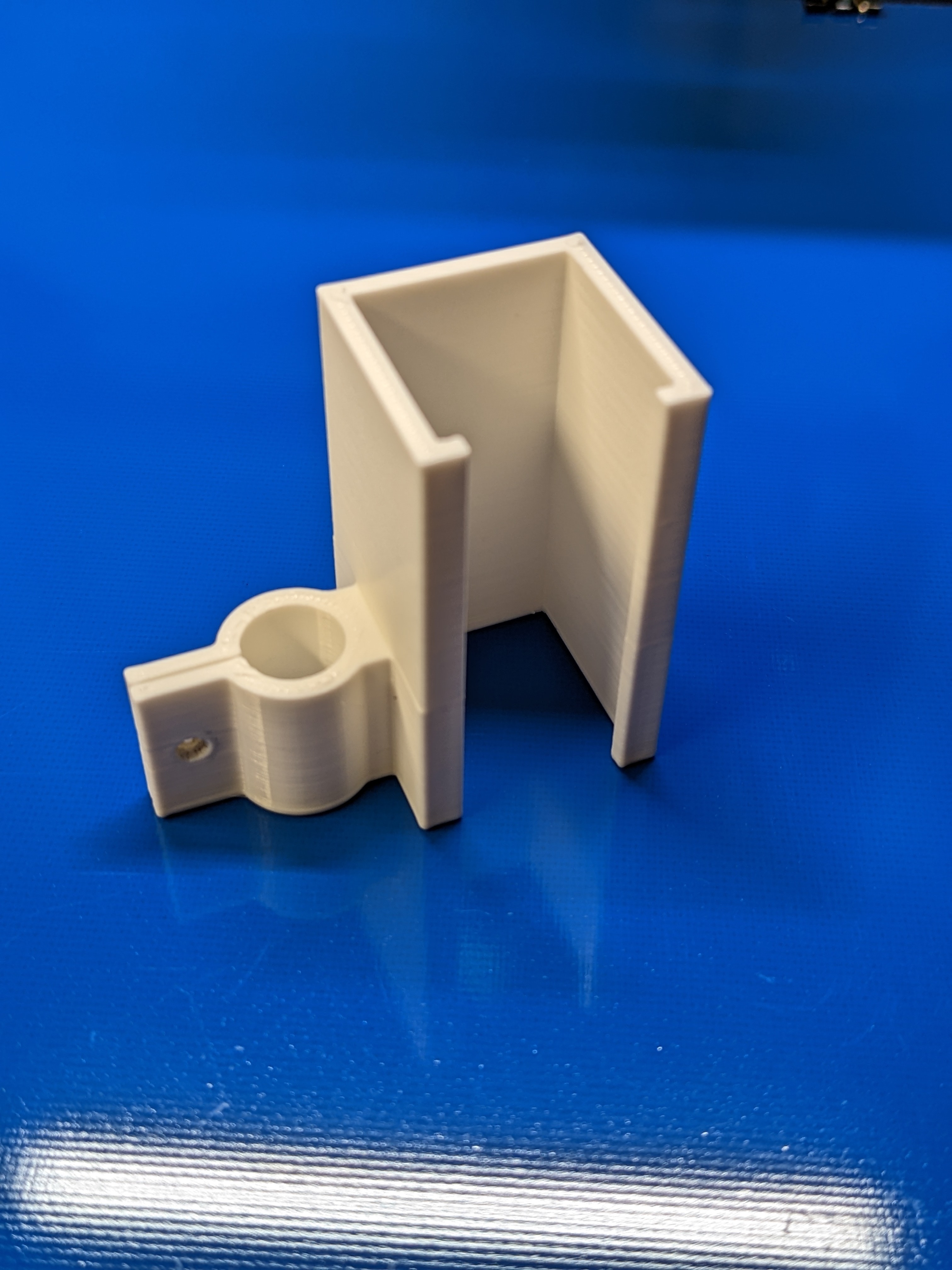

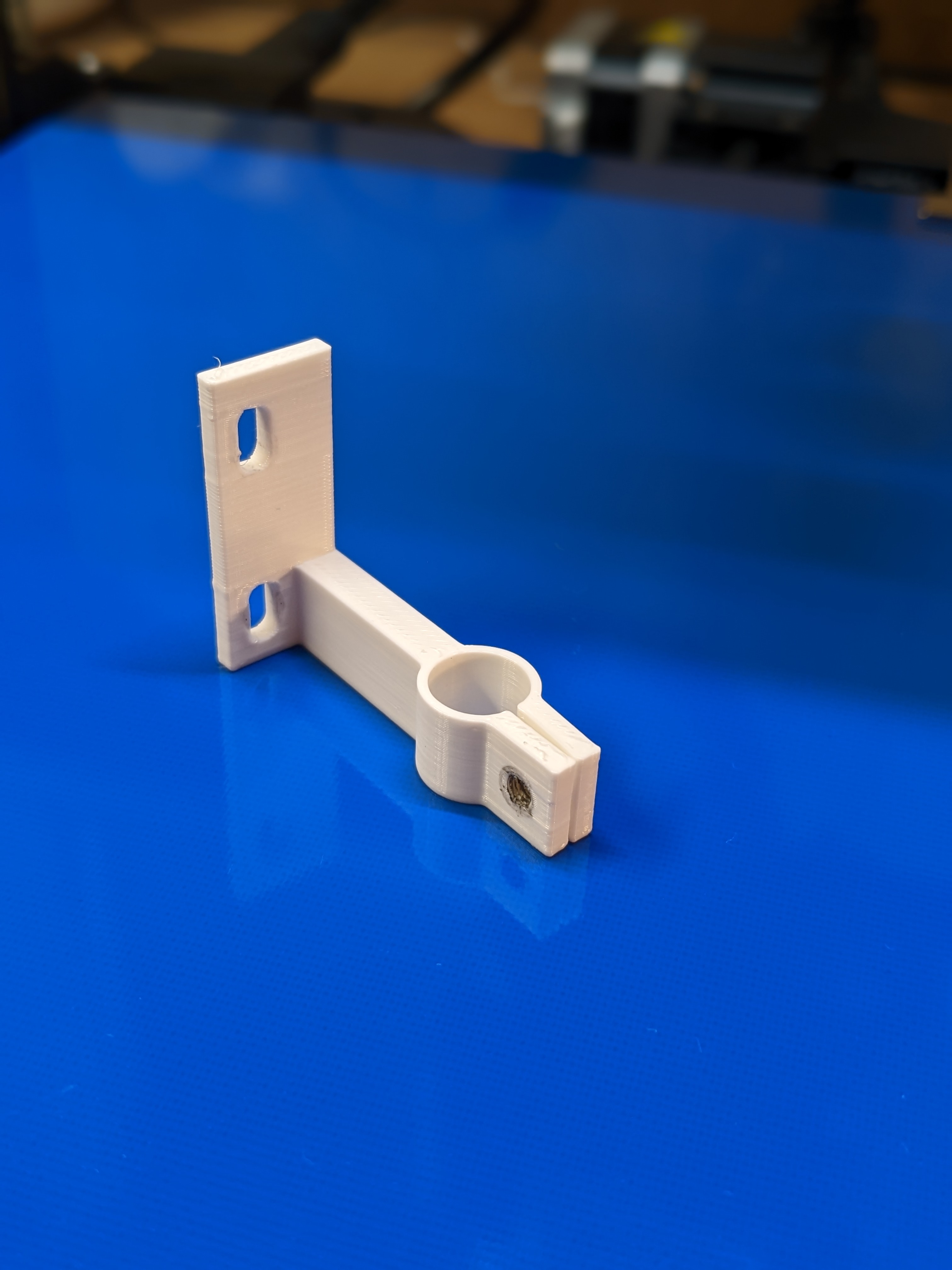

• All mounts were printed in the same orientation as the photos

Please Note: If you DO NOT have a custom fan duct use → ‘Ender S1 Dial Gauge Holder’ by kaisarantonn

Design and description by nardonema , licensed CC-BY-SA.
