Esp32 DevKit v1 Soldering Jig
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~38 g
- Print time
- ~2.1 h
- Express shipping
- $20
More information
Description

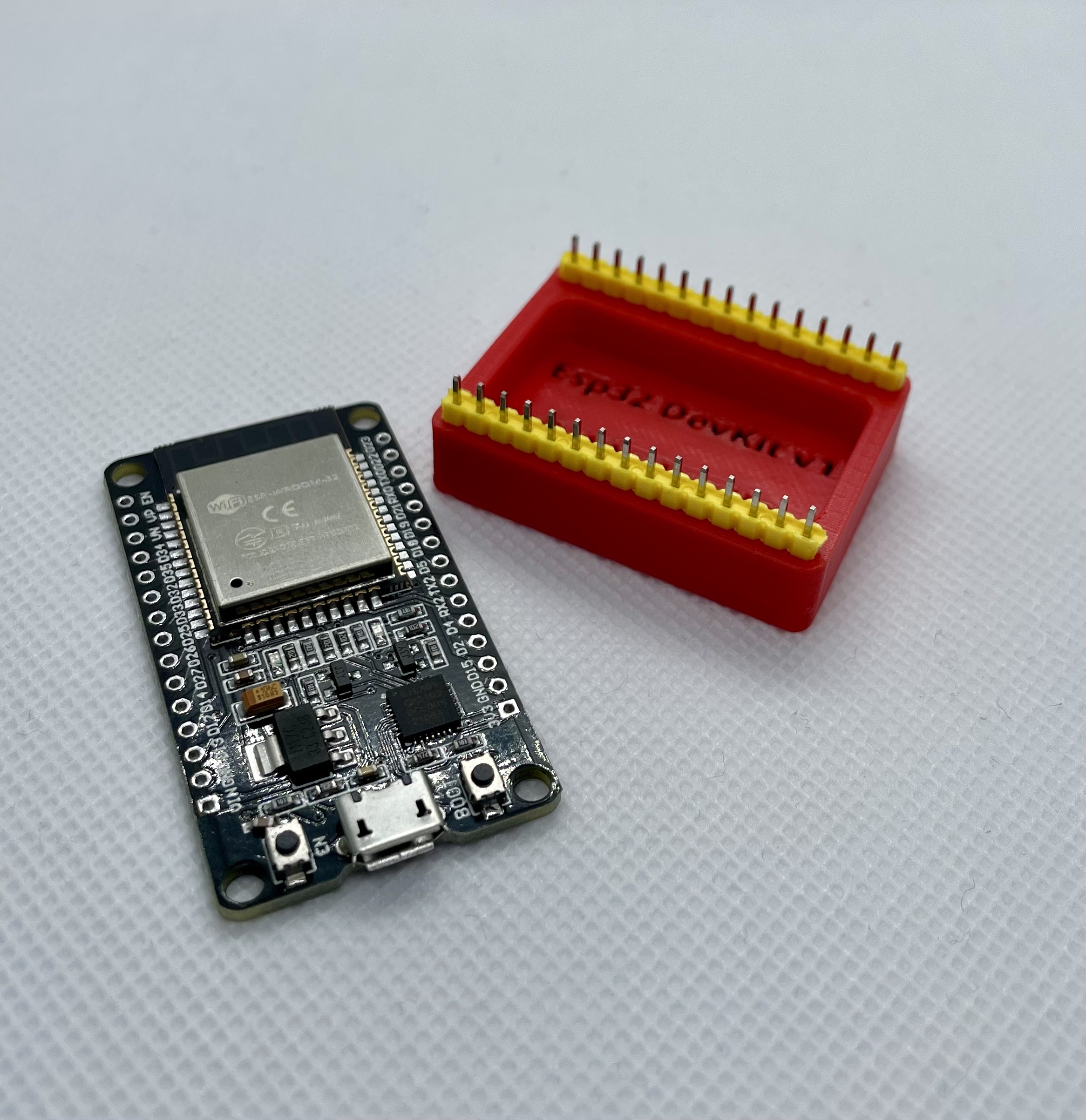

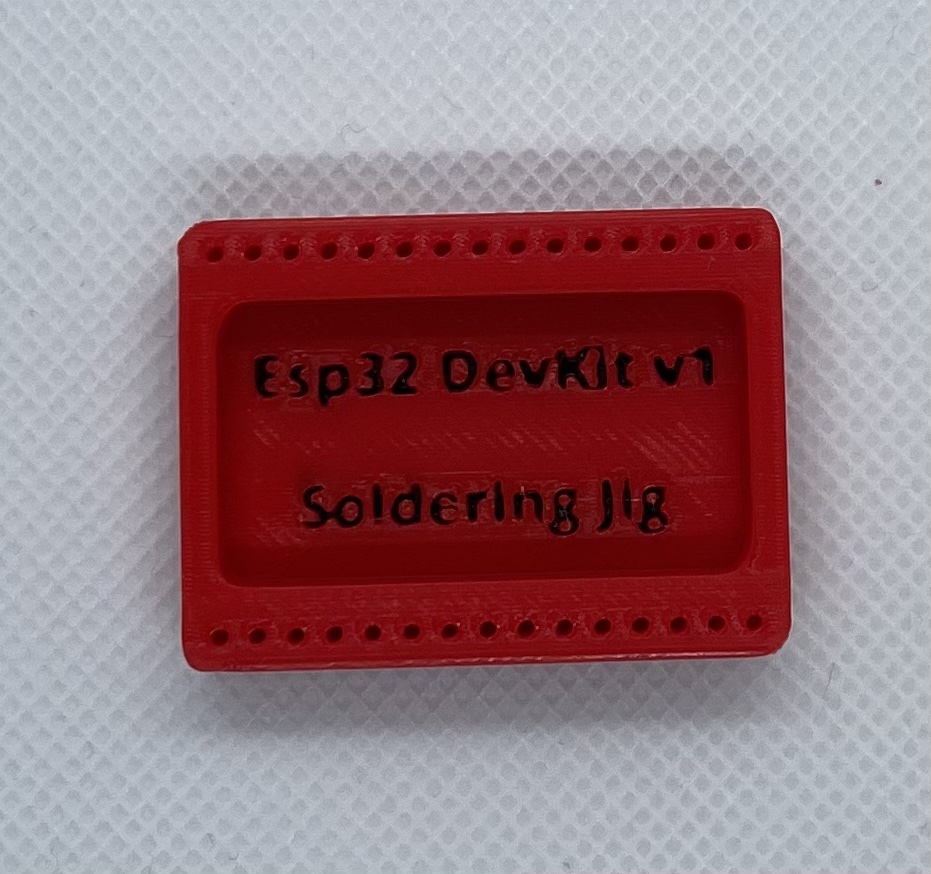

Streamline your Esp32 DevKit v1 projects with this custom-designed soldering jig. Tailored for 2.54mm pin headers, it ensures precise, straight soldering every time.
Ideal for both beginners and experienced makers, this jig is a must-have for seamless electronics assembly.
Easy to 3D print and simple to use, it's a practical addition to your toolkit, enhancing accuracy and efficiency in your soldering tasks!
Size
Printer settings
No fancy print settings required. Easy model to print.
• Layer height 0.2mm • 3 wall loops • 3 top layers • 3 bottom layers • Ironing is is nice • Give the letters an awesome color!
How to use

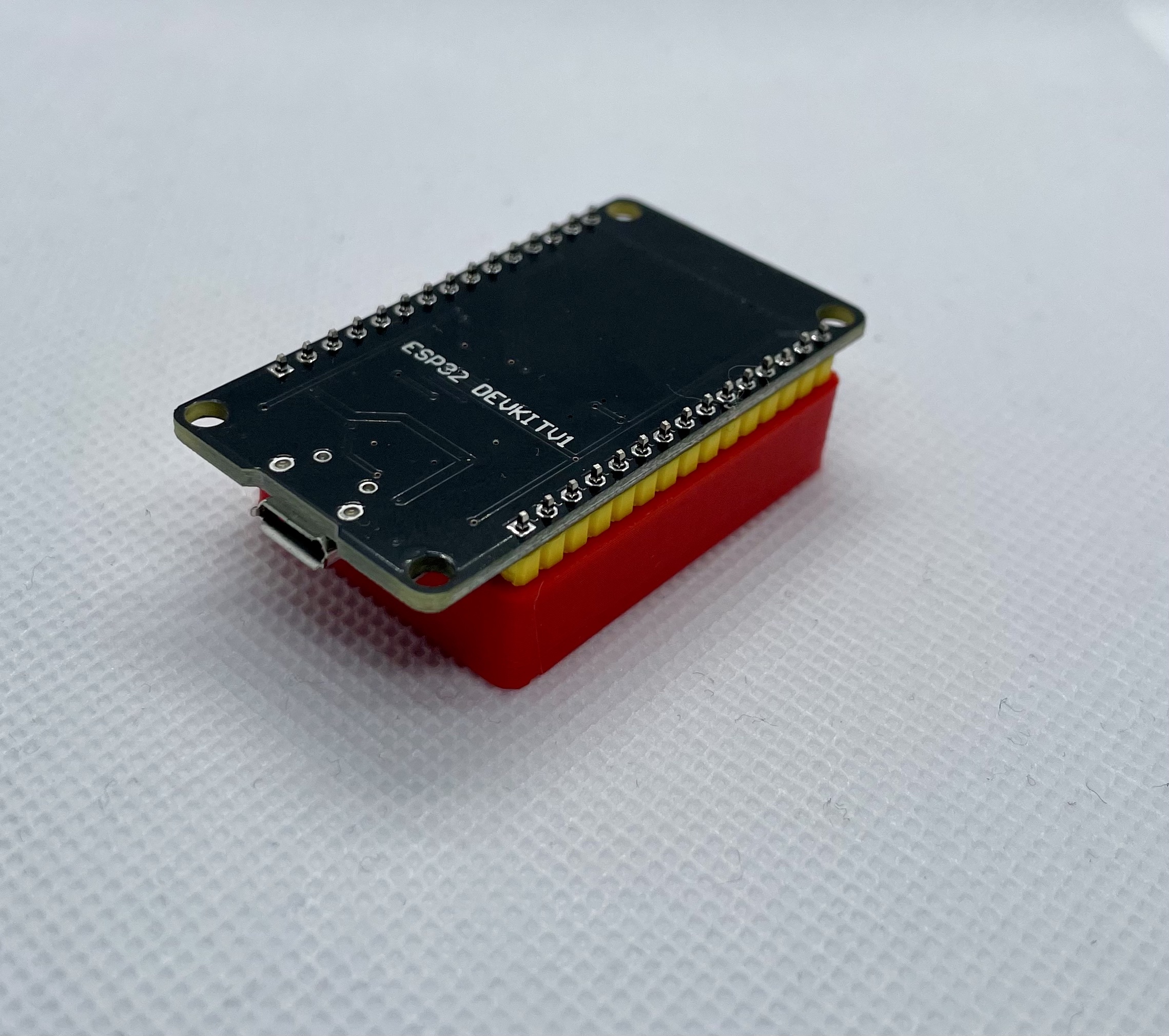

• Insert the Header: Place the pin header into the jig. Ensure it fits snugly and is aligned correctly. • Position the Esp32 DevKit v1: Carefully position your Esp32 DevKit v1 over the header pins. The Pico should sit flush with the jig. • Soldering: Begin by soldering the four corner pins, ensuring a steady pace without hurrying
Also check my Pico Soldering Jig: https://www.printables.com/model/739038-pico-soldering-jig
Please give me a like and make and my day!
Design and description by Loopodoopo , licensed CC0.
