ESP32 Max v1.0 Garage Door Housing w/Relay
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~72 g
- Express shipping
- $20
More information

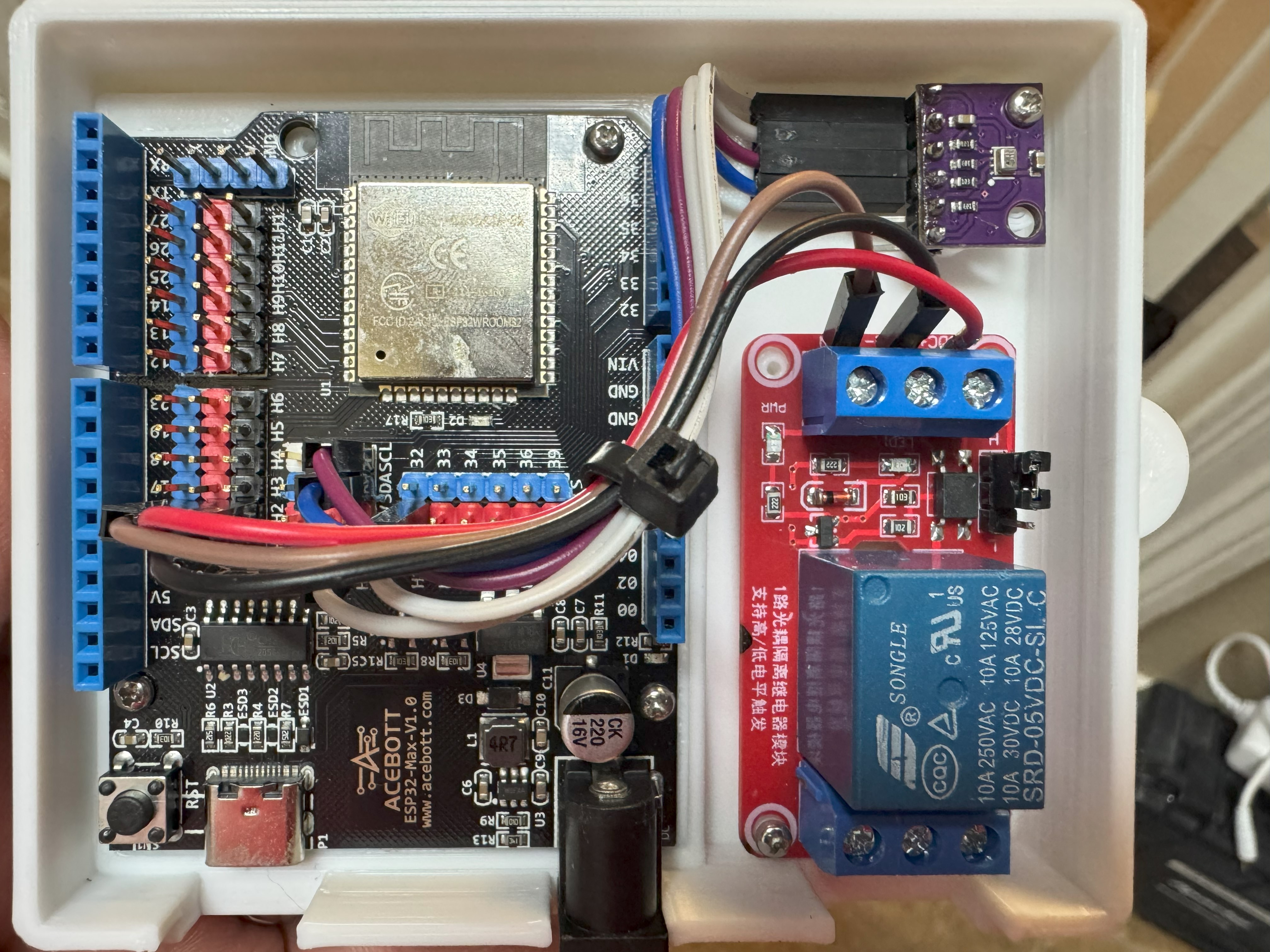

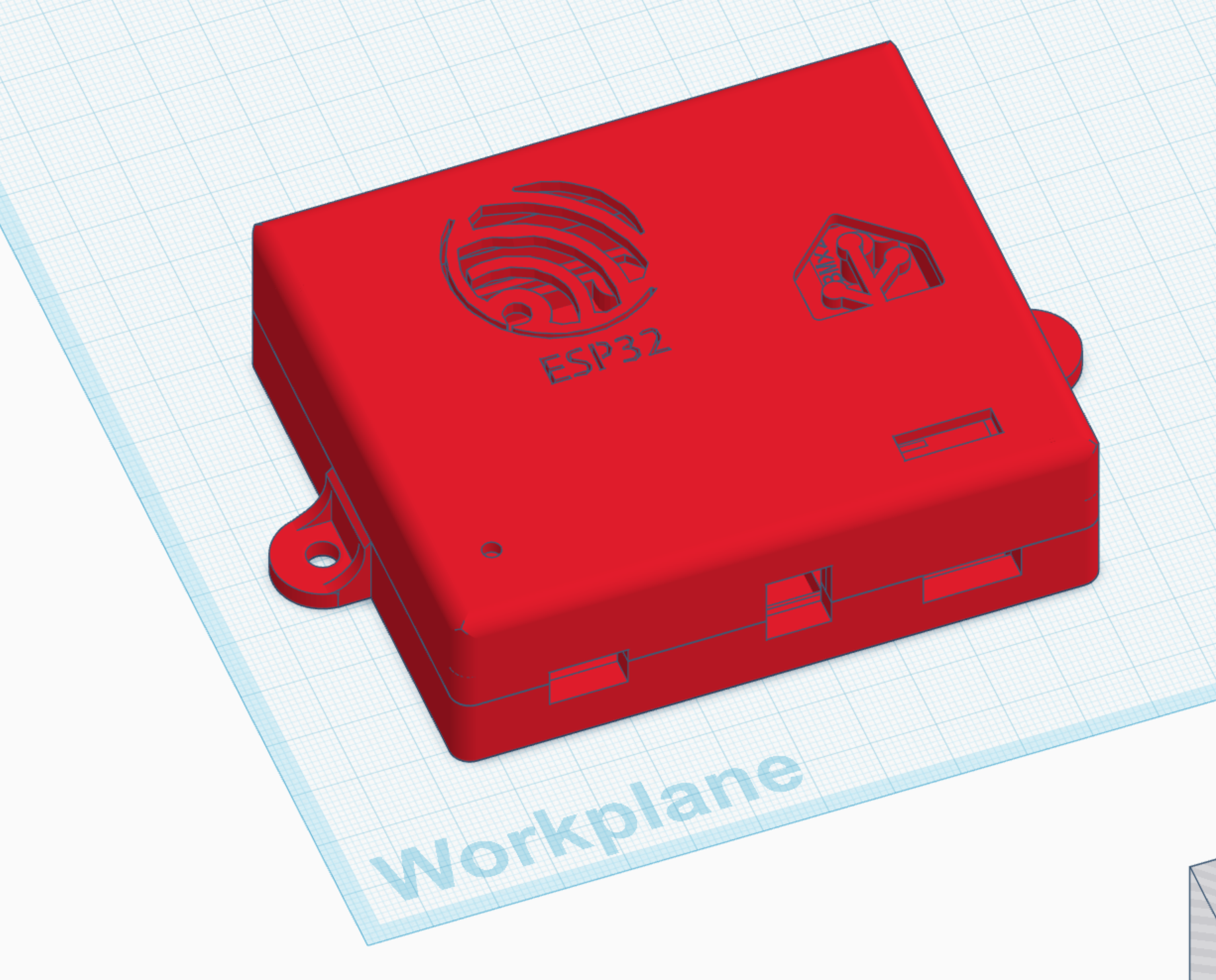

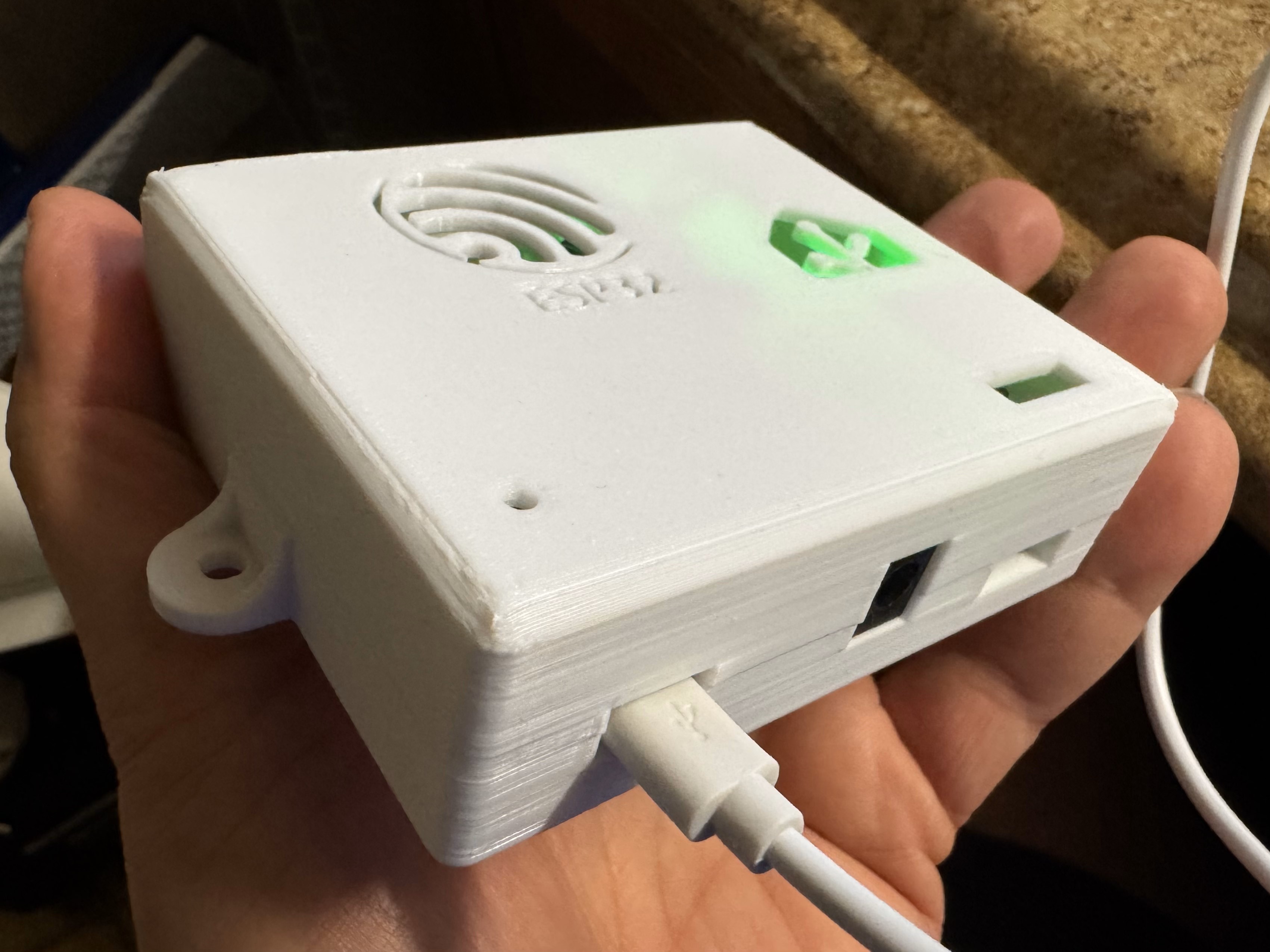

This is a basic box to mount an ESP32 Max v1.0 Development board (Arduino UNO Clone) with a single channel 5V relay and a BMP280 temperature sensor (should work w/BME280 as well) to interface with a garage door opener utilizing a momentary push switch/button terminal on the garage door operator/motor. Wiring is as simple two wire loop/circuit from the relay common and normally-open (most common) terminals. ESP32 can be flashed w/ESPHome to work w/HomeAssistant. Box lid is a friction fit to base. No hardware or glue required. Print flat on build plate, no supports required. Screws used to secure components were M2x5mm and standard breadboard jumper wires were utilized.
Links to items used below.
• ESP32 Max v1.0 Development Board • Single Channel 5VDC Relay • BMP280 Sensor • M2x5mm SS Self-Tapping Screws • Breadboard Jumper Wires
Design and description by TonyPTX , licensed CC-BY-SA.
More 3D printed garage door partsMore 3D printed soldering and electronics tools
Frequently asked
How long does shipping take?
ESP32 Max v1.0 Garage Door Housing w/Relay is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
