External bearing bottom bracket tool
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~16 g
- Express shipping
- $20
More information

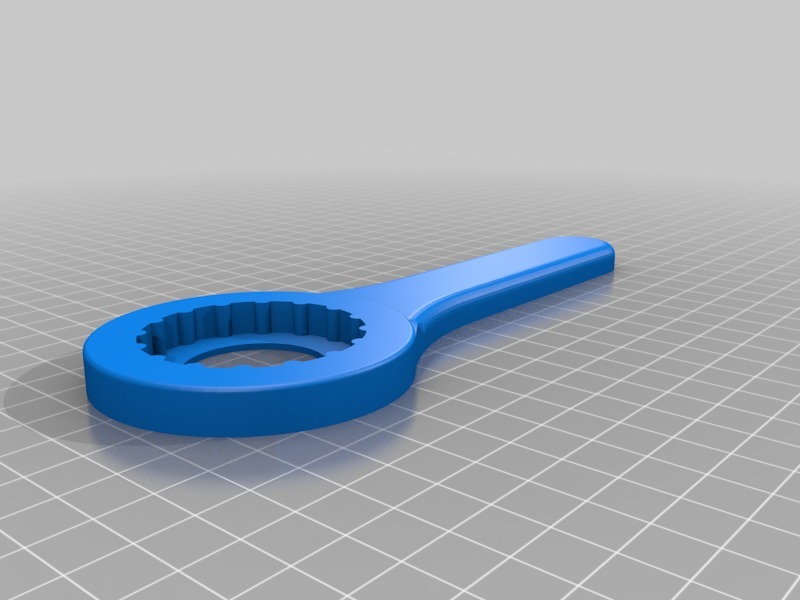

Modified FatGeekyMan's tool a bit to have more round corners. Also added a modifier part to add stiffness to teeth and handle while using a low density infill to reduce overall filament usage.

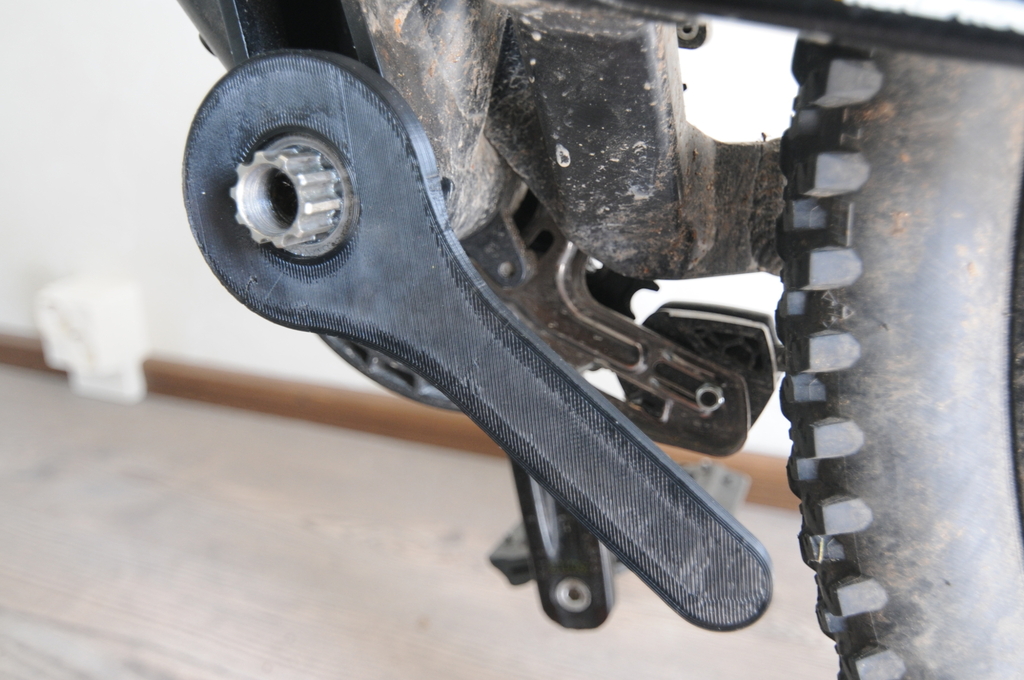

External bearing bottom bracket wrench compatible with:
• Shimano Hollowtech II
• Campagnolo Ulta-Torque and Power Torque
• Race Face
• FSA
• SRAM
• Truvativ
Slicing using Slic3r's modifier part feature: https://youtu.be/kdgvXvhe9ms
Instructions
Print using ABS or similar tough material.

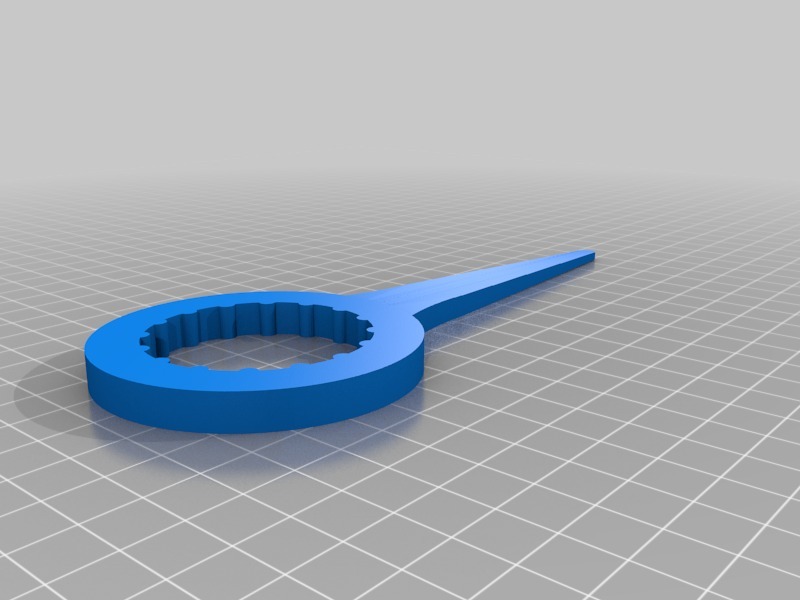

If you don't want to print the whole object with solid infill you can use the avvain_vahvistus_rev2.stl model as a modifier part to add stiffness to the inside of the model and to the teeth of the wrench.
Category: Hand Tools
Design and description by Jonni , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
External bearing bottom bracket tool is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
