Go Pro / Camera mount adapter - 2 and 3 prong

Go-Pro style camera mount attachment points. Should fit with standard 2 or 3 prong mounts commonly found on go-pro accessories. Slap one of these bad boys on your existing model, and then you can hook it up to most common camera mounts that use this style of attachment. Can swivel about 180 degrees (don't quote me I didn't measure it)

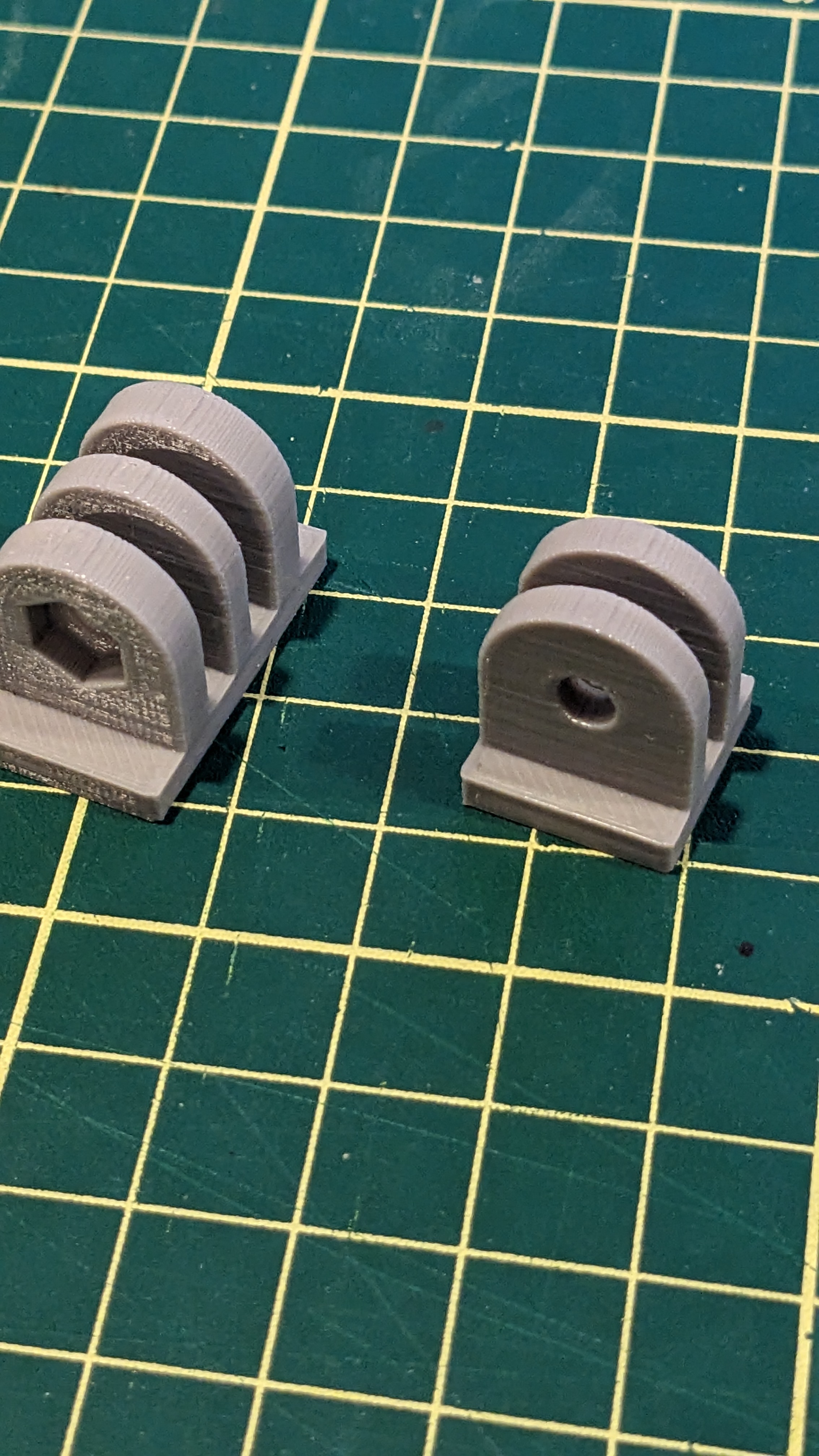

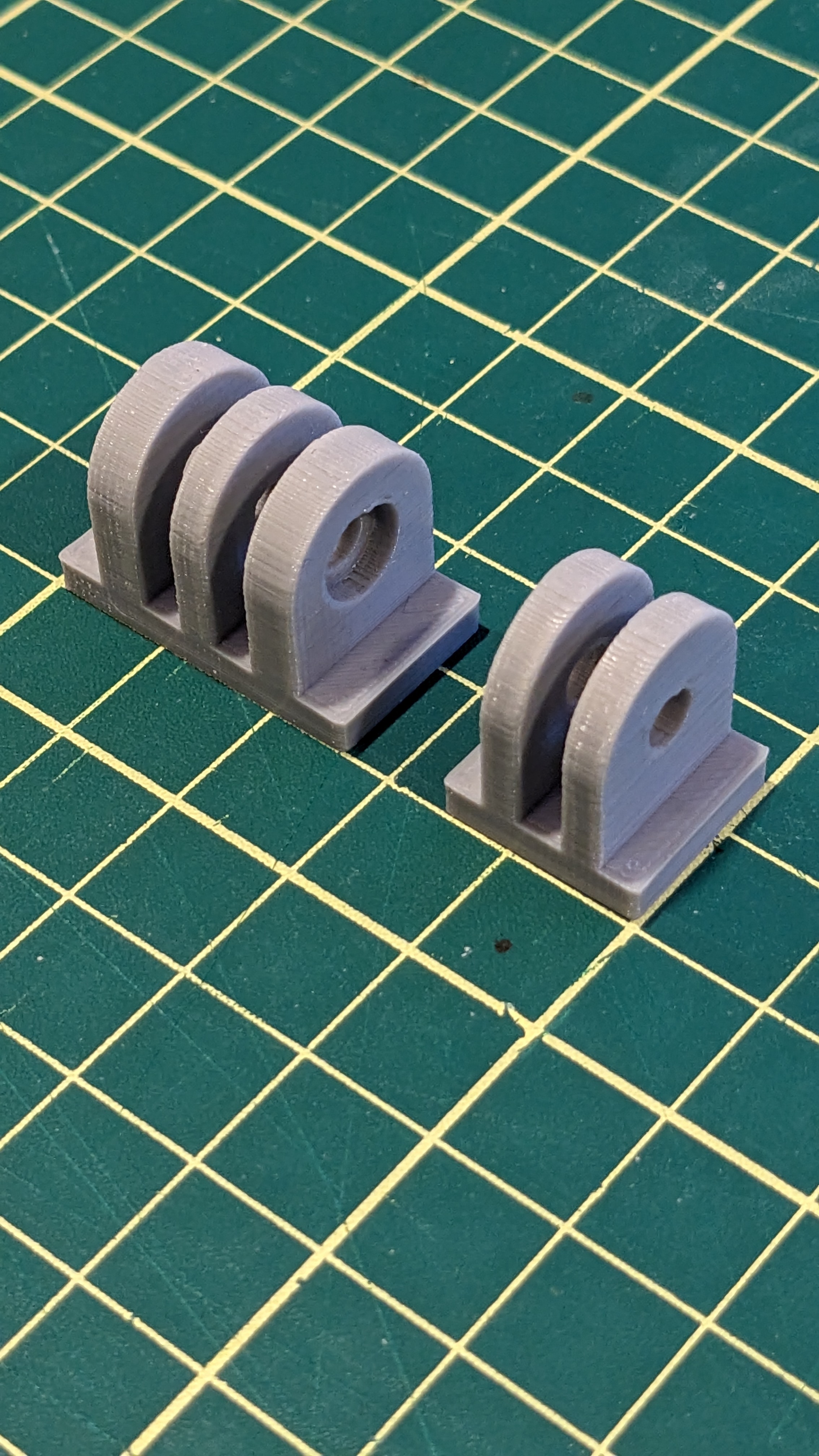

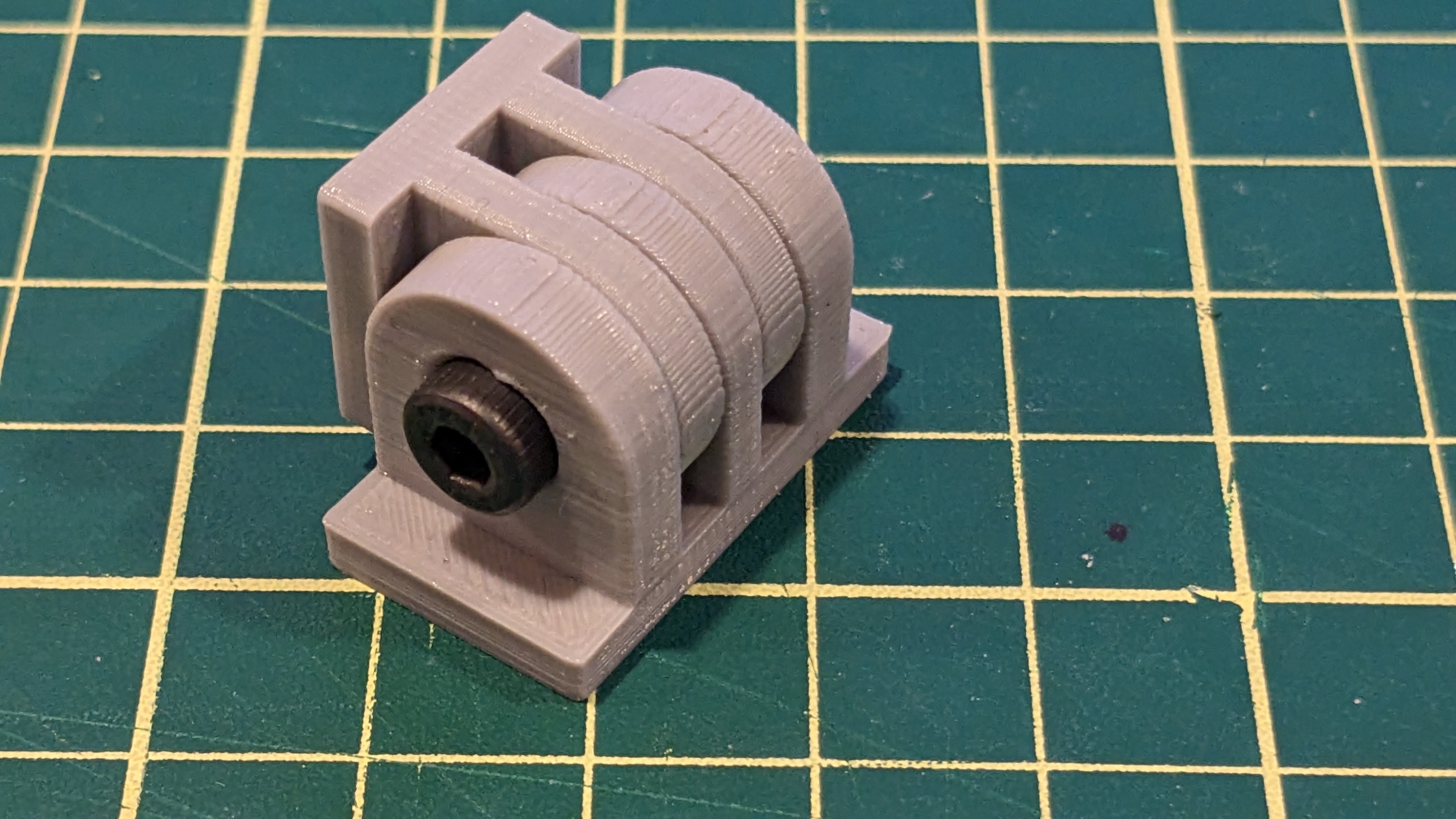

• Three-prong “outer” version has a footprint of about 26mm x 15mm and a height of about 18mm. • Center hole is 4mm diameter and should fit M4 bolts (machine screws? I dont know), an M4x20mm is about perfect - see pics. • Has an insert for a captive M4 nut • Has an insert hole for the head of a round M4 bolt. Because that's what I have at my workbench. • Thicker outer walls for extra strongness

• Two prong “inner” version is 15mm x 15.5mm x 18mm. • Same great 4mm center hole

• Test printed in both PLA and PETG with 0.4mm nozzle and 0.15mm layer height on an I3 MK3S+. • They stick to each other and stay in position very well when tightened together, and work well with the various commercially available mounts I have for my go-pro.

I originally made the 2 prong version for a custom adapter for a Reolink wall-mounted camera so I could mount it to a Go-Pro suction cup mount (see pics above). Figured I would upload them to hopefully save someone else the trouble.

This is slightly different than 99% of the similar models uploaded here because my intent with these are for you to create your own model and then import these attachment points and add them in during the design step. Then print the model with these adapters already included. These are not intended to be printed on their own and attached - though you could superglue them together or modify my models to fit your needs if you so choose.,

Design and description by jtav1 , licensed CC0.
