GoPro Equinox Clamp

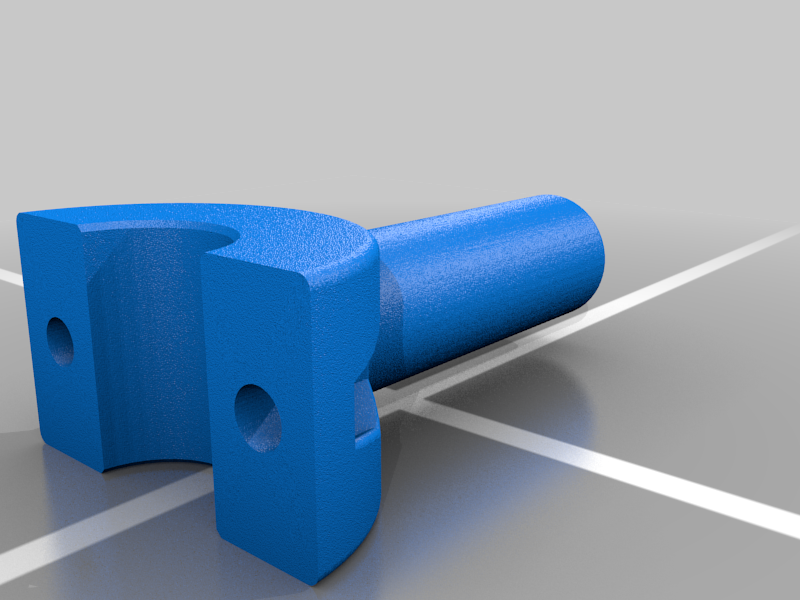

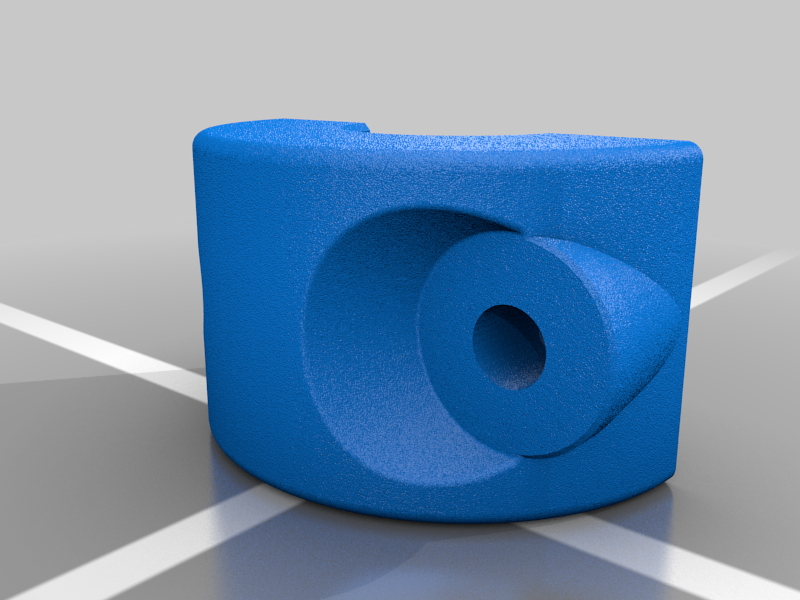

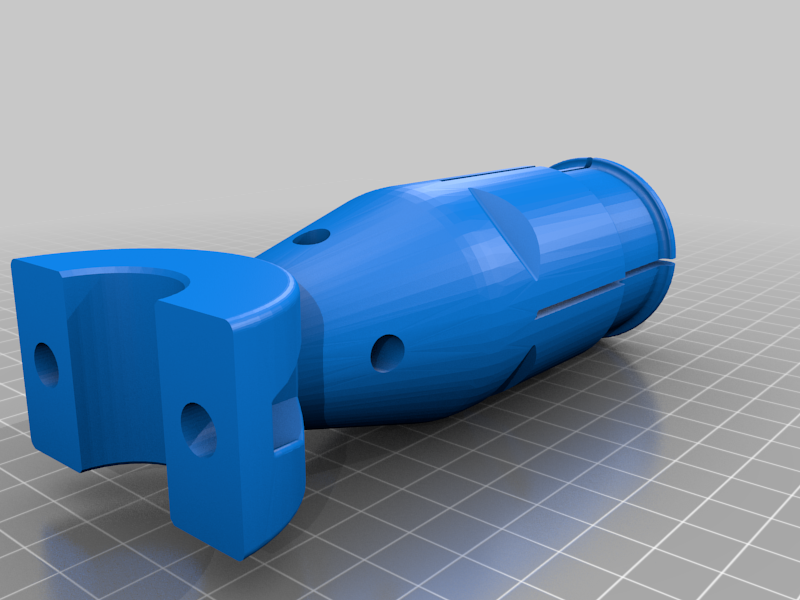

Here is a mount to hold a GoPro Camera, using the shorty tripod, to a Minelab Equinox 600/800 metal detector. I printed all the pieces from ABS but I'm sure PLA would have worked just fine and been more stable on my Ender 3.

This design allows the shorty tripod with GoPro camera to be easily dismounted in order to capture other shots, such as live digs or scenery. The camera can also remain on the handle of the metal detector and rotated to pick up other camera angles, such as selfies or live diggin!

A video can be found on YouTube of assembly and testing for reference.

Fasteners Used:

(3) Wing Nuts - 1/4-20 Thread

(3) Hex Head Screws - 1/4-20 x 1.25 inches long

(2) Nylon Insert Locking Nuts - 1/4-20 Thread

(2) Socket Head Screws - 1/4-20 x 1.00 inch long

The mounts could also be used for bike handlebars or whatever they fit, possibilities are endless.

Hope you enjoy, happy treasure hunting!

Let me know how it works for you.

Be sure to Subscribe to Sanford Prime on YouTube for more videos of different creations.

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Resolution:

0.2mm

Infill:

30% Gyroid

Filament: Overture ABS Black

Notes

Gluestick was used on the ender 3 print bed to help with adhesion along with a Brim to help with holding down and warping.

Designed Using Solidworks

Category: Camera

Design and description by Sanford Prime , licensed CC-BY.
