Gridfinity 2x4x4U Deburring Tool Case ( only 6x2 magnets )
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~40 g
- Print time
- ~2.2 h
- Express shipping
- $20
More information

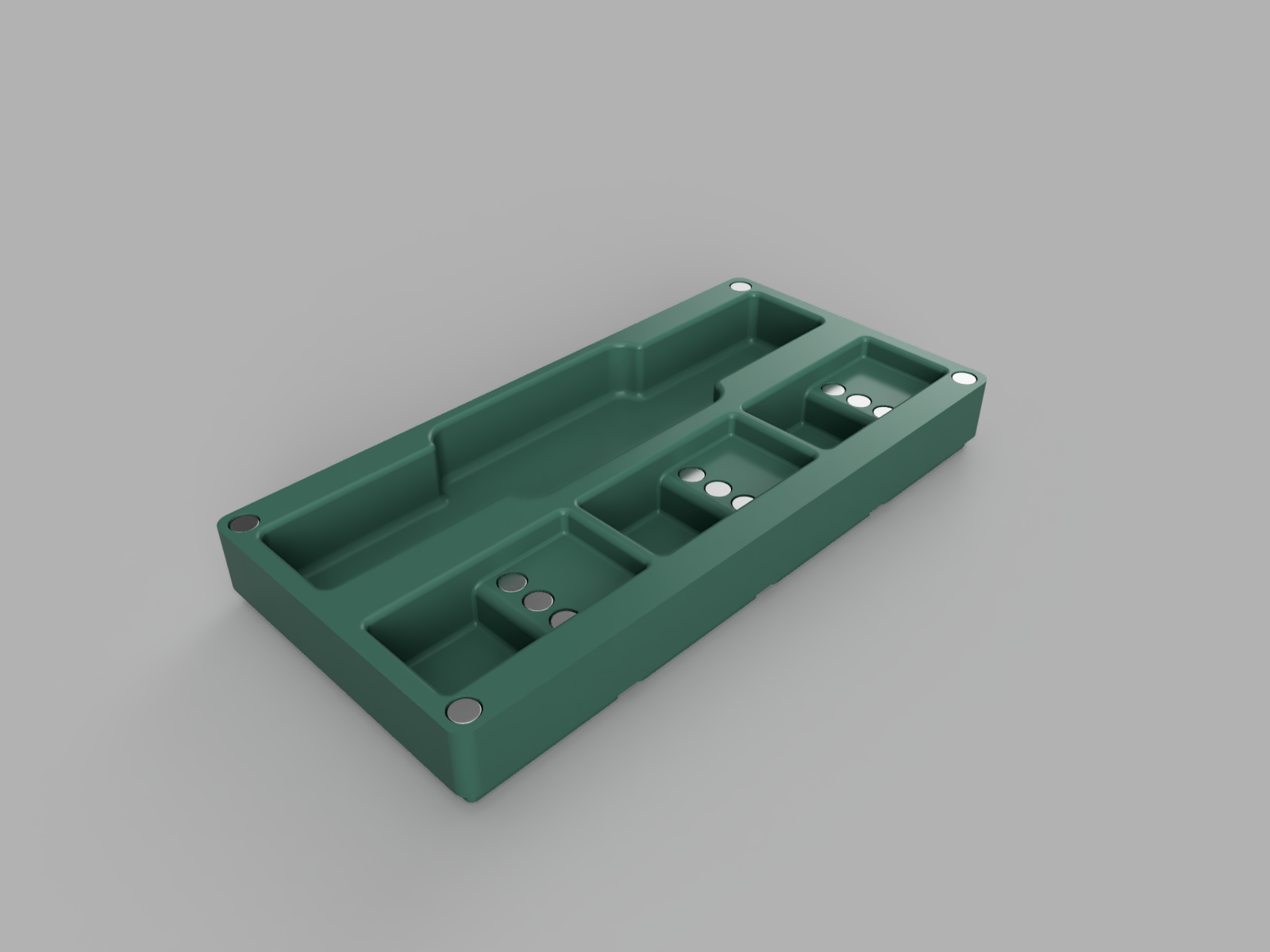

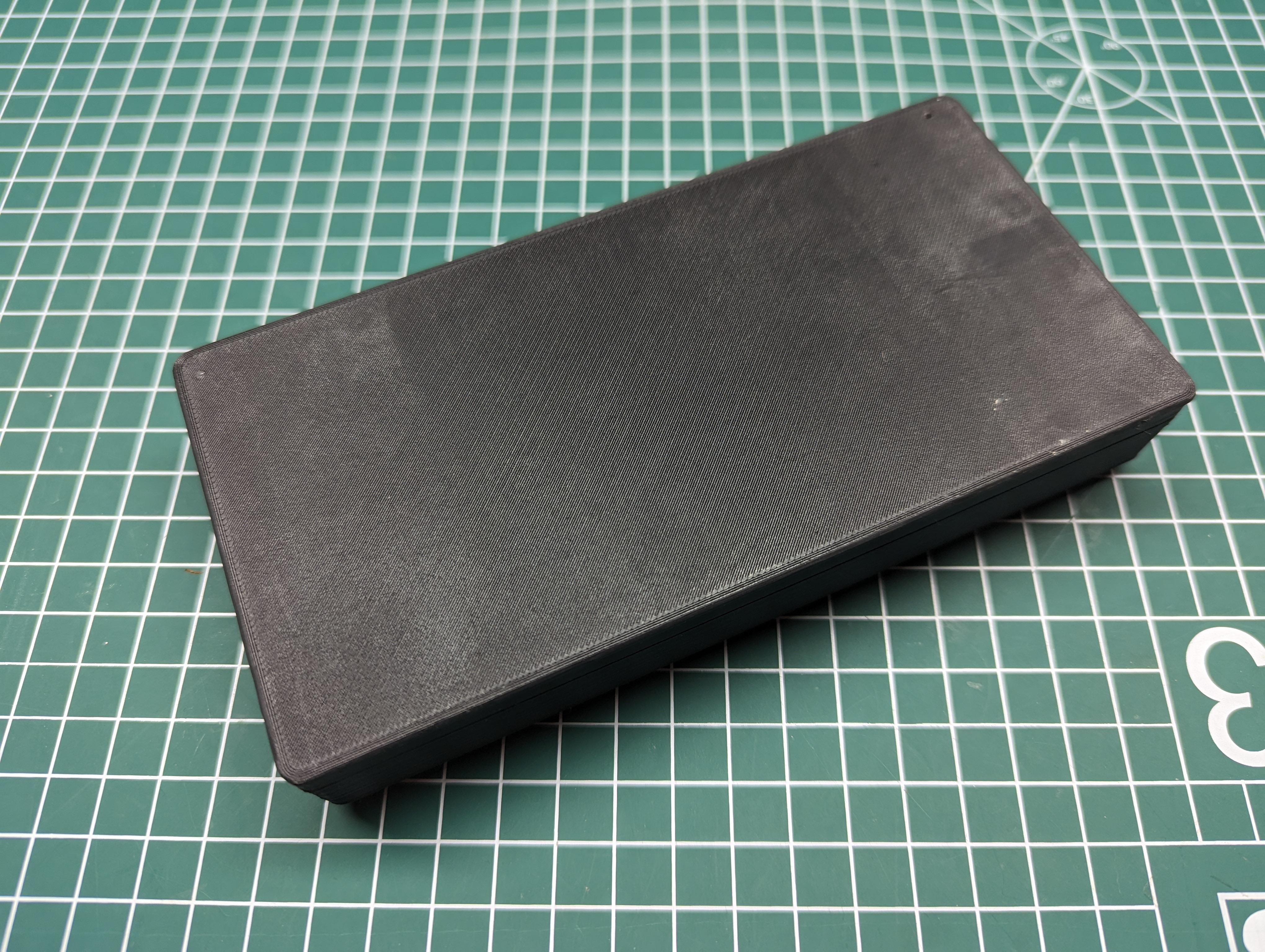

I have made a simple case for my deburring tool that fits with the gridfinity system. I designed this so that it only uses the standard 6x2 magnets. the magnets are not the strongest but they hold on tight enough. The magnets need to be glued.
some specs.
• case size: 2x4x4U ( 83.5 x 167.5 x 28 mm) • inner tool hole size: 25 x 157.5 x 21 mm • magnet holes are 6.5 x 2.3 mm • 17 magnets total ( bin + lid ) • holds 9 reserve tools (probably more but did not tested magnet strength with this) • printed at 0.2 mm but you can choose for yours • no supports needed

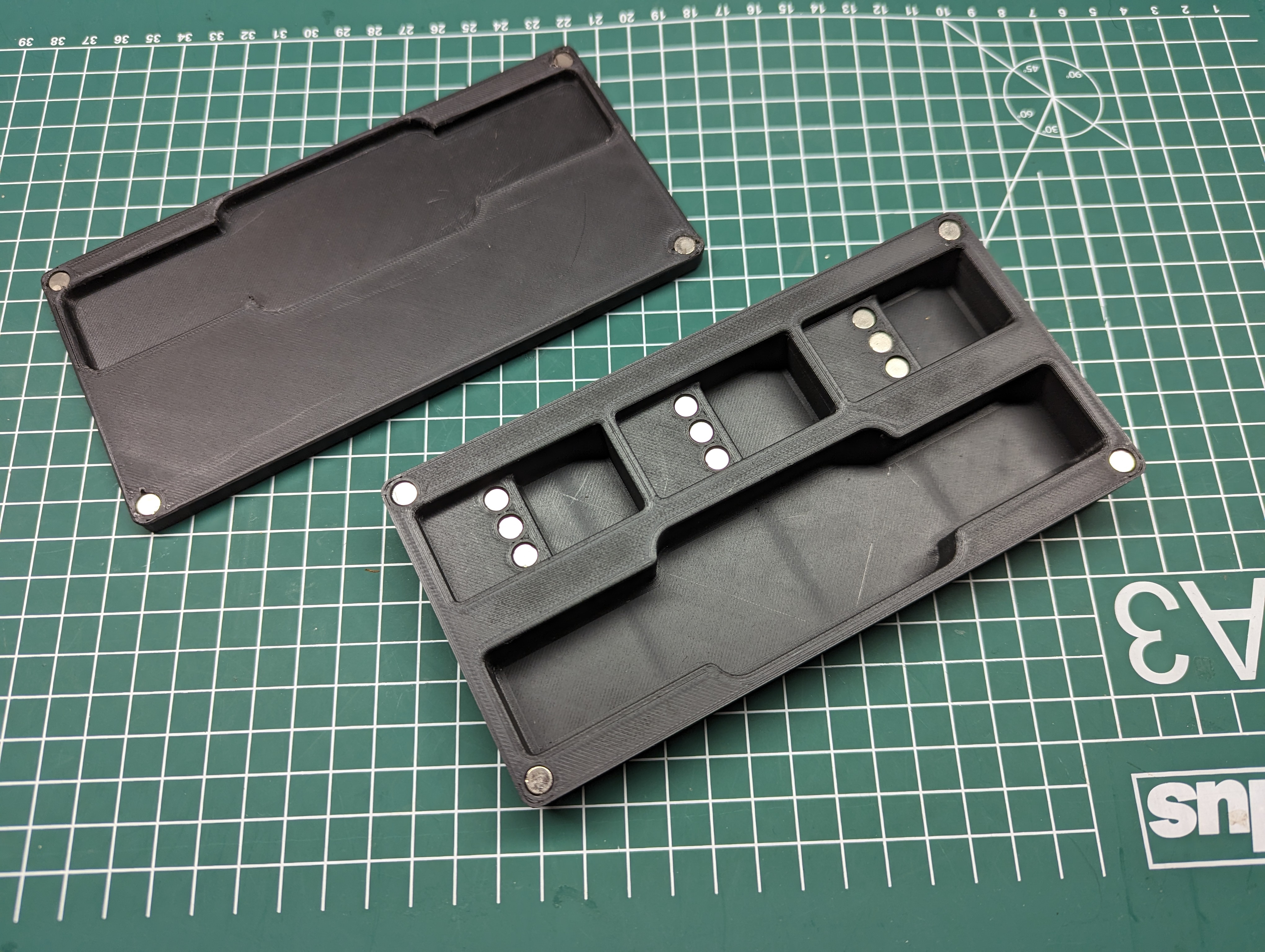

Don't mind the holes in the lid on the pictures. I glued the magnets wrong the first time. So don't make the same mistakes as me, make sure the polarity of the magnets are right.
Design and description by NordicWalker , licensed CC-BY-SA.
Frequently asked
How long does shipping take?
Gridfinity 2x4x4U Deburring Tool Case ( only 6x2 magnets ) is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
