Gridfinity Rugged Box - Refined
- Arrives in 2 to 7 business days Printed in Auckland. $10 shipping, free over $75
- 14-day faulty refund If it arrives broken or misprinted, we reprint or refund it
- Secure checkout Card payments handled by Stripe
- Material
- High-Detail Resin (8K)
- Colour
- Grey
- Weight
- ~62 g
- Print time
- ~3.4 h
- Express shipping
- $20
More information
I really like the little 1x1 case by @ftobler and printed a bunch of them. However, I couldn't resist making a few of my own tweaks to the design.

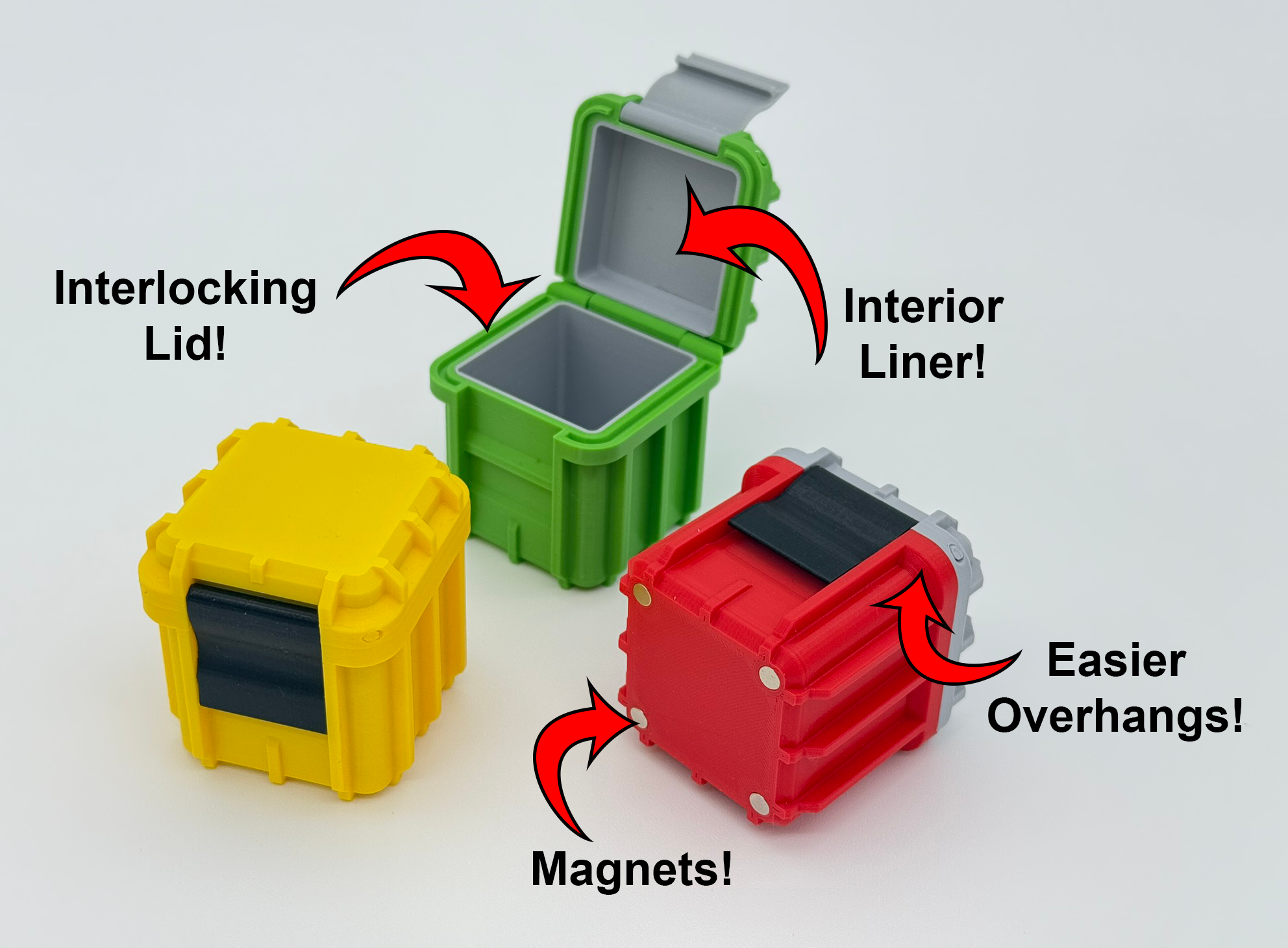

• Easier Overhangs - The original model has pretty shallow overhangs on the corners that can be tricky to print. I made them steeper. • Magnets - I added holes at the bottom for 4x2mm magnets. These are intended to be a snug press fit. They have the same spacing as standard Gridfinity so they should work with any magnetic base. • Interlocking Lid - I added a lip to the top of the case and lid that interlocks when closed. • Interior Liner - A thin liner that can be printed separately in a different color.

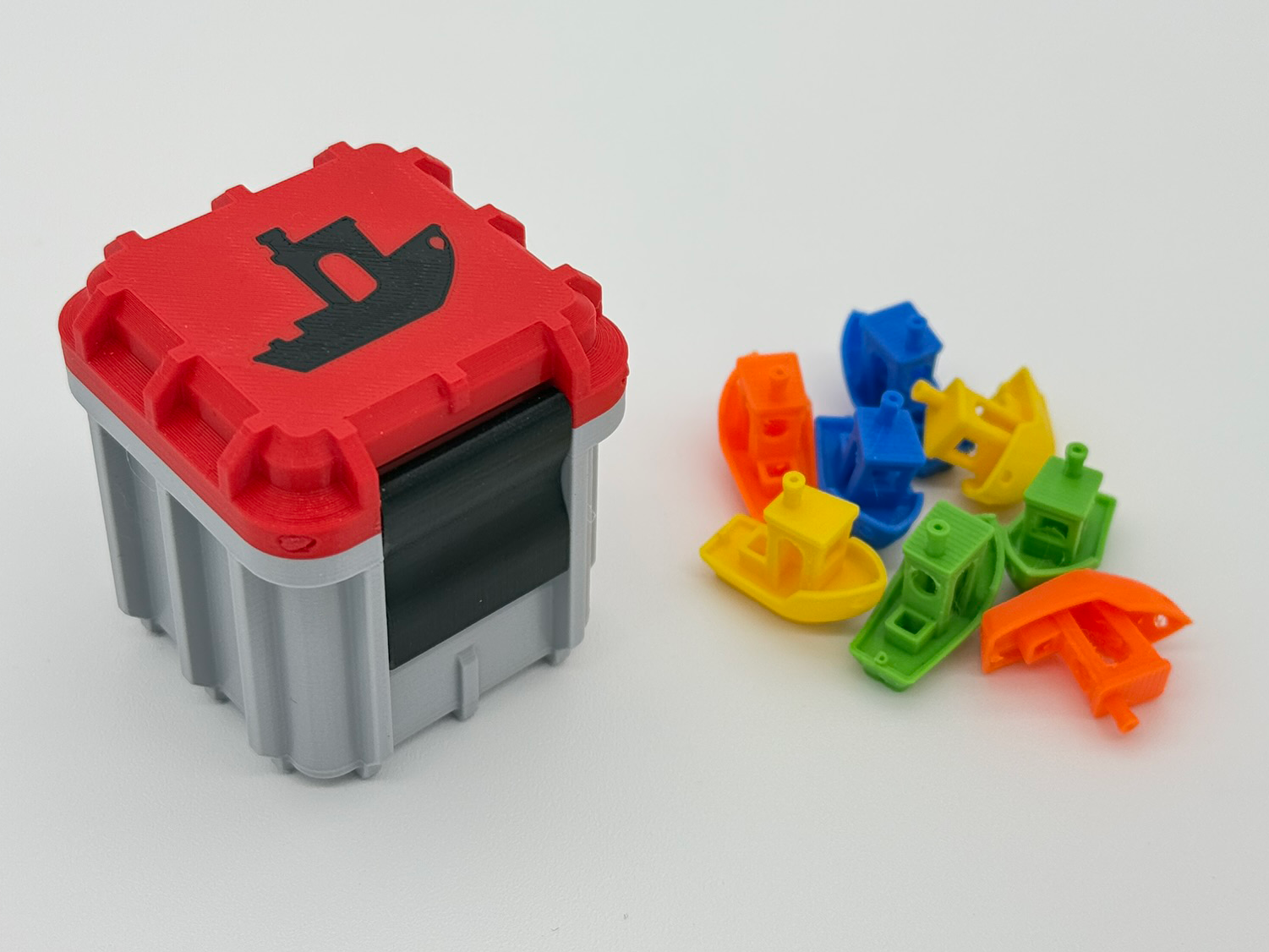

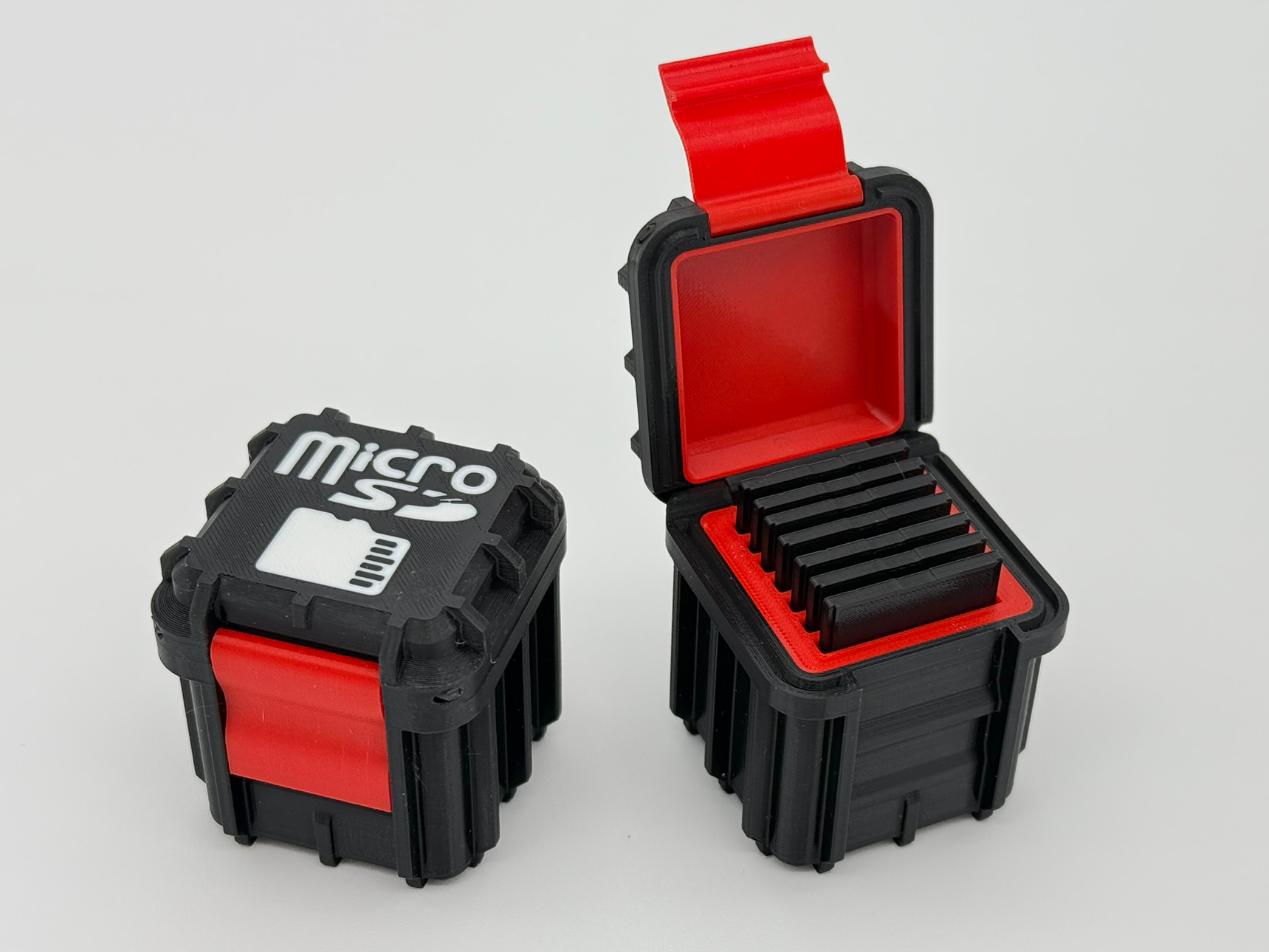

In addition I also made a few customized cases for SD cards, Micro SD cards, and mini 3DBenchys. The dual color lids are made using SVG files as modifiers.
I also wanted a heavier weighted base for these, so I made a 2x3 and 3x4 version. These are designed for 0.5oz wheel weights, don't forget to add a pause to insert them!
Printing Tips
Everything should print fine with a 0.4mm nozzle, but I opted to use a 0.25mm for the crispest possible details. I recommend printing everything with PLA, except for the Latch Spring which should be PETG (I believe it will last longer). A piece of filament is used as a hinge pin for both the lid and the latch. I recommend putting a longer piece in and trimming to length with flush cutters.
Design and description by Kevin Barker , licensed CC-BY.
Frequently asked
How long does shipping take?
Gridfinity Rugged Box - Refined is printed to order. Lead time is typically 1-3 business days plus 1-4 days NZ shipping. Standard NZ shipping is $10, free over $75.
What material is this printed in?
By default this is printed in High-Detail Resin (8K) at 0.025 mm layer height on an MSLA resin printer. Custom material and colour swaps are available, just leave a note at checkout.
Can I get this in a different colour?
Yes. Every product can be printed in any of the resin colours we stock, or hand-painted on request. Leave a note at checkout or email [email protected].
Do you ship outside of New Zealand?
Currently New Zealand only. Australian shipping is coming.
Who designed this?
Designed by an independent sculptor and licensed for commercial printing. The original is linked on this page.
